Factory Price DH670 71*60 2.5 Accuracy DC0-30A Analog Panel Ampere Meter





-Introduction:

This series of meters are direct imitation of power measurement display instruments, measuring DC current and voltage, AC current and voltage, frequency, power factor, phase sequence, power, synchronization instructions and other non-power measurements. It has been widely used in a variety of AC and DC transmission and distribution systems, power chemical flameproof and other electrical devices, in the industries of maritime shipping, rail transport, equipment, etc. Being able to make electrical measurement and non-power measurement, it is a high-end instrument applied in general environmental conditions.

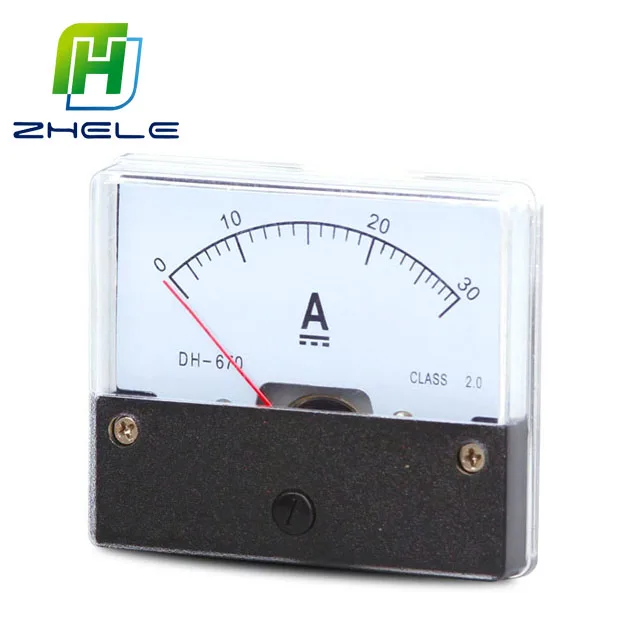

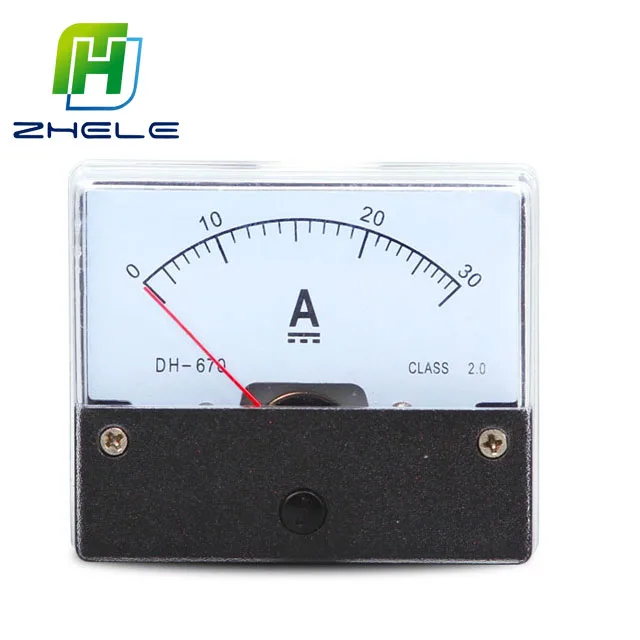

-Front Show:



-Product Feature:

1. Shell: All of the flame retardant materials are used in injection molding,

     and the temperature resistance is above 80 degrees.

2. Installation method: Embedded installation type, through the nut, safe and firm.

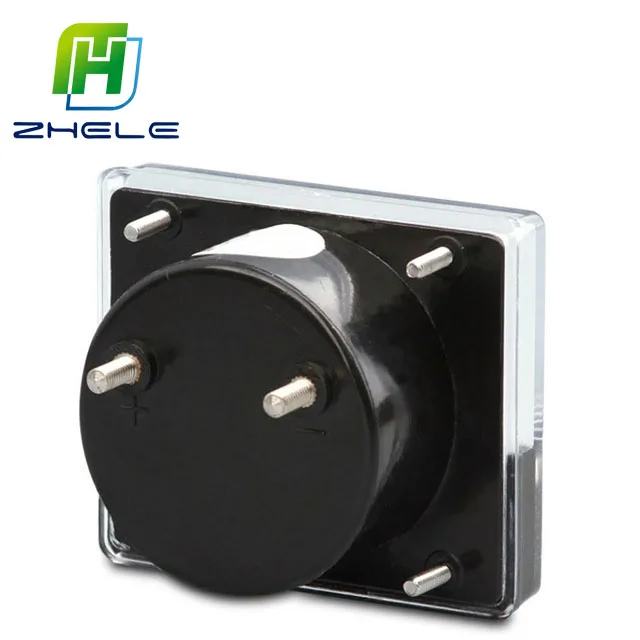

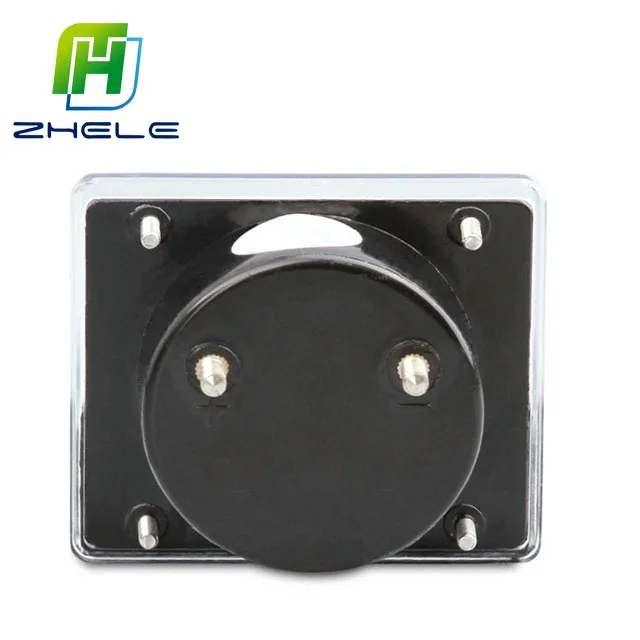

-Back Show



- Specification:

Name		Precision	Normal specification	Remark
AC ammeter	A	1.5	0.5-50A	can be directly connected
	A	1.5	10/5A-800/5A	secondary current passed by current transformer
	KA	1.5	1KA-10KA	secondary current passed by current transformer
AC voltmeter	V	1.5	10V-600V	can be directly connected
	KV	1.5	1KV-35KV	100V secondary voltage passed by voltage transformer
DC ammeter	µA mA	2.5	50μA-500μA 1mA-500mA	can be directly connected
	A	1.5	1A-15A	can be directly connected
	A	1.5	15A-750A	outer attached shunt 75mV 60mV 50mV
	KA	1.5	1KA-3KA	outer attached shunt 75mV 60mV 50mV
DC voltmeter	V	1.5	3V-600V	can be directly connected
	KV	1.5	1KV-3KV	outer attached resistance value
Hz meter	Hz	2.5	45-55HZ 55-65HZ	36V.100V.127V.220V.380V
Power meter	KW.VAR	2.5	100V 380V 380-380KV	100V secondary voltage passed by voltage ; Secondary current passed by current transformer 5-10KA/5A
Cosφ meter	cosφ	2.5	COSφ =0.5-1-0.5	100V/5A 220V/5A 380V/5A





- Dimension:



Attn: This model is 71.5*60 mm Size, if u need others, pls contact me, thanks!



- Wiring Diagram:
