2W250 25H 220V AC Brass Water1" Inch NO Solenoid Valve
- Category: Diaphragm Valves >>>
- Supplier: Ningbo Hewcho Machinery Co. Ltd.
Share on (62106979428):
Product Overview
Description
Product Information

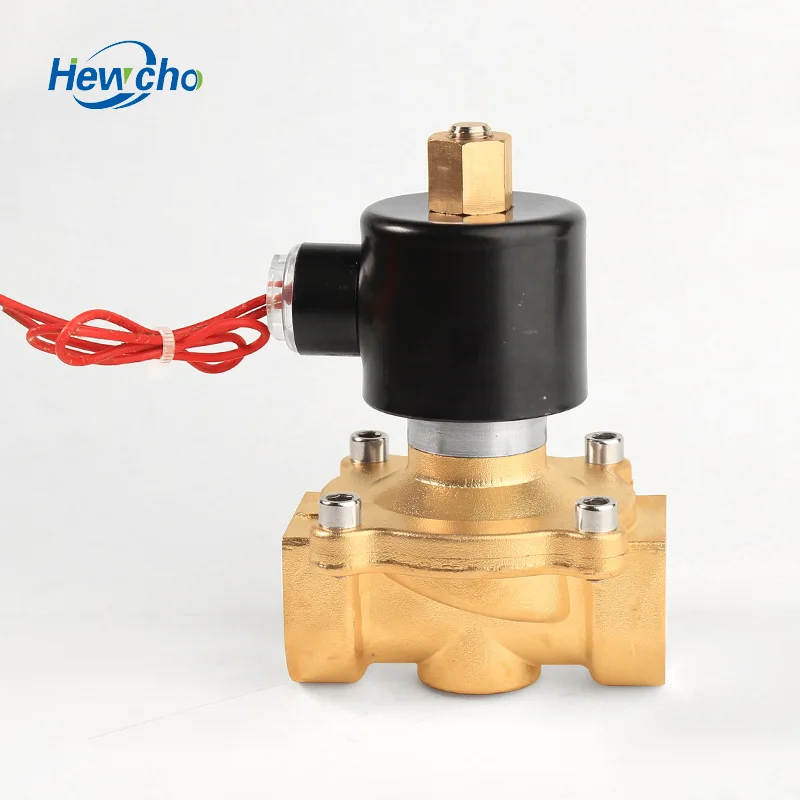

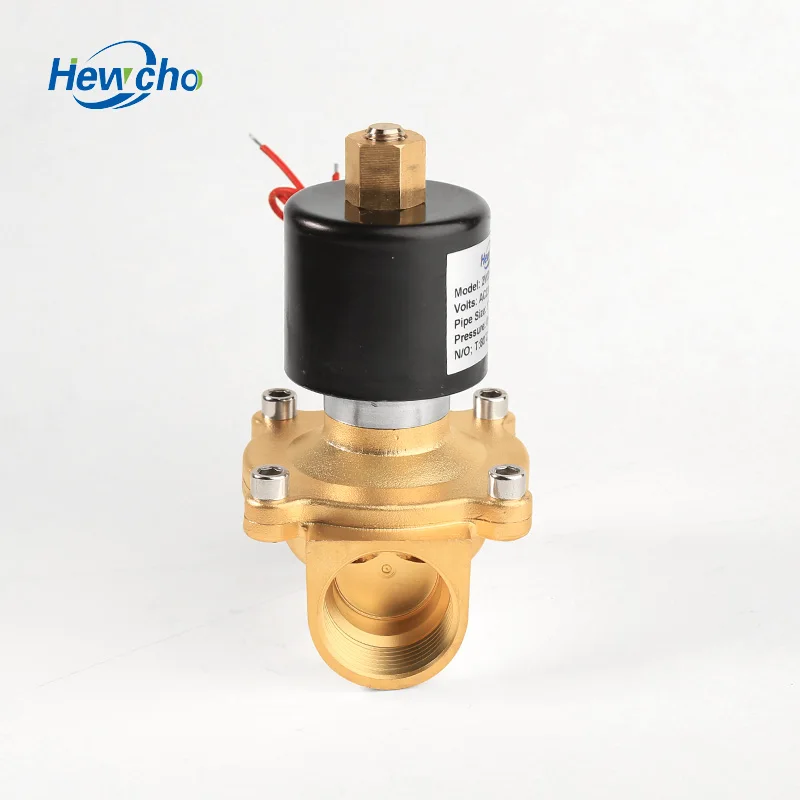

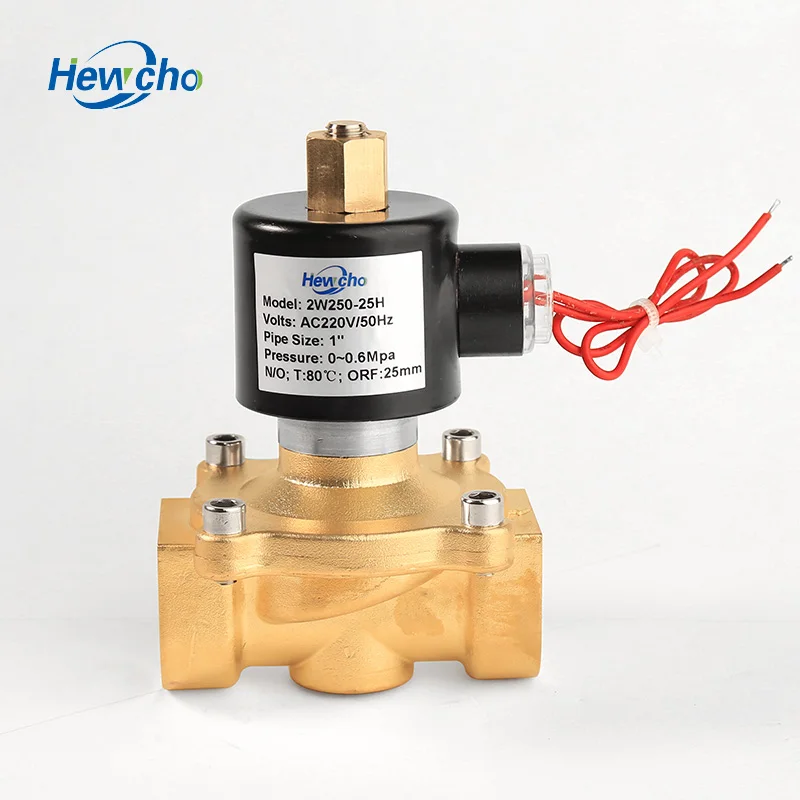

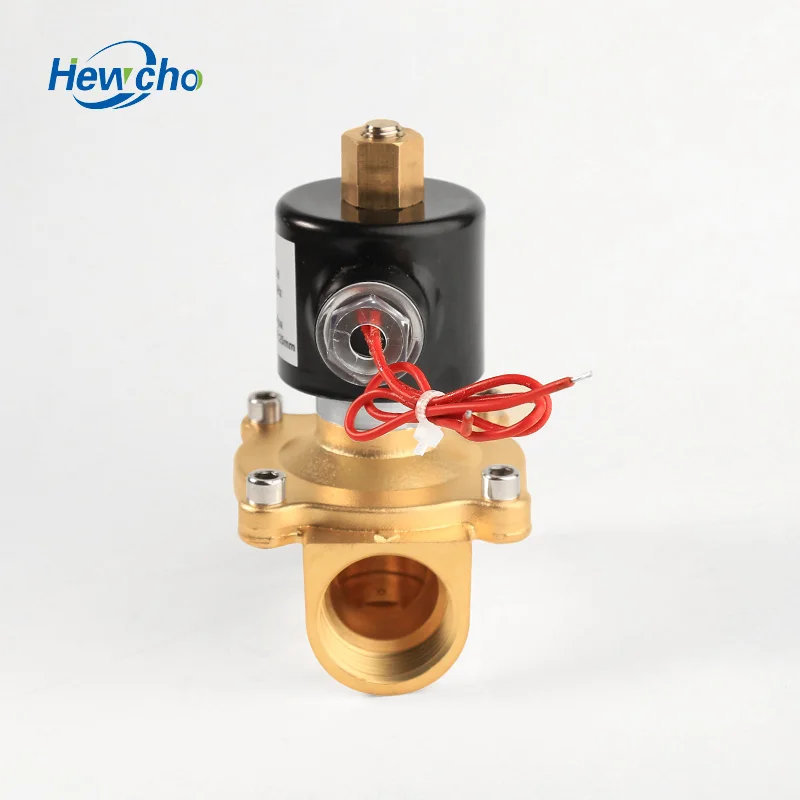

2W250-25H 220V AC Brass Water1" Inch NO Solenoid Valve
Product Description
1" Solenoid Valve Direct Acting 220v AC Normally Open
| 2W250-25H | Pressure:0-0.6Mpa |
| Material:Brass | Temperature:-5-80℃ |
| Coil Material:Copper | Voltage:AC220V, AC110V(50Hz/60Hz) |
| Medium:Water, Gas, Air, Fluid | DC12V,DC24V |
| Type:Normally Closed | Sealing:NBR,EPDM,FKM |
1" Solenoid Valve Direct Acting 220v AC Normally Open

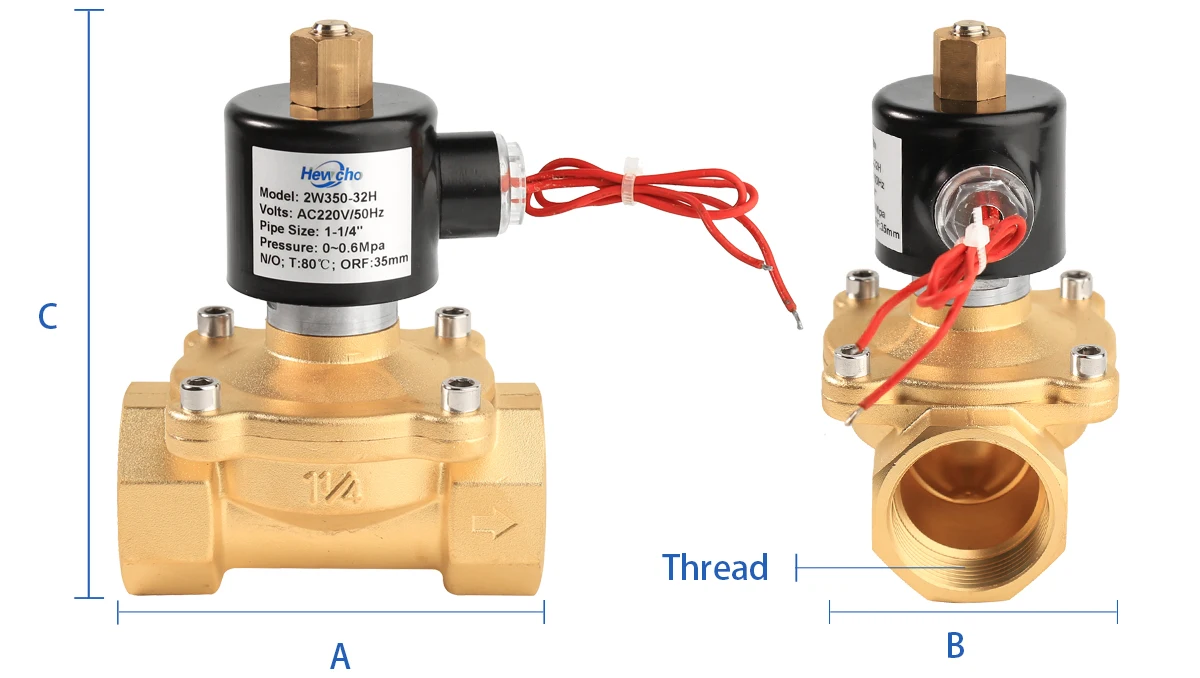

| Solenoid Valve Size Chart(mm) | |||||||
| Valve NO. | Orifice | CV | A | B | C | Thread | Weight(kg) |
| 2W160-10H | 10 | 4.8 | 63 | 56 | 110 | 3/8" | 0.7 |
| 2W160-15H | 15 | 4.8 | 63 | 56 | 110 | 1/2" |
0.69 |
| 2W200-20H | 20 | 7.6 | 66 | 56 | 115 | 3/4" | 0.7 |
| 2W250-25H | 25 | 12 | 90 | 72 | 124 | 1" | 0.95 |
| 2W320-32H | 35 | 24 | 109 | 88 | 162 | 1 1/4" | 1.2 |
| 2W400-40H | 40 | 29 | 109 | 88 | 162 | 1 1/2" | 1.5 |
| 2W500-50H | 50 | 48 | 135 | 95 | 180 | 2" | 2.0 |
Description
2W250-25H 220V AC Brass Water1" Inch NO Solenoid Valve. It's two way two position direct acting diaphragm electric solenoid valve with available voltage AC220V, AV110V, DC24V and DC12V. It can be used for liquid , air, water, gas in a variety of different applications. This valve uses NBR or Viton seal material that is compatible with many liquid such as water up to 80°C. The valve is normally open, open when de-energized and closed when energized. It is capable of operating at zero differential pressure. This compact solenoid features with female BSP thread or NPT thread.

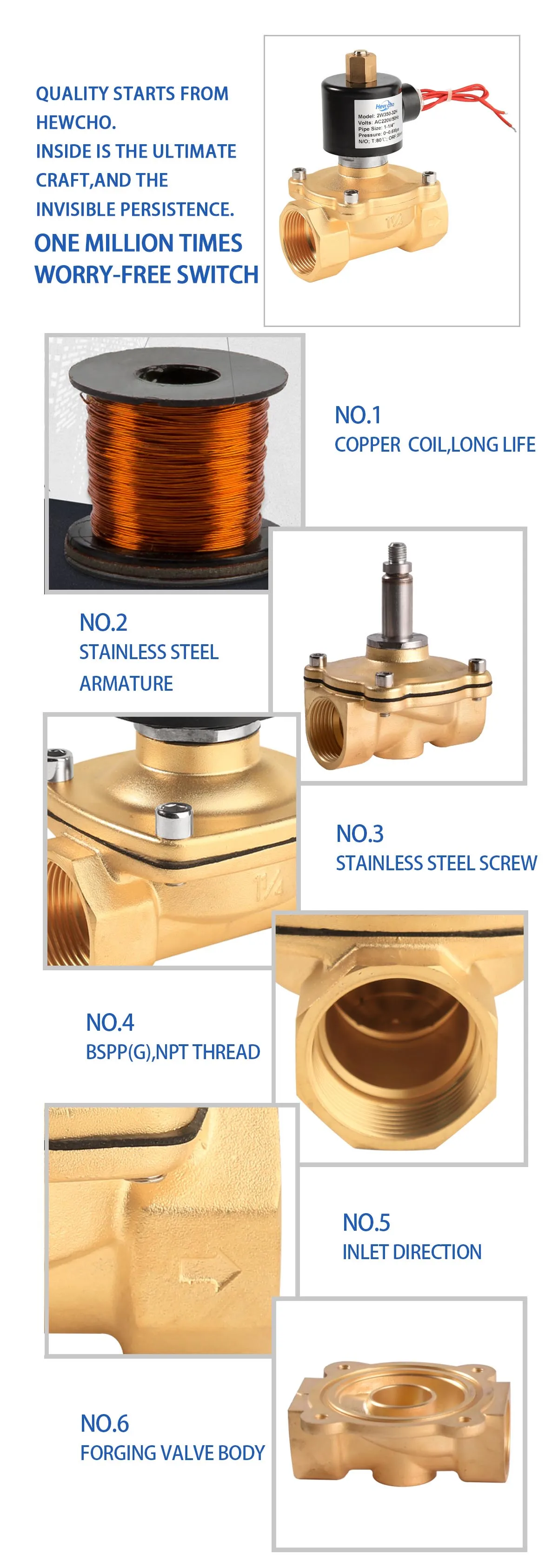

2W250-25H 220V AC Brass Water1" Inch NO Solenoid Valve has four coil with voltage AC220V, AV110V, DC24V and DC12V. The coil head is fitted with a DIN connection that can easily be connected with your own choice of terminals. This model is mountable in any position and features a conveniently positioned arrow on the body to indicate the direction of flow. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.
Non-applicable fluid
When the temperature is high, it is liquid, and solid when cooled; Corrsive Fluid; Fluid above 20 cst concentration.
Attention
The impurities in the line must be cleaned first before installation. In order to prolong service life, Y filter should be installed on the front end of solenoid valve.
