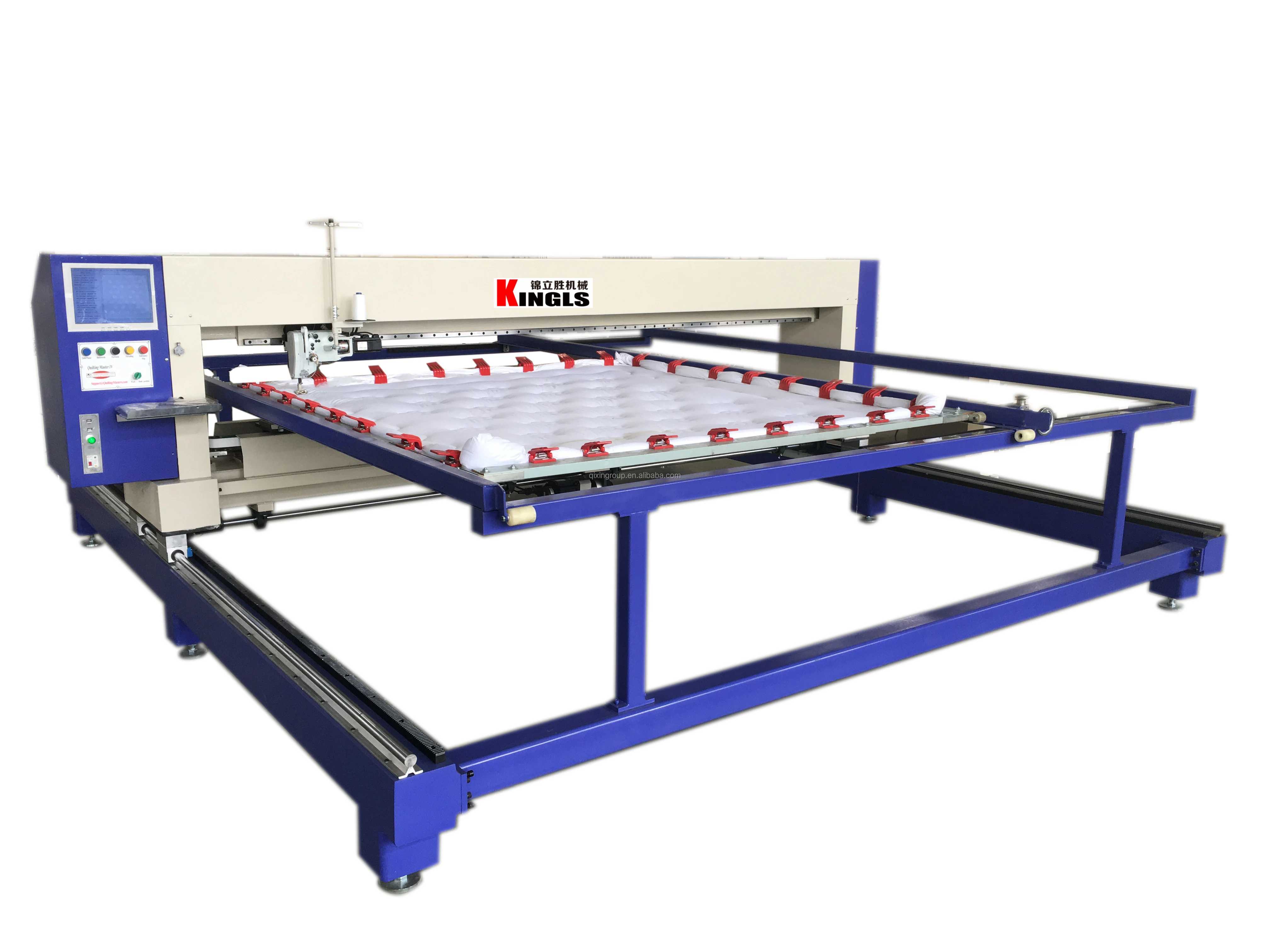

KLS26GS high speed computerized single needle quilting machine
KLS26GS high speed computerized single needle quilting machine
KLS26GS high speed computerized single needle quilting machine
KLS26GS high speed computerized single needle quilting machine
KLS26GS high speed computerized single needle quilting machine
KLS26GS high speed computerized single needle quilting machine
KLS26GS high speed computerized single needle quilting machine

KLS26GS high speed computerized single needle quilting machine

Share on (62108525408):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

1.Main body move in Y direction.will use less floor space.

Adopt the imported linear guider, sewing head moving with high efficiency but lower vibration noise.


2.Max sewing speed is 3000rpm.improve working efficiency 20-25%.\t\t\t\t\t\t\t\t

3.Easy worn parts of sewing head free of oil, good for machine maintenance.\t\t\t\t\t\t\t\t

4.Auto adjust the hook position will stock in computer memory. \t\t\t\t\t\t\t\t

5.Configuration auto trimming and lubrication.\t\t\t\t\t\t\t\t

6.Industrial computer update, system more stable.\t\t\t\t\t\t\t\t

7.Main axis adopt the electronic system, X and Y direction adopt the stepper drive system.\t\t\t\t\t\t\t\t

8.Using new industrial control board,USB flash disk will be useful to reset or coy the designs in software,\t\t\t\t\t\t\t\t

9.Sewing head provide the moving pressure equipment,quilting process will be stable and smoothly. Adopt Single head,single needle,lock stitch and big rotary hook.\t\t\t\t\t\t\t\t

10.Upper thread detection is available , machine will auto stop when its open.Press F3 of keyboard could open or close this function.\t\t\t\t\t\t\t\t

11.It has more than 200 different kinds of designs in stock ,Customer could copy the design from USB flash disk.\t\t\t\t\t\t\t\t

12.Through pattern management,could check ,copy or delete the pattern.\t\t\t\t\t\t\t\t

13.It has pattern browse function.could read dst,dat,emb etc design format,could rotate and mirror the pattern.\t\t\t\t\t\t\t\t

14.It has the count quantity and clear function.could count the output very easy.\t\t\t\t\t\t\t\t

15.It could quilting forward or backward.and setting the lockstitck needle stitch length.\t\t\t\t\t\t\t\t

16.It could tracking pattern stitch,easy to find any point of pattern .\t\t\t\t\t\t\t\t

17.It will show quilting and note the operate method.\t\t\t\t\t\t\t\t

18.It easy to set the patter limit range and pattern space in computer.\t\t\t\t\t\t\t\t

19.It could trimming the position ,could exactly quilting the piece by piece .\t\t\t\t\t\t\t\t

20.Through setting the patter limit range and space to enlarge or reduce the patter. \t\t\t\t\t\t\t\t

Needle auto stop in high position.\t\t\t\t\t\t\t\t

21.System testing function.Easy to test the machine working process,good for maintenance machine.\t\t\t\t\t\t\t\t

22.Main axis problem testing function.could avoid the quilt damage because of the main axis fault.It has the protection function of beyond the bound.\t\t\t\t\t\t\t\t

23.It has auto or manual method to back to home position.\t\t\t\t\t\t\t\t

24.It has english and russian language could be choosed in computer system.\t\t\t\t\t\t\t\t

Detailed Images

Machine Parts

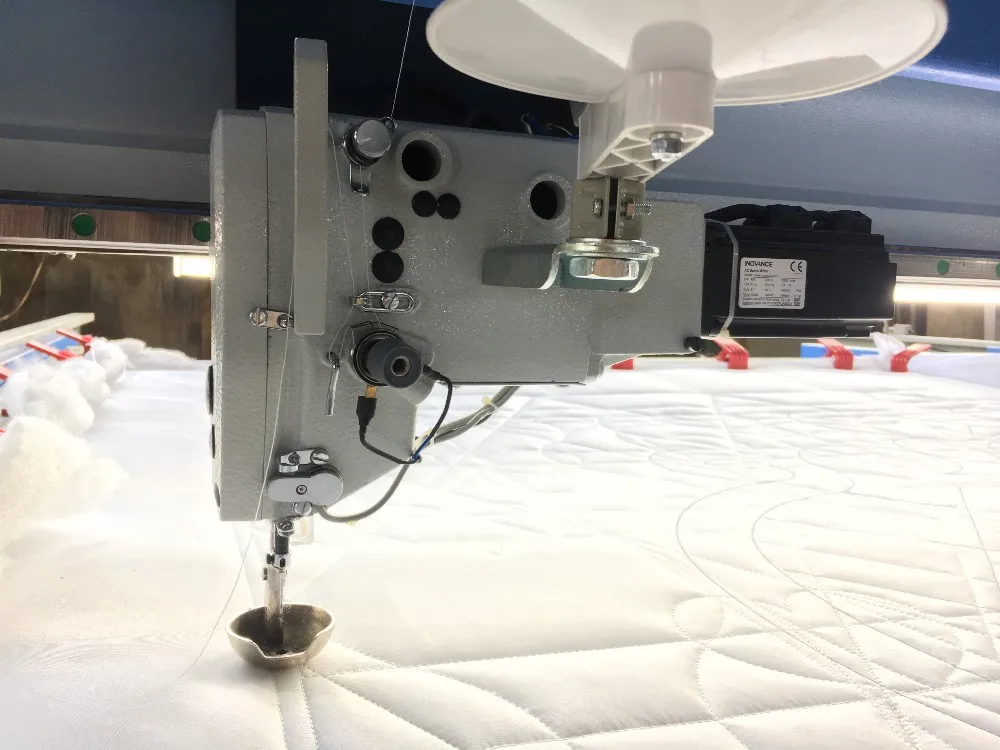

Name: Sewing head


Adopt technology from Germany,

Control by servo motor.

high working speed.

Main Parts

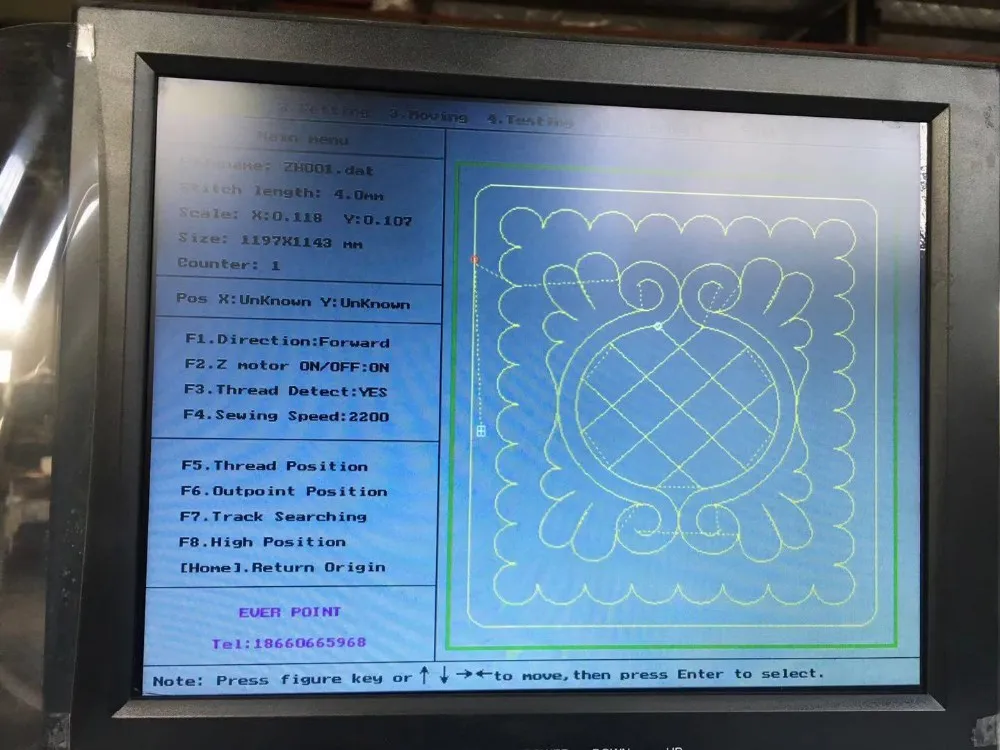

computer use professional operate system of quilting machine,with full function,easy to operate.


Machine Parts

Electrical parts.

Computer box.

Accessories

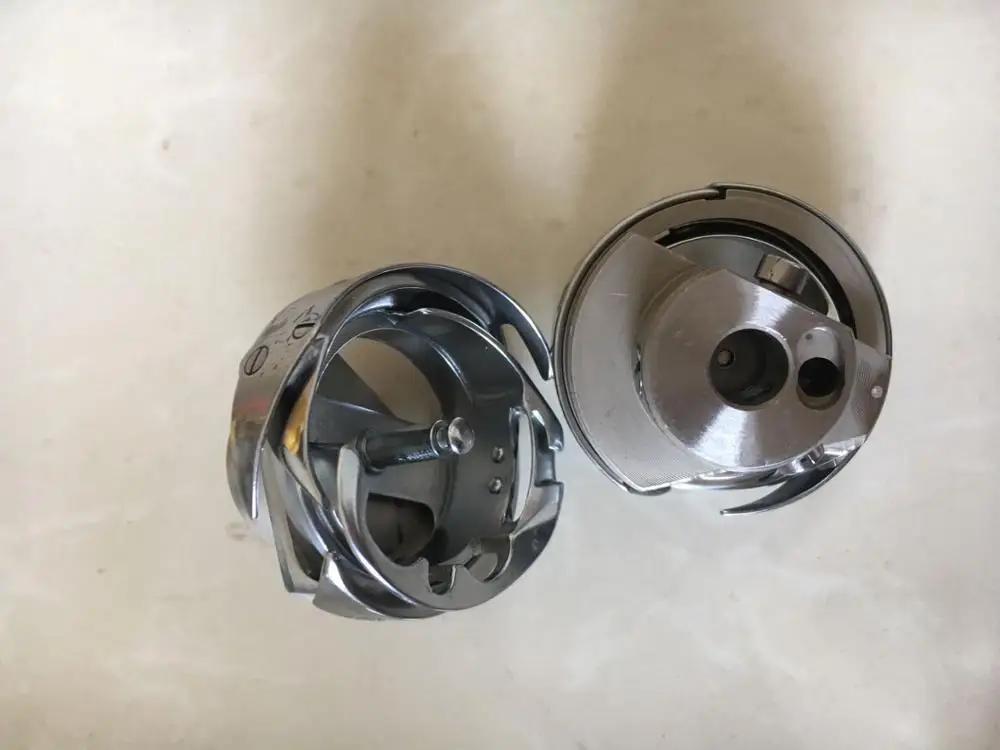

Rotary hook.

bobbin case,bobbin,
pressure foot.
needle
clamps


Packing & Delivery
Packaging
Size
395 (L) * 110 (W) * 155 (D)
Weight
1900kgs



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
395 (L) * 110 (W) * 150 (D)
Weight
1700kgs



Packaging Details
The normal package is pe film.
could loading into container,fix machine in container with steel wire. ,can pack it according to customers special request.
Recommend Products
high speed single needle quilting
max speed 3000rpm.
with auto  trimming function.
with servo motor
working ares 260-320cm
long arm single head quilting
max speed 2200rpm.
with long arm
without auto trimming function
stepper motor
single head quilting
max speed 2200rpm
without auto trimming function.
with stepper motor
Our Service
we provide after sales service
1,Engineers available for overseas service according to request.
2, All the machines from our factory have one year guarantee.
3, 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4, Manual book in English version with details.
Why Choose Us
we are a professional manufacturer of home textile machines.
our company have equipment of casting, and lathe, grinding machine, milling machine.to ensure most main accessories made in our
workshop, we could control quality by ourselves.all of our workers are professional in machine working for more than 20years.
we also have the professional after sales service team.
