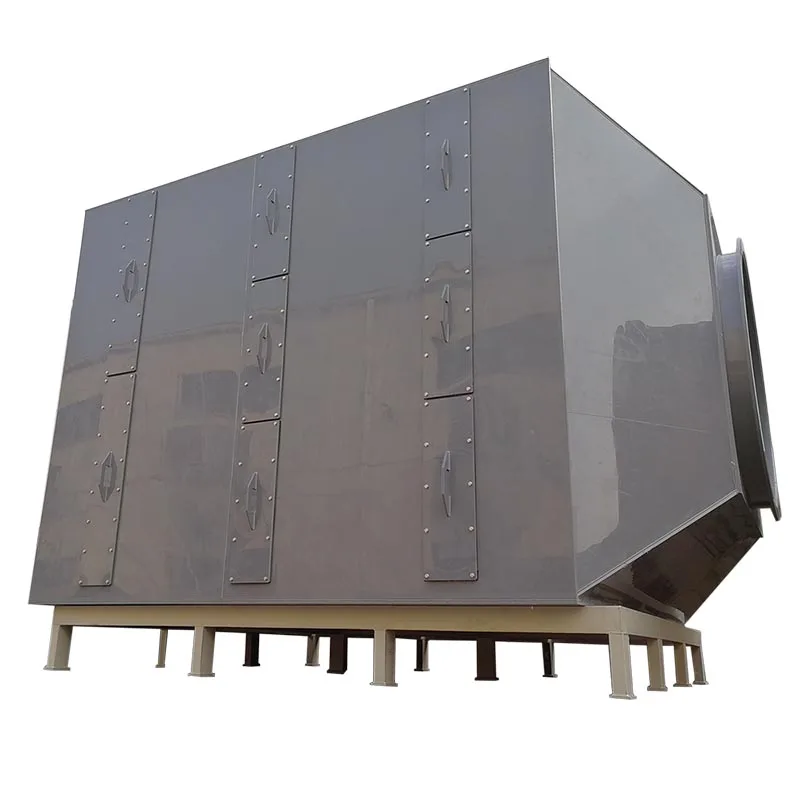

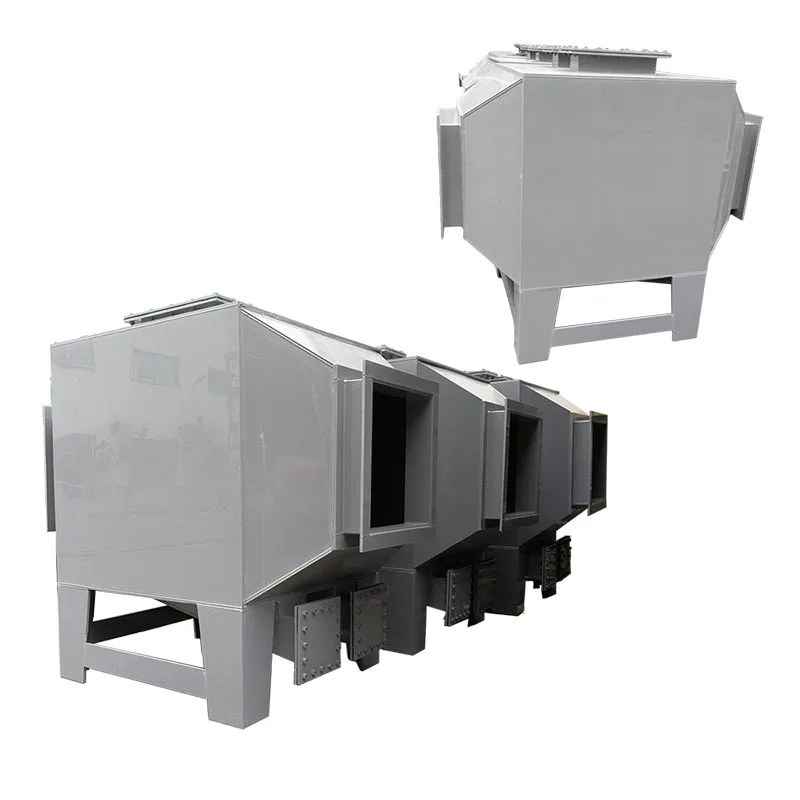

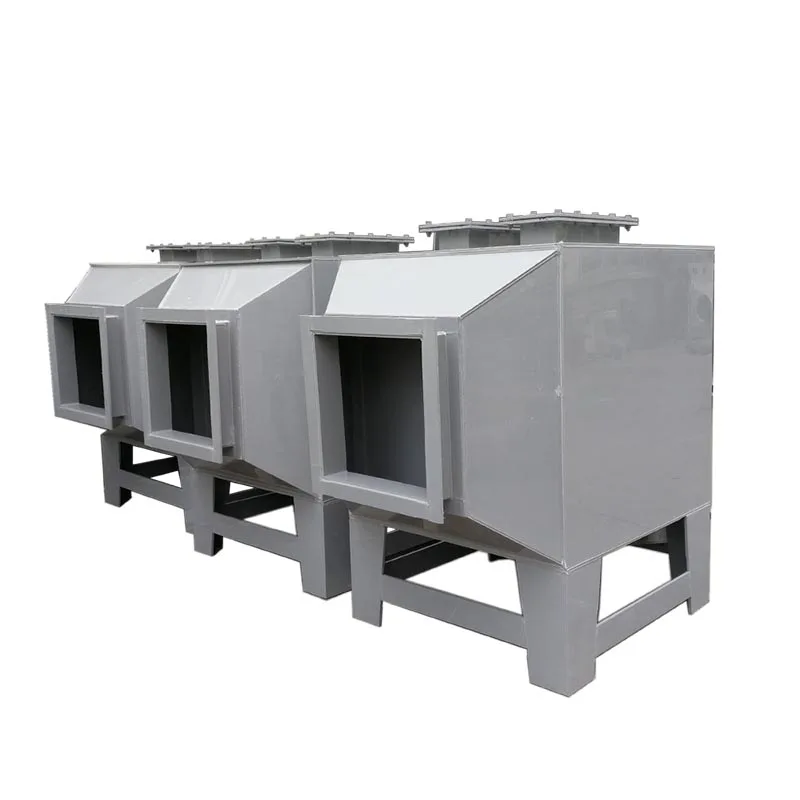

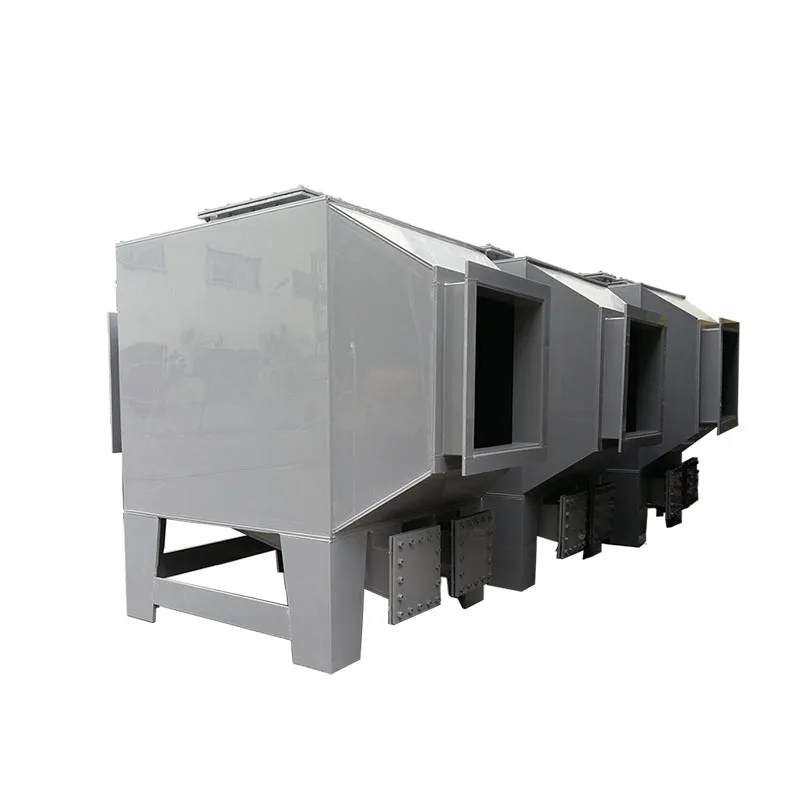

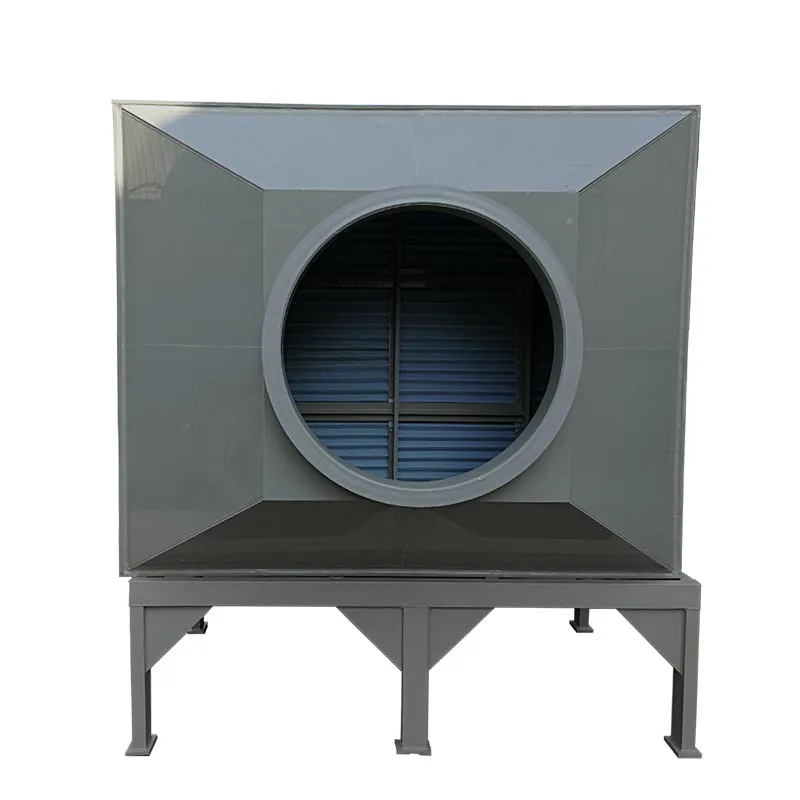

Customized activated carbon adsorption box for Vocs disposal

Product Overview

Description

1. Product introduction
Activated carbon adsorption device is mainly composed of activated carbon layer and supporting layer.Activated carbon has developed voids, large specific surface area and high adsorption capacity.Dust gas powered by fan, positive pressure or negative pressure get into the tower body,
due to the unbalance and unsaturated molecular attraction or chemistry bond on the surface of the activated carbon, when  contact with gas the solid surface can attract a gas molecule to make them strong and keep them on the solid surface.Then the  pollutants are absorbed and get into filter system.

2.Performance advantages

High adsorption efficiency and large adsorption capacity.
Convenient maintenance.
Simple and safe operation.
Activated carbon sources are  cheap.

3.Table parameters

Activated carbon tower common specification size
Air volume	Specification	With activated  carbon	Thickness	Through area
1500	1400*750*750	125kg	8mm	0.56 (M2)
3000	1500*1000*1000	200kg	8mm	1(M2)
4000	1700*1500*1000	275kg	8mm	1.5 (M2)
5000	1700*1500*1125	300kg	10mm	1.69 (M2)
6000	1950*1500*1125	350kg	10mm	2.14 (M2)
8000	1950*1500*1500	475kg	10mm	2.85 (M2)
10000	2500*1500*1500	600kg	10mm	3.6 (M2)
12000	2700*1500*1500	700kg	10mm	4.2 (M2)
15000	2700*2000*1500	850kg	10mm	5.18 (M2)
18000	3000*2000*1500	1000kg	10mm	6.3 (M2)
20000	3200*2000*1500	1100kg	10mm	6.98(M2)
22000	3050*2000*1900	1250kg	12mm	7.7(M2)
25000	3300*2000*1900	1500kg	12mm	8.83(M2)
28000	3500*2000*1900	1650kg	12mm	9.7(M2)
30000	3650*2000*1900	1800kg	12mm	10.5(M2)
40000	3650*2400*1900	2500g	12mm	14(M2)
50000	3800*2400*2250	2850kg	12mm	17.6(M2)
60000	4200*2400*2250	3400kg	12mm	21(M2)

Activated carbon commonly used specifications are: cylindrical, diameter 4mm.



4.Company services

 PERSONALIZED CUSTOMIZATION
The products can be customized according to customers' requirments and drawings.

INSTALLATION
Our company can send professional engineers to guide device installation and provide a professional plan.

AFTER SERVICE
Our equipment will have a one-year life of quality assurance, repair and replacement are guranteed.

5.Company introduction

Shenzhen Xicheng Environmental Teachnology Co., LTD. is located in Baoan District, Shenzhen. It is an environmental protection equipment manufacturer which has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and various accessories.
With the aims of "Quality First, Mutual Benefit, Cooperation and Win-Win", our company is directed by market demand and has independently developed new varieties to satisfy different industries' needs for the differences and diversification of plastics.

                                    Company and factory shows



                                                                   Exihibition



1. Are you a factory?
--- Yes, we are a professional exhaust gas treatment manufacturer for more than 15 years.
2.How do you check the goods?
--- We inspect all the materials when they arrive, and have sot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
---The parameters above is just for your reference. We need you to provide us the air flow, solvent composition, working hours,etc for our team to design the suitable unit for you.
4.How and when can I get the quotation?
--- Send us the inquiry or leave us message. We will get back to you within 5 minutes during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
--- Usually we accept 100%T/T at present. 50% initial payment,down payment before shipment. Other payment terms can be discussed when order confirmed.
6.Where is your factory Located? How can I visit there?
--- We located in Shengtaian industrial park B,Loucun,Baoan district,Shenzhen, Guangdong Province

7.Do you provide OEM service?
--- Yes! We provide OEM & ODM service.
8.What's the lead time for your goods?
--- Normally 25 workdays. For some special parts, the delivery date will be discussed in detail.
