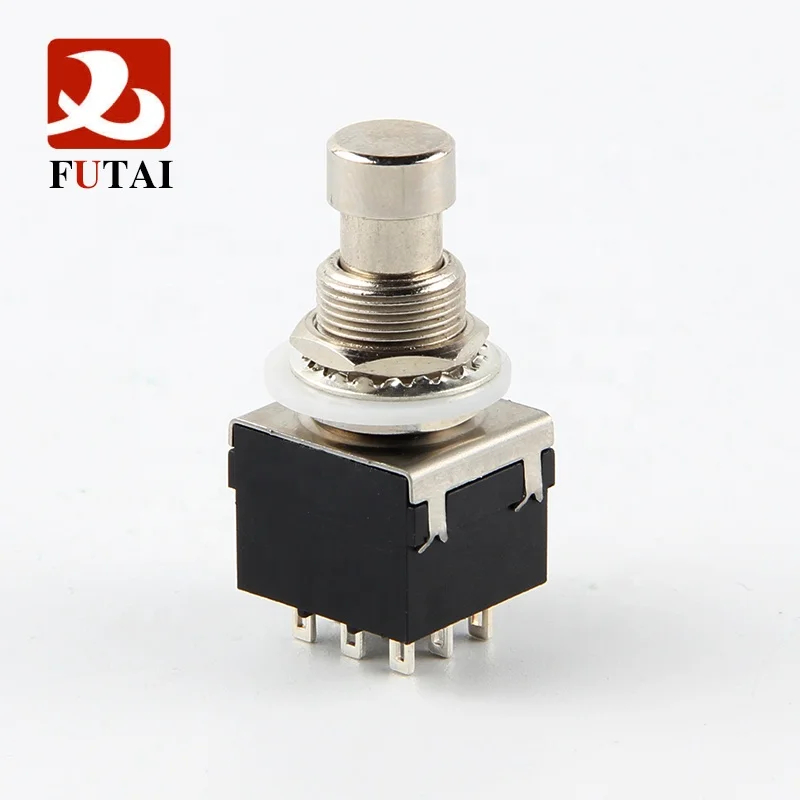

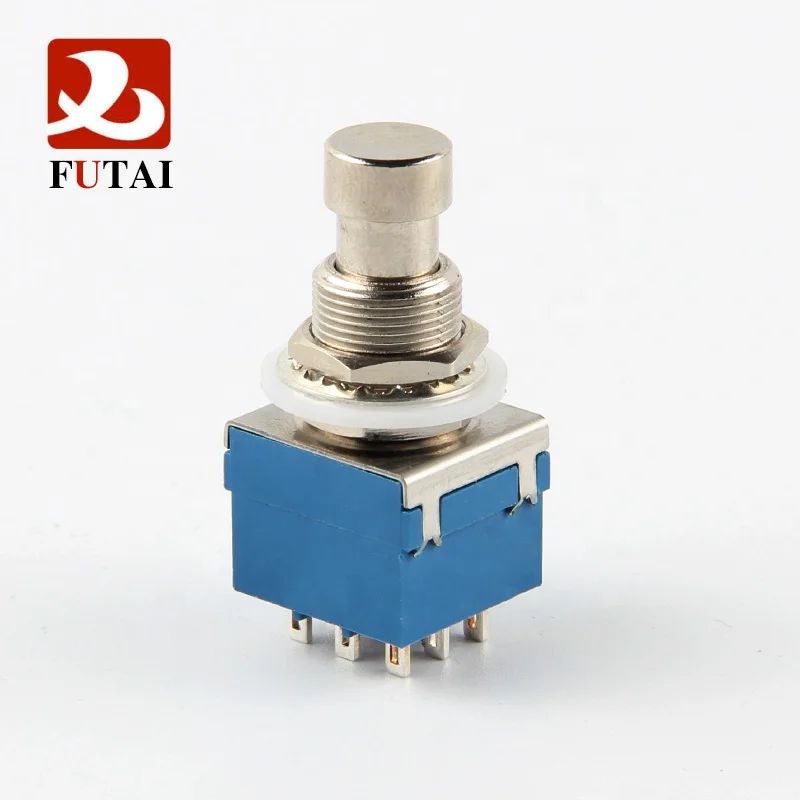

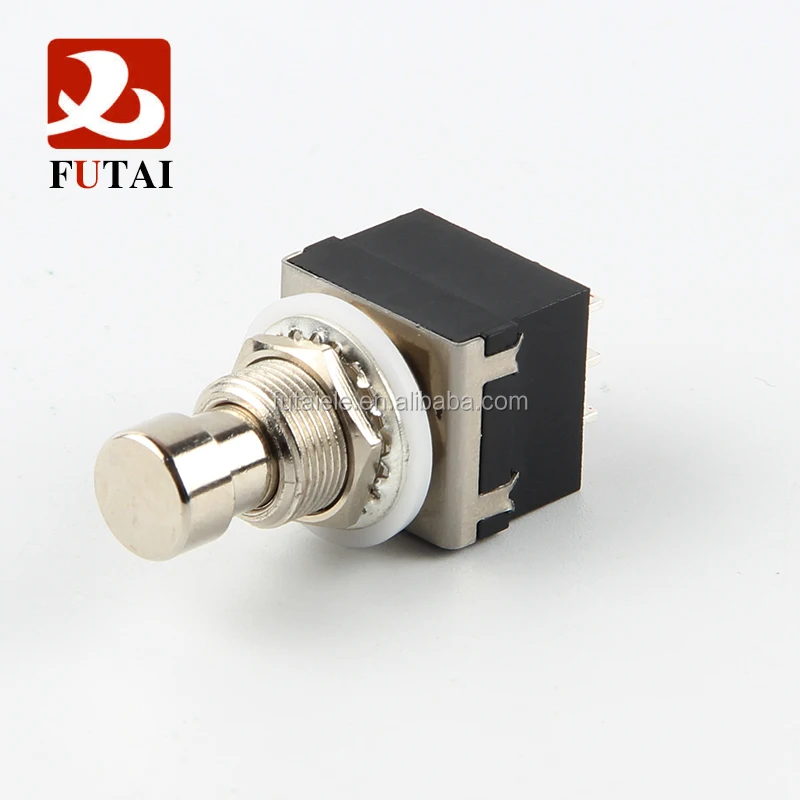

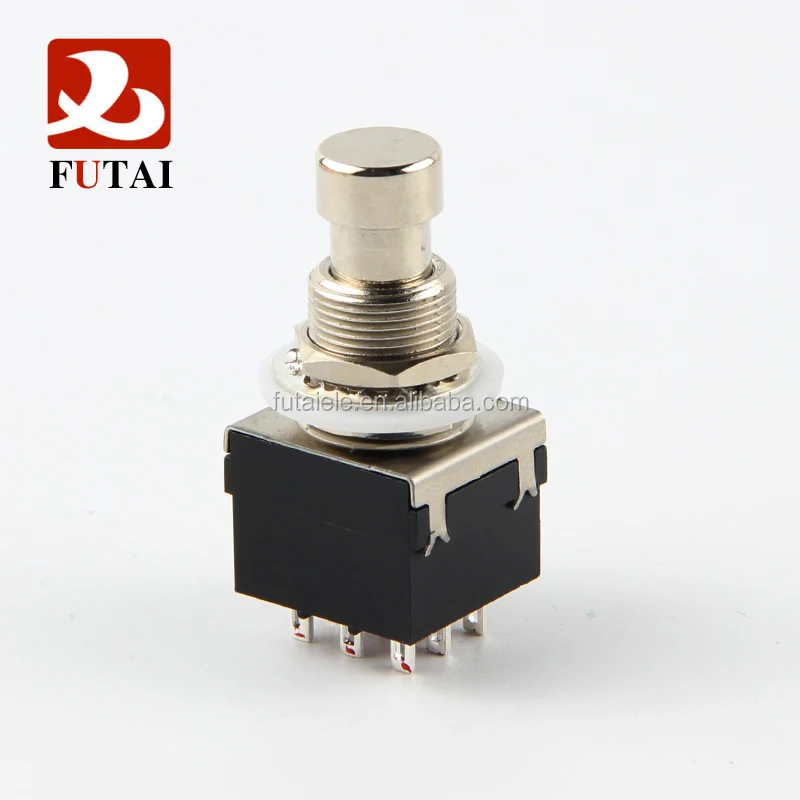

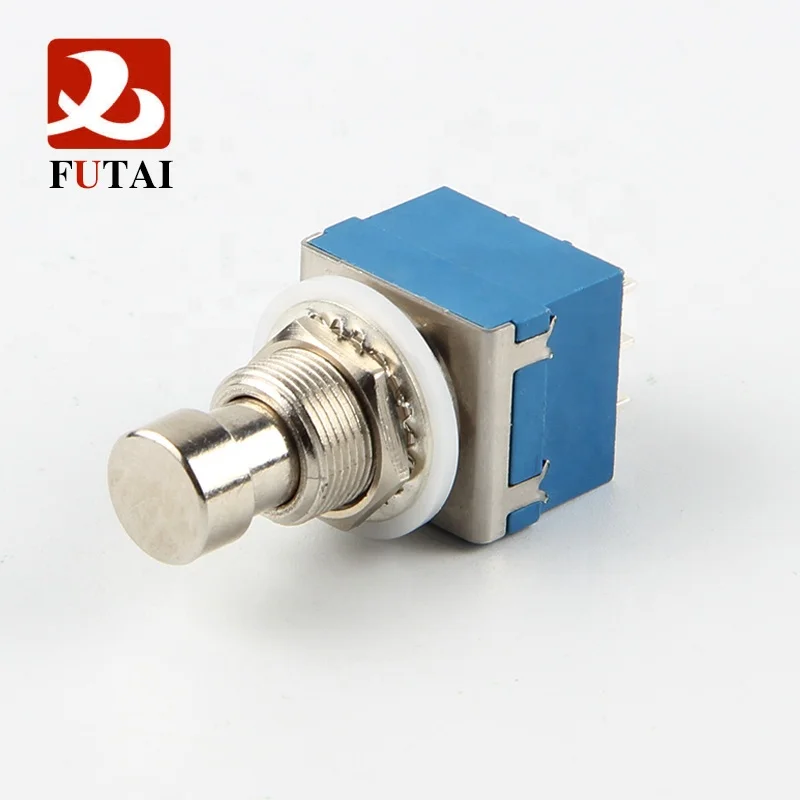

FS3PDT PRO 3PDT Latching Solder Lug Footswitch

Product Overview

Description

Hi! Welcome! Very good quality.

A 15 years experience professional guitar effect guitar foot pedal switch and encoder manufacture.



High temperature plastic casing, Case material:Nylon

dipping in soldering≤206℃±5°(wave-soldering),within 3S ;

solder by hand:≤300℃±5°,within 3S

High quality internal components

These switches require an 11/16" mounting hole for the plastic washer, nuts and washer included.

100% brand new and unused

For rewiring vintage pedals or effect boxes

For ,Electro-Harmonix, T Rex,Retro FX,Radial Bigshot,ect effects pedals

For unbuffered bypassing/true bypass of the effect circuit without coloring the tone of the instrument or other components in the signal chain.

The third pole can be wired to control an LED status light or other custom function.

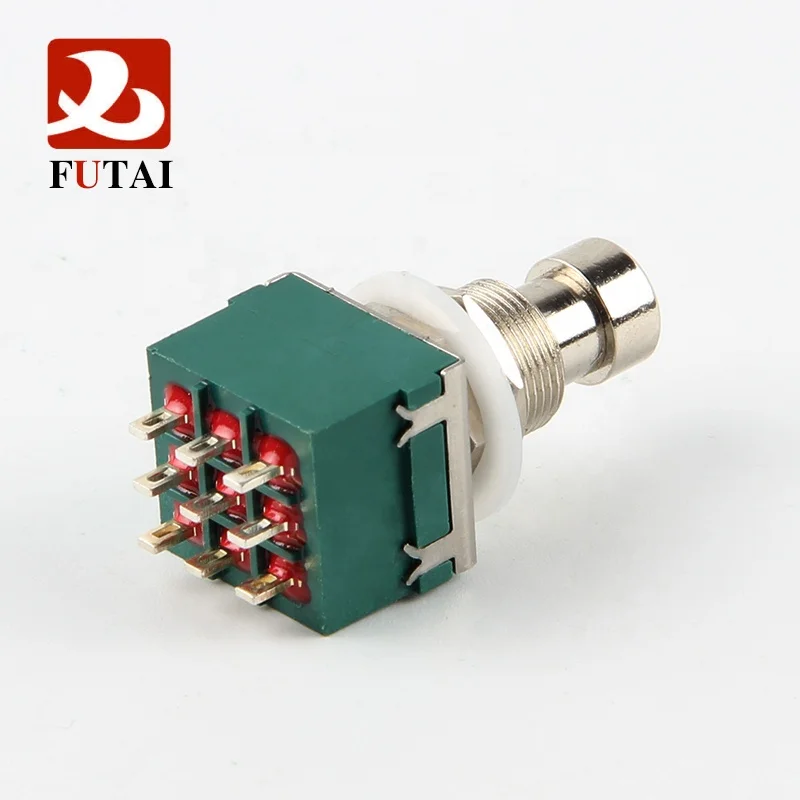

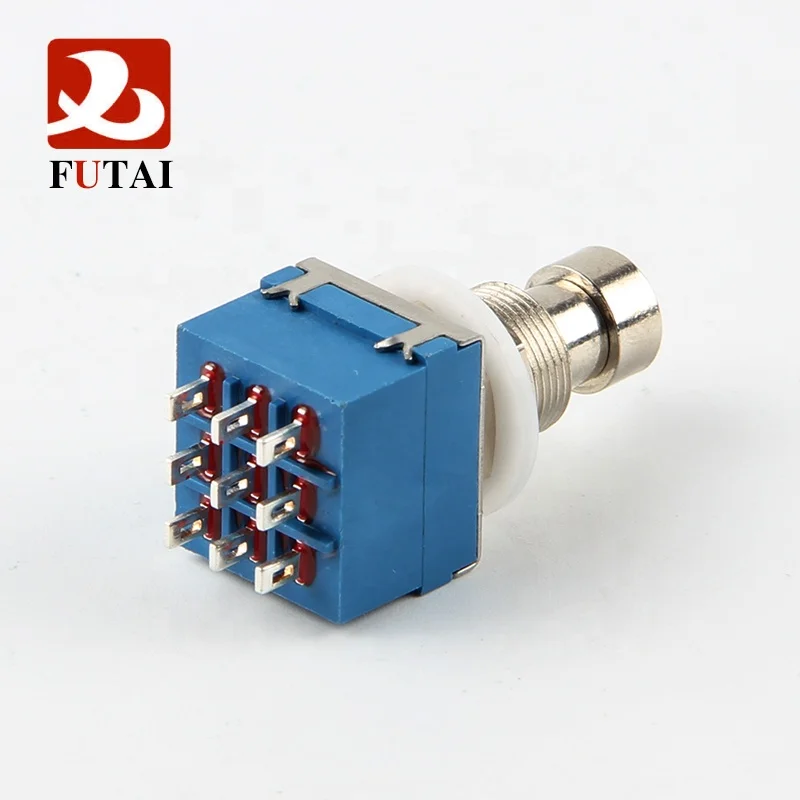

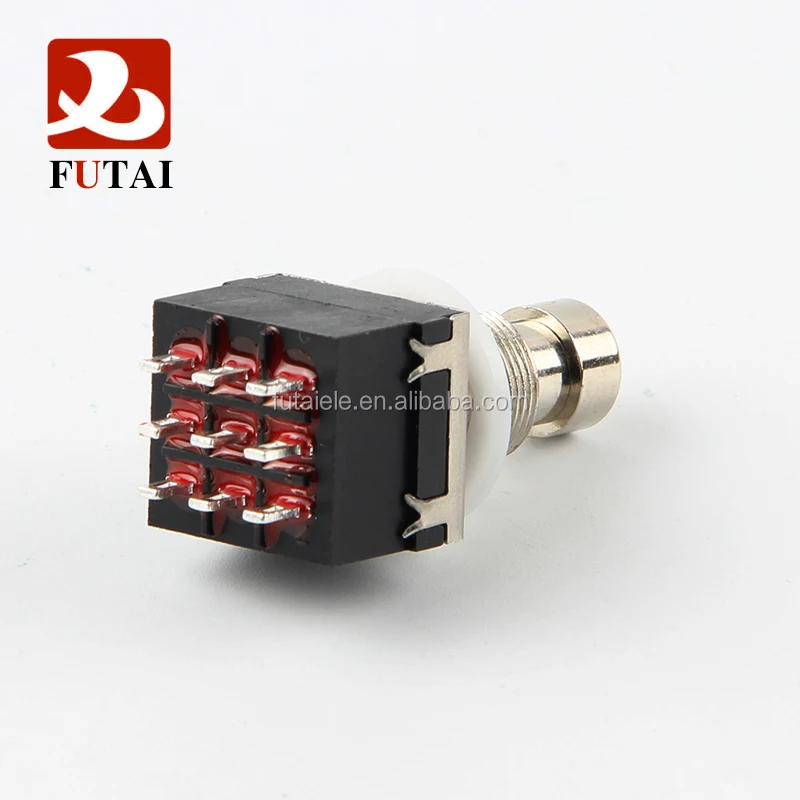

There are a total of nine lugs on each switch,three per pole.

Specs and features:



Switch operation:

Rating: 4A 125VAC / 2A 250VAC; 4A 30V DC

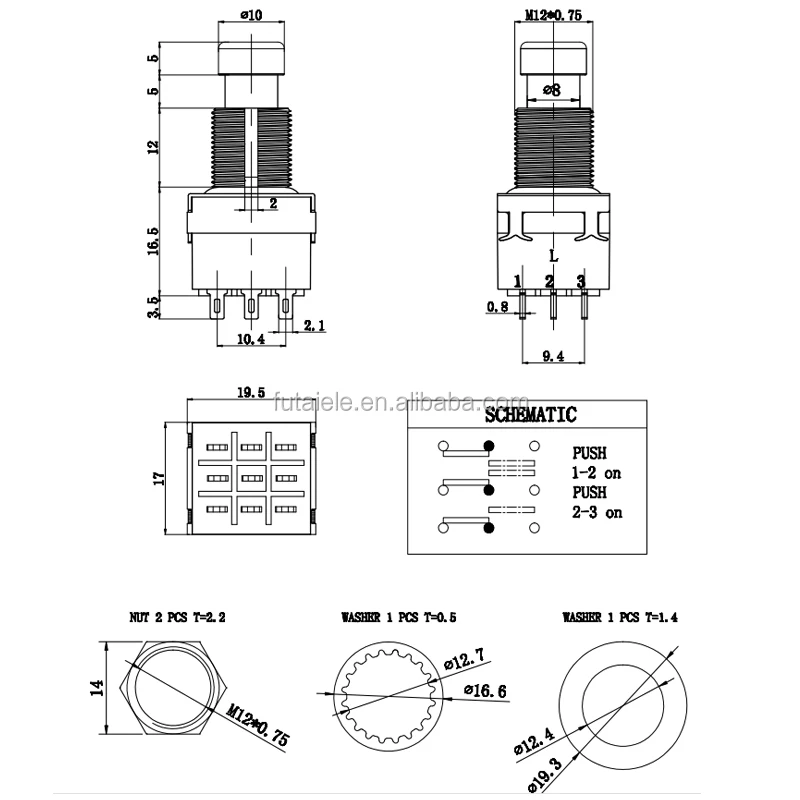

Size: As Drawing

Thread height: 13mm

Metal and plastic construction

Mounting hole: 12mm (1/2")

pin lug terminals, nickle plated

Electrical life: Over 10,000 cycles at full load!

High temp. & high quality epoxy





FUTAI found in 2003. A 15 years experience professional guitar effect guitar foot pedal switch encoder and potentiometer manufacture. We have several new patented led guitar effect switches. Factory size is about 1500 square meters. All of our products approved by ROHS We are sure that long term business relationship due to High Quality and Good Price, and we have full confidence to meet you clients’ quality level and provide good price. Client comes first forever. Let’s mutual benefit.







EMS: need 10-15 business days to reach your side

UPS: special express for North America,need 3-5 working days

DHL: normally 3-5 business days could reach your side

FEDEX: normally 3-10 business days could reach US and European

or By Ocean & By Air

Service:

WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.

If the product received is not as DESCRIBED, a replacement will be issued.





Q: what is your MOQ for this item?

A: MOQ is 100, but always flexible.

Q: Can I get some samples?

A: Sure, Sample order is available.

Q: what about lead time?

A: 7-10 days after deposit received.

Q: terms of payment?

A: Trade Assurance, T/T, credit card, western union, cash, Money Gram

Q: My item was damaged in shipping?

A: Our parts are carefully packaged to prevent damage in shipping.
