HUALONG stone machinery HKNC series 5 axis granit bridge saw Stone CNC Cutting Machine for countertop & funerary arts
- Category: >>>
- Supplier: Fujian Province Hualong Machinery Co. Ltd.Fujian Ltd.
Share on (62113041610):
Product Overview
Description
CNC Stone Machine

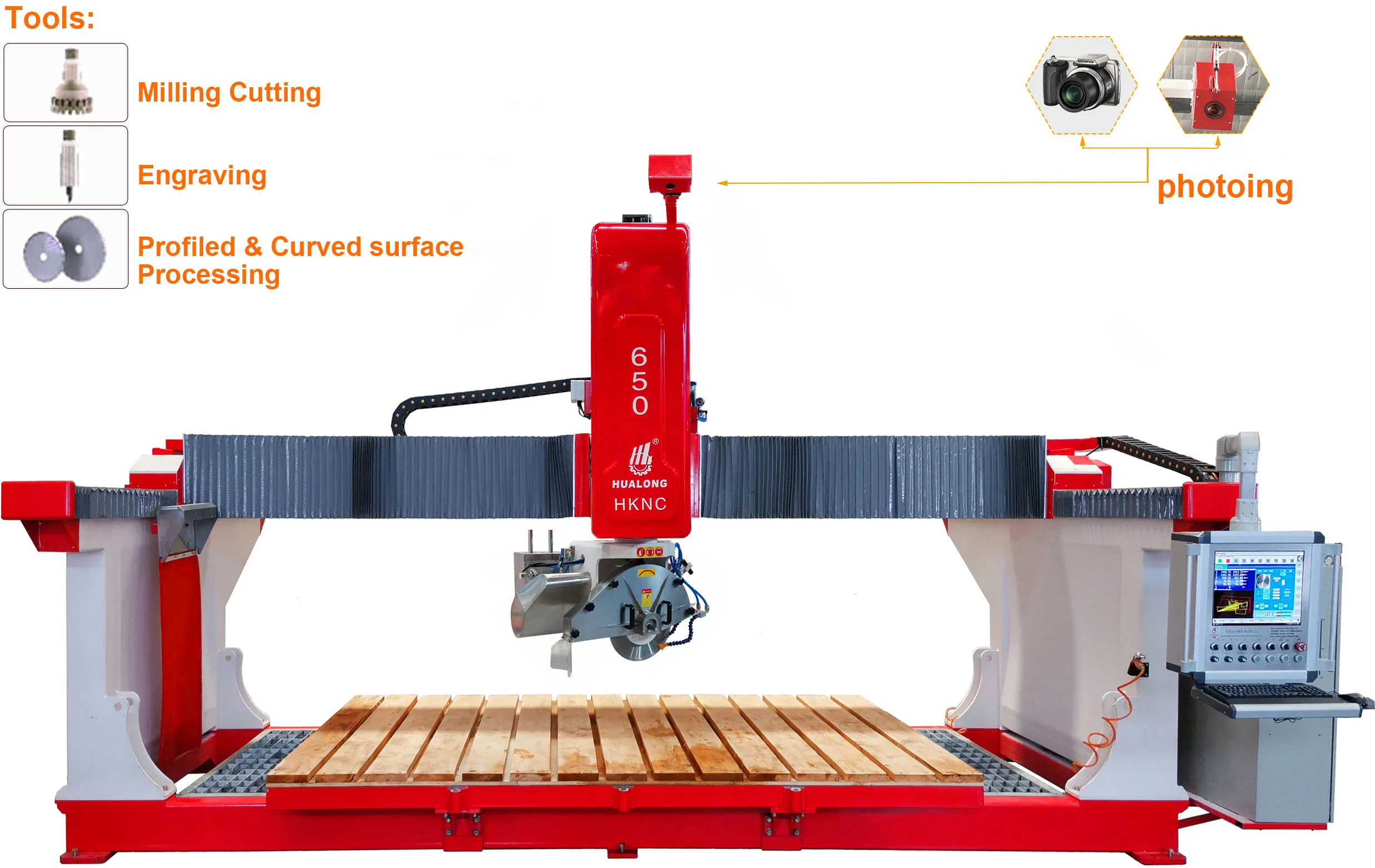

HKNC-650X is a numeric controlled stone cutting and shaping centre which utilizes a 5-axis moving ability to:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel

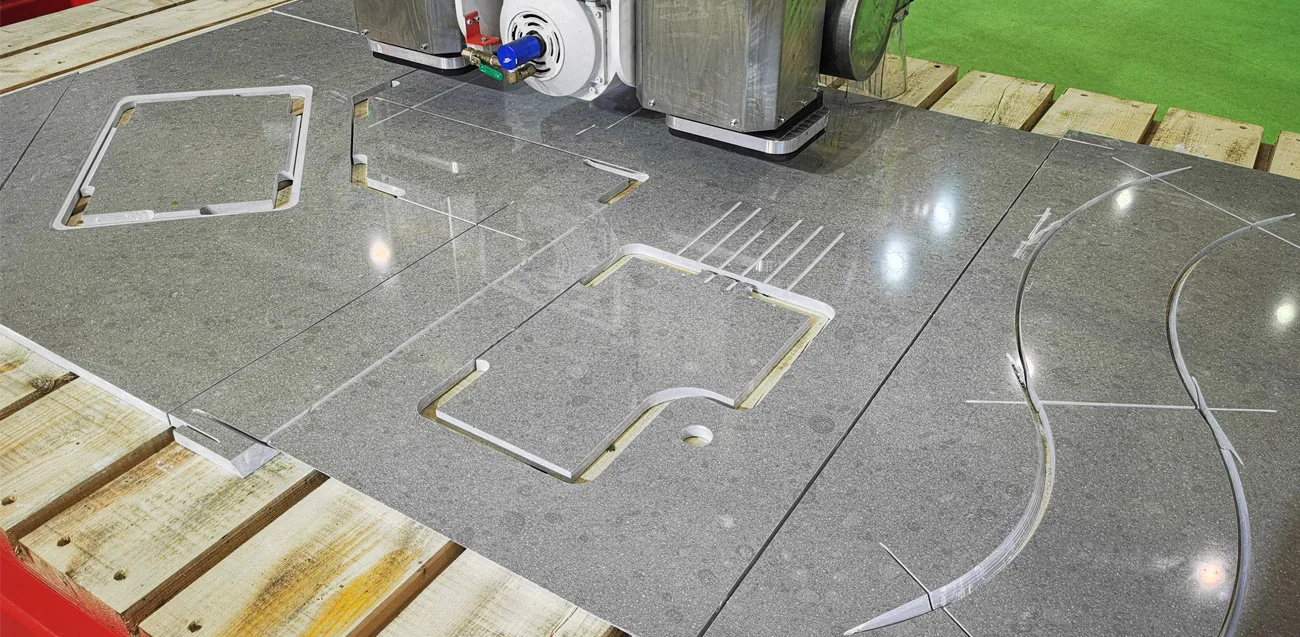

* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with the Servo Motor Mitering’s automatic 0-90 degree blade rotation, Italian ESA CNC system and photographing system to make any cut with ease. HKNC-650X has also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with the Servo Motor Mitering’s automatic 0-90 degree blade rotation, Italian ESA CNC system and photographing system to make any cut with ease. HKNC-650X has also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features
1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.
4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.
5) Working platform can tilt 85 degrees, easy for slabs loading.
6) Manual cuts available for simple machining.

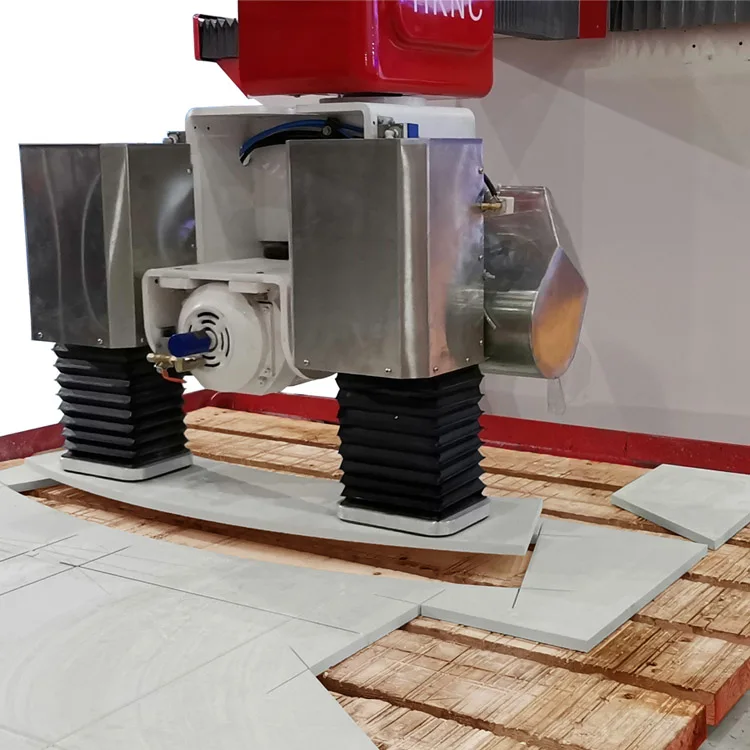

7) Vacumm manipulator for workpieces handling.
8) Photo slab for nesting and avoiding defects.
9) Nesting manual / automatic to optimize slab surface usage
10) RTCP tool point tracking function ensure precision machining easy.
11) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
TECHNICAL DATA | ||||||
Model No. | HKNC-560 | HKNC-650 | ||||
Diameter of saw blade | mm | ø350-ø560 | ø350-ø650 | |||
Dimension of working platform | mm | 3300×2000 | 3500×2100 | |||
Max. cutting length | mm | 3300 | 3500 | |||
Max. cutting thickness | mm | 140 | 190 | |||
Max. lifting stroke | mm | 250 | 500 | |||
Power of main motor | kw | 11 | 15 | |||
Power of cutter frame reciproctating motor | kw | 1.15 | 1.15 | |||
Power of crossbeam shifting motor | kw | 1.15 | 1.15 | |||
Power of hydraulic station motor | kw | 2.2 | 2.2 | |||
Power of lifting motor | kw | 0.85 | 0.85 | |||
Gross power | kw | 16.35 | 20.35 | |||
Water consumption | m3/h | 2 | 2 | |||
Gross weight | kg | 5400 | 5800 | |||
Dimensions (L x W x H) | mm | 5700×3260×2765 | 6300×3600×3100 | |||

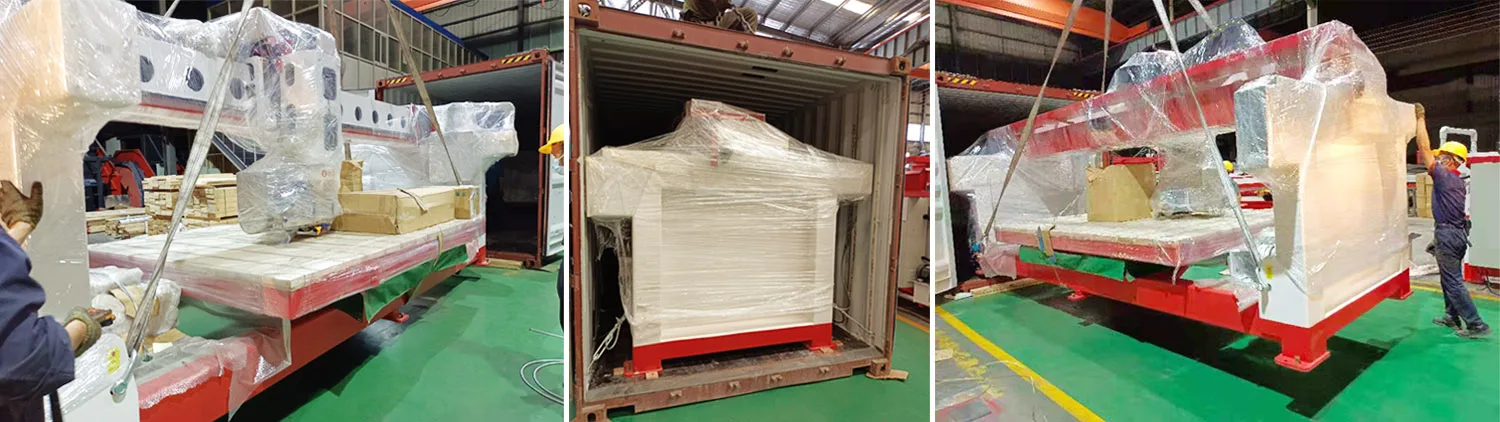

Shipment for HKNC-560/650
Monoblock wholly loaded in a 20' FCL. Easy for unloading and installation at destination.

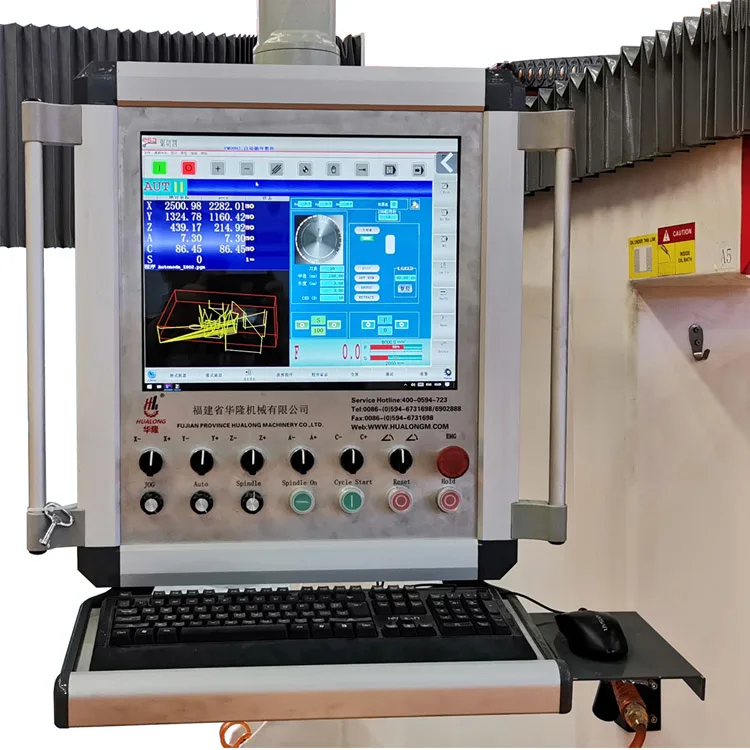

Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing.
It can make a complicated machining job easy, perfect and high efficient.
Software - Pegasus CAD/CAM
Brand: Pegasus
Original: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
Slab Image Capture (Optional)
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.

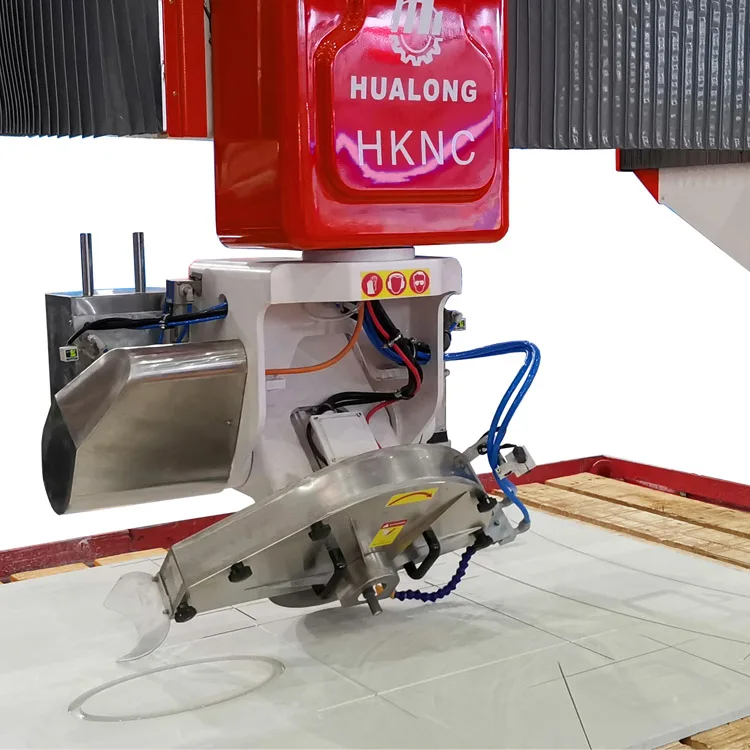

Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 5500 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Digital Servomotor
Brand: Esa
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs, creates a reliable controlling power for X, Y, C and A axises.
Slab Thickness Detector (optional)
Origin: China
System to automatically detect the thickness of the slab.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Rubber Platform (Optional)
Waterproof and no deformation
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
VR
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
