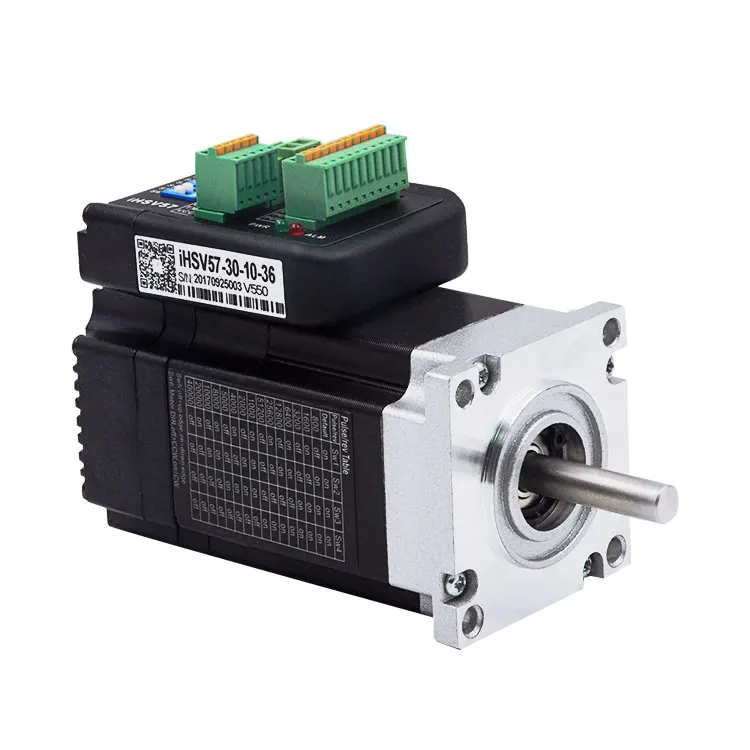

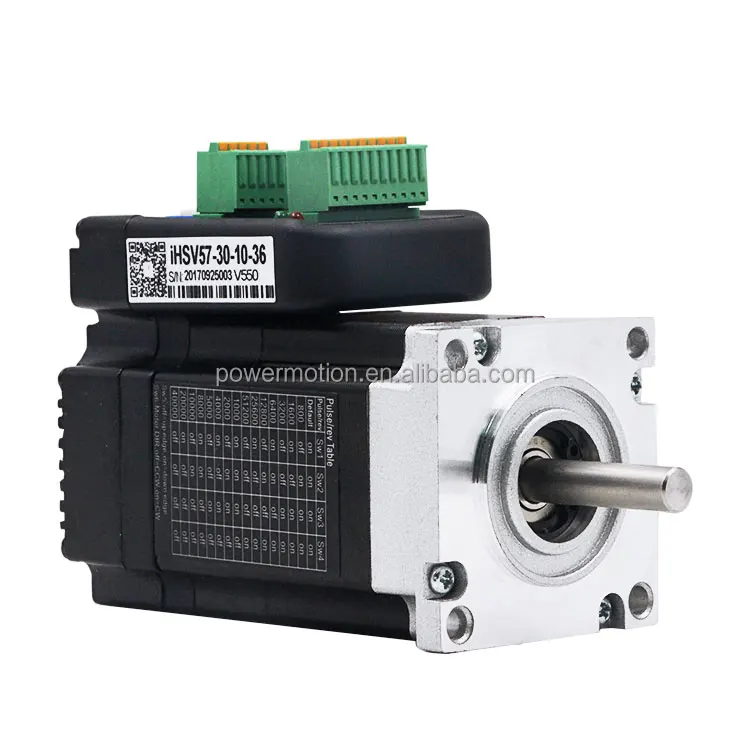

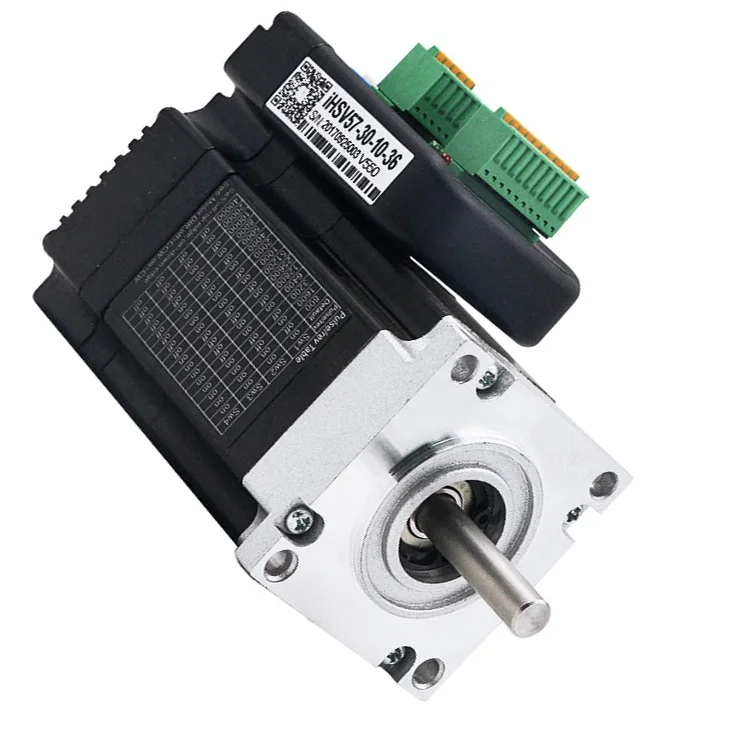

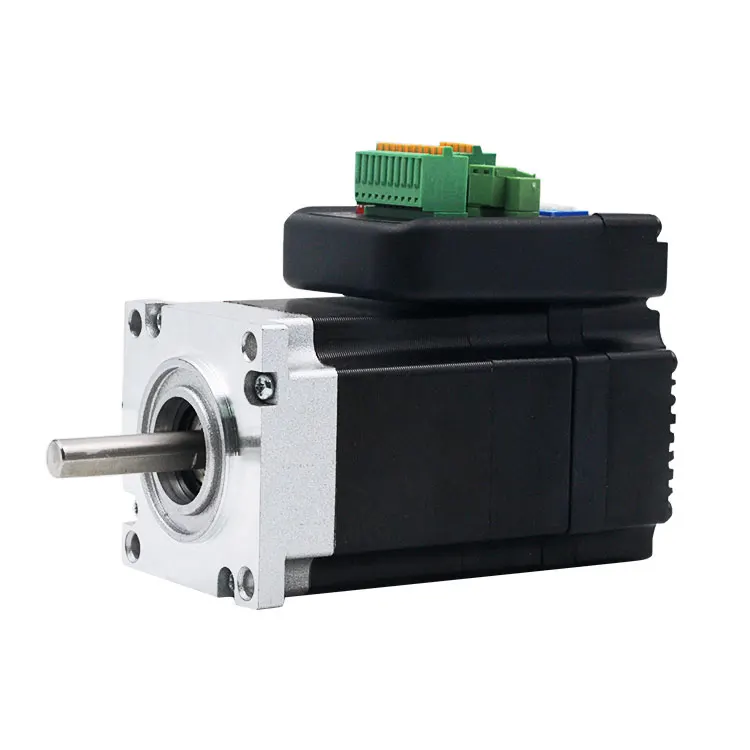

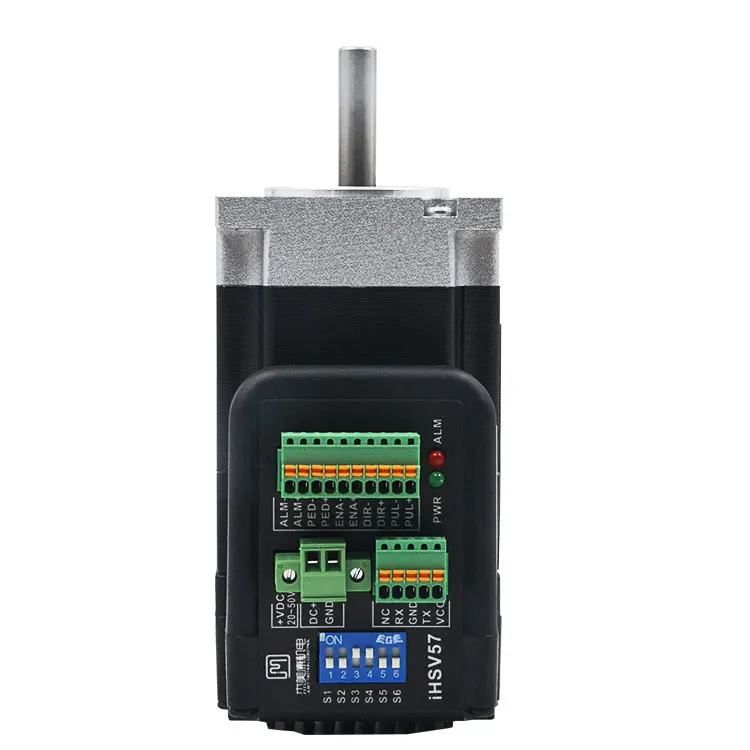

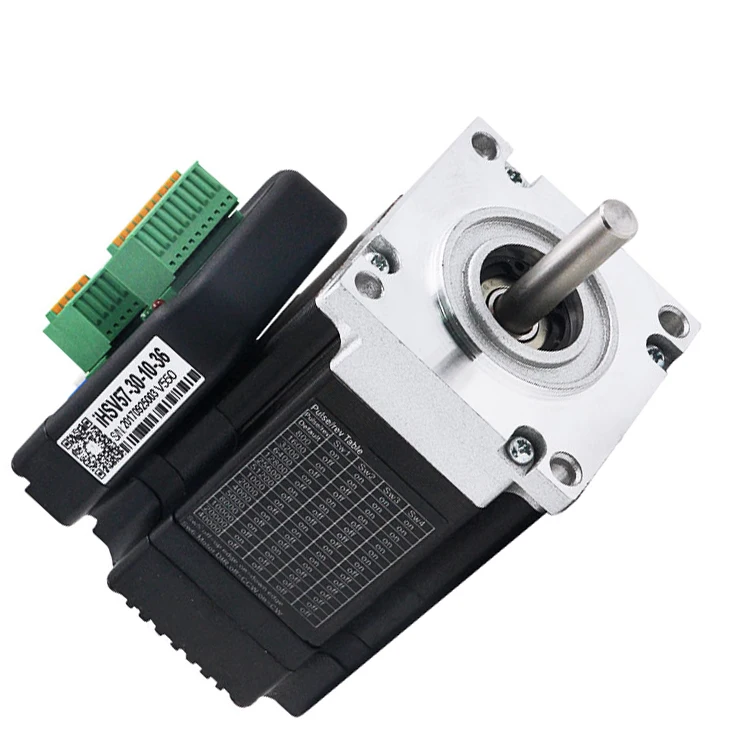

iHSV57 30 10 36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor
iHSV57-30-10-36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor
iHSV57-30-10-36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor
iHSV57-30-10-36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor
iHSV57-30-10-36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor
iHSV57-30-10-36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor
iHSV57-30-10-36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor

iHSV57 30 10 36 57mm 3000RPM 36V Low noise energy efficient integrated AC servo motor

Share on (62113166907):


Price:$55.00 - $66.00

Quantity:


Product Overview

Description







Details of Products








specifications:
Number of Phase
3
Line-line Resistance: Ω±10%
1.19
Rated Voltage: V
36
Line-line Inductance: MH±20%
1.2
Rated Power: W
100
Rated Torque: Nm
0.29
Rated Speed: rpm±7%
3000
Torque Coefficient: Nm/A
/
No-load Speed: rpm±7%
4200
Back EMF constant: V/krpm
/
Rated Current: A±20%
3.5
Rotor Inertia: kg·mm²
/
No-load Current: A
/
Insulation Class (UL)
B

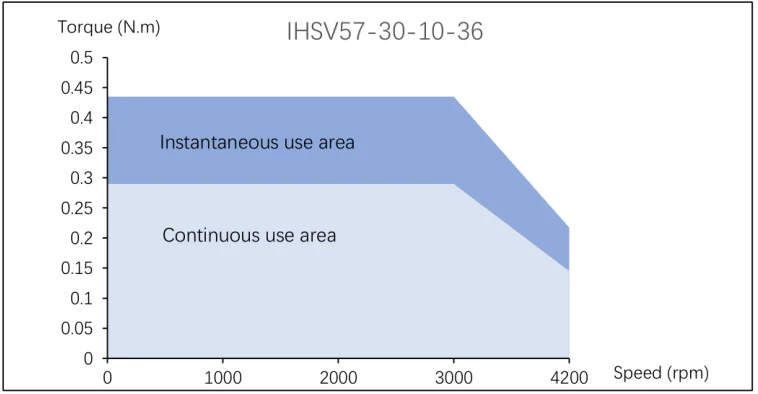

Torque cruve






Product packaging




Application

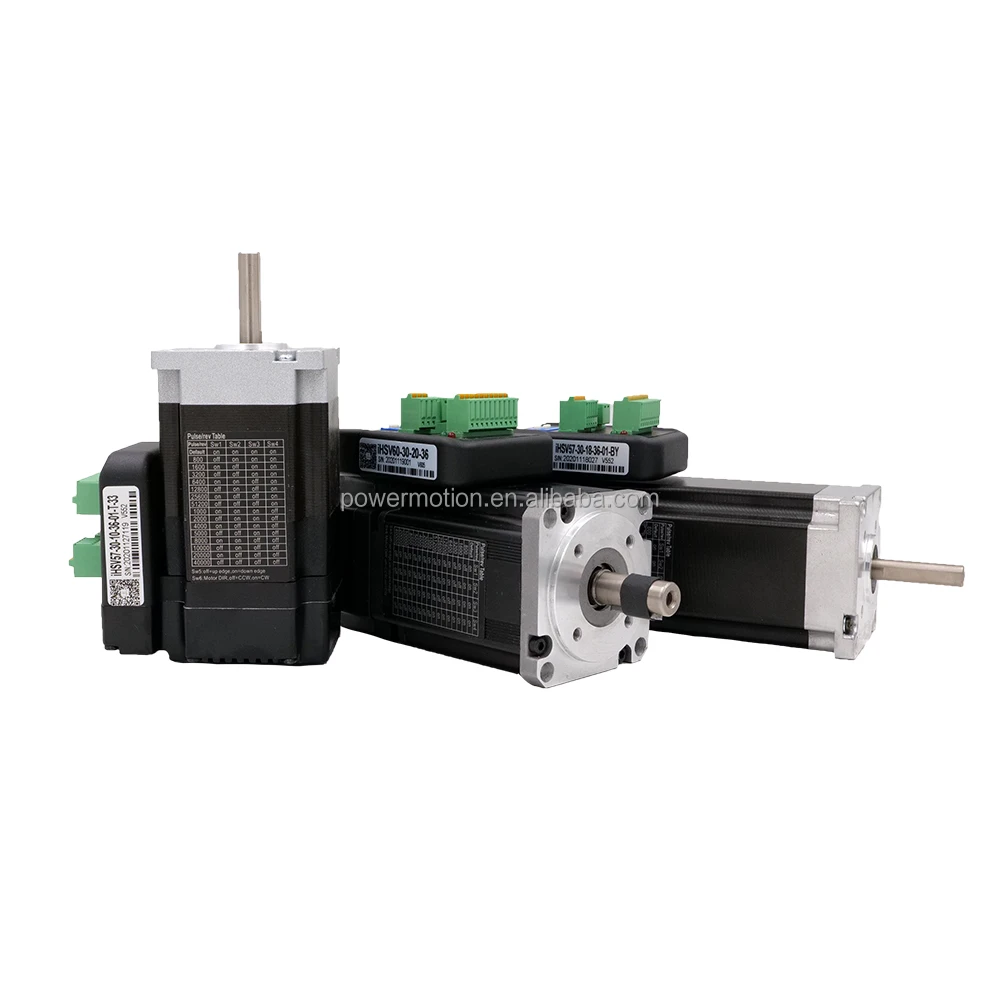

Recommend Products




Why Choose Us








Certificate




We have CE Certificate/ RoHS Certificate /Utility Model Patent Certificate/ Computer software copyright Registration Certificate and so on
