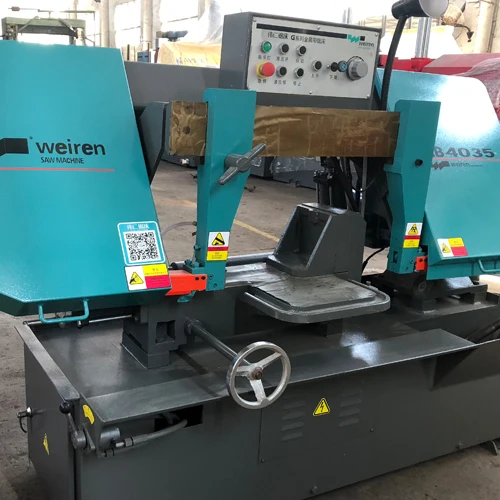

GB4035 High Speed Pipe Cutting Metal Band Saw Machine Semi Automatic Band Saw Machine (62115240326)

Share on:


Price:RUB 237,846.72 - RUB 282,442.98
Price in USD:Details

Quantity:


Product Overview

Description

Product parameter of GB4035/50

Product Description



Model

GB4035/50



Max. Cutting Diameter

Round: 350

mm

Square: 300*480

mm

Blade Speed

20.38.58.83

m/min

Blade Size

1.1*34*4115

mm

Main Motor

3

kw

Hydraulic motor

0.37

kw

Cooling motor

0.09

kw

Machine Size(L*W*H)

2300x1100x1650

mm

Machine weight

0.775

ton

Vice clamping

Hydraulic

Blade tension form

Manual

Feeding cut adjust way

Hydraulic

Feeding way

Manual

Chip conveyor way

Manual

Cooling way

Water cooling

Voltage

380V 50HZ 3Phase

Main character:
1. Adopt the structure of manual plus hydraulic clamp to facilitate the clamping of the workpiece.
2. Design its own unique sawing belt guide clamping device to improve the working conditions, prolong the service life, and reduce noise to reduce environmental pollution.
3. Centralized button switch control panel
Main features:
1. Cutting speed hydraulic control, stepless speed adjustment.
2. Saw wire speed adopts triangular band four-level speed adjustment.
3. Saw-cutting is stable and has high accuracy.
The company adopts high quality materials, precision machine tools, and processes according to the process specifications.
1. Transmission Parts

The worm-wheel is made of tin bronze materials and is processed on a precision gear-hob using a precision worm-hob. After quenching, the worm is processing in a precision worm grinder,then the worm-wheel high surface finish and high precision. The box body adopts HT250 cast iron, which guarantees the processing accuracy with the special boring mode, and the worm wheel has a long service life.
2. Hydraulic components
The inner wall of the cylinder and the piston are both hard Chrome Plated and sealed with the world famous brand. Therefore, there is no crawling leakage and high durability.
3. Electrical section
The wiring is neat, the structure is reasonable, the heat dissipation is strong. The main electrical component adopts the Zhengtai product.
