Workersbee завод Источник питания переменного тока EVSE переносного типа 2 IEC 62196 2 IC CPD для режим 2 зарядное устройство/mennekes кабель Ladekabel

Workersbee завод Источник питания переменного тока EVSE переносного типа 2 IEC 62196 2 IC CPD для режим 2 зарядное устройство/mennekes кабель Ladekabel

Category: EV Connectors >>>
Supplier: Suzhou Yihang Electronic Science And Technology Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Details

General Parameter

\t ■Mechanical Functionarity	\t Insection Times	\t ≥10000 Times
\t ■Mechanical Functionarity	\t Impact of External Force	\t 2t Vehicle Roll over + Drop from 2m Height
\t ■Electrical Application	\t Terminal Temperature Rising	\t <50K
\t ■Electrical Application	\t Contact Resistance	\t 0.5 mΩ Max
\t ■Operating Enviroment	\t Operating Temperature	\t -30°C~50°C
	\t Withstand Pollution Level	\t Grade 2
	\t Flame Retardant Level	\t UL94V0
	\t Protection Level	\t IP55(Plug)
\t ■Main Material	\t Casing	\t Insulation Plastic
\t ■Main Material	\t Connector Pin	\t Copper Core + Silver Plated
\t ■Product Feature	\t Cable Length	\t Standard:5m (Can be Customized)

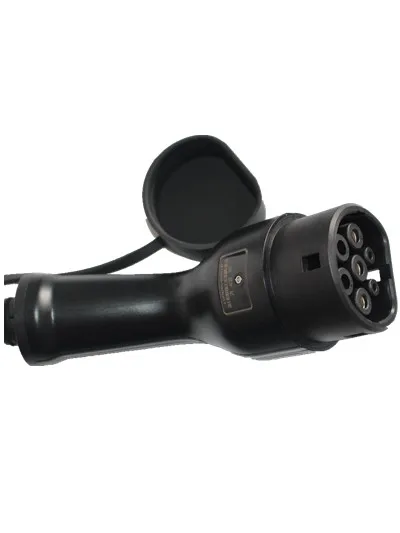

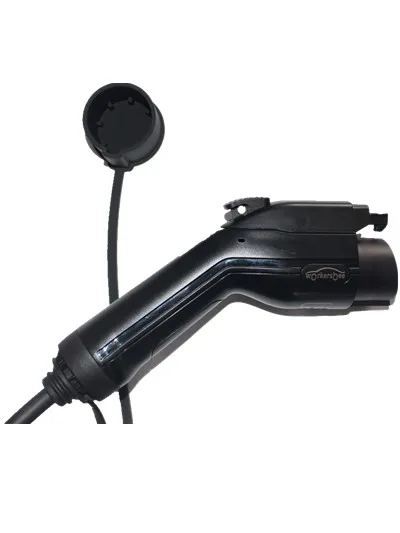

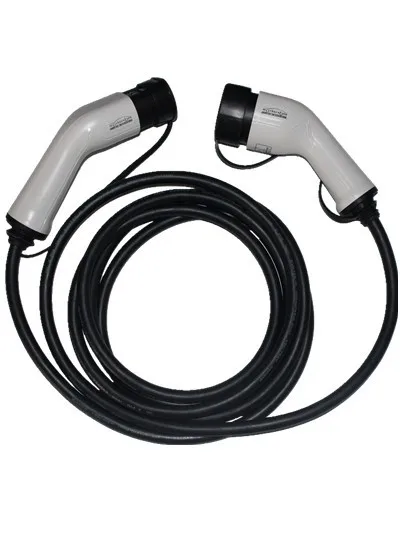

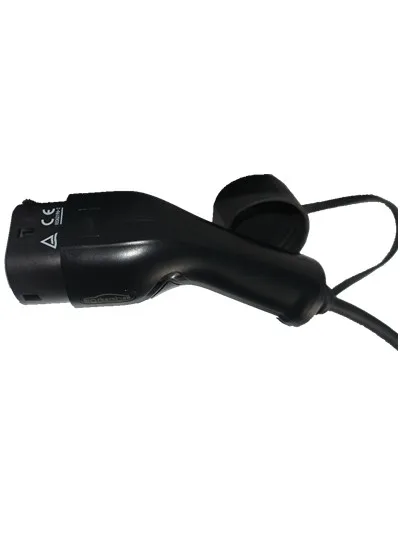

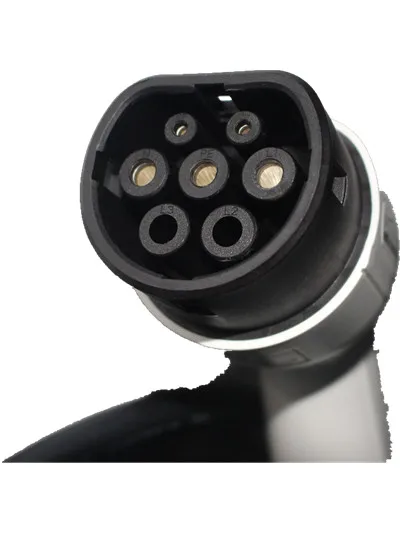

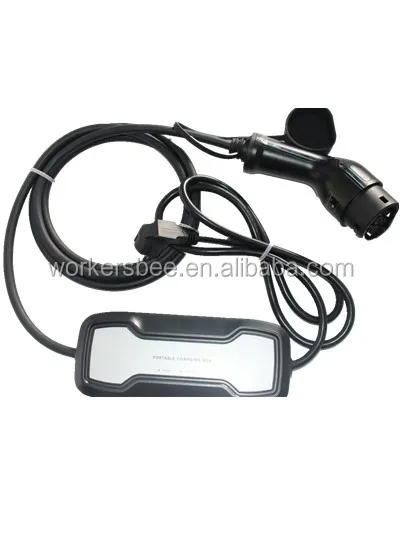

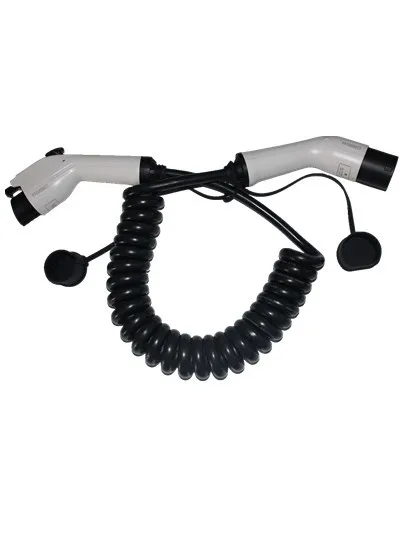

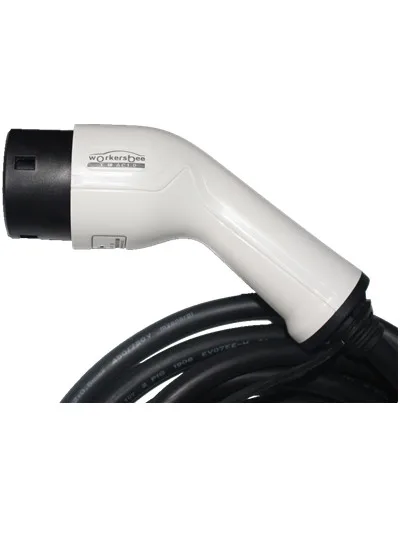

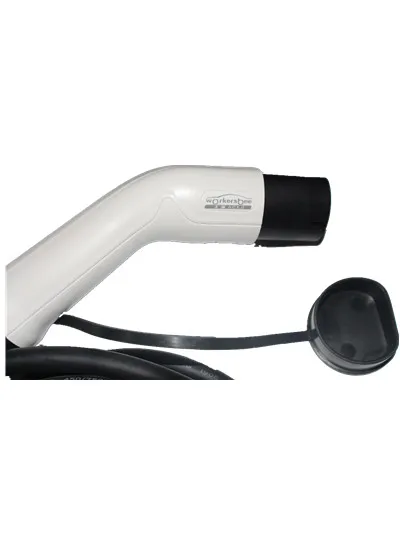

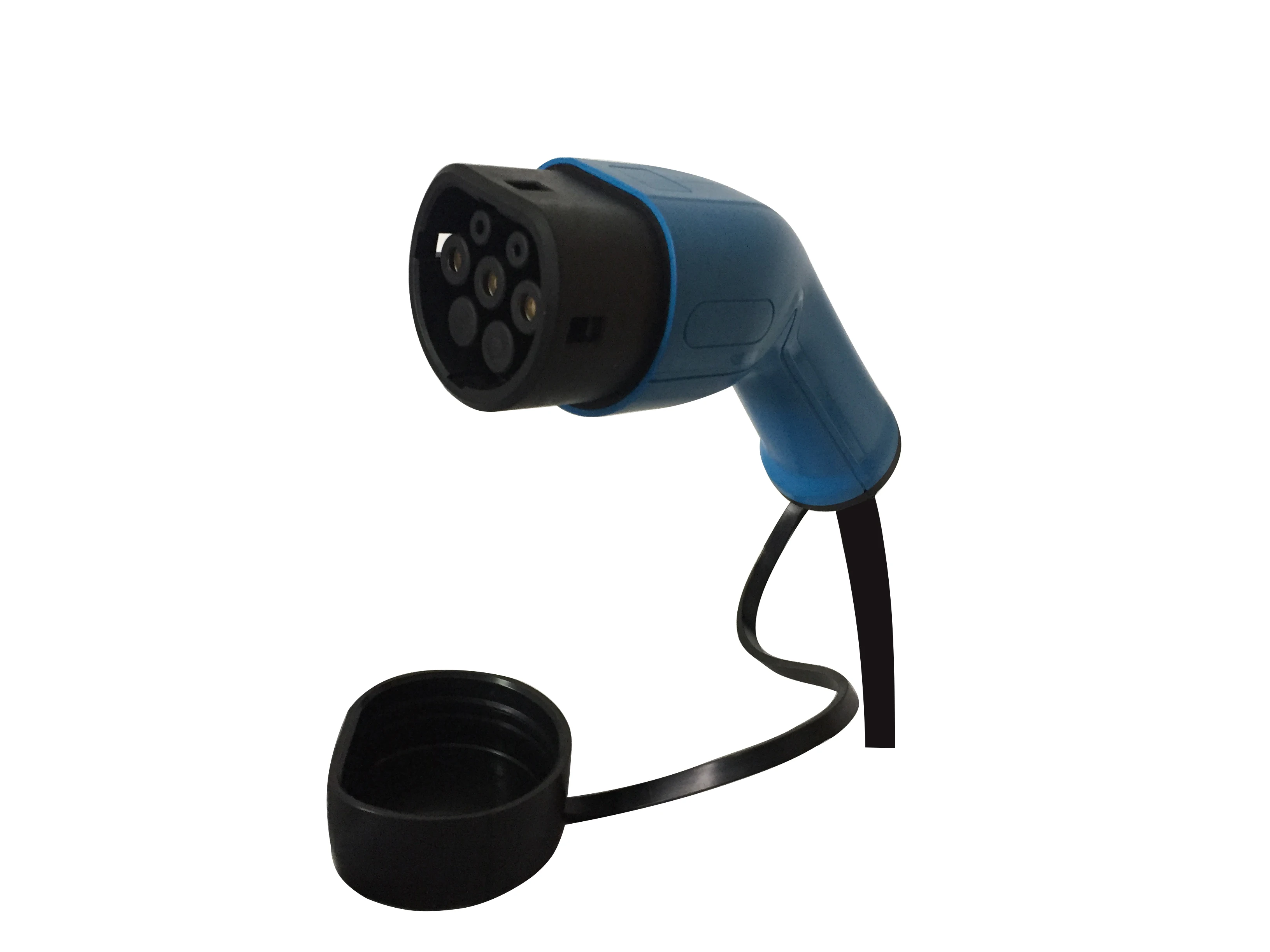

Product Picture

Product Parameters

\t ■Product Name			\t AC IEC 62196-2 EV Charging Connector	\t AC IEC 62196-2 EV Charging Station Connector	\t AC IEC 62196-2 EV IC-CPD for Mode 2 Charger
\t ■ Application Standard	\t Charging Connector		\t IEC62196-2 Type2
\t ■ Application Standard	\t IC-CPD		\t	\t	\t IEC61851-1
\t ■Mechanical Functionarity	\t Insertion Force		\t <80N
\t ■Mechanical Functionarity	\t Impact Insection Force		\t >300N
\t ■Electrical Application	\t Current Rate		\t 16A/32A/40A		\t 10A/16A
\t ■Electrical Application	\t Voltage Rate		\t 250VAC/480VAC		\t 250VAC
\t ■Product Feature	\t Fixed Current/ Cable Specifications	\t 10A 250V AC/ 3×1.5mm²+1×0.5mm²	\t	\t	\t √
		\t 16A 250V AC/ 3×2.5mm²+2×0.5mm²	\t √	\t √	\t √
		\t 16A 480V AC/ 5×2.5mm²+2×0.5mm²	\t √	\t √	\t
		\t 32A 250V AC/ 3×6.0mm²+2×0.5mm²	\t √	\t √	\t
		\t 32A 480V AC/ 5×6.0mm²+2×0.5mm²	\t √	\t √	\t
		\t 40A 250V AC/ 3×8mm²+2×0.5mm²	\t √	\t √	\t
		\t 40A 480V AC/ 5×8mm²+2×0.5mm²	\t √	\t √	\t
	\t Color	\t Black Casing	\t √	\t √	\t √
		\t White Casing	\t √	\t √	\t √
		\t Blue Casing (Customized)	\t √	\t √	\t √
		\t Black Cable	\t √	\t √	\t √
		\t Orange Cable (Customized)	\t √	\t √	\t √
		\t Black IC-CPD	\t	\t	\t √
\t ■IC-CPD Function	\t Leakage Protection(Restart Recover)		\t	\t	\t √
	\t Overvoltage Under-voltage Protection(Self-checking Recover)		\t	\t	\t √
	\t Overload Protection(Self-checking Recover)		\t	\t	\t √
	\t Lightning Protection		\t	\t	\t √
