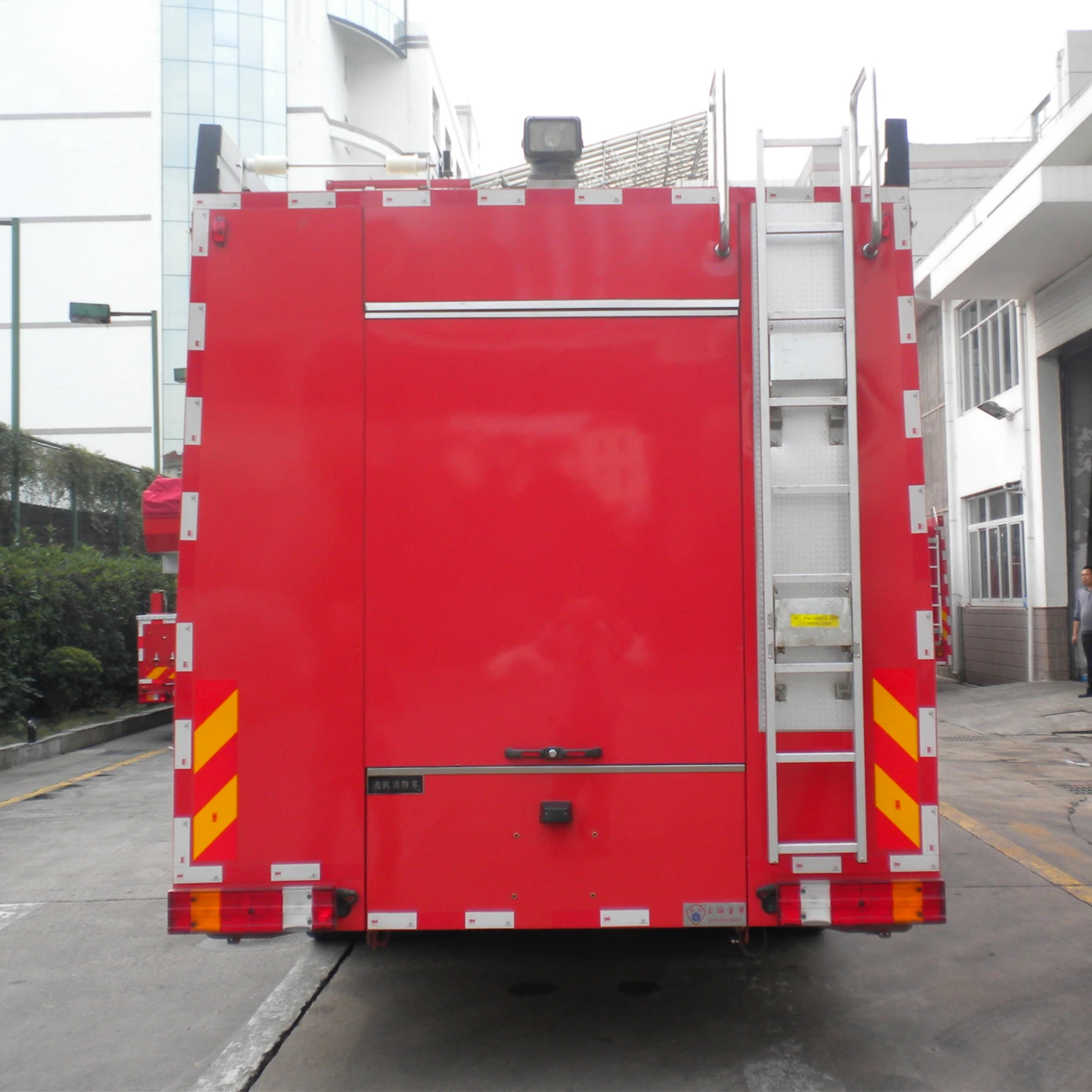

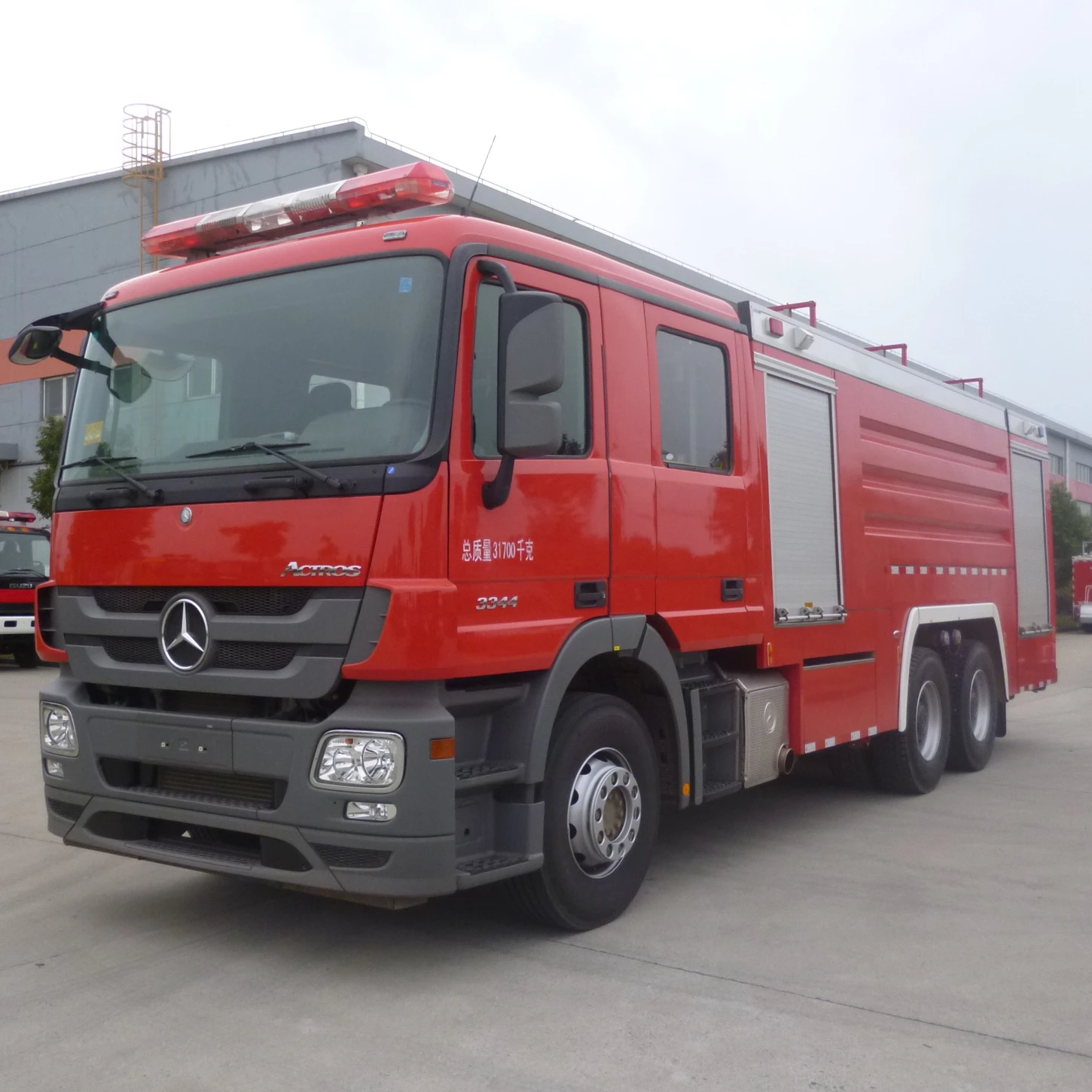

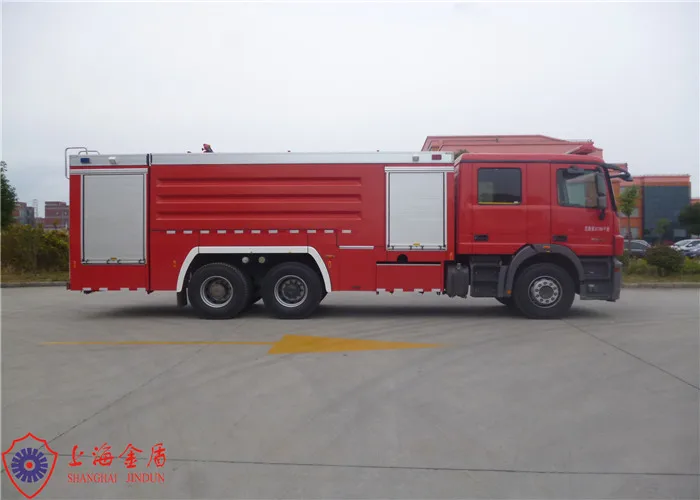

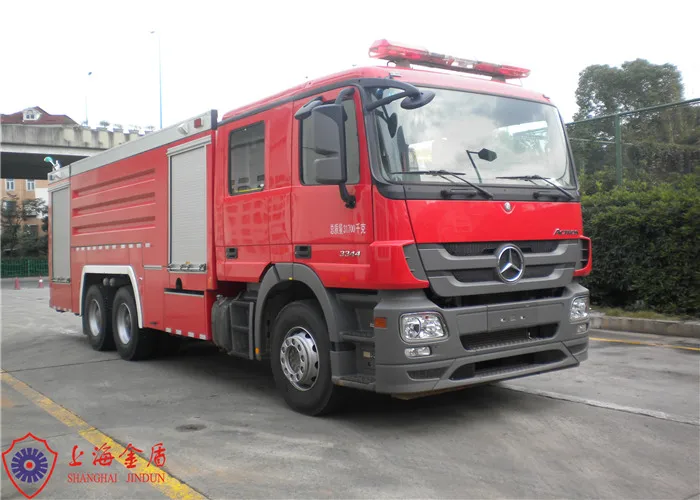

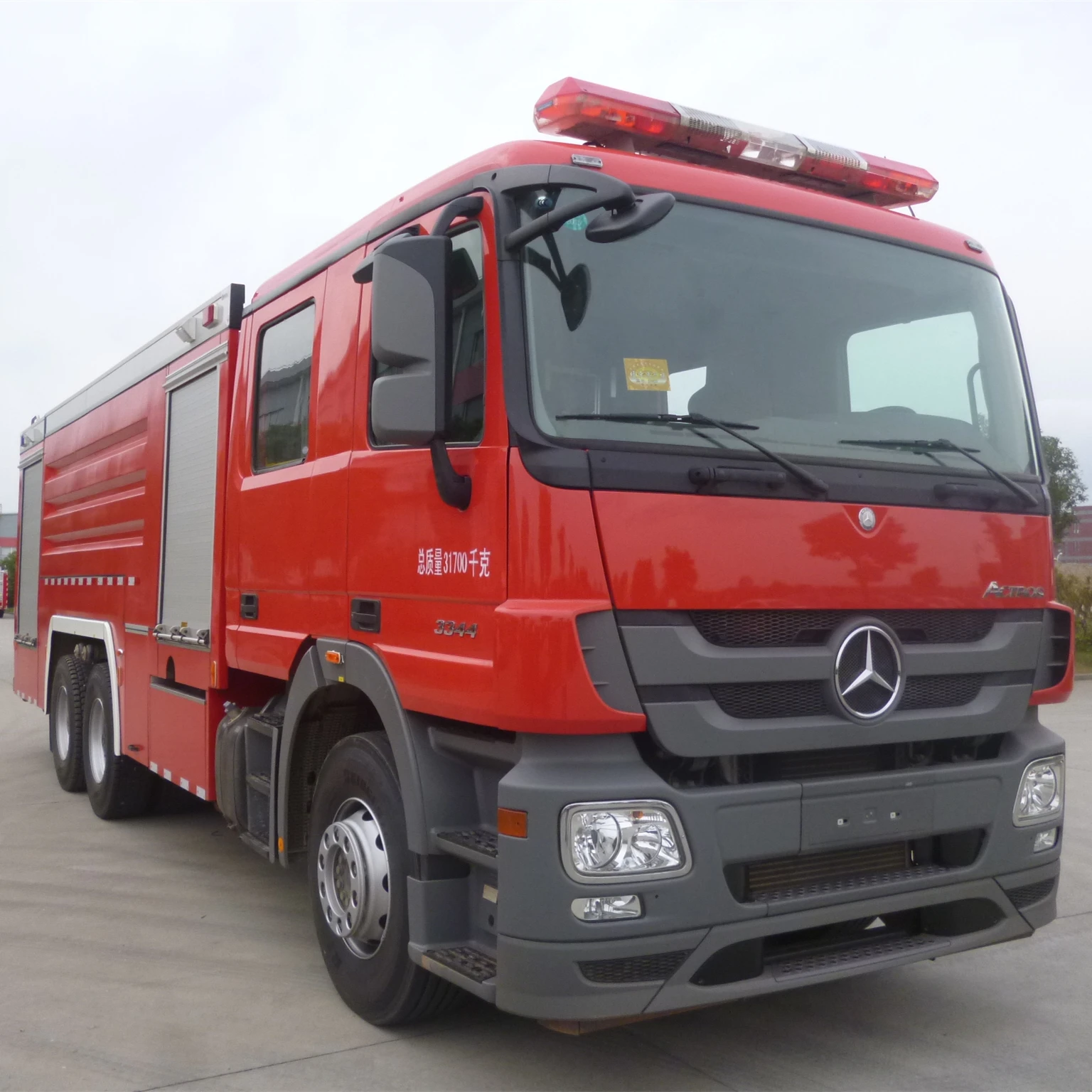

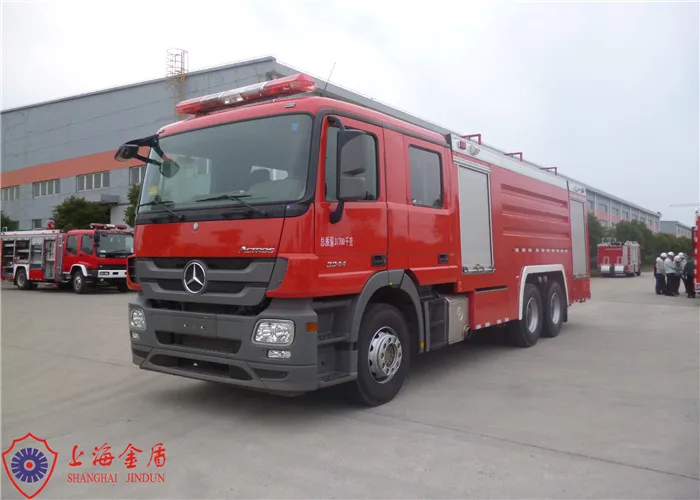

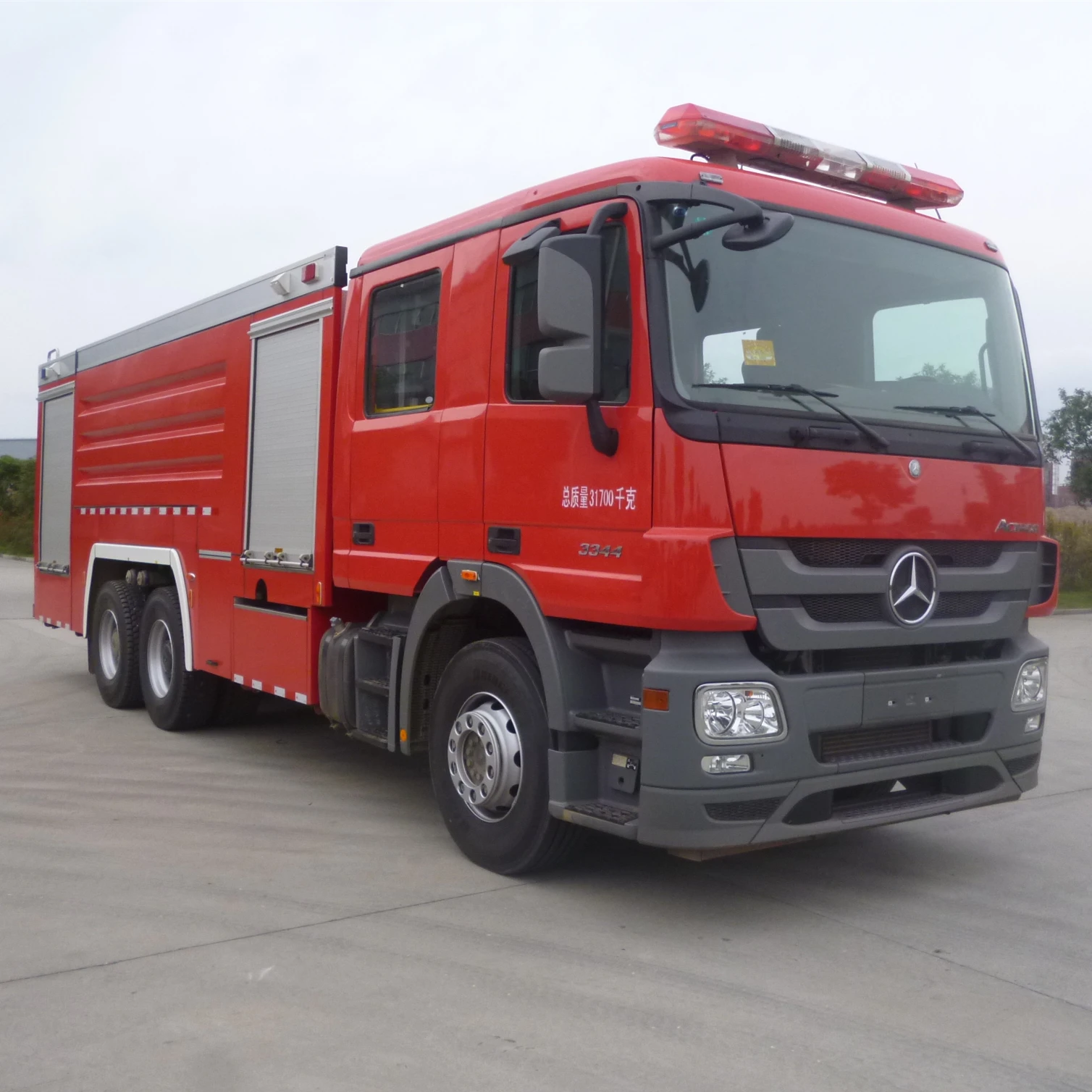

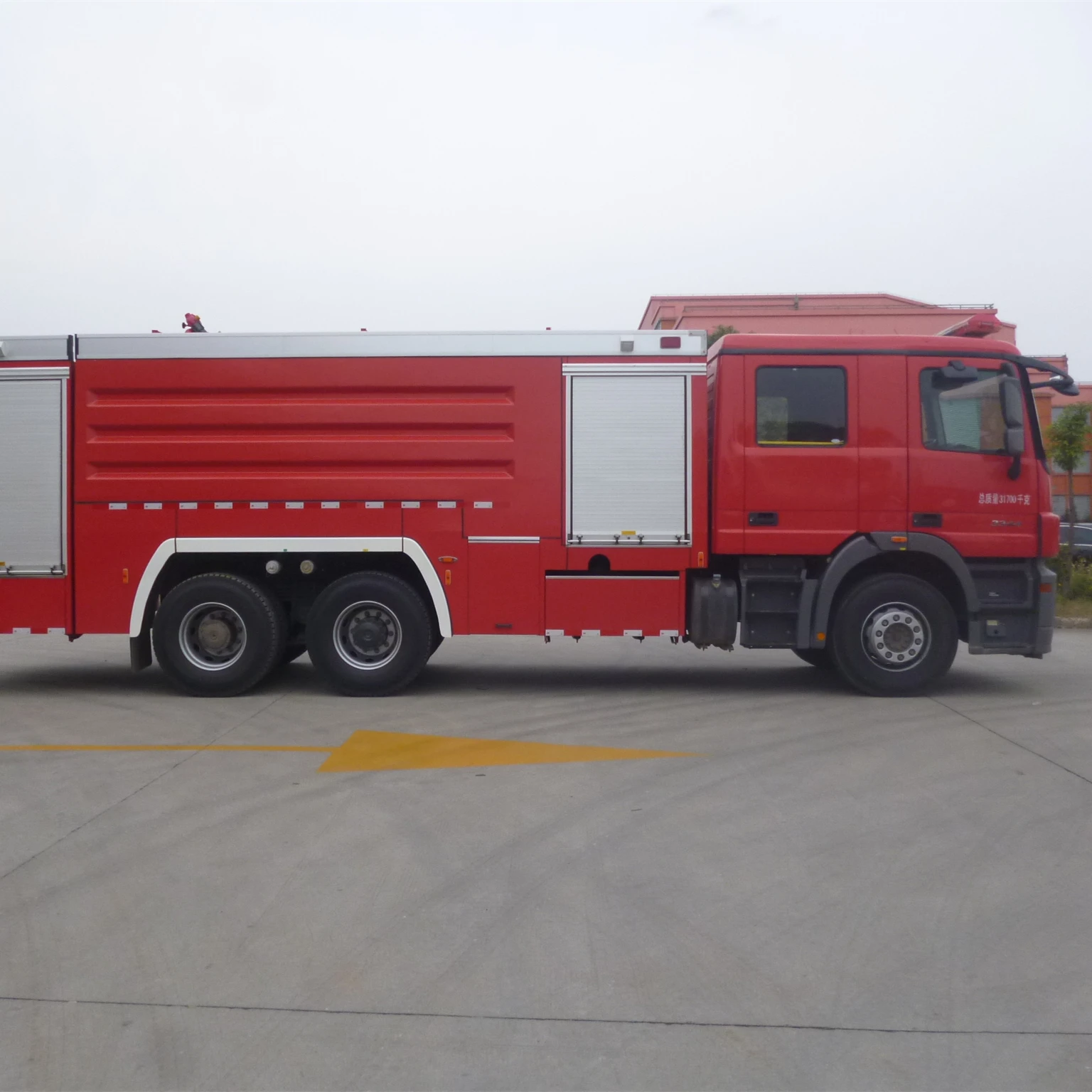

Shanghai Jindun PM160 special design flattop double row foam fire truck fire engine for sale
Product Description
Vehicle
Dimension (L×W×H) | 10135×2500×3500mm |
Gross weight | 31800kg |
Complete vehicle shipping mass | 15600kg |
Seat (inc. driver) | 6 |
Max. power | 325kw |
Chassis
Manufacturer | Daimler |
Model | Actros3344 |
Drive type | 6x4 |
Cab | Flattop double row, overturning type |
Crew department | 4 air breathing apparatus fixed mount in the seats |
Wheelbase | 4500+1350mm |
Max. speed | 100km/h |
Min. turning diameter | <25m |
Approach angle | 16° |
Departure angle | 11° |
Engine type | V type six-cylinder, inter-cooling, electronic unit pump diesel engine |
Model | OM501LA.IV/4 |
Max. power | 325kw |
Max. torque | 2100N•m |
Emission standard | China IV/Euro IV |
Clutch | Monolithic, dry |
Gearbox model | Manual-automatic |
Cab
Structure | Double row, four-door, lengthen cab |
Seat | 2+4 |
Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats |
Fire pump
Manufacturer | Hale |
Model | RSD |
Flow | 90L/s |
Pressure | 1.0MPa |
Water diversion | Electric primer pump |
Max. vacuum degree | ≥85 kPa |
Priming time | ≤80s |
Auto ring pump foam | PH48x2 |
Type | Manual |
Mixing ratio | 3%, 6% |
Pipeline
Outlet pipeline | 2×DN80 ordinary pressure outlet 1×DN50 ball valve |
Suction inlet | 1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
Residual water outlet | Water cock |
Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |
Pump drive system
Model | NMV200 |
Transmission shaft | High balance precision |

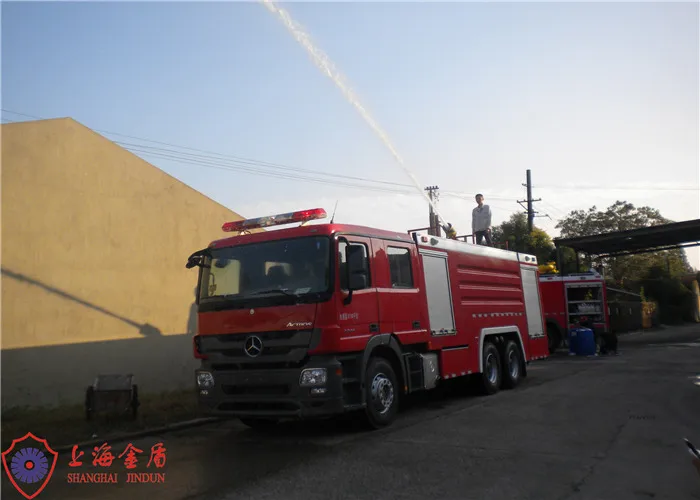

Fire monitor
Model | Elkhart, Vulcan 8500-02 |
Position | Rear roof |
Flow | 80L/s |
Pressure | 1.0MPa |
Range | water≥75m ,foam≥70m |
Rotation angle | Level ≥360° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Packaging & Shipping
Nude packed, with waxing by roro ship or bulk ship.
Our Services
1. We always supply a professional service team on fire fighting trucks.
2. Any questions for fire fighting trucks will be replied within 24 hours.
3. Good quality, competitive & reasonable price, the fast lead time.
4. Our chassis are direct from other factories. There is no middle man, no high markup. Meanwhile, we research and develop with MORITA CORPORATION. So we can provide good quality fire vehicles for you with competitive prices.
5. We guarantee that all our trucks has gone through strict quality control and testing report to ensure that it is in good condition before shipment. We strive for 100% customer satisfaction on every sale we complete.
6. We provide 12 months warranty for fire vehicle.
7. We supply spare parts in time for customers.
8. It is our mission to provide good quality to save lives.
9. e.g. the military fire truck in China's Aircraft Carrier made by us.
