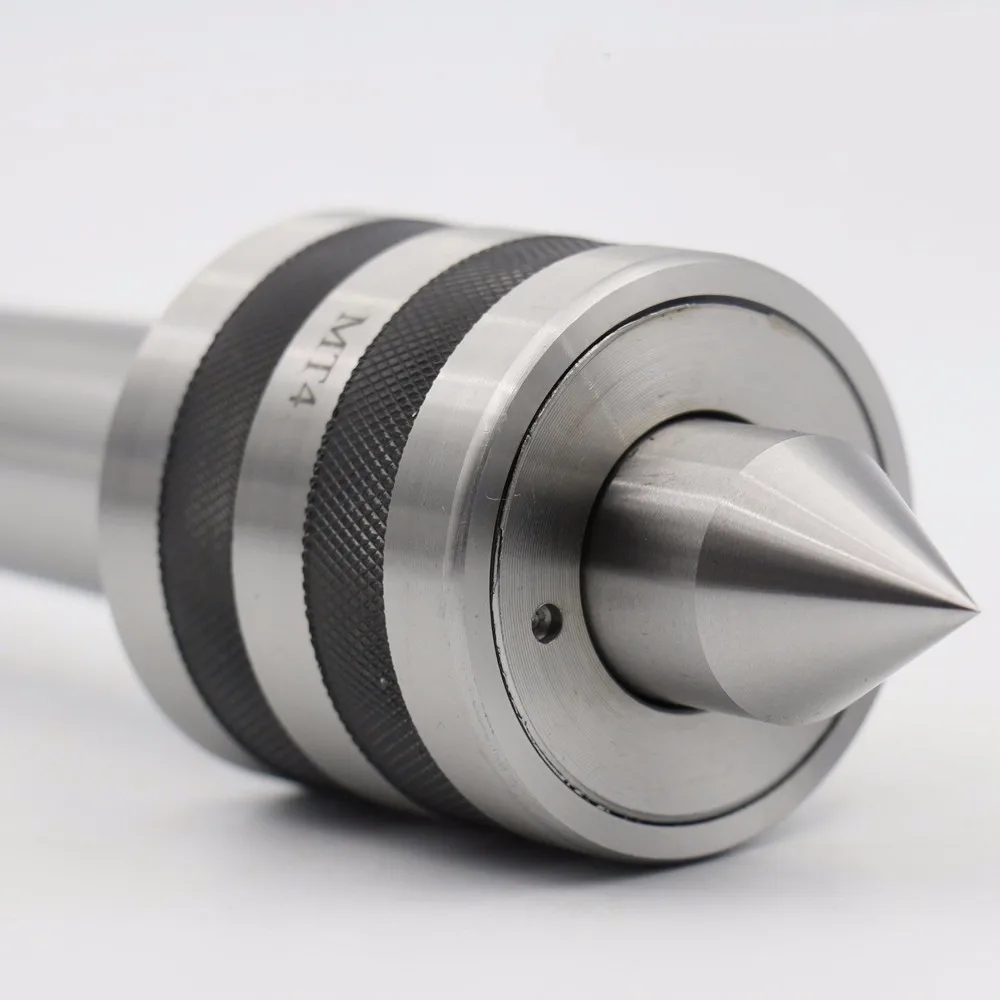

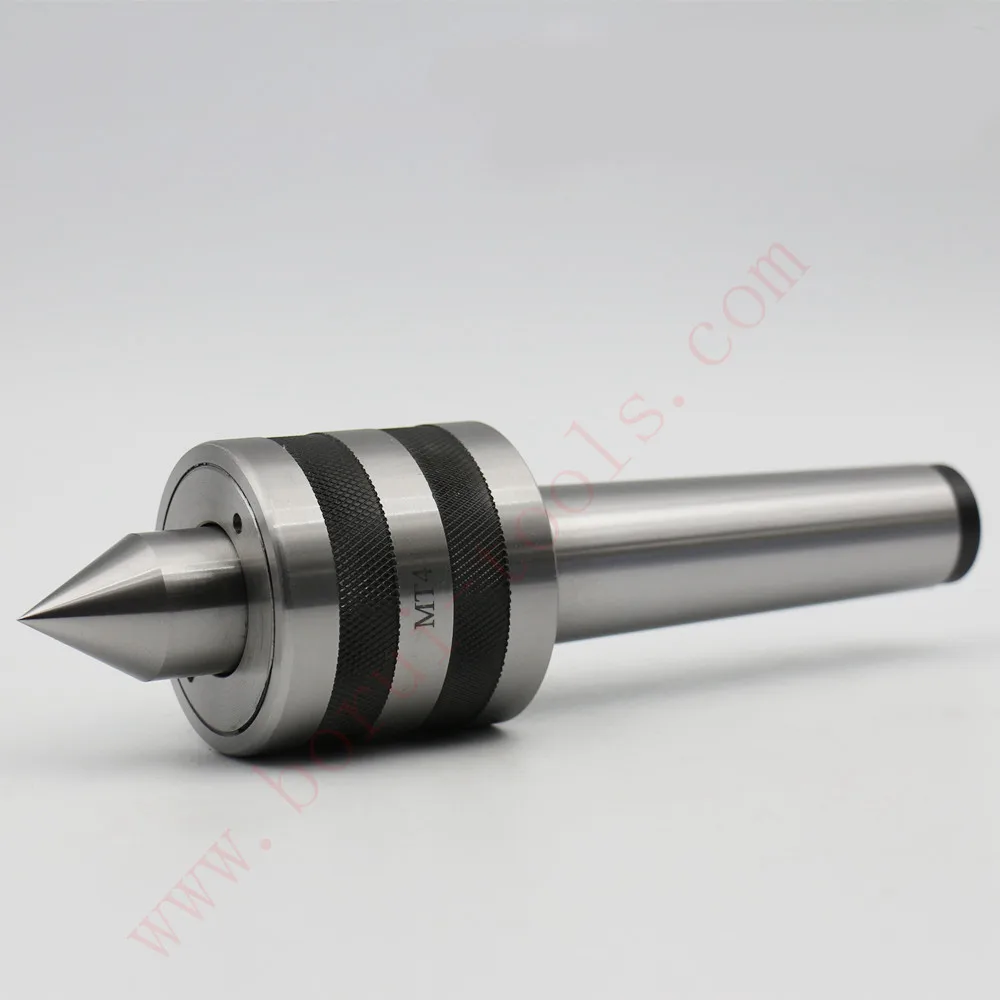

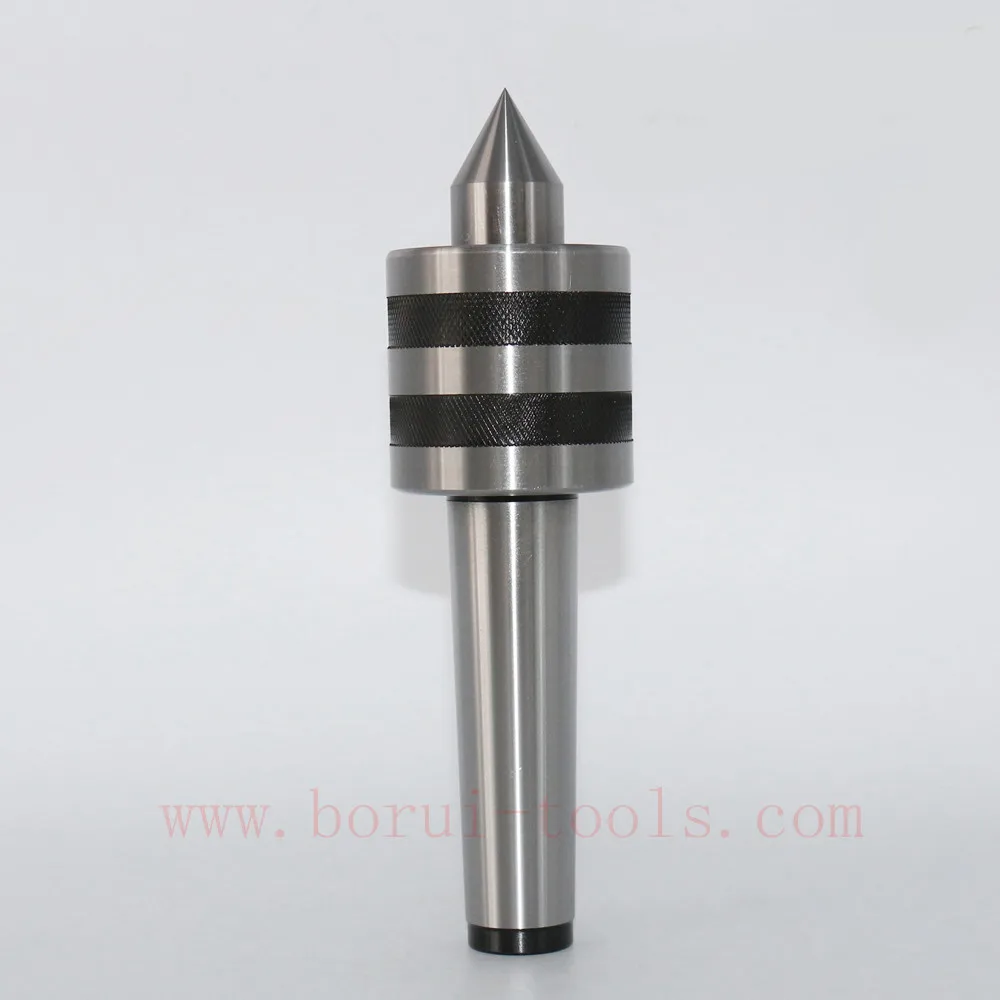

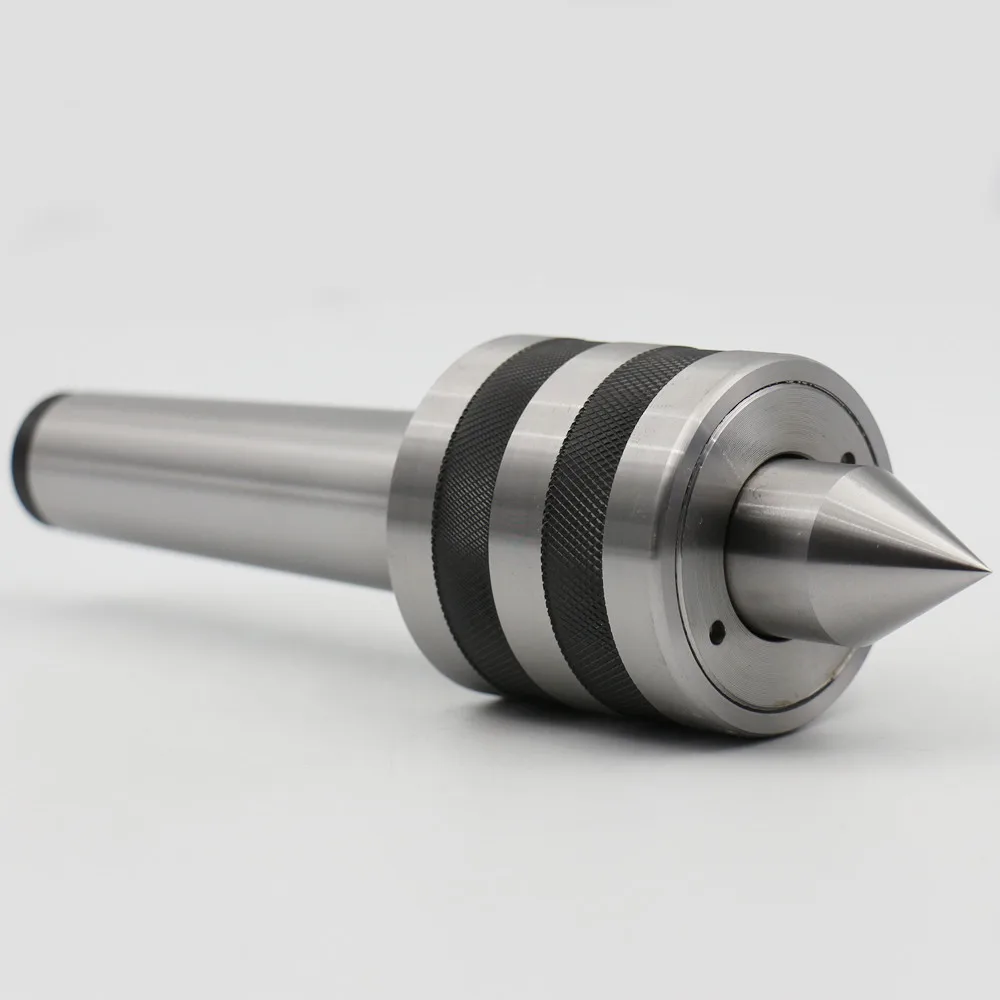

Best Match live centers CNC MT2 MT3 MT4 MT5 Carbide dead centers

Share on (62121945904):


Price:RUB 3,532.17

Quantity:


Product Overview

Description

Product Description

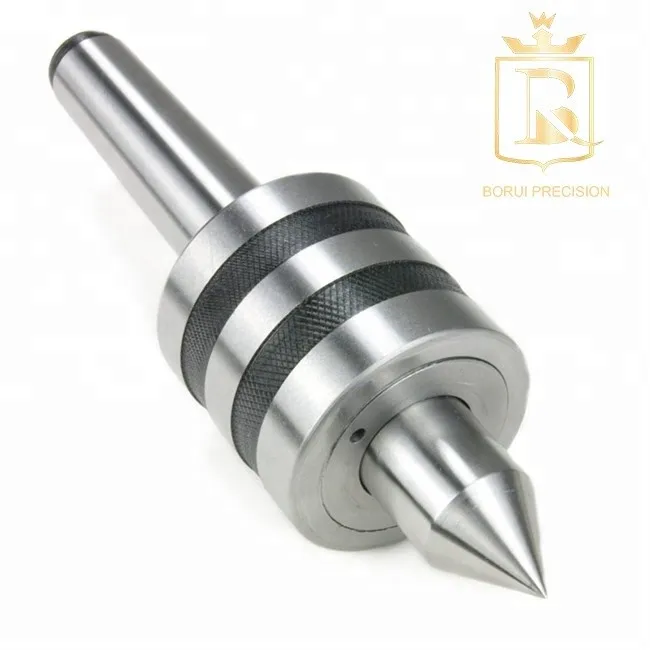

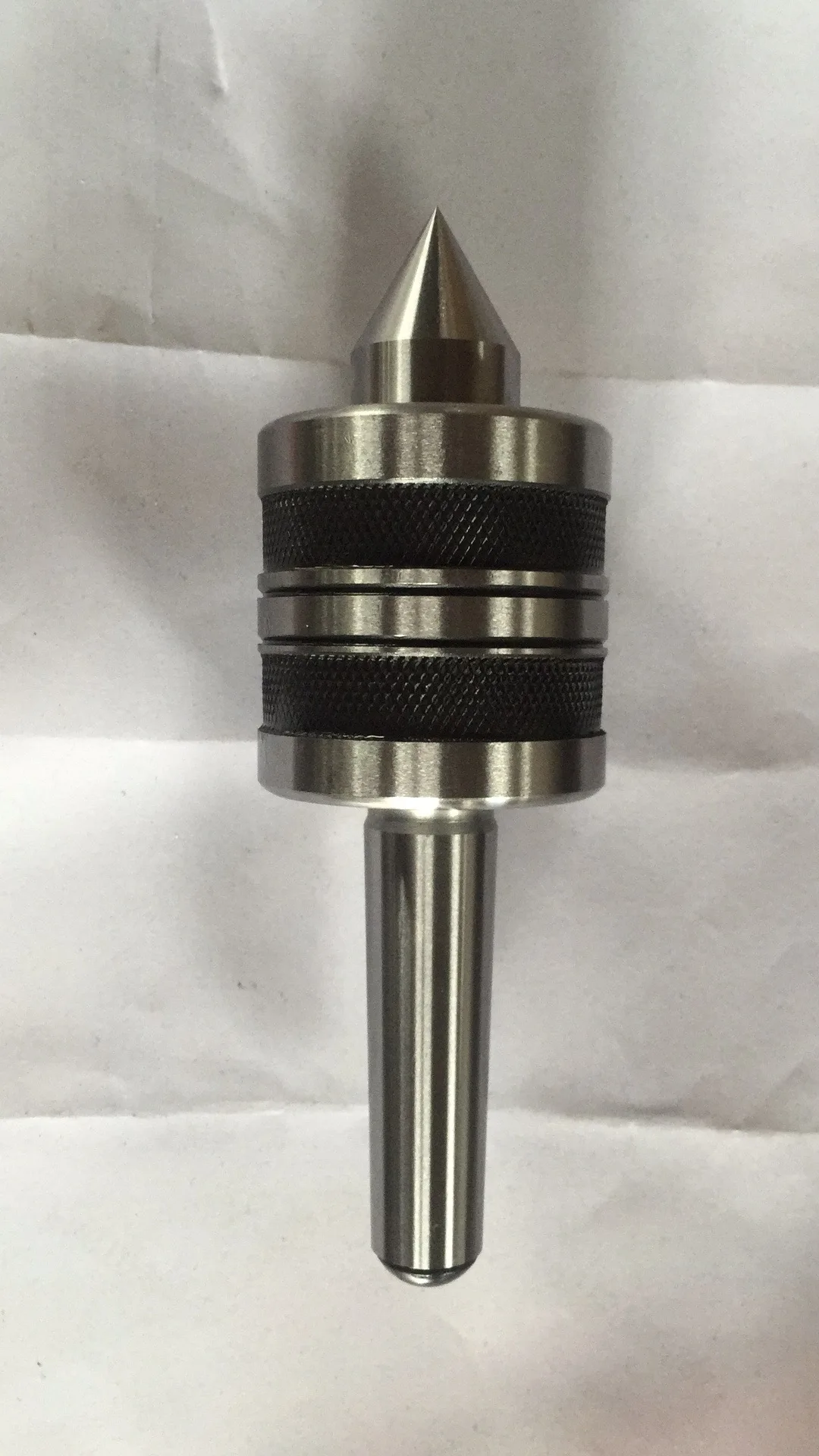

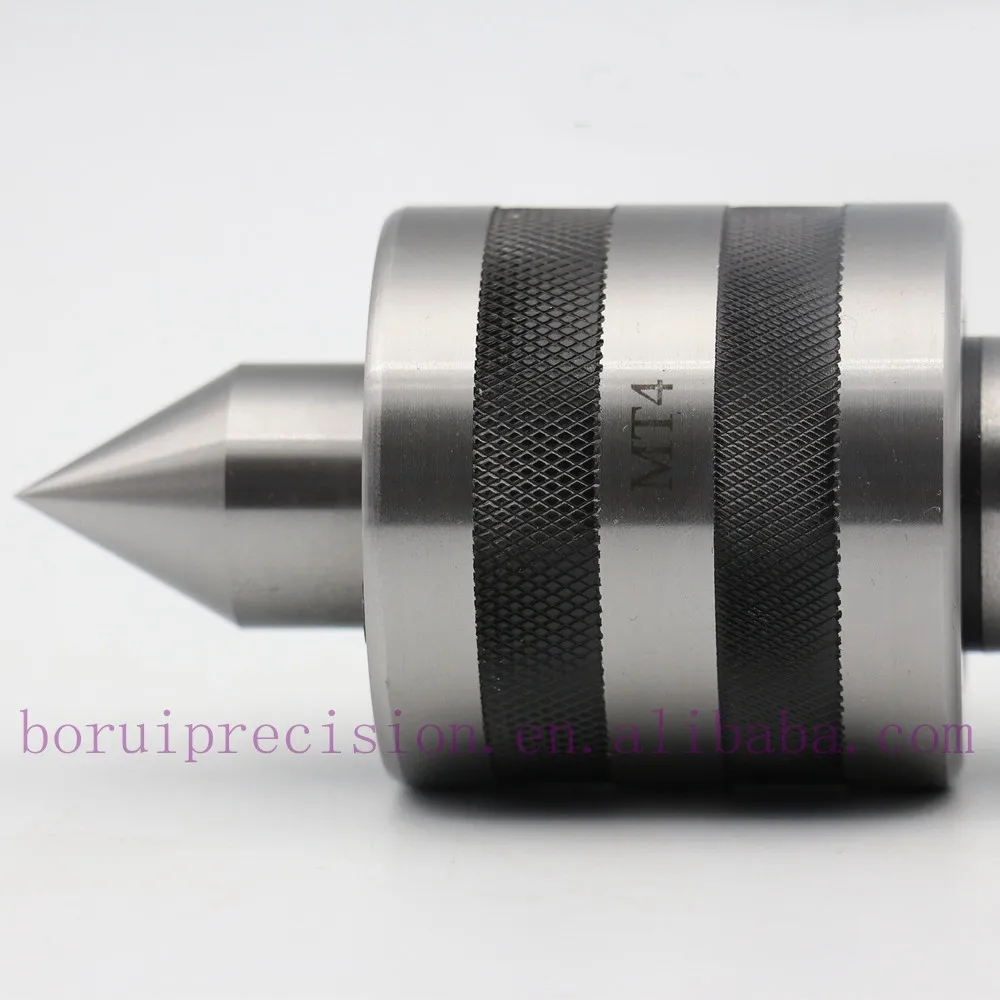

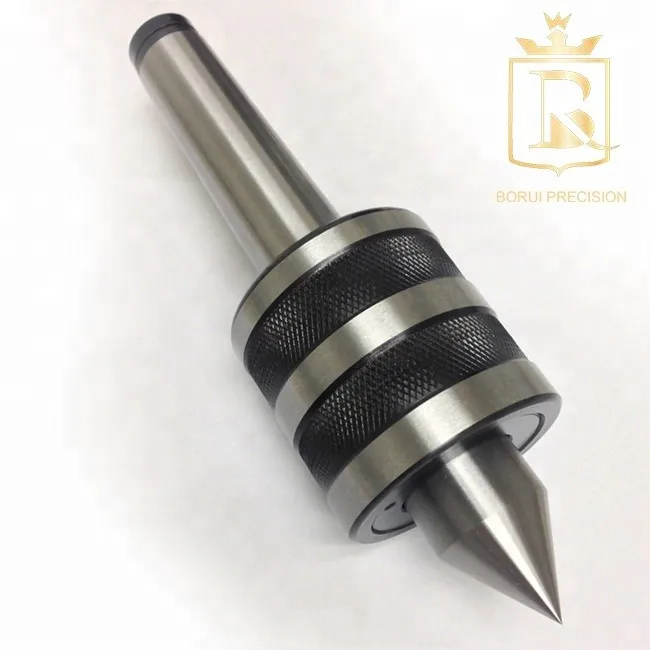

Carbide Medium-Duty Live Center


1.Material:45#Steel

2.Application:CNC Machine


3.Accuracy:0.010mm

4.Packing:Plastic Box Packing


5.Size:D412A/D413A/D414A/D415A/D416A

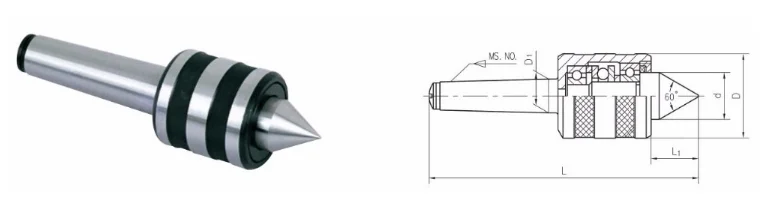

Order No.


MS. No.
L  (mm)
L1     (mm)
d (mm)
D            (mm)
D1 (mm)
d1  (mm)
Max Load (mm)
Max Speed rpm
Accuracy mm
MS2
145
26
25
45
17.780
12
1500
5000
0.01
MS3
170
30
28
52
23.825
15
2000
4200
0.01
MS4
205.7
34.7
32
60
31.267
18
3200
3200
0.01
MS5
254
45
45
77
44.399
24
6300
2000
0.015
MS6
362
68.5
75
125
63.348
40
10000
1600
0.015
