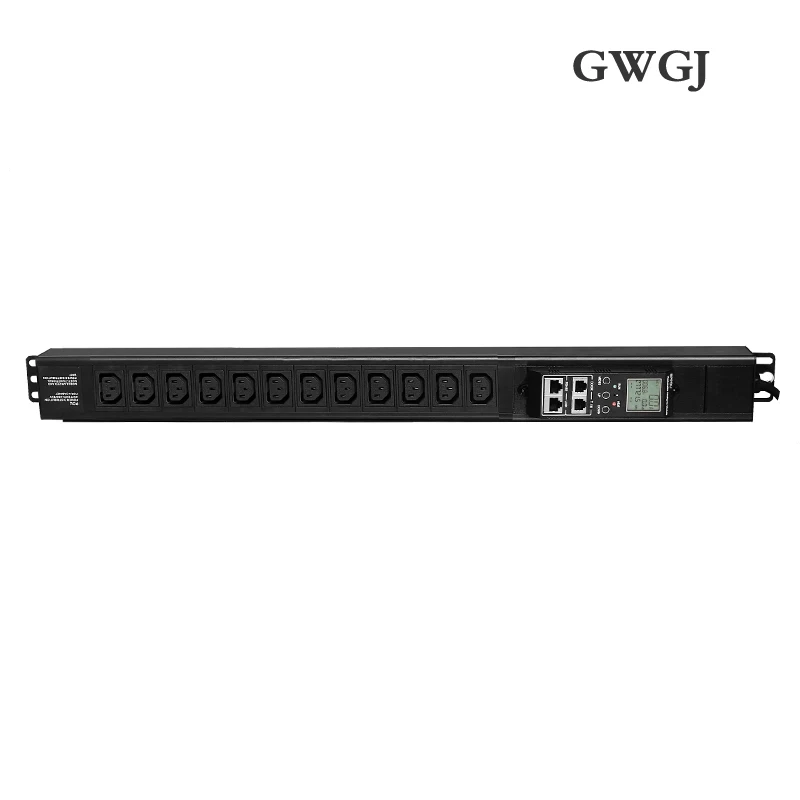

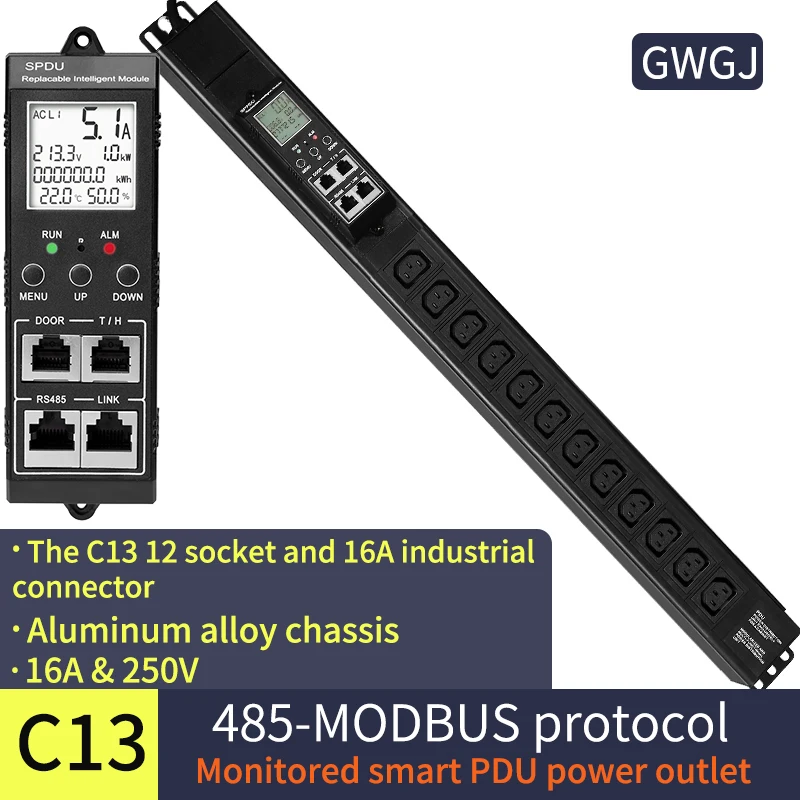

1.5U intelligent monitoring type PDU power socket 12 bit C13 socket 16A input vertical installation 485Modbus RTU protocol casca
- Category: Power Distribution Equipment >>>
- Supplier: Shenzhen Terpress Technology Co. Ltd.
Share on (62122853575):
Product Overview
Description
Product Description
| performance parameter | technical index | ||||
| input characteristics | Single phase | rated input voltage | 110/220V 50/60HZ | ||
| The maximum total load current | 32A | ||||
| Three phase | rated input voltage | 380V 50/60HZ | |||
| The maximum total load current | 3×16A | ||||
| Output characteristics | Single phase | Output voltage | 110/220VAC 50/60HZ | ||
| The maximum total load current | 32A | ||||
| Three phase | Output voltage | 380V 50/60HZ | |||
| The maximum total load current | 3×16A | ||||

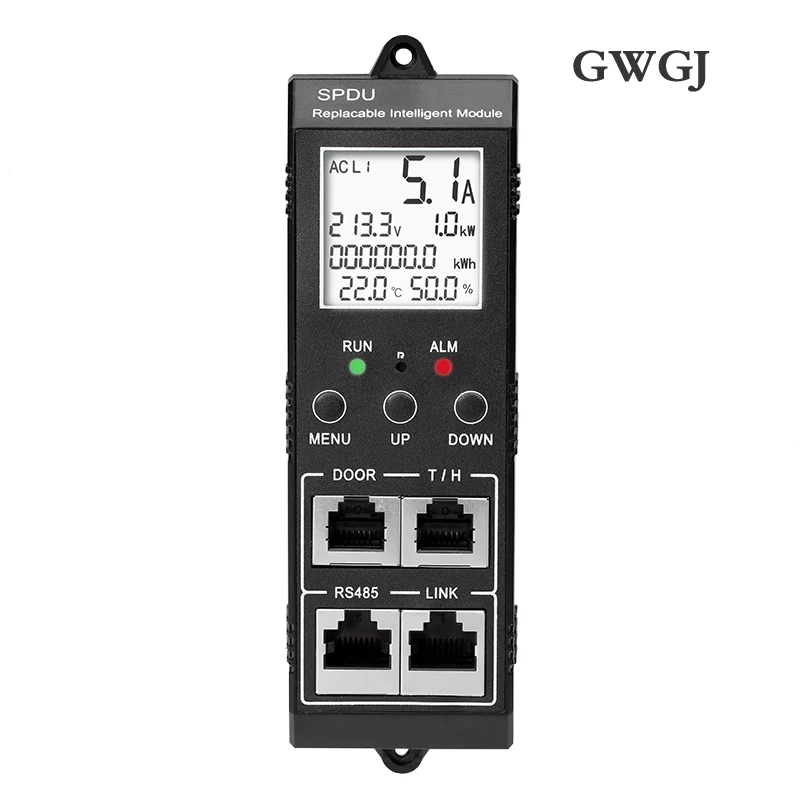

| Display Properties | Hot-swappable | LCD, it displays the total input voltage, total current, total power etc. | |||
| Display Accuracy | total voltage | Full scale:300V Accuracy:+2 character | |||
| resolution ratio:0.1V Response Time:400ms | |||||
| Total current | Full scale:32A Accuracy: +1 character | ||||
| resolution ratio:0.1A Response Time:400ms | |||||
| Total electric energy | A constant: 1600imp / kWh Level: 1 | ||||
| Resolution: 0.1kWh | |||||
| Temperature | resolution ratio: 0.1℃ ; | ||||
| Humidity | resolution ratio: 0.1 ; | ||||
| physical property | Hot-swappable | ||||
| Shell color | |||||
| Installation methods | Vertical fixed installation | ||||
| monitoring function | the total load current monitoring | ||||
| the total input voltage monitoring | |||||
| the total load power monitoring | |||||
| the total electricity consumption monitoring | |||||
| the environmental temperature and humidity monitoring | |||||
| Setting Function | The total load current upper and lower limit settings | ||||
| temperature and humidity upper and lower limit settings | |||||
| address setting of email alarm | |||||
| HTTP Network service settings | |||||
| SNMP(v1)setting | |||||
| Network parameter settings (IP, gateway, mask, DNS) | |||||
| Alarm function | The system alarm | When the total load current exceeds the rated value | |||
| When temperature, humidity exceeds the upper and lower limits | |||||
| Customize the Alarms | When the total load current exceeds a threshold | ||||
| Temperature, humidity exceeds the upper and lower limits | |||||
| Alarm mode | Buzzer beep | ||||
| LCD digital flash | |||||
| Email is automatically sent to the system administrator | |||||
| SNMP Send alert status information. | |||||
| · Serial Port Communication background send the alarm status information | |||||
| Access method | WEB access control through IE; | ||||
| SNMP(V1)via standard network management workstation access control | |||||
| Telnet command line | |||||
| user management | Set the user name and password | ||||
| cascading | Can be cascaded for two products | ||||
| environment | Operating temperature | 0℃~55℃ | |||
| relative humidity | 10~90 | ||||
| storage temperature | -20℃ ~ +70℃ | ||||
