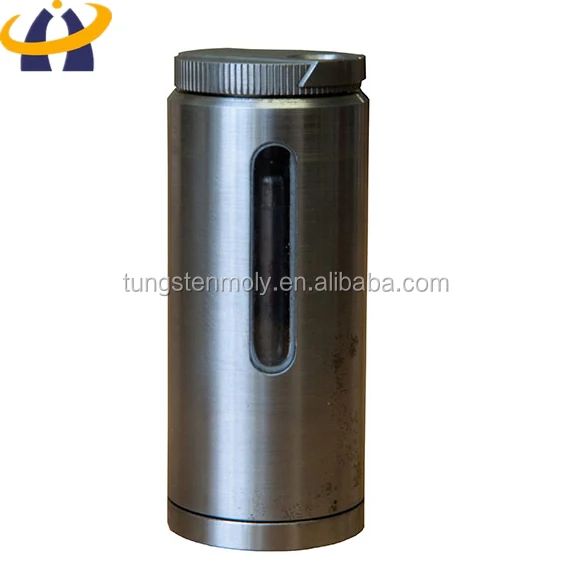

                                                          Universal 511 T Vial Shield, for 10, 20 and 30cc Vials

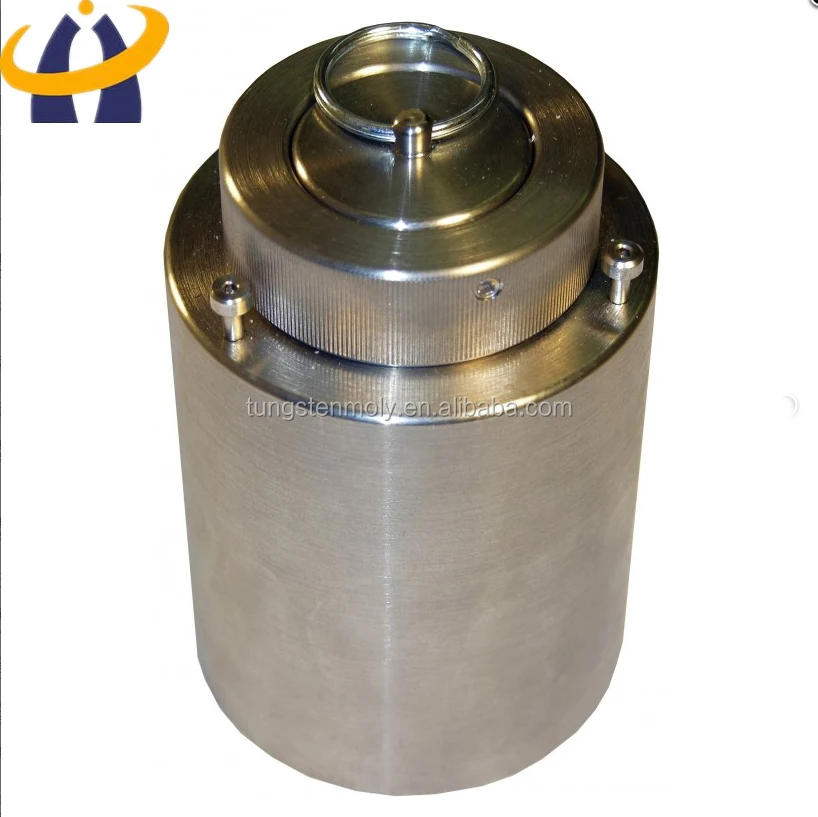

The shield Mod. TVS is suitable for storage and use of vials containing radiopharmaceuticals.

The shield is made of tungsten with a thickness of 6 mm in every direction (Eq to 10 mm Lead at 150 KeV).

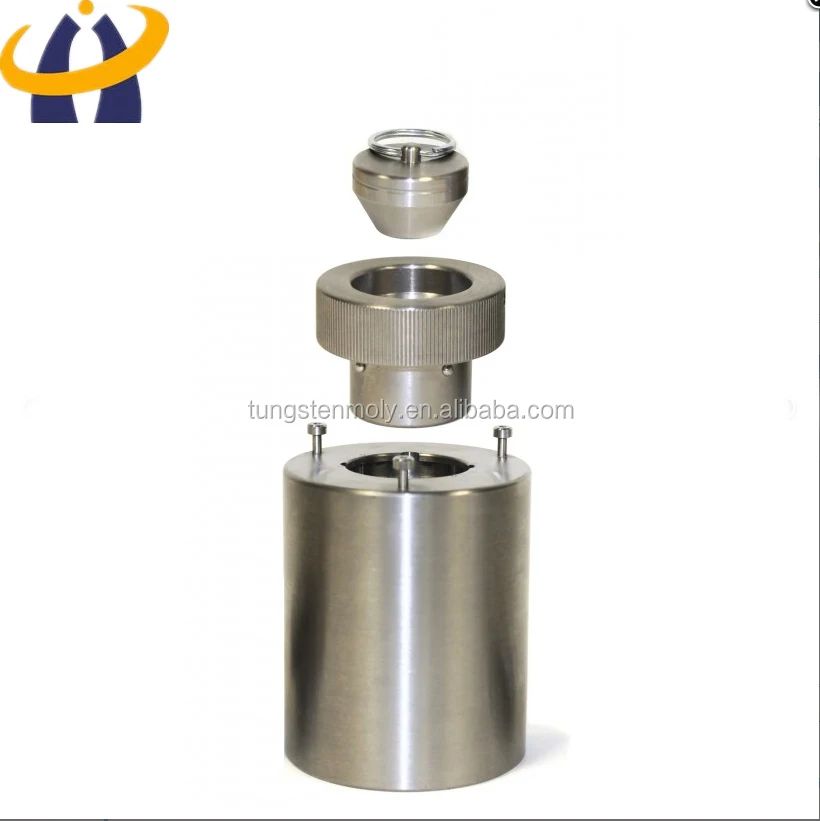

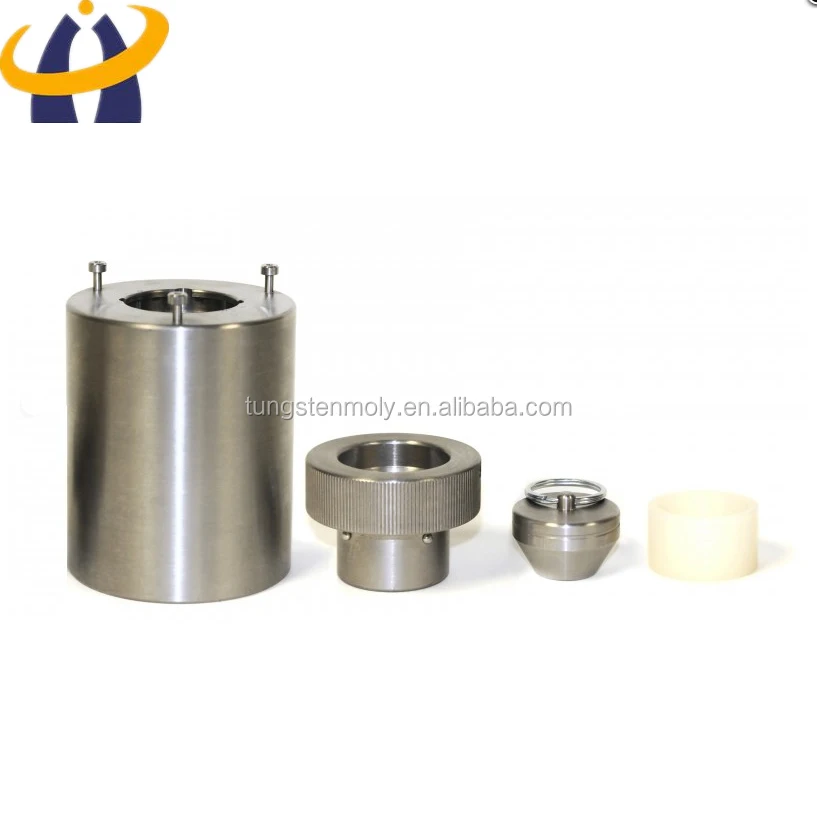

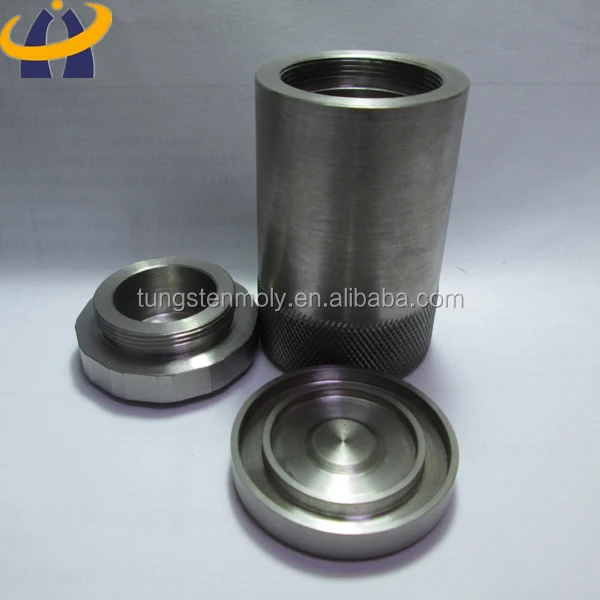

The shield is equipped with a threaded cap for the introduction of the vial, and with a magnetic cap for the access to the vial "cap".


The Tungsten (Wolfram) Vial Shield is designed to greatly reduce exposure to vials containing liquid radioisotopes. The shield is constructed of .19" (.48 cm) thick tungsten, equivalent to .38" (1 cm) lead at 150 keV.

Vials can be loaded from the top or bottom of the shield. A loss-proof slide injection port on the top allows easy access to the vial septum. The tough tungsten will retain its shape under the roughest handling and is virtually unbreakable.

Specifications:
Dimensions: 1.44" dia x 2.8" h (3.7 x 7 cm) - I.D.: 1" x 2.25" (2.5 x 5.7 cm) Lead Equivalency: .38" (1 cm) Weight: 1.65 lb (0.75 kg) Accommodates Vial Size:10 ml


TVS series

the tungsten Magnetic vial shield will hold a 30ml vial

Convenient easy to remove and replace magnetic cap tungsten thickness of 6.6mm

adapter available if using 10mm


Dimensions:

Total Height:3.5"

Tungsten thickness:6.6mm

 Inside diameter:30mm

 weight:3.1lb

the tungsten Magnetic vial shield will hold a 30ml vial

Convenient easy to remove and replace magnetic cap tungsten thickness of 7mm

Dimensions:
Total Height:3.5"
Tungsten thickness:7mm
Inside diameter:42.5mm
weight:3.8lb

                                                       Need a different thickness?

                                         Can be custom made to your specifactions

Related Products
Our Company
Packing & Delivery
Customer Photo

                  In the Fair

                  Talk face to face

                 Visit our factory

FAQ


Q:What's your main products?
A:Tungsten /molybdenum /tungsten alloy products.

Q: Why should I choose your company for partner?
A: As you know, the raw material of low price makes your product more competitive in the market. That means it will make your sell much easier.


Q:Do you use first class tungsten /molybdenum powder?
A:We only use first class tungsten / molybdenum powder,no recycle.

Q: Delivery tungsten alloy products can be shorter?
A: Usually we make sure all the order delivery with 30 days.Tungsten copper 15 days.

Q:Price can be cheaper?
A: We use first class tungsten powder,the cost is high.

Q:Tungsten /Molybdenum products MOQ?
A:Please email to inquiry per different products.

Q:Tungsten /Molybdenum sample?

A:Sample available,within 7~14 days.


Welcome send us your drawing ,We not only produce the standard types, but also the tungsten parts based on your designs. We have rich experience on this and a big part of our product is from our clients' designs. We can provide the technical support, like how to select the right grade of tungsten to match your using purpose, we will make it very easy and simple to do business with us:
