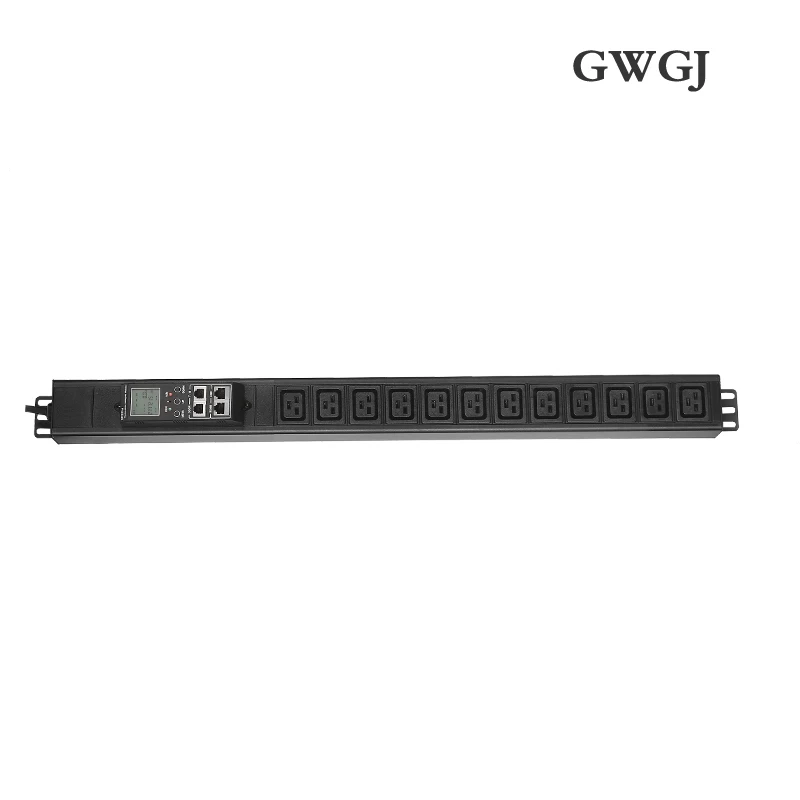

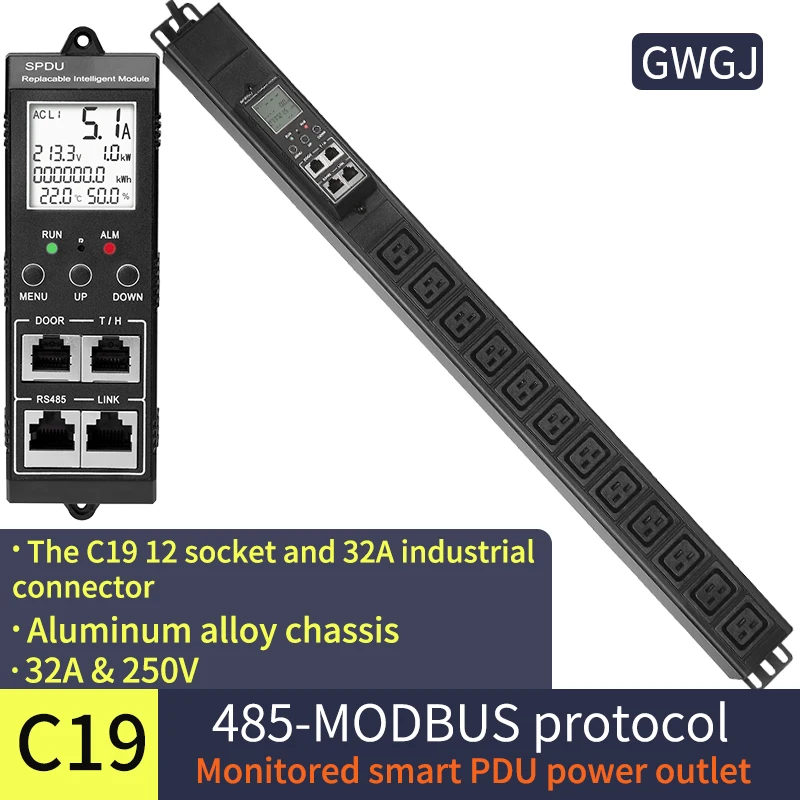

1.5U intelligent monitoring type PDU power socket 12 bit C19 socket 32A input vertical installation 485Modbus RTU protocol casca
- Category: Power Distribution Equipment >>>
- Supplier: Shenzhen Terpress Technology Co. Ltd.
Share on (62124379626):
Product Overview
Description
Product Description
| No. | performance parameter | technical index | ||||
| 1 | input characteristics | Single phase | rated input voltage | 110/220V 50/60HZ | ||
| The maximum total load current | 32A | |||||
| Three phase | rated input voltage | 380V 50/60HZ | ||||
| The maximum total load current | 3×16A | |||||
| 2 | Output characteristics | Single phase | Output voltage | 110/220VAC 50/60HZ | ||
| The maximum total load current | 32A | |||||
| Three phase | Output voltage | 380V 50/60HZ | ||||
| The maximum total load current | 3×16A | |||||

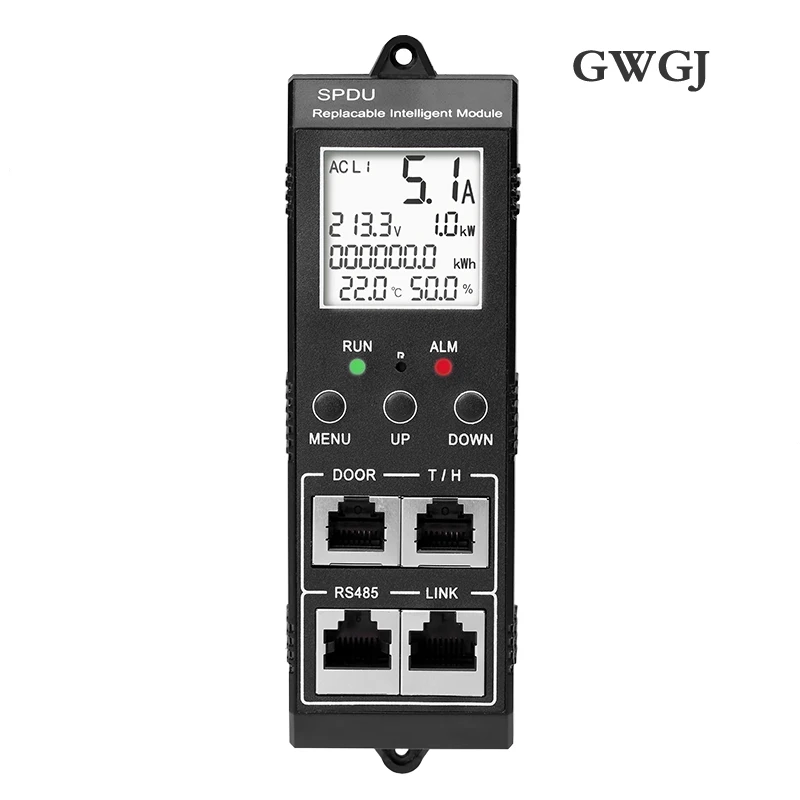

| 3 | Display Properties | Hot-swappable | LCD, it displays the total input voltage, total current, total power etc. | |||
| Display Accuracy | total voltage | Full scale:300V Accuracy:+2 character | ||||
| resolution ratio:0.1V Response Time:400ms | ||||||
| Total current | Full scale:32A Accuracy: +1 character | |||||
| resolution ratio:0.1A Response Time:400ms | ||||||
| Total electric energy | A constant: 1600imp / kWh Level: 1 | |||||
| Resolution: 0.1kWh | ||||||
| Temperature | resolution ratio: 0.1℃ ; | |||||
| Humidity | resolution ratio: 0.1 ; | |||||
| 4 | physical property | Hot-swappable | ||||
| Shell color | ||||||
| 5 | Installation methods | Vertical fixed installation | ||||
| 6 | monitoring function | the total load current monitoring | ||||
| the total input voltage monitoring | ||||||
| the total load power monitoring | ||||||
| the total electricity consumption monitoring | ||||||

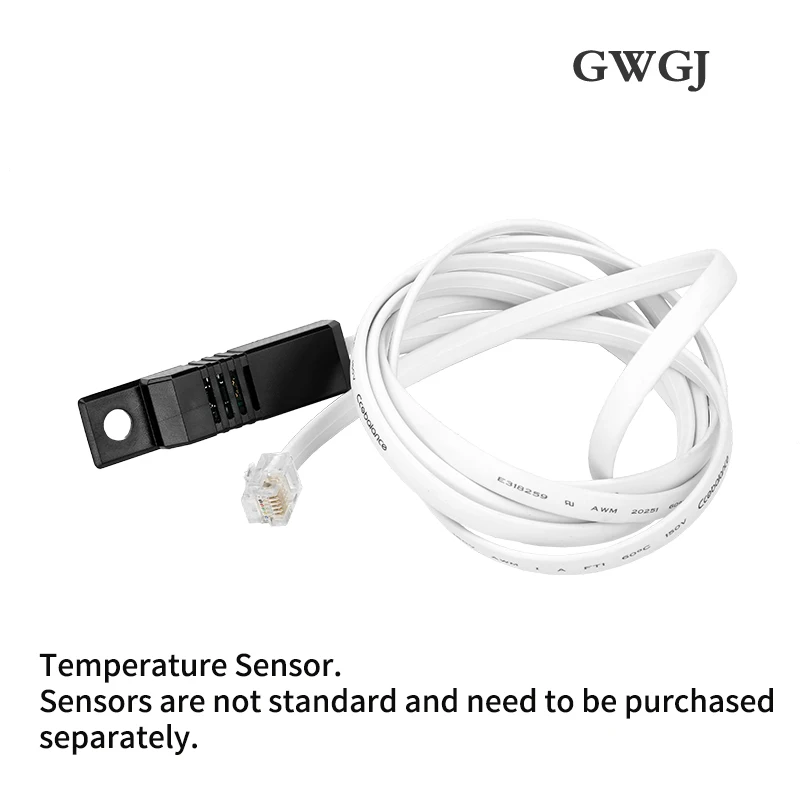

| the environmental temperature and humidity monitoring | ||||||
| 7 | Setting Function | The total load current upper and lower limit settings | ||||
| temperature and humidity upper and lower limit settings | ||||||
| address setting of email alarm | ||||||
| HTTP Network service settings | ||||||
| SNMP(v1)setting | ||||||
| Network parameter settings (IP, gateway, mask, DNS) | ||||||
| 8 | Alarm function | The system alarm | When the total load current exceeds the rated value | |||
| When temperature, humidity exceeds the upper and lower limits | ||||||
| Customize the Alarms | When the total load current exceeds a threshold | |||||
| Temperature, humidity exceeds the upper and lower limits | ||||||
| Alarm mode | Buzzer beep | |||||
| LCD digital flash | ||||||
| Email is automatically sent to the system administrator | ||||||
| SNMP Send alert status information. | ||||||
| · Serial Port Communication background send the alarm status information | ||||||
| 9 | Access method | WEB access control through IE; | ||||
| SNMP(V1)via standard network management workstation access control | ||||||
| Telnet command line | ||||||
| 10 | user management | Set the user name and password | ||||
| 11 | cascading | Can be cascaded for two products | ||||
| 12 | environment | Operating temperature | 0℃~55℃ | |||
| relative humidity | 10~90 | |||||
| storage temperature | -20℃ ~ +70℃ | |||||
