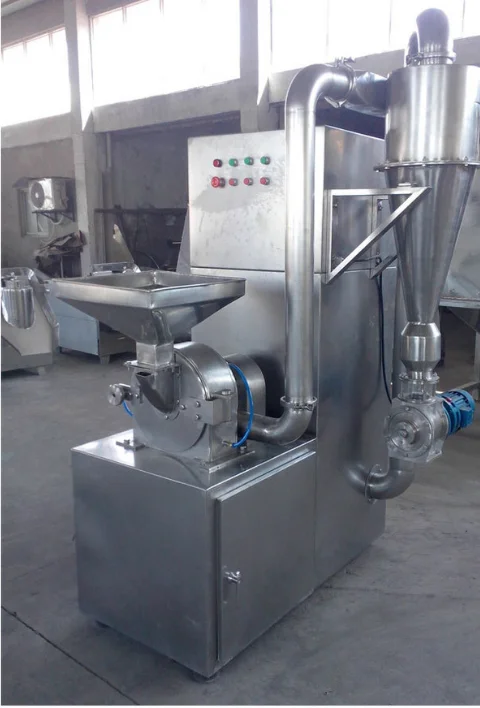

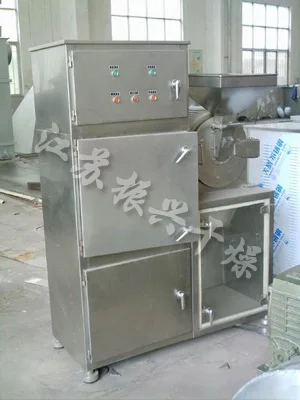

HOT SALE 40B grinder grinding machine with bag type dust collector and disc mill are popular sale in Indonesia market

Product Overview

Description



 BIG SALE !!!!!!

40B Grinder/disc mill at the price $6000, FREE TAX DUTY AND SHIPPING CHARGE. CONTACT ME TO GET IT.

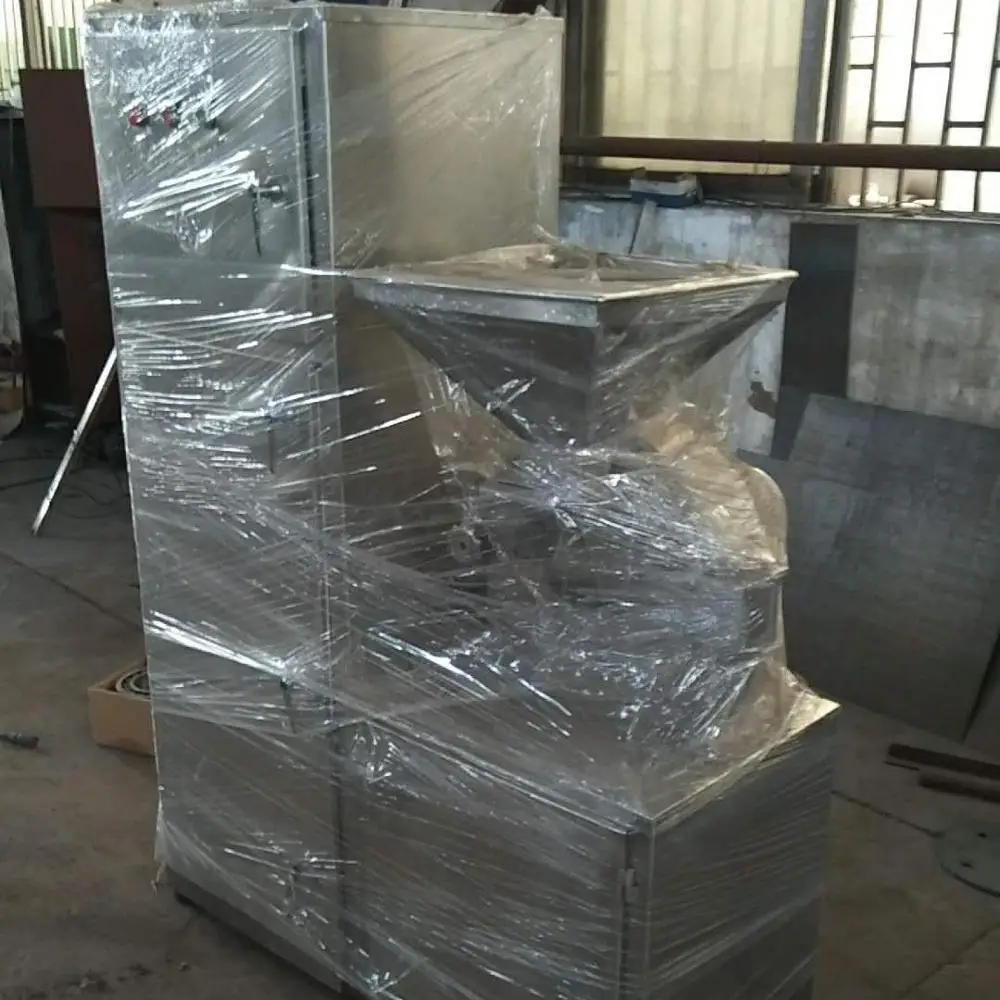

40B Grinder/ disc mill has arrived in the stock in Yogyakarta 55781, Indonesia, it can save much time on delivery for you.



Full set of 40B Grinder/ disc mill is made of SS316L with the thickness 4mm, the standard meet to the GMP food standard.





The product has been tested by an independent laboratory for suitability for food contact and compliance with the regulations and recommendations, taking also into consideration the declarations of compliance provided by our raw materials and additives suppliers and additional information obtained on a confidential basis.

The trade name(s) mentioned above are suitable for food contact as described below.
EU:
Regulation (EC) No. 1935/2004 on materials and articles intended to come into contact with food
Regulation (EC) No. 2023/2006 on good manufacturing practice for materials and articles
intended to come into contact with food Complies when applicable and under foreseeable conditions of use Complies when applicable and under foreseeable conditions of use









Main Application :

The machine unit is suitable for such fields as pharmaceutical, food, chemical, etc.. With no limit of viscosity, hardness, and the fiber content of the material, it is functioned with air cooling, screen-free, etc.

It has good pulverization effect on any material, especially suitable for fibrous Chinese herbs or oily materials.





Working Principle:

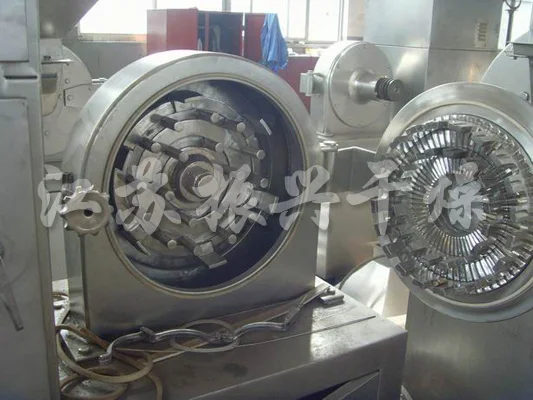

The machine unit is made up of charging bucket, stepped gear, pulverizing knife, gearing, pulverizing motor, discharging port, fan blade, aggregating box, dust collection box, etc.

The material is fed into the pulverizing room through the charging bucket and pulverized by a knife with high rotation.

The fineness of the material is controlled by the adjustment of the gap between stepped gear and stepped pan.

The well-processed material is suctioned from the pulverizing room to the hip-pocket in the aggregating box by fan blade with high rotation, while the half-processed material will remain to be pulverized in the pulverizing room.

The dust in the hip-pocket is collected by the dust collection box.

The machine unit is designed according to the GMP standard. It is featured with simple structure, convenient operation and cleaning, low noise, and high output.

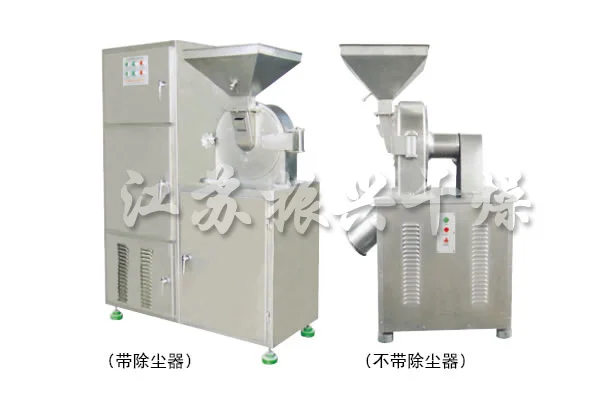

The machine is made of stainless steel with high quality with a dust collector.  There is no dust during the pulverizing.

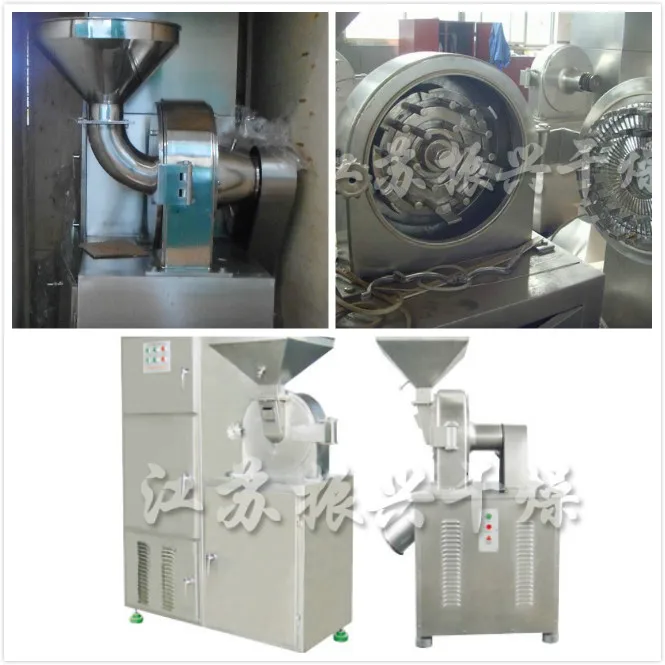

Chinese herb grinding machine

Technical data



Model	Production capacity	Feeding Size	Crushing fineness	Crushing motor	Dust collecting motor	Overall dimension	Weight
20B	30-80kg/h	<=5mm	20-180 mesh	5.5kw	1.5w	1600*1150*2150 (mm)	380kg
30B	40-150kg/h	<=5mm	20-180 mesh	7.5 kw	2.2kw	1600*900*1800 mm	550kg
40B	50-180kg/h	<=5mm	20-180 mesh	11kw	3 kw	1700*1000*1900 mm	700kg



Company Information

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd., this is Drying Equipment manufacture. We are specialized in the development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc.

We follow a strict quality control procedure and we provide high-quality products with prompt after sales services and technical support.

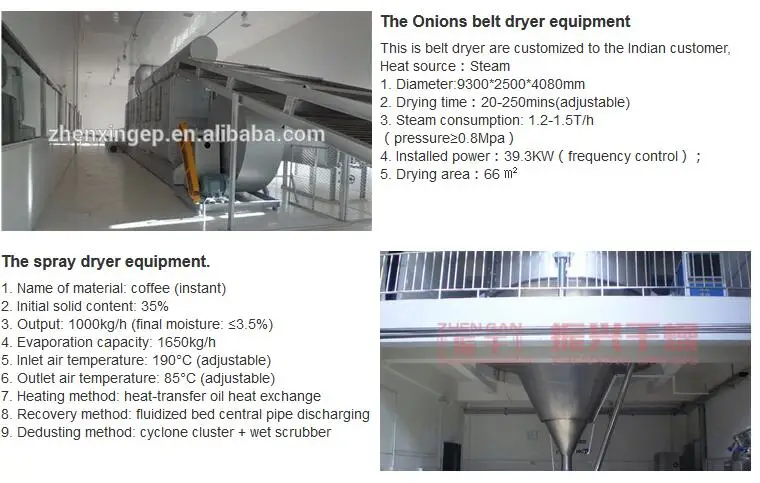

Project Case



During the installation, we can send our engineer to help you instruct if you need.

If you have any other questions, please feel free to contact me if you need.
