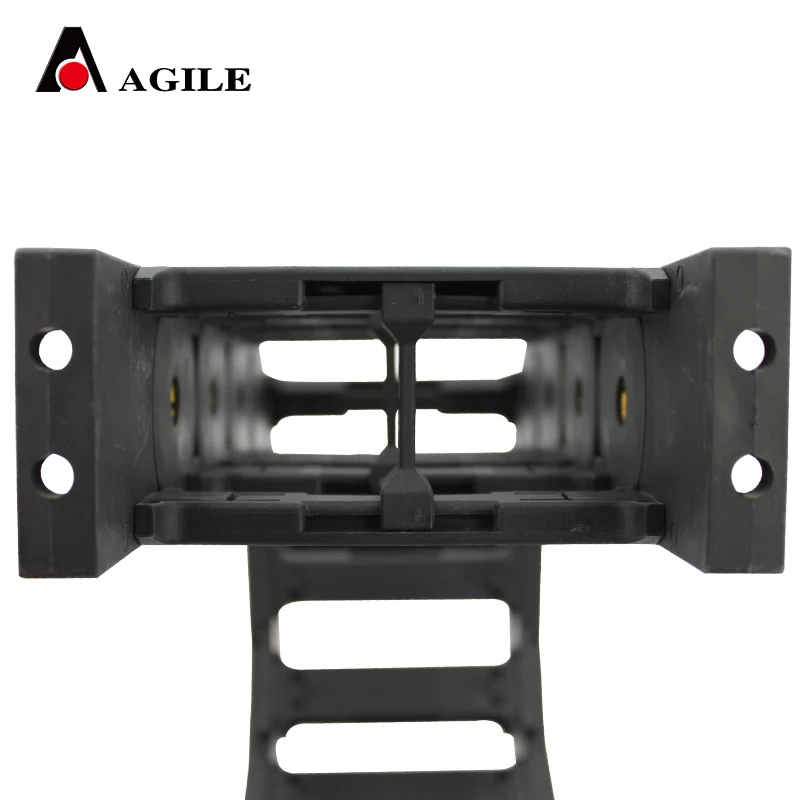

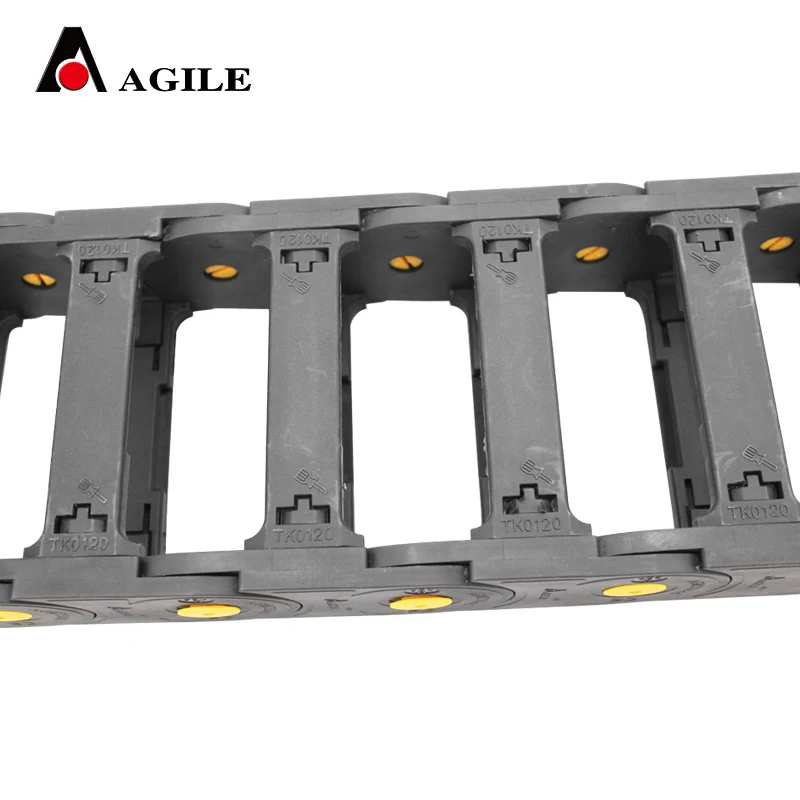

45*120 MTS series open type cnc reinforced nylon cable carrier
45*120 MTS series open type cnc reinforced nylon cable carrier
45*120 MTS series open type cnc reinforced nylon cable carrier
45*120 MTS series open type cnc reinforced nylon cable carrier
45*120 MTS series open type cnc reinforced nylon cable carrier
45*120 MTS series open type cnc reinforced nylon cable carrier
45*120 MTS series open type cnc reinforced nylon cable carrier

45*120 MTS series open type cnc reinforced nylon cable carrier

Share on (62126189316):


Price:$20.00

Quantity:


Product Overview

Description


1. Material: Reinforced Nylon PA6, PA66

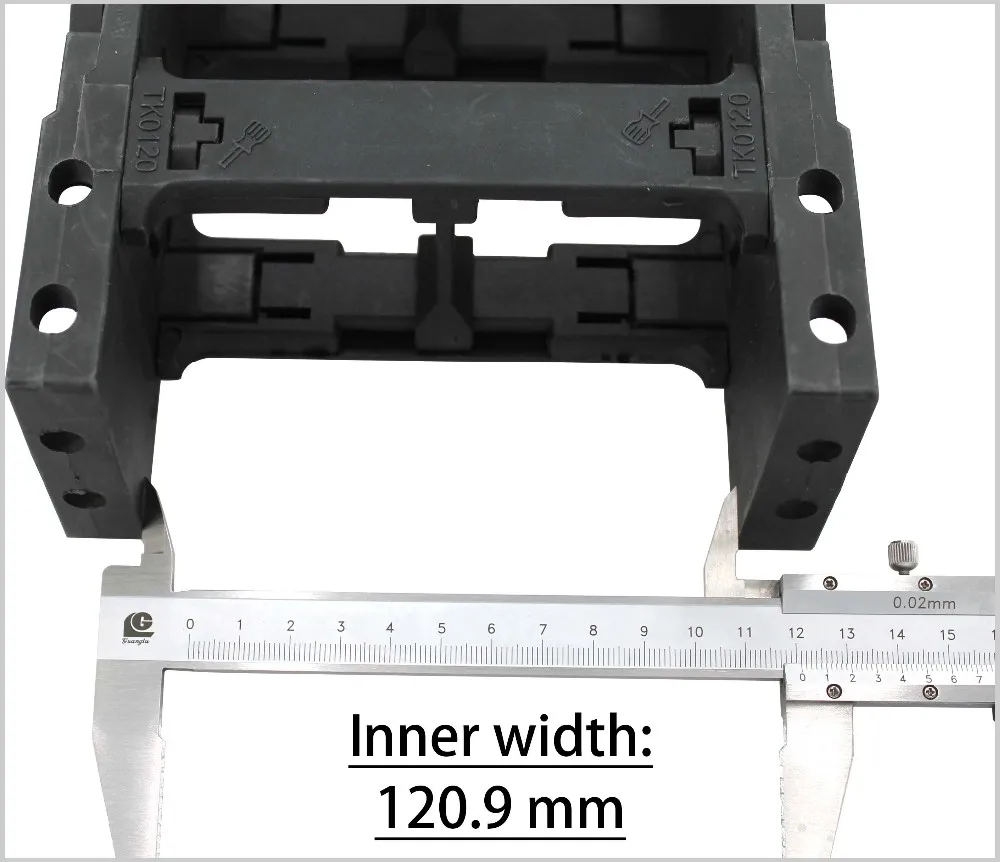

2. Size: Inner size: Height*width, 45*120 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould
for special requirements.
4, The raw material: Original new nylon raw material. We don't use recycling materials, which is cheap but
week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds' structures according to
the feedback of our customers after usage. And always paying much attention to function.
Product Name
High strength nylon tank chain
Material
PA6, PA66
Color
Black
Standard
DIN GB ISO JIS BA ANSI
Working temperature
-40-130 ℃
Recommended gap
10%
Features
wearable, elastic, fire proof, self-lubricating.
Open side
Both side.

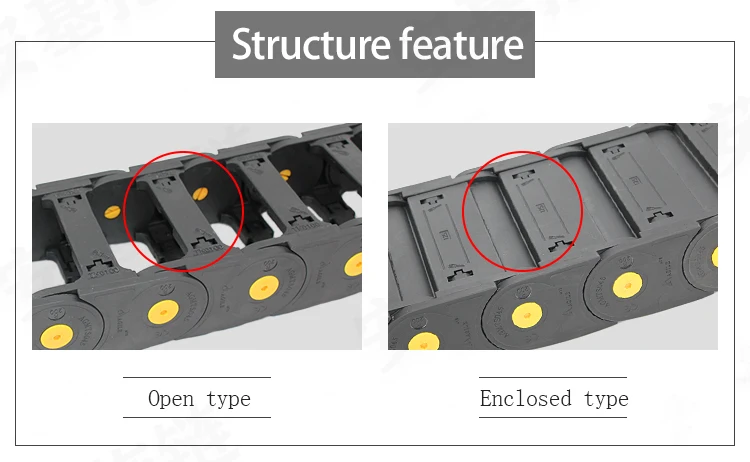

Structures
45*120 measurement
Series Dimension
TYPE
Inner dimensions Height*Width
Outter dimensions Height*Width
Radius
Pitch
Pitch/meter
Weight for open type Kg
Weight for enclosed type Kg
MTS35
35*50
55*75
R75
R77.5
R100 R125 R150 R200
67
15


35*76
55*101
64.8
16


35*100
55*125
67
15


35*125
55*150
67
15


35*150
55*175
67
15


35*175
55*200
67
15


35*200
55*225
67
15


MTS45
45*60
68*90
R100
R115
R117.5
R120
R125
R150
R175
R200
72
13
2.32

45*75
68*105
72
13
2.42
2.8
45*100
68*130
75
14
2.57
2.976
45*125
65*155
75.4
14
2.67
3.275
45*15
68*180
74.7
14
2.845
3.548
45*175
68*205
72
13
2.92

45*200
68*230
72
13
2.97

45*250
68*280
72
13

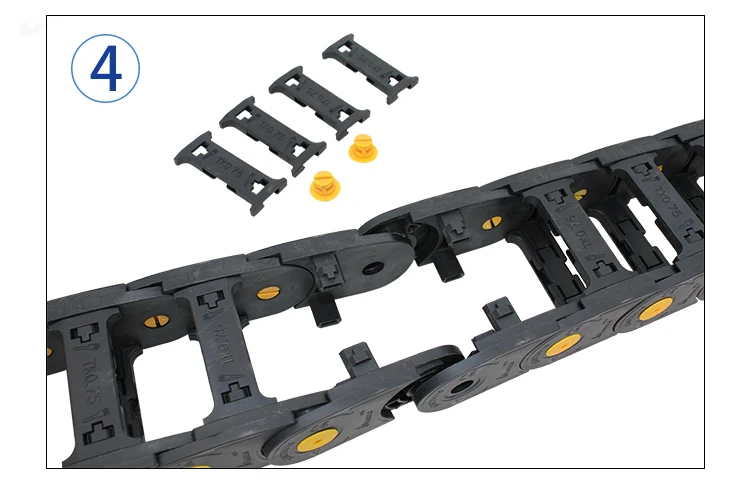

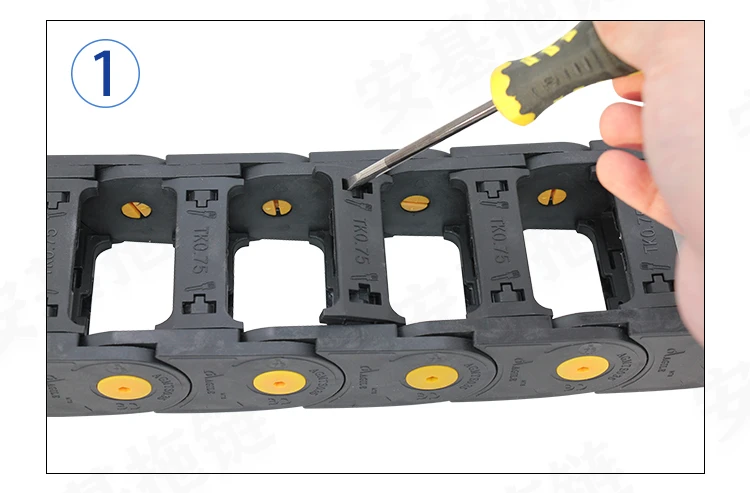

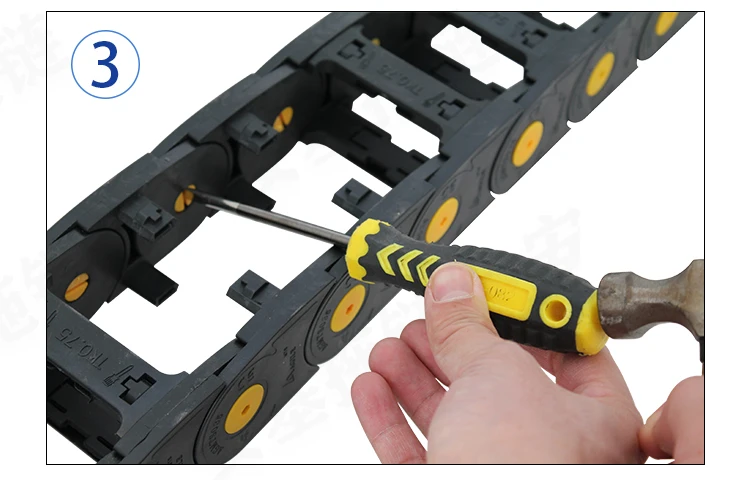

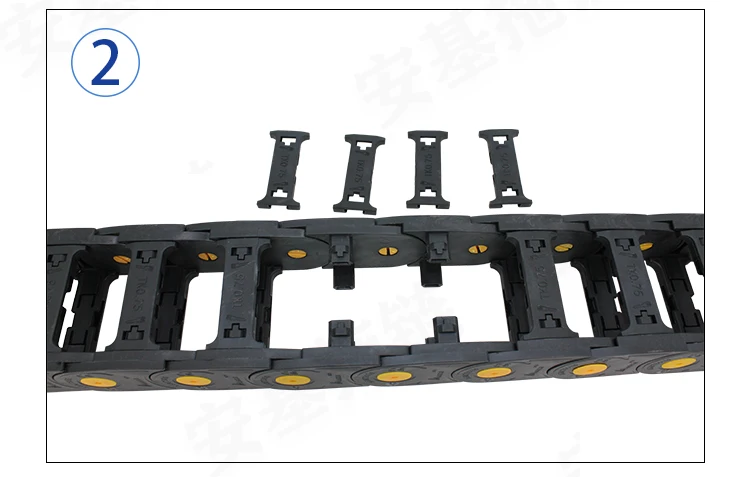

MTS disassembling
\t\t\t\t\t\t\t\t\tProduction flow \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tQuality Control \t\t\t\t\t\t\t
Quality control

1
Raw material control, including various kinds of test, such us DSC, flow rate, moisture content test, tensile test etc.

2
Production control. It shall follow strict orders in production, quality test in production is important.

3
Feed back. We seek feedbacks from all our users, and keep improving our quality, and correct any structure deficiency.
How to identify good products
\t\t\t\t\t\t\t\t\tCompany profile \t\t\t\t\t\t\t
Anjie electric

Shijiazhuang Anjie Electric Co., Ltd is located at Shijiazhuang city. Got about 300 square meters area as an office. We set the office in here to utilize the convenience of air shipping and easier approach of elites with higher abilities.

It is about 400 km from Beijing, there are 4 high speed train stations and 1 domestic airport. Which is very convenient for a visit.

Advanced nylon injection system.

Workshop.

Mould Storage.
