Product Overview

Description



Product Description


Technical Parameters




Payload
3 kg
Reach
950 mm
Structure
Articulated
Number of axes
6
Repeatability
±0.05 mm
Max. motion range
Axis 1
±165°
Axis 2
+120°/-72°
Axis 3
+87.5°/-72°
Axis 4
±360°
Axis 5
±115°
Axis 6
±450°
Max. speed
Axis 1
148°/sec
Axis 2
148°/sec
Axis 3
222°/sec
Axis 4
222°/sec
Axis 5
222°/sec
Axis 6
360°/sec
Body Weight
≈72 kg
Mounting type
Ground, bracket, ceiling
Ambient temperature
-20 ℃~80 °C

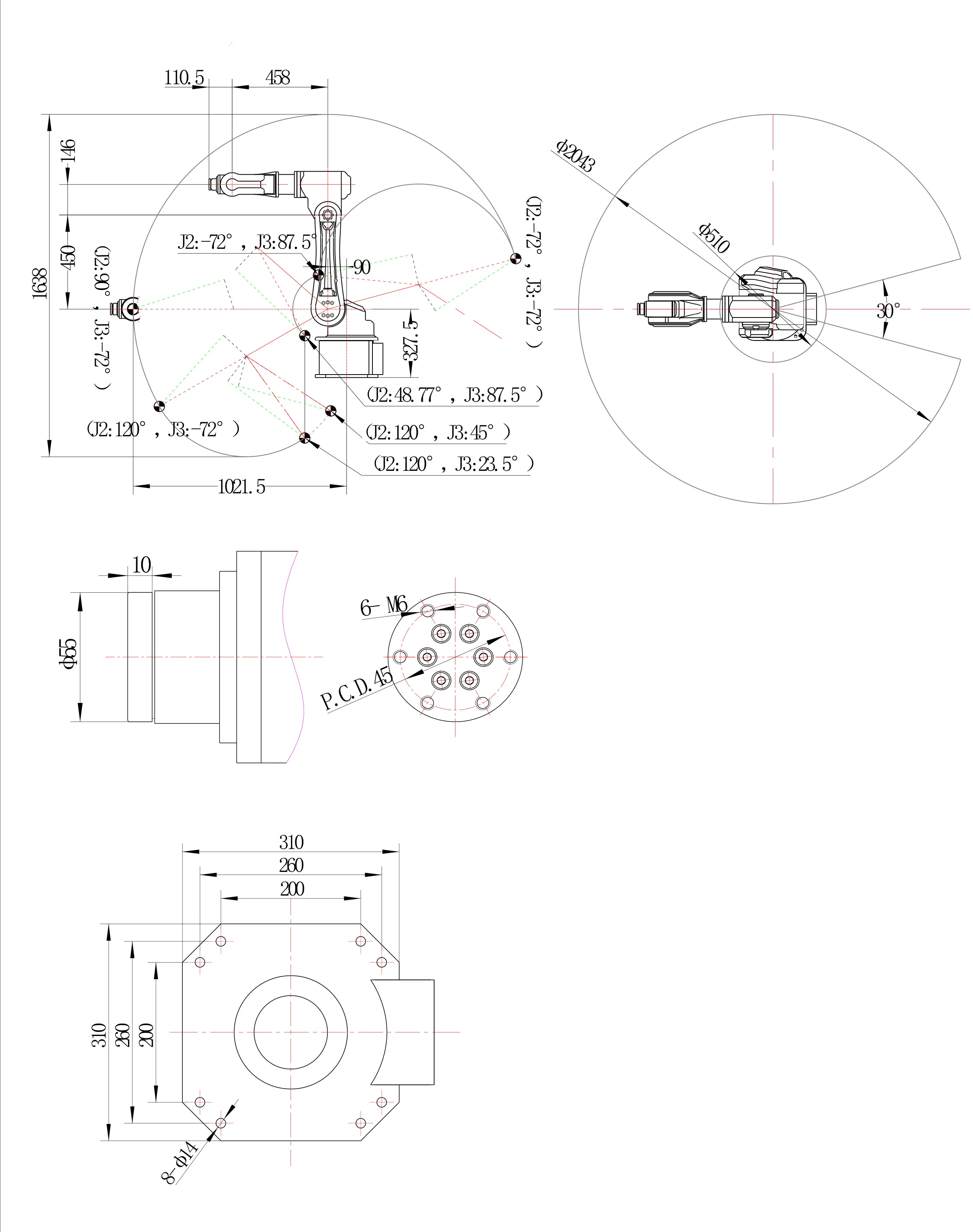

Workspace




Robot Control System


●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Industrial standards &reliable stability.


Storage
2 GB
Teaching box
Full keyboard+touch screen, mode select switch, safety switch, emergency switch
No. of controlled axes
6+2 axes, 6 basic axes +2 external axes
Interface
Multiple encoder signal interfaces, dedicated interface for robot terminal, Ethernet interface, serial communication
Safety module
The emergency and robot anomaly signals are linked to ensure rapid stop of the robot
Mode of operation
Teaching, representation, remote control
Mode of programming
Online teaching, process programming, teaching by dragging
Motion function
Point-to-point, linear, circular
Command system
Motion, logic, process, computation
Mode of control
Position control
Anomaly detection function
Emergency stop anomaly, servo anomaly, anti-collision, safety maintenance, arcing anomaly, user coordinate anomaly, tool
coordinate anomaly


Detailed Images


Harmonic reducer
High-precision technology, high load capacity, fast transmission speed, stable operation


HCFA Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability


HCFA Driver
Control the servo motor by three methods: position, speed and torque


Controller board
Including various interfaces such as IO module, safety module, A / V analog module


Aluminum Alloy Shell
Independent design, exquisite appearance, CNC machining and casting


Main Applications


Materials handling, parts transfer, electric welding, machine management, palletizing, packaging, testing, deburring, grinding, gluing, assembly &painting


Applicable Cases
Lab aging test
950-A-6 is a small robot featuring short work cycle, reliable operation and high cost performance. Previous industrial applications prove its outstanding performance, high added value, quick return on investment and significant increase of productivity.
The figure shows a customer’s field application. This robot is used in the customer’s aging test lab.
