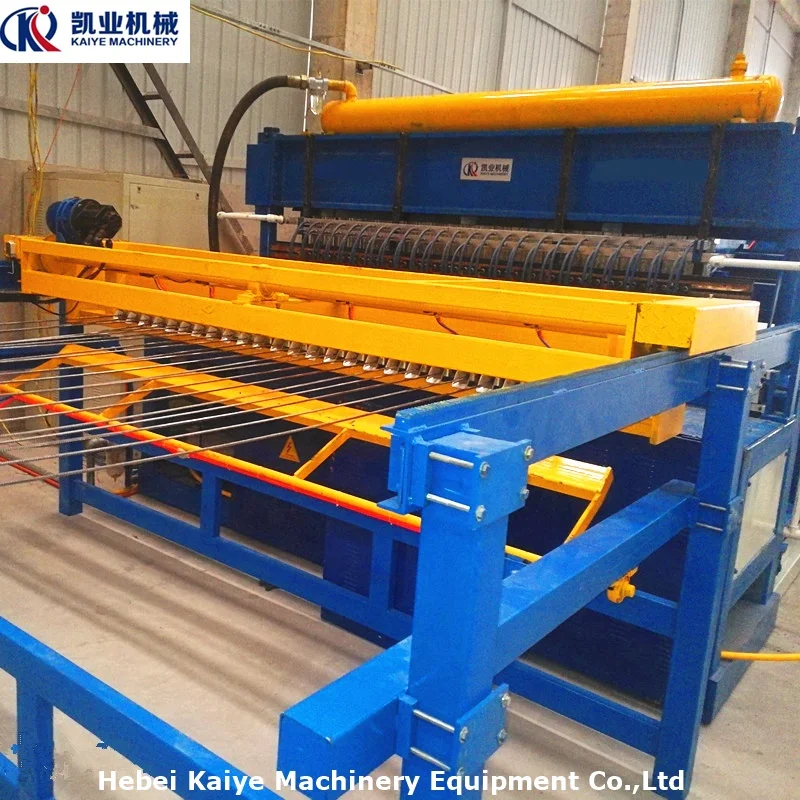

PLC control automatic reinforced mesh welded machine for sale

Product Overview

Description

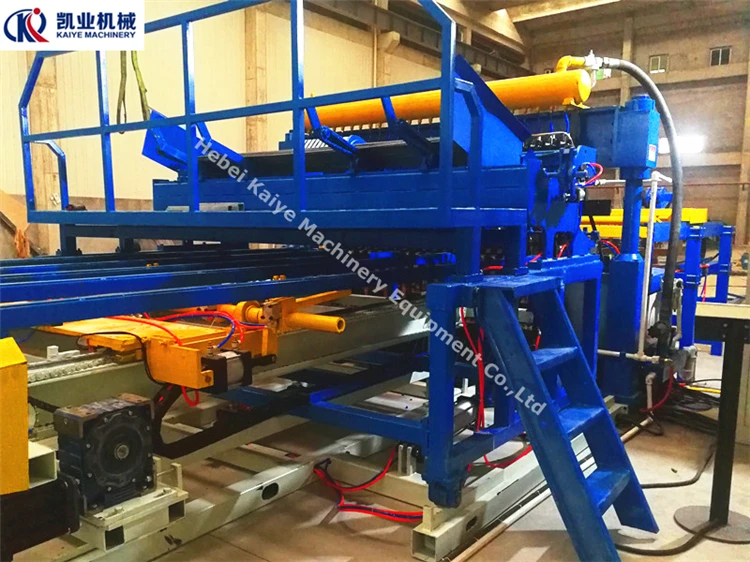

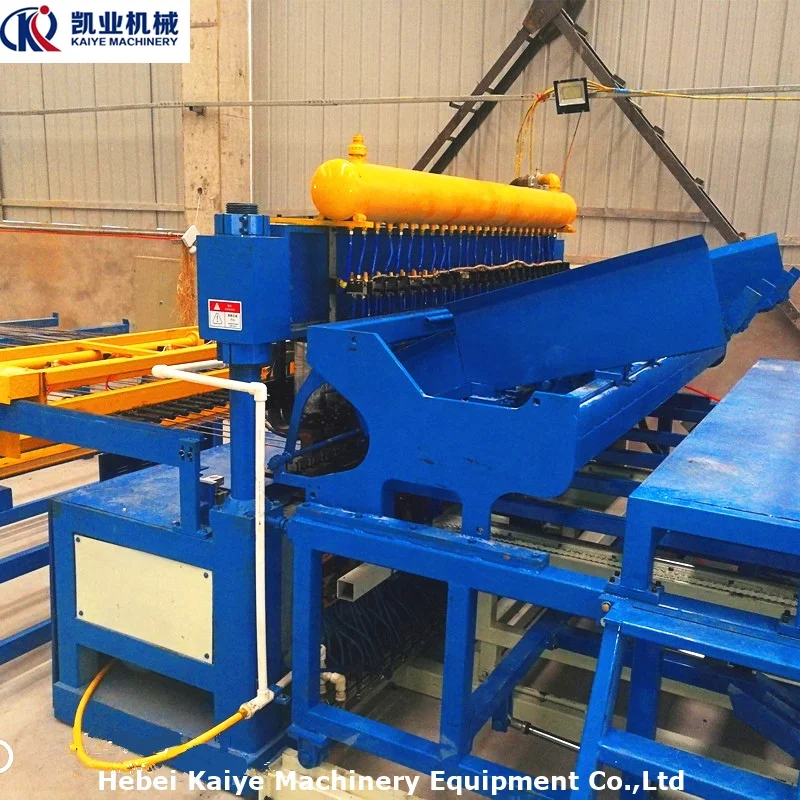

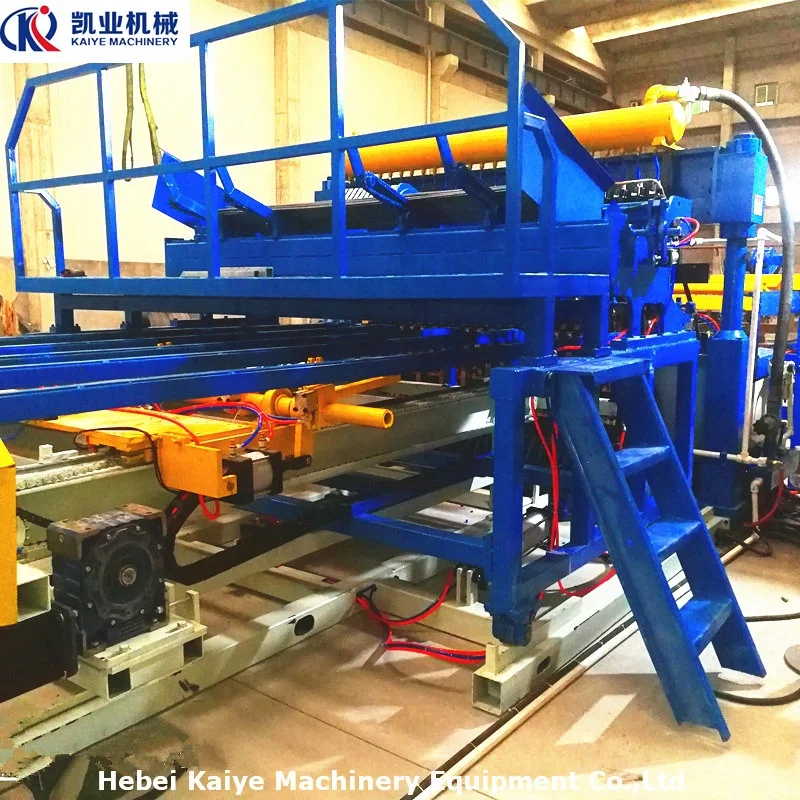

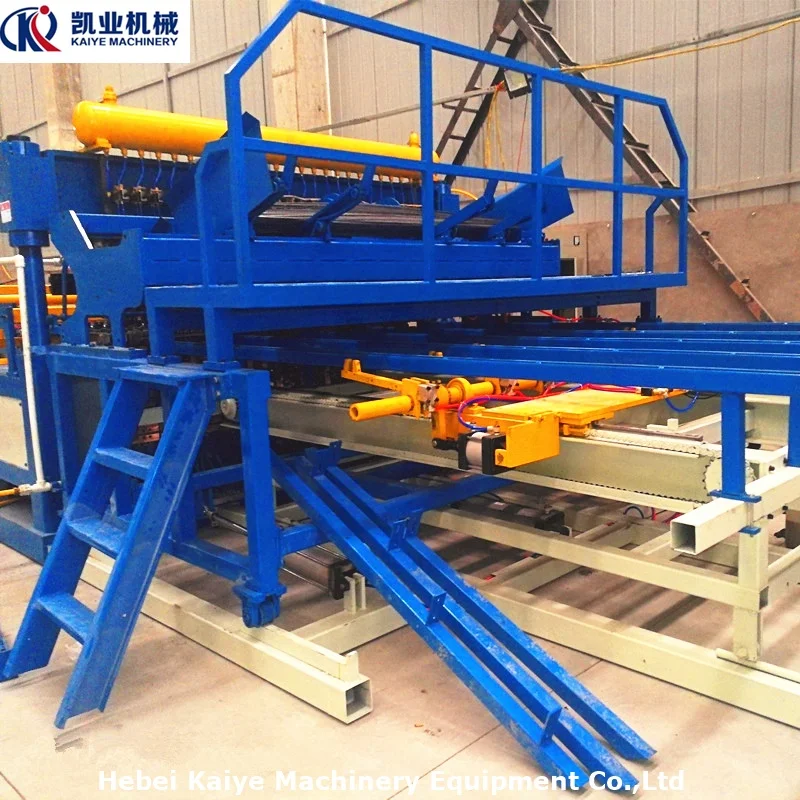

PLC control automatic reinforced mesh welded machine

Product Description

 Reinforcing mesh welding line also called BRC mesh welding machine,construction mesh welding machine.







             This production line is I am at home and abroad for many years with mesh welding technology experience, independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Reinforced length delivery process automatic control. Equipment to strengthen the damping process, effectively reducing noise.



Welding wire diameter range of the device is 6-12 mm, the mesh size is 100-300mm, stepless adjustable. The maximum width of the welding wire mesh is 2500mm (also according to customer requirements).

Welding host, an alarm device that can improve the safety level and reduce the failure rate. The greatest degree of assurance of the equipment running smoothly.





Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.





System equipment can and desktop computers or notebook computers or workstations are connected. Easy operation. By raw material usage optimization system can achieve the ultimate. The greatest degree of raw material savings for customers. Improve production efficiency, provide more efficient, intelligent management.



Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.



Components

No.	Components	Quantity
1	Welding system	1 UNIT
2	Line wire feeding system	1 UNIT
3	Cross wire feeding system (magazine)	1 UNIT
4	Mesh puller	1 UNIT

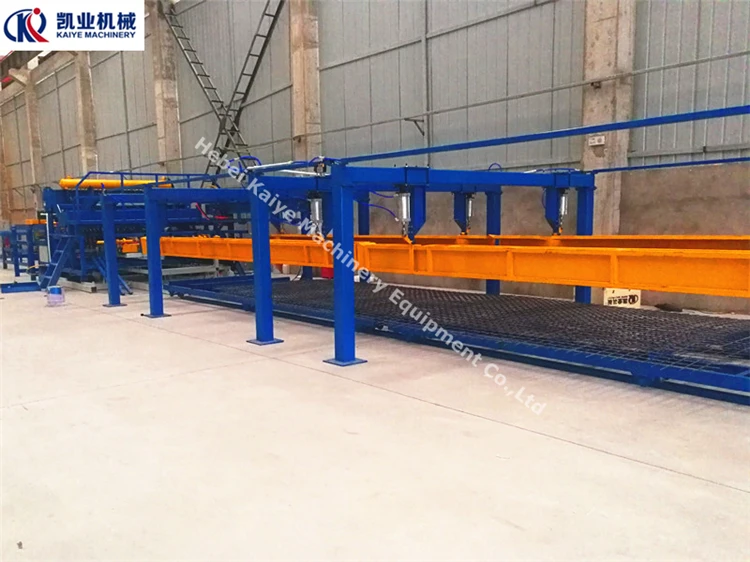

5	Mesh panel stacker system	1 UNIT
6	Control system	1 UNIT
7	Spare parts	1 UNIT
8	User’s guide	1 UNIT



 Mechanical advantage

1.This line adopt special welding process ,Efficient water cooling system and precision welding control system and high quality copper alloy electrodes with unique appearance.



2.The line wire and the weft wire of wire mesh welding machine are pre-straight and pre-cut.

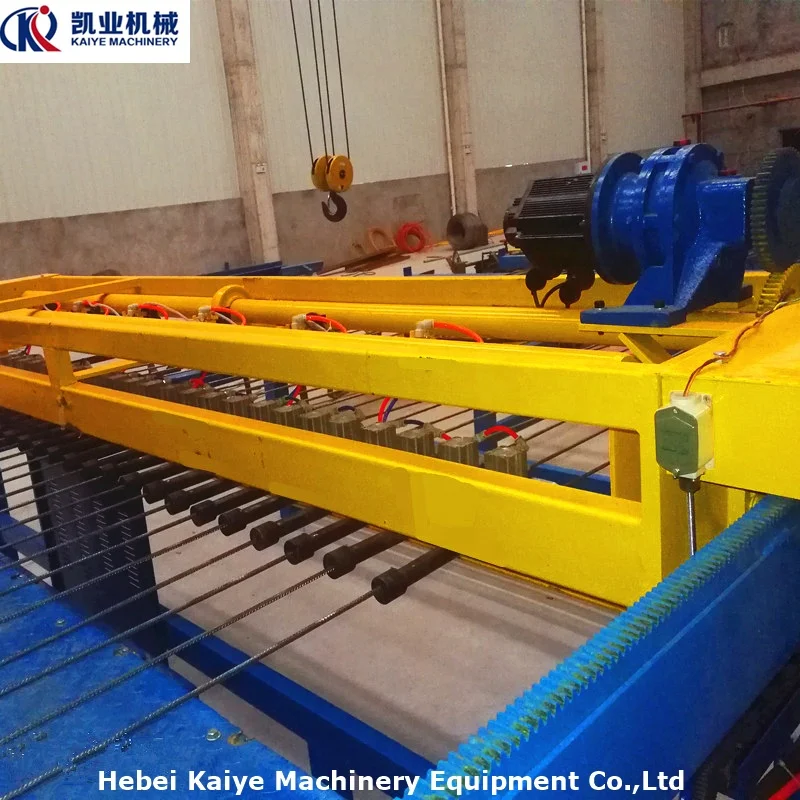

3.The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.

4.The wire mesh welding machine welding power comes from the cylinders. It's easy to control the welding pressure .

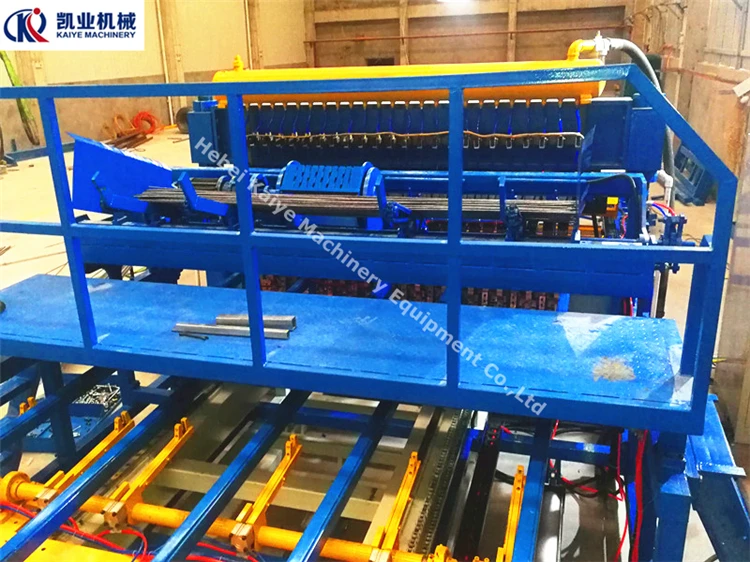

5.The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.



6.The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .

7.The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.

8.This wire mesh welding machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.
