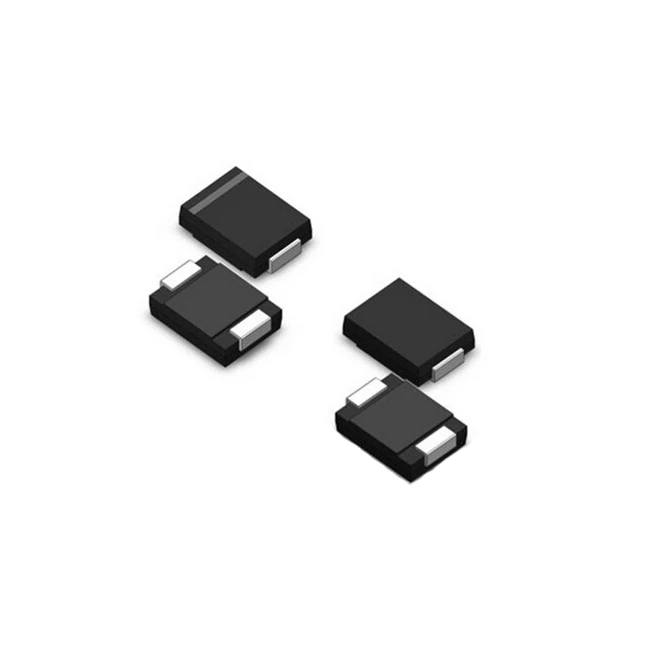

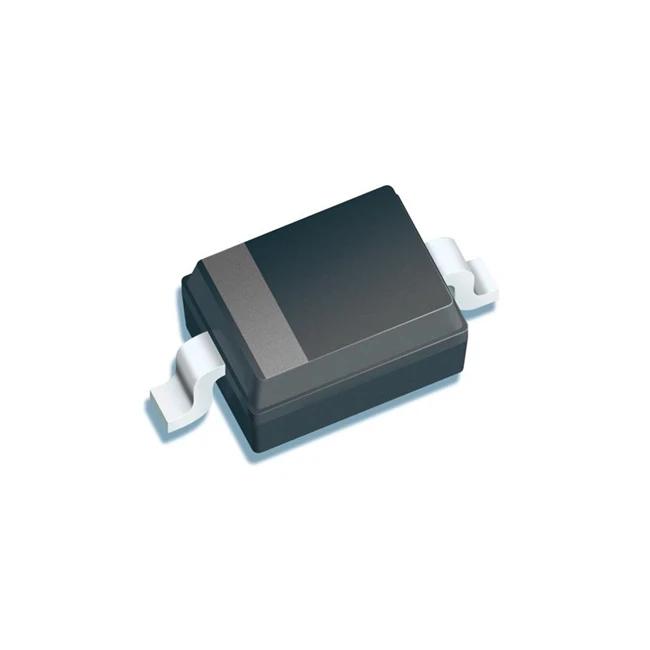

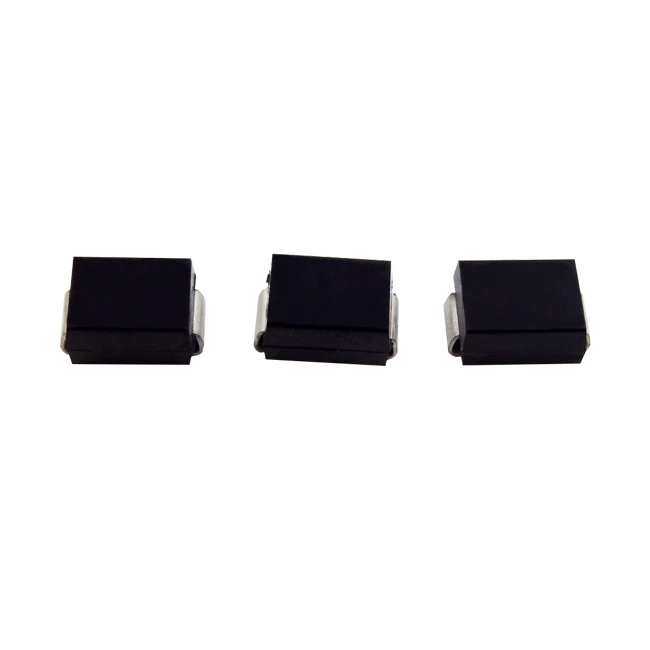

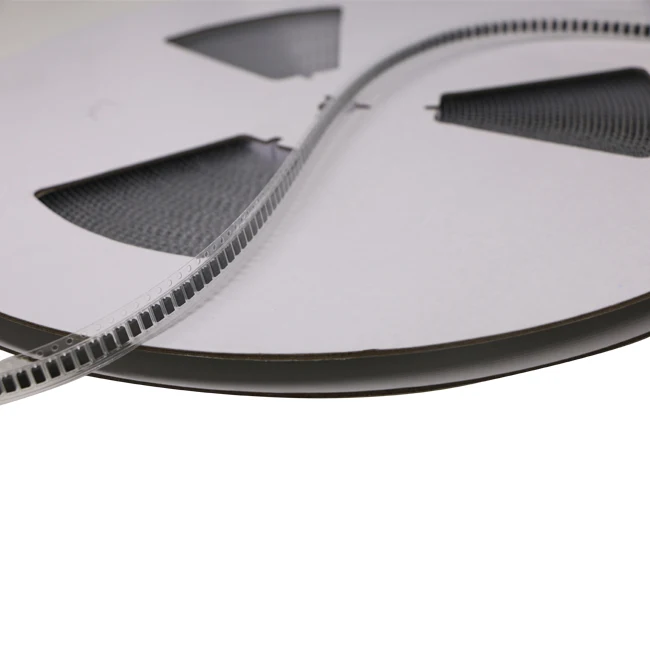

HFZT silicon rectifier diodes M7 1.0A 1000V SMA

Product Overview

Description

                         silicon rectifier diodes  M7



We set all the products price between USD0.002 to USD0.1/Piece for convenience, if you want to get the best price, pls contact us directly. Thank you!

 M7

MECHANICAL DATA

•Case: Molded plastic

•Terminals:Solder Plated.Solderable per MIL-STD-750, Method 2026

•Polarity:Cathode Band or Cathode Notch

•Marking:Type Number

•Weight:0.064grames(approx)

MAXIMUM RATINGES AND ELECTRICAL CHARACTER



		SYMBOLS	M1	M2	M3	M4	M5	M6	M7	UNIT
Maximum Repetitive Peak Reverse Voltage		VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage		VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage		VDC	50	100	200	400	600	800	1000	Volts
Maximum Average Forward Rectified Current, 0.375″(9.5mm) lead length at TL=100°C		I(AV)	1.0							Amps
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load(JEDEC method)		IFSM	30							Amps
Maximum Instantaneous Forward Voltage at 1.0A		VF	1.1							Volts
Maximum DC Reverse Current at rated DC blocking voltage	TA=25°C	IR	5.0							μA
	TA=125°C		200							μA
Reverse Recovery Time(Note 1)		trr	2.5							μS
Typical Junction Capacitance(Note 2)		CJ	15							pF
Typical Thermal Resistance(Note 3)		RJA	30							°C/W
Operating and Storage Temperature Range		TJ	(-65 to +150)							°C
Storage Temperature Range		TSTG	(-65 to +150)							°C

NOTES:

1.       Measured with I_F=0.5A,I_R=1.0A, Irr=0.25A

2.       Measured at 1.3MHZ and applied reverse voltage of 4.0V DC.

3.       Mounted on P.C. Board with 8.0mm² land area

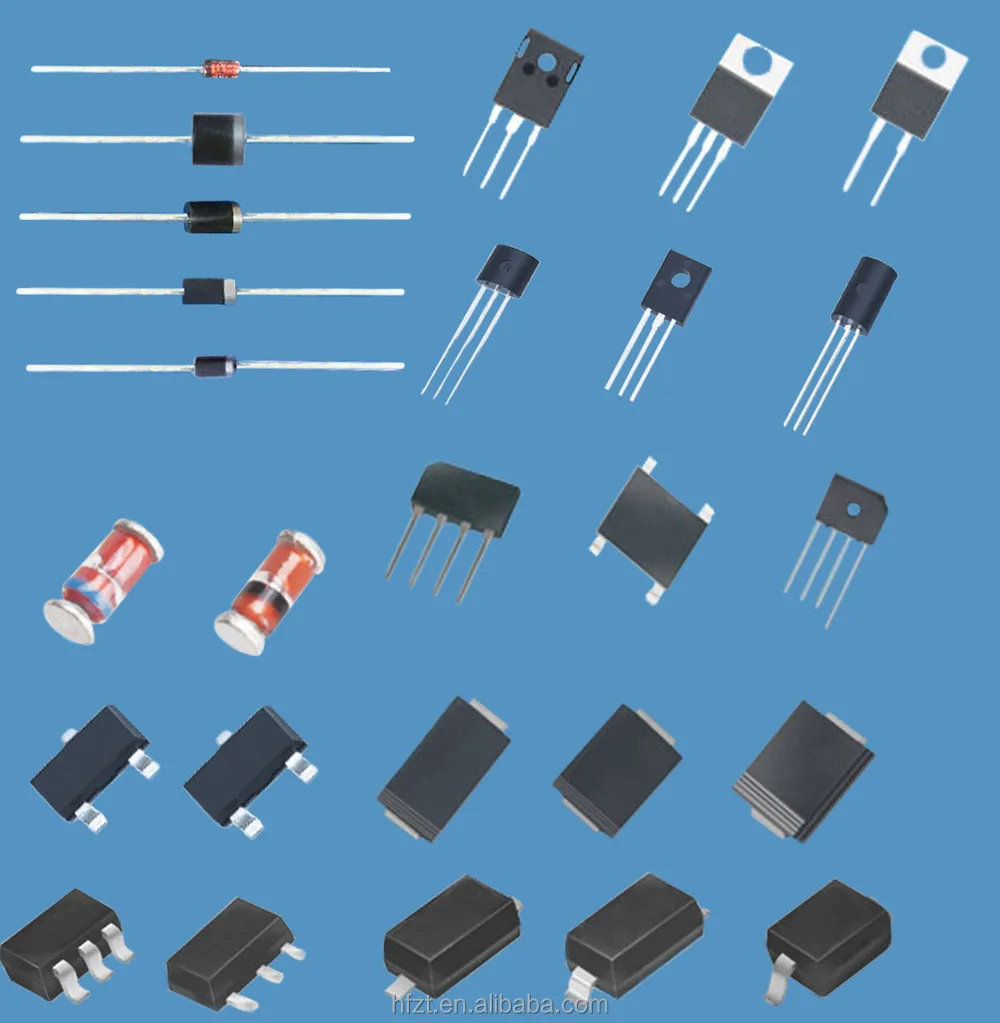

 LJ is a proffesional manufacturer in diodes ,transistors and led components , whose products welcomed at home and abroad.



 Why choose LJ?



 1)We deals in all diodes and transistors with more than 10 years' expreience

 2)We can provide technical support for buyers

 3)Short delivery time and good price, high quality

 4)Full product range will help you to save time and shipping cost

 5)We can provide Samples free





 What can you get from LJ?

 1)Good prices can save your cost

 2)High quality can help you to avoid Purchasing Risk

  3)Short delivery, technical support and after-sale serive

 4)Various of products can help you to save time on select suppliers





For more information, please visit www.hfzt.net
