Toroid power transformer winder
- Category: Electric Equipment Making Machinery >>>
- Supplier: Sanshine (Xiamen) Industrial And Trading Co. Ltd.
Share on (62129323296):
Product Overview
Description

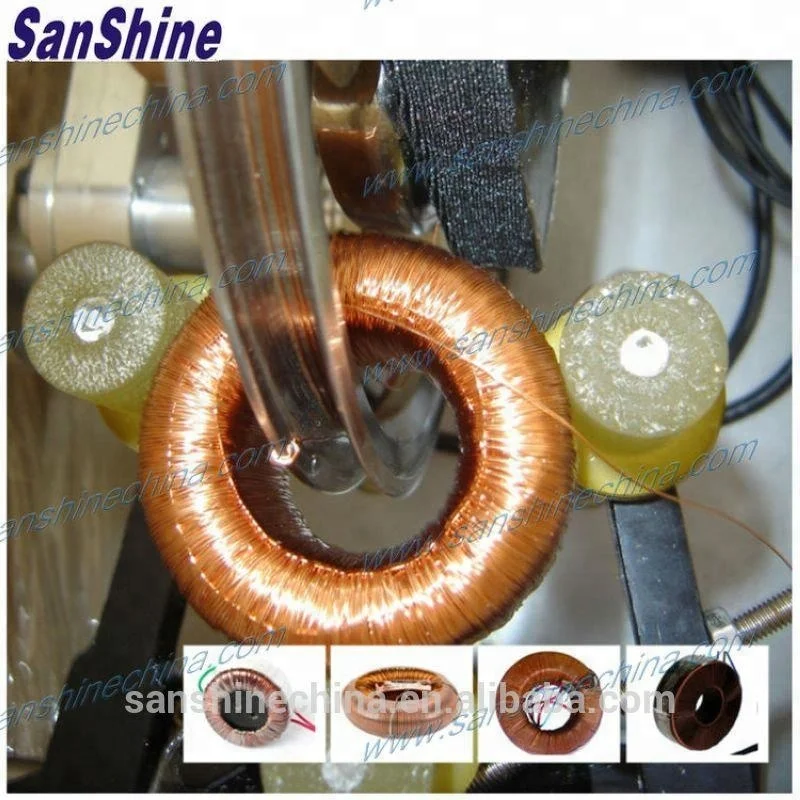

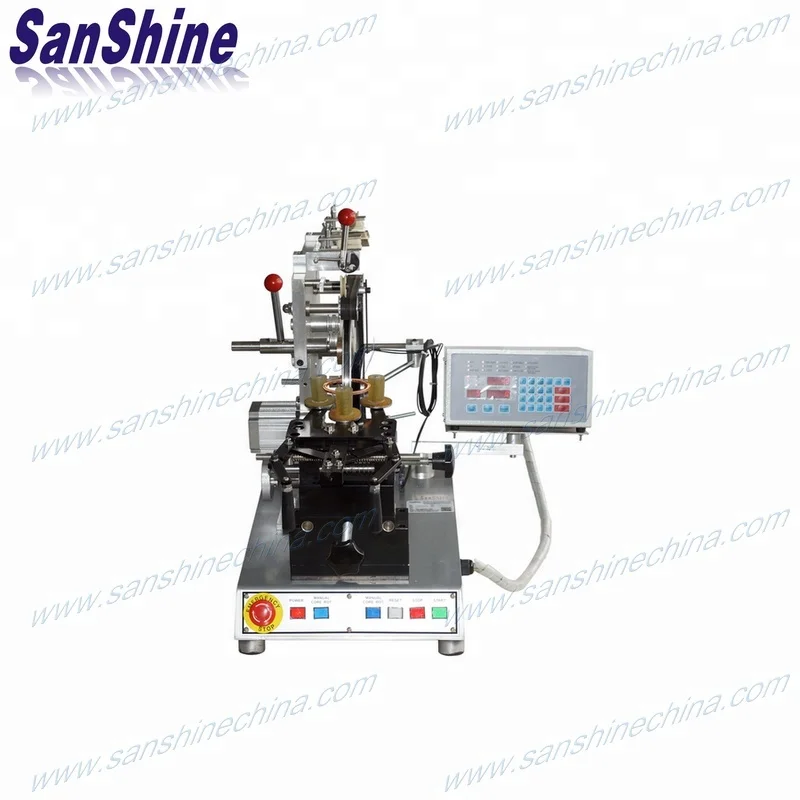

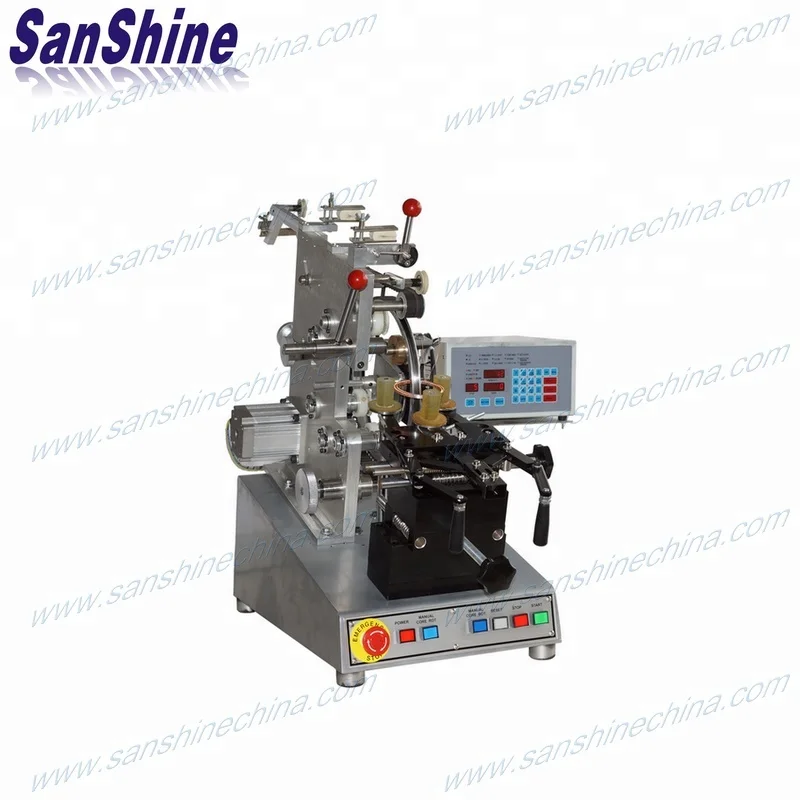

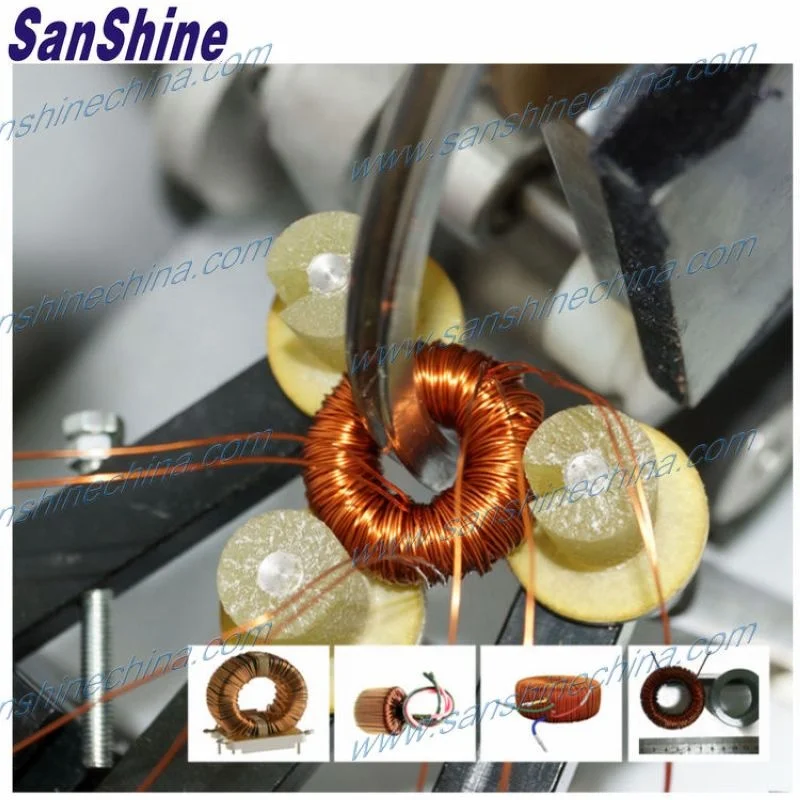

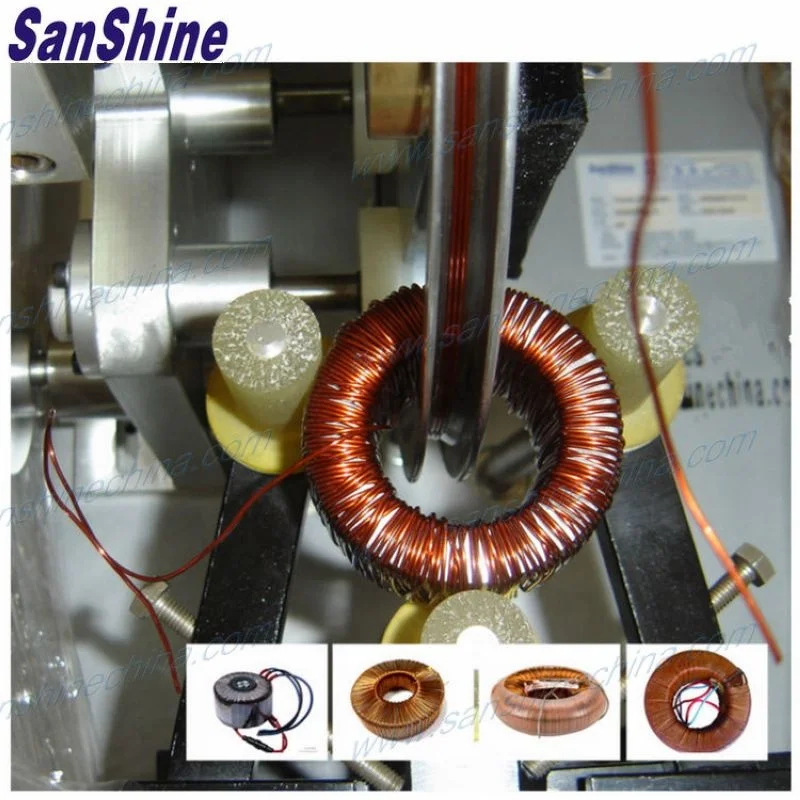

Description of SS900B8 automatic toroid coil winding machine :
The SS900B8 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding machine.is used for toroidal inductor, toroidal transformer, toroidal current transformer, toroidal current sensor, toroidal coil,toroid chock coil, power inductors, power magnetics, UPS inductor, converter inductors, watter metter sensors,toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.
Features of SS900B8 automatic toroid coil winding machine :
1. Collocate belt type winding head, and interchangeable roller table with different size shuttle(magazine) for different toroid coil dimensions, different wire sizes, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of SS900B8 automatic toroid coil winding machine :
Copper wire diameter: 0.35~1.5mm
Min. Finished ID: 12mm (will be different by shuttle size and coil height. )
Finished OD range:20~150mm
Max. Speed: 1200rpm
Winding motor: 1/2HP DC brushless motor
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x70(cm)
Net weight: 47kgs
The SS900B8 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding machine.is used for toroidal inductor, toroidal transformer, toroidal current transformer, toroidal current sensor, toroidal coil,toroid chock coil, power inductors, power magnetics, UPS inductor, converter inductors, watter metter sensors,toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.
Features of SS900B8 automatic toroid coil winding machine :
1. Collocate belt type winding head, and interchangeable roller table with different size shuttle(magazine) for different toroid coil dimensions, different wire sizes, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of SS900B8 automatic toroid coil winding machine :
Copper wire diameter: 0.35~1.5mm
Min. Finished ID: 12mm (will be different by shuttle size and coil height. )
Finished OD range:20~150mm
Max. Speed: 1200rpm
Winding motor: 1/2HP DC brushless motor
Spread motor: Stepping motor
Memory capacity: 999 steps
Power source: AC220V /110V +10%, 50/60 Hz
Dimension: L60x36x70(cm)
Net weight: 47kgs
Copper wire diamete | 0.35~1.5mm |
Min. Finished ID | 12mm (will be different by shuttle size and coil height. ) |
Finished OD range | 20~150mm |
Max. Speed | 1200rpm |
Winding motor | 1/2HP DC brushless motor |
Spread motor | Stepping motor |
Memory capacity | 999 steps |
Power source | AC220V /110V +10%, 50/60 Hz |
Dimension | L60x36x70(cm) |
Net weight | 47kgs |
