Product Overview

Description


High Power 50W LED COB Chip White Red Green Blue Amber Color 12V LED Chip 4040mm


led chip 12v

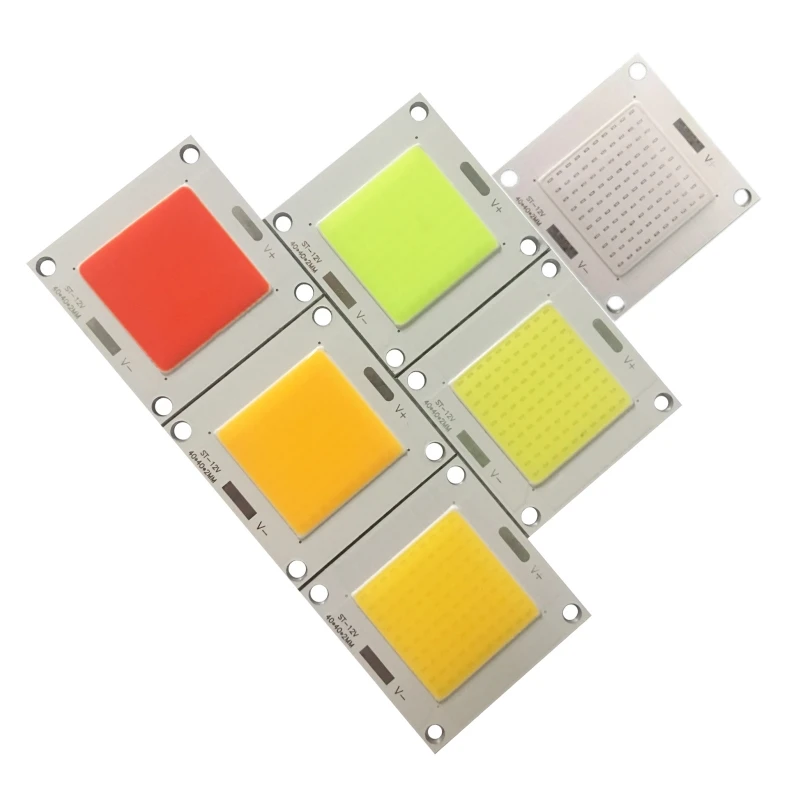

                       4040 RGBAW

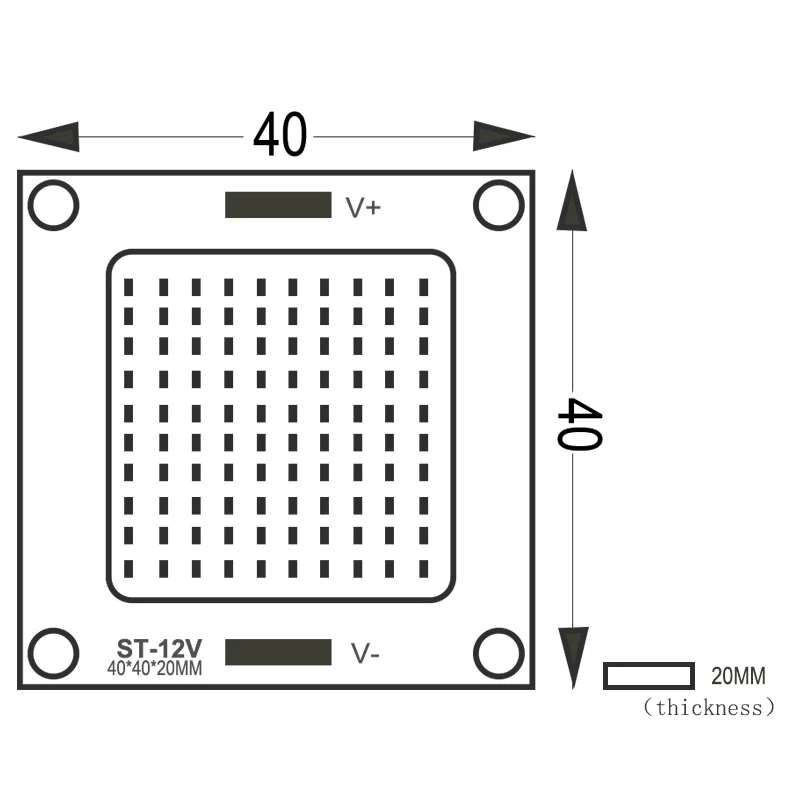

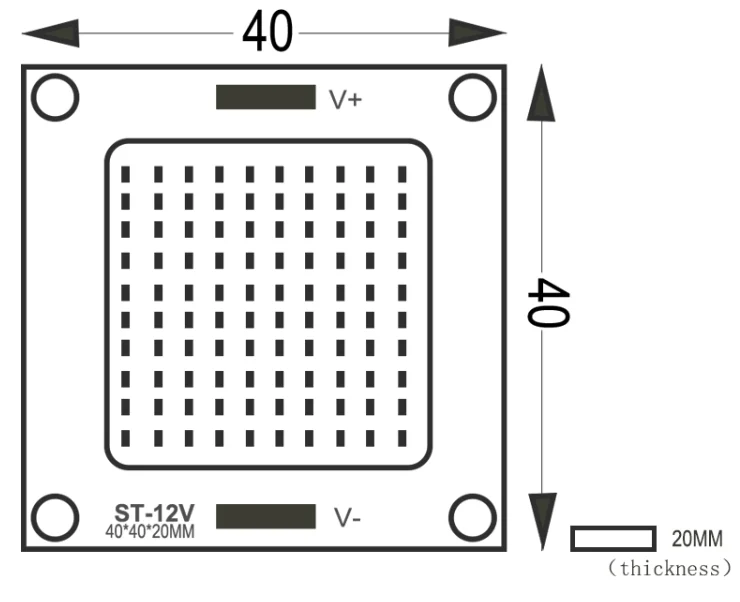

Dimension
paste-pic-dp_uuid_nn95e



Purchase Option





OEM


Our Advantages.





1. Chinese Brand & Flip Technology.
2.LED chip 12V as standard, 24V, 36V, can be acceptable to customized.
3. Green Blue Red Amber are Available
4. 100-110lm/w as standard, contact services if need.
5. Any dimension are available, any color can be customized.

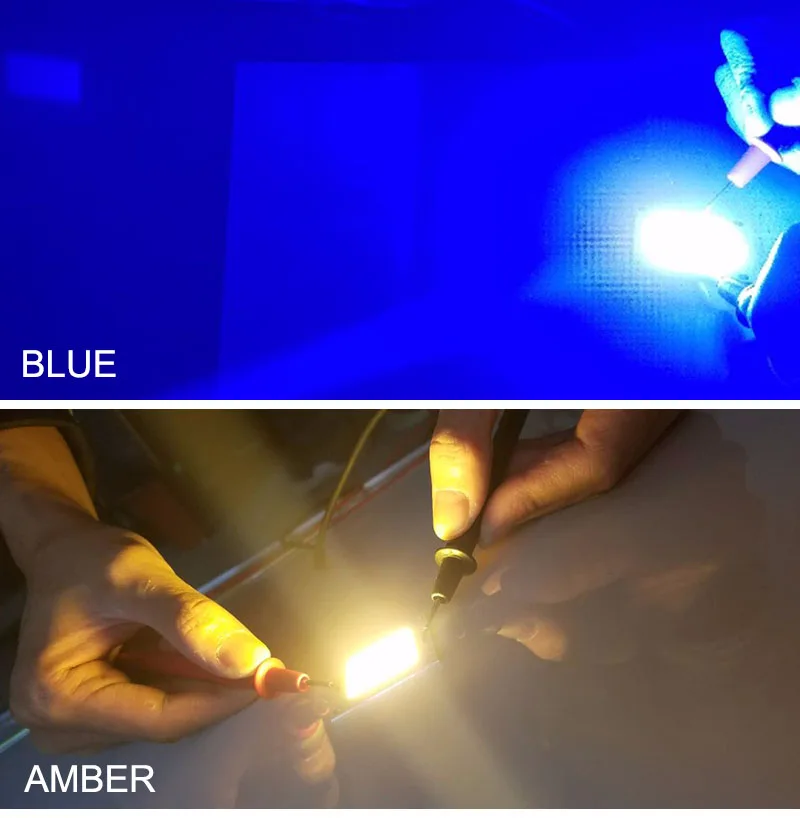

Testing Show

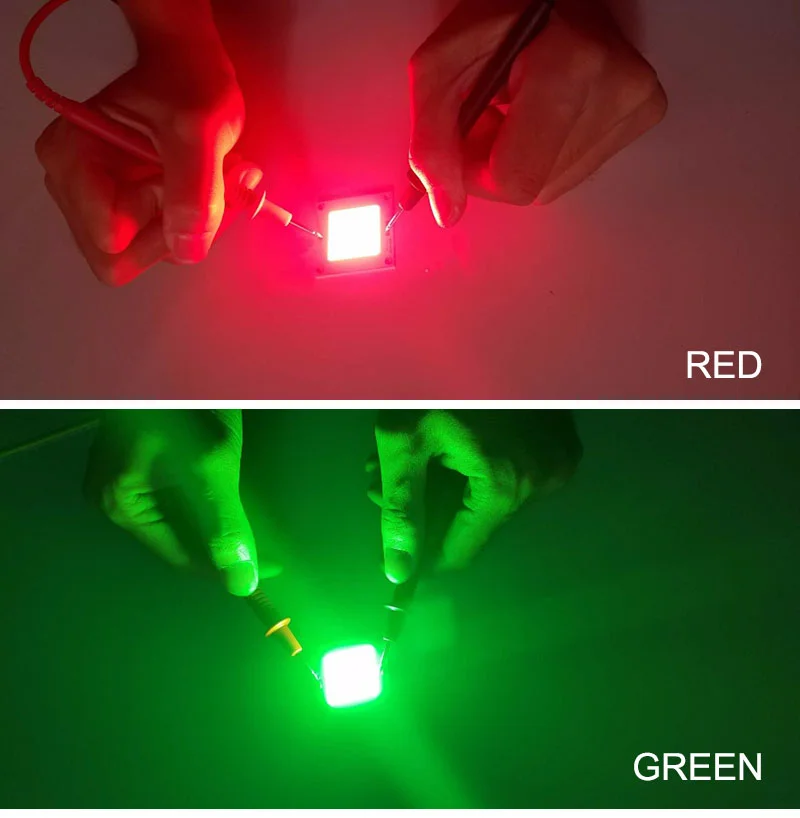

Testing show1.png

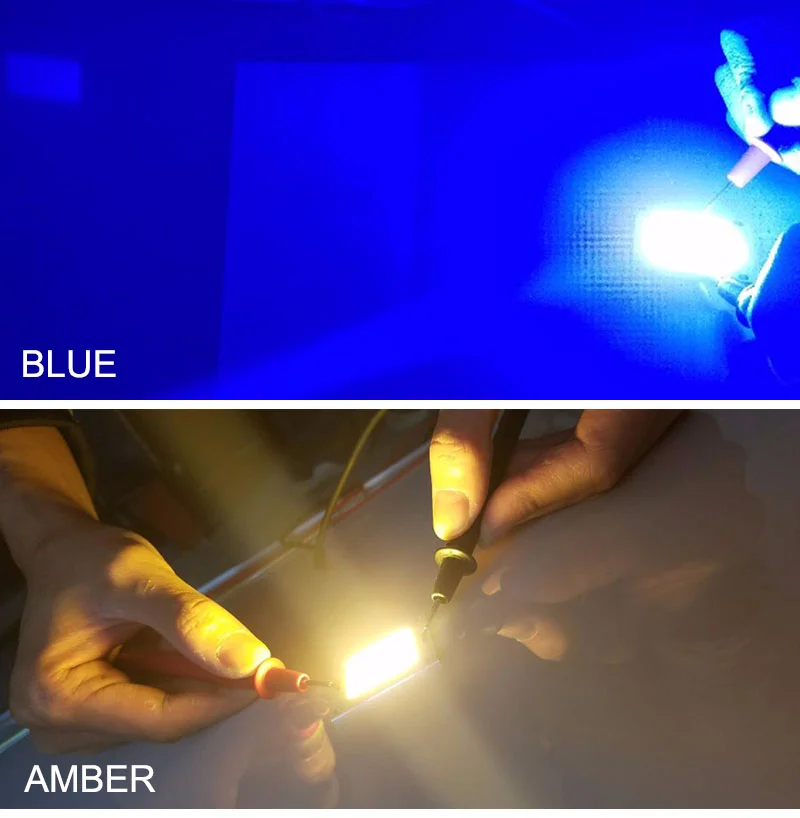

Testing show2.png

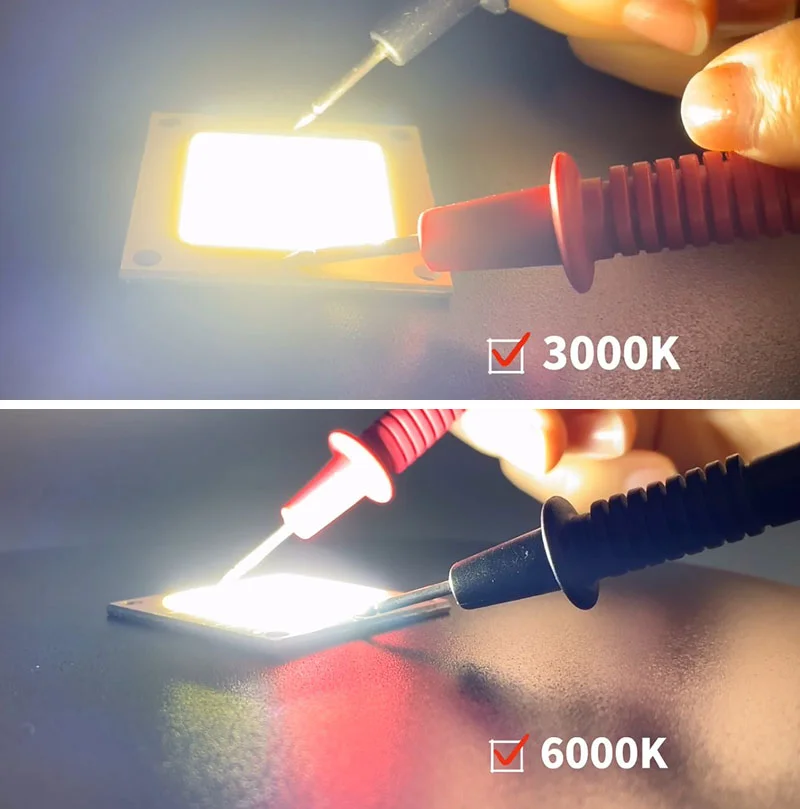

Testing show3.png





Buyer Show

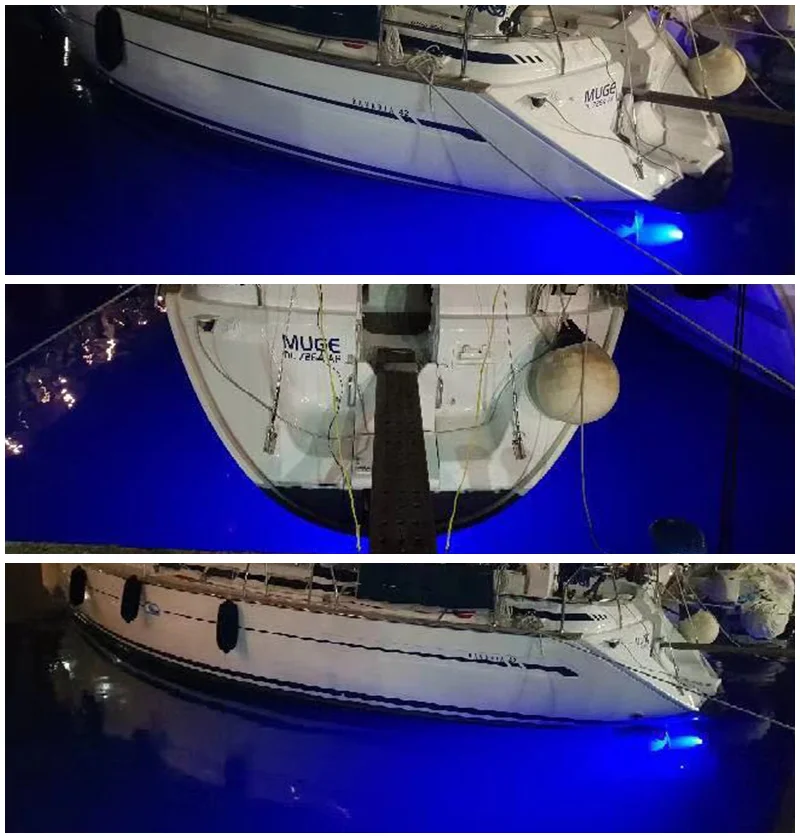

35

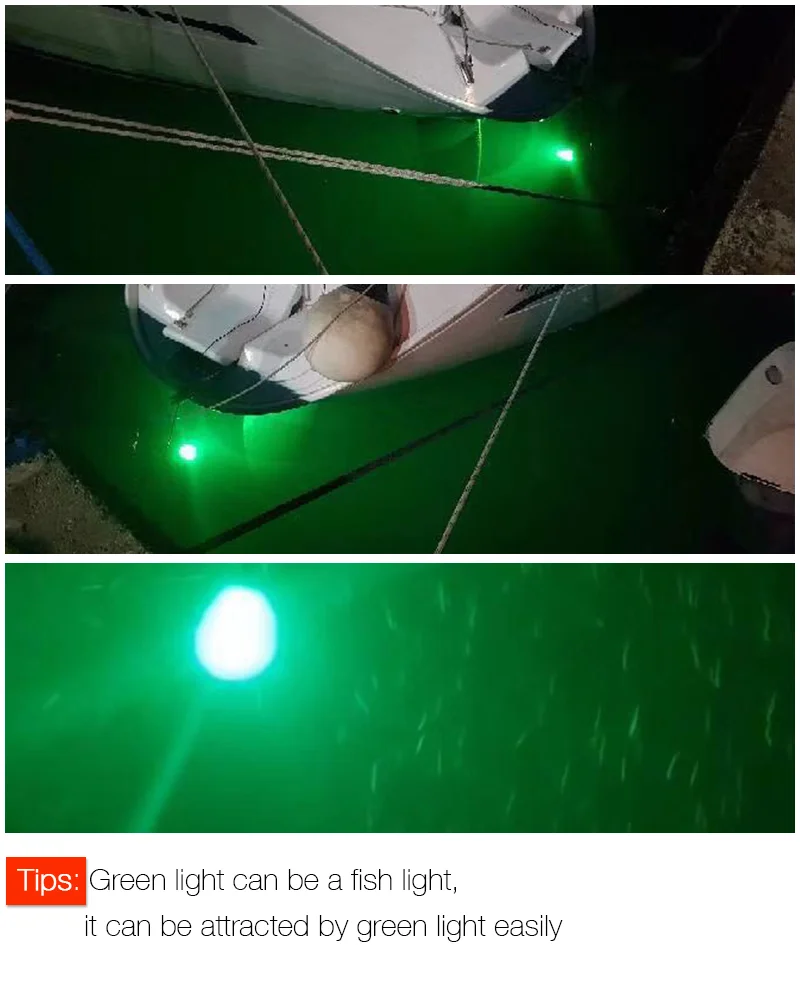

36

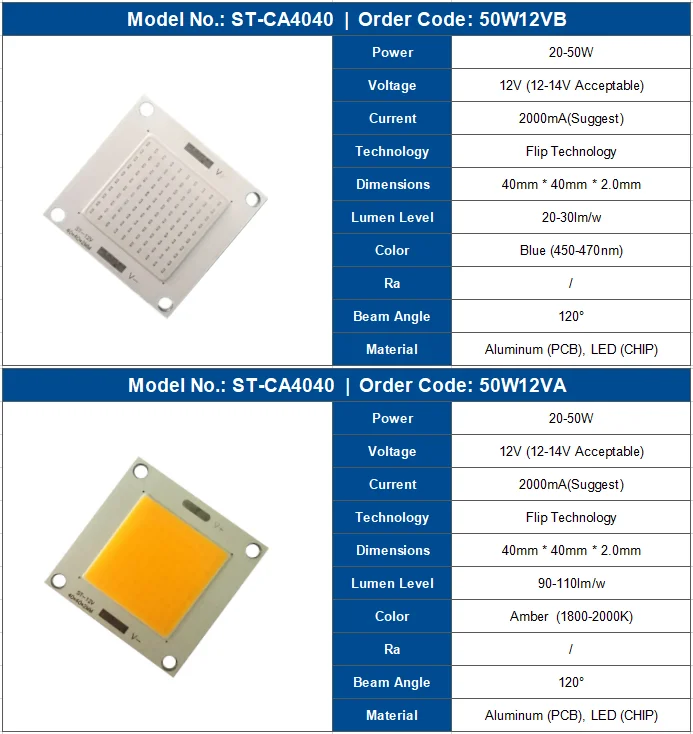

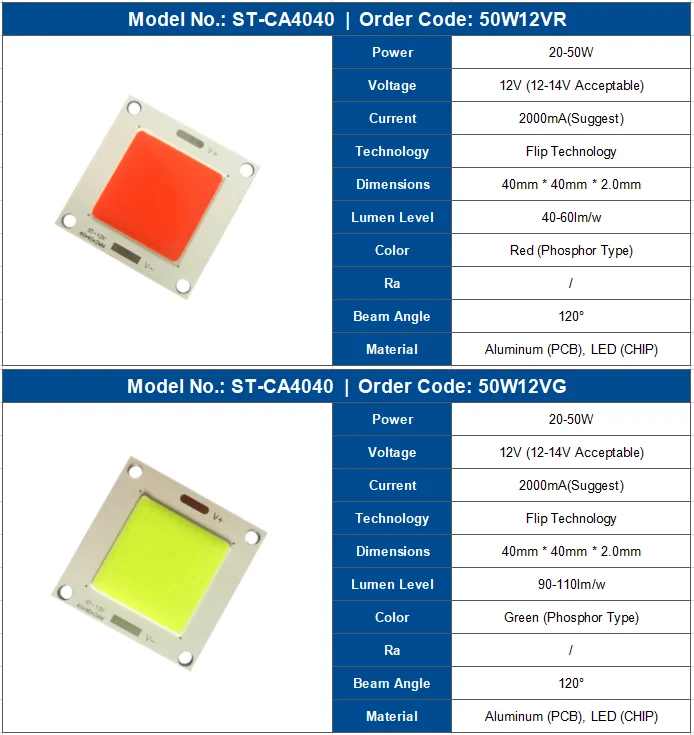

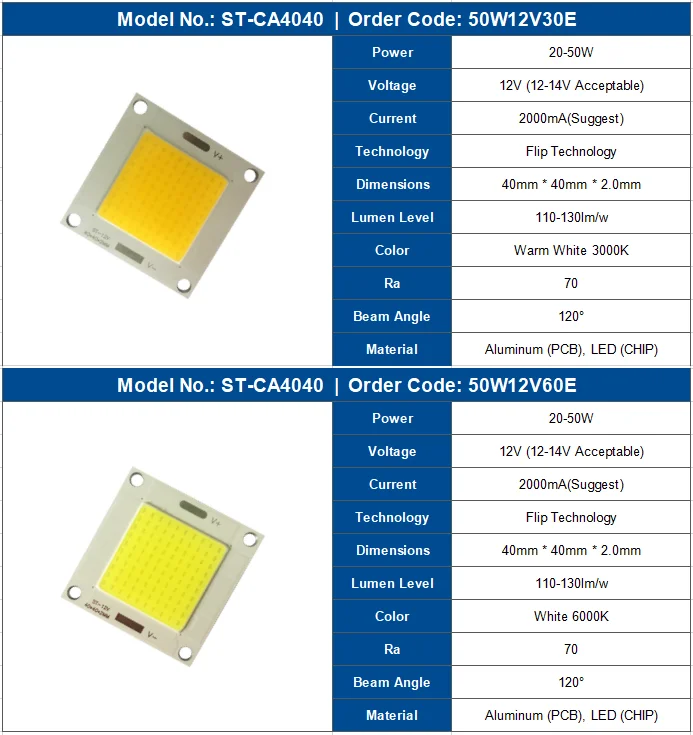

Module NumberSizeParametersColor (CCT)Luminous Efficacy (lm/w)
ST01-CA4040W12V40*40*2.0mm20-50W
12-14V, 2000mA		3000/6000K
(1800-20000K can be customized)		110-130LM/W
ST01-CA4040R12VRED (Phosphor Type)40-60LM/W
ST01-CA4040G12VGREEN (Phosphor Type)90-110LM/W
ST01-CA4040B12VBLUE(Phosphor Type)20-30LM/W
ST01-CA4040A12VAMBER (1800-2000K)90-110LM/W





Related Products

























Feedbacks


DIY




led chip 12v

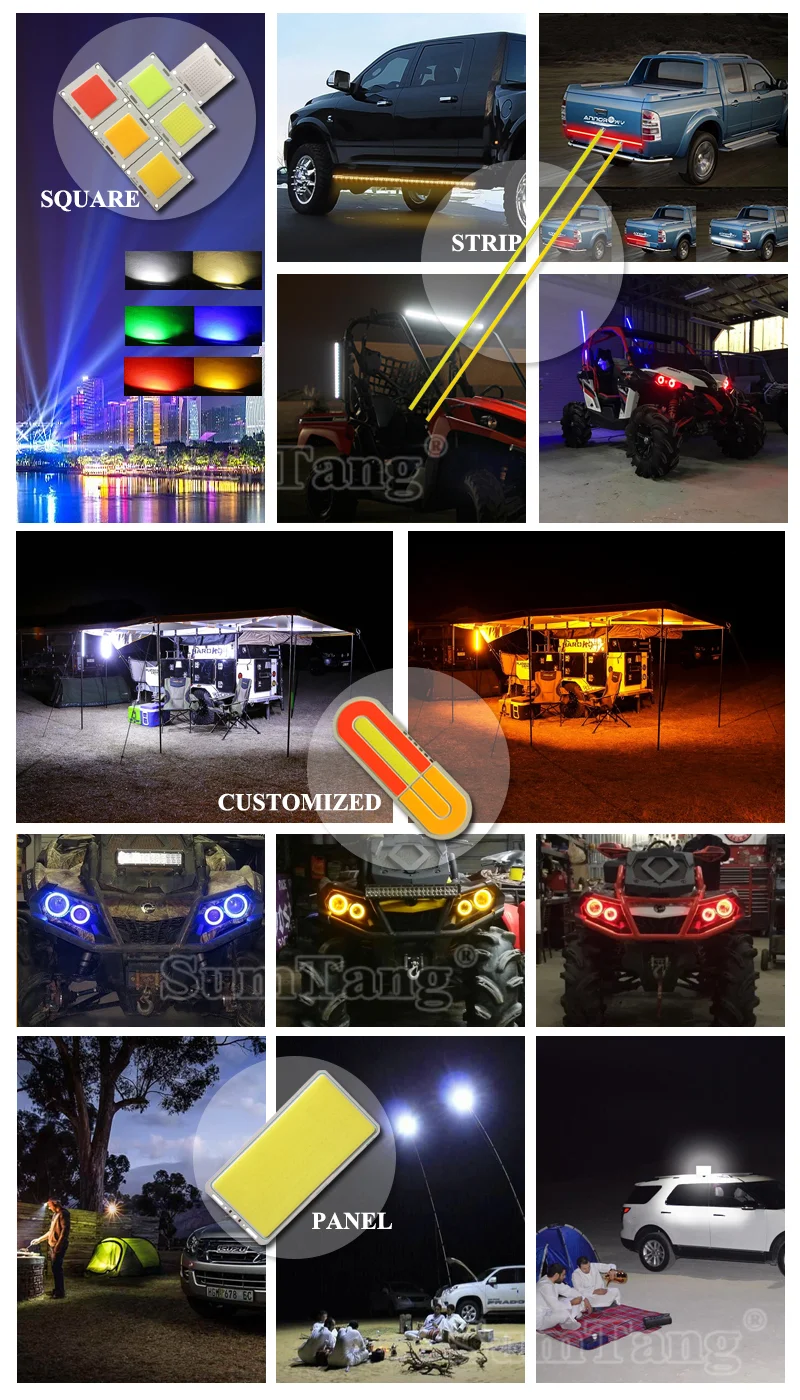

COB LED widely used on portable food light, wall garden ligh, work light, camera light,  any batteries & solar panel applications, or DC output customized applications.







led chip 12v


Q1. Can I have a sample order for LED chip 12V?


A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.





Q2. Do you have any MOQ limit for 50W COB chip?


A:10 pcs for samples to check are acceptable.





Q3. How do you ship the goods and how long does it take to arrive?


A:We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.





Q4. How to proceed an order for the 50W COB chip?


A:Firstly,let us know your requirements or application. SecondlyWe quote according to your requirements or our suggestions.
Thirdlycustomer confirms the samples and places deposit for formal order.  Fourthly We arrange the production.





Q5. Is it OK to print my logo on 50W LED chip?


A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.





Q6: Do you offer guarantee for LED chip 12V?


A:Yes, we offer 2-3 years warranty to our cob led.
























50w led chip
