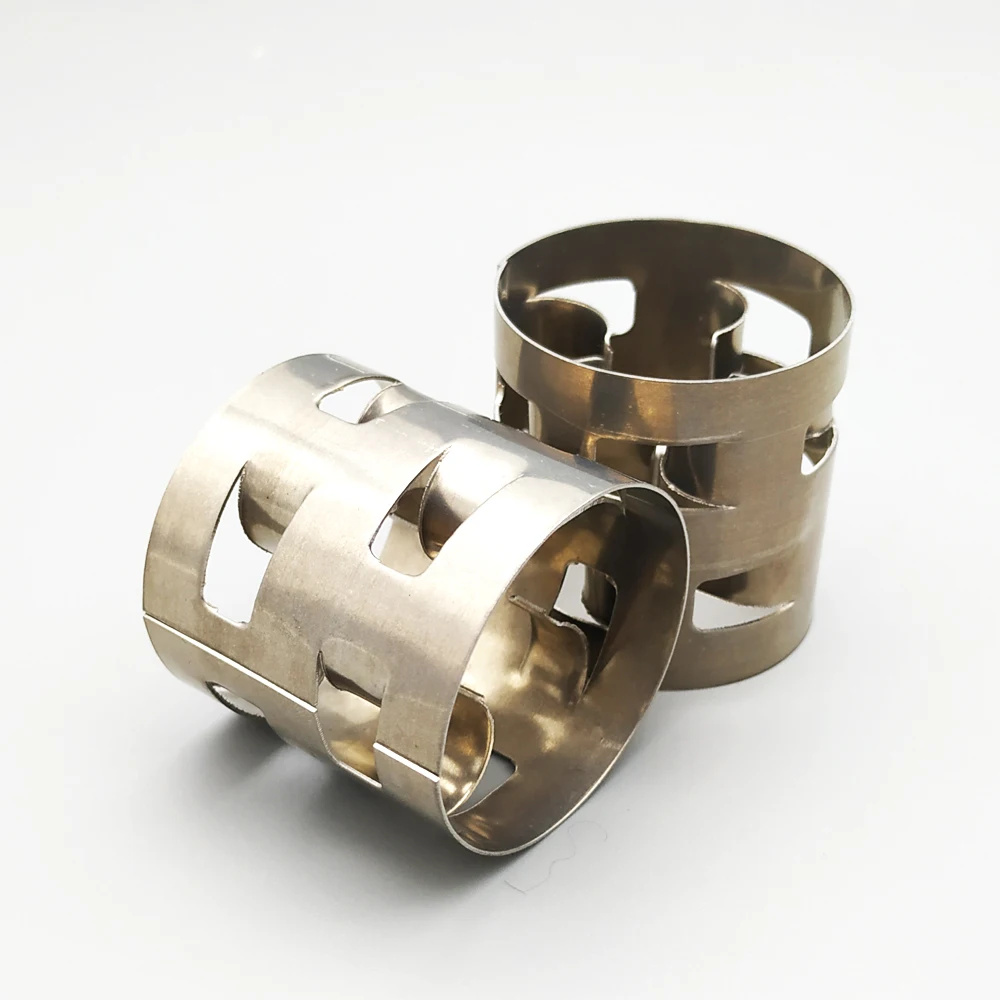

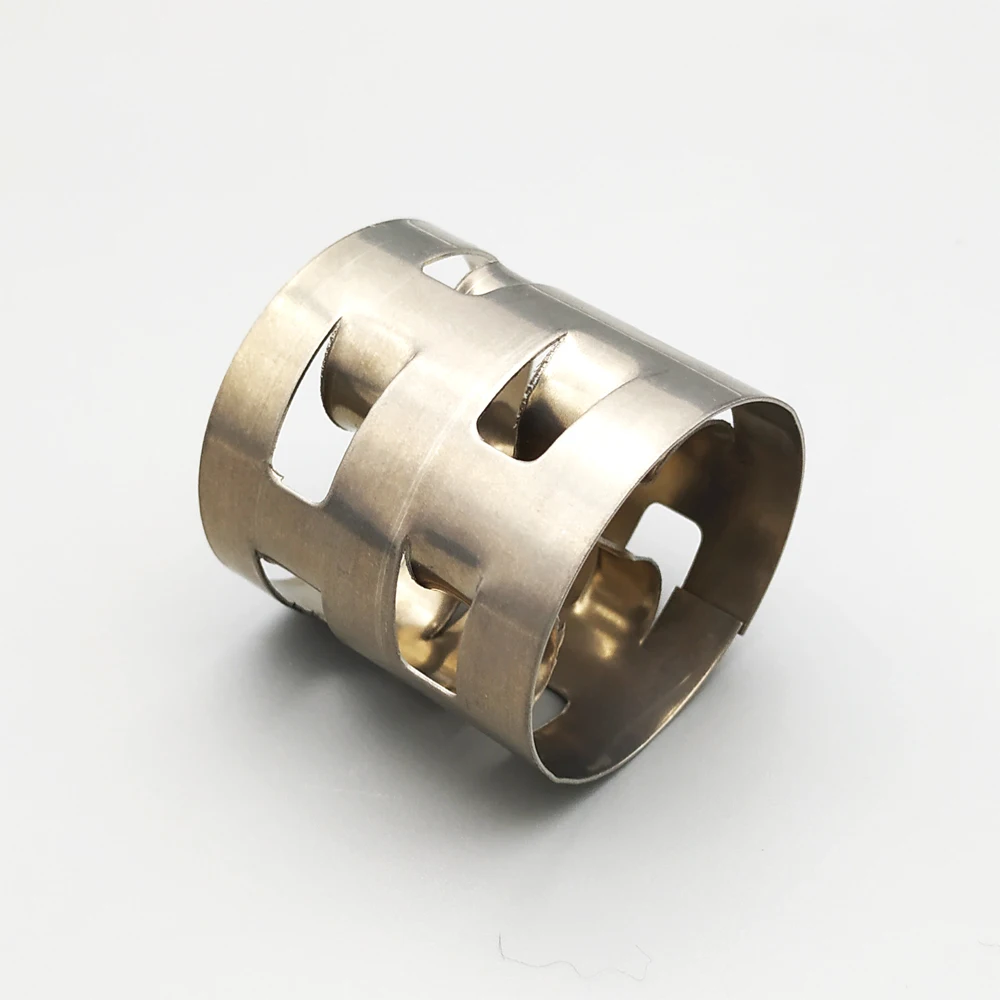

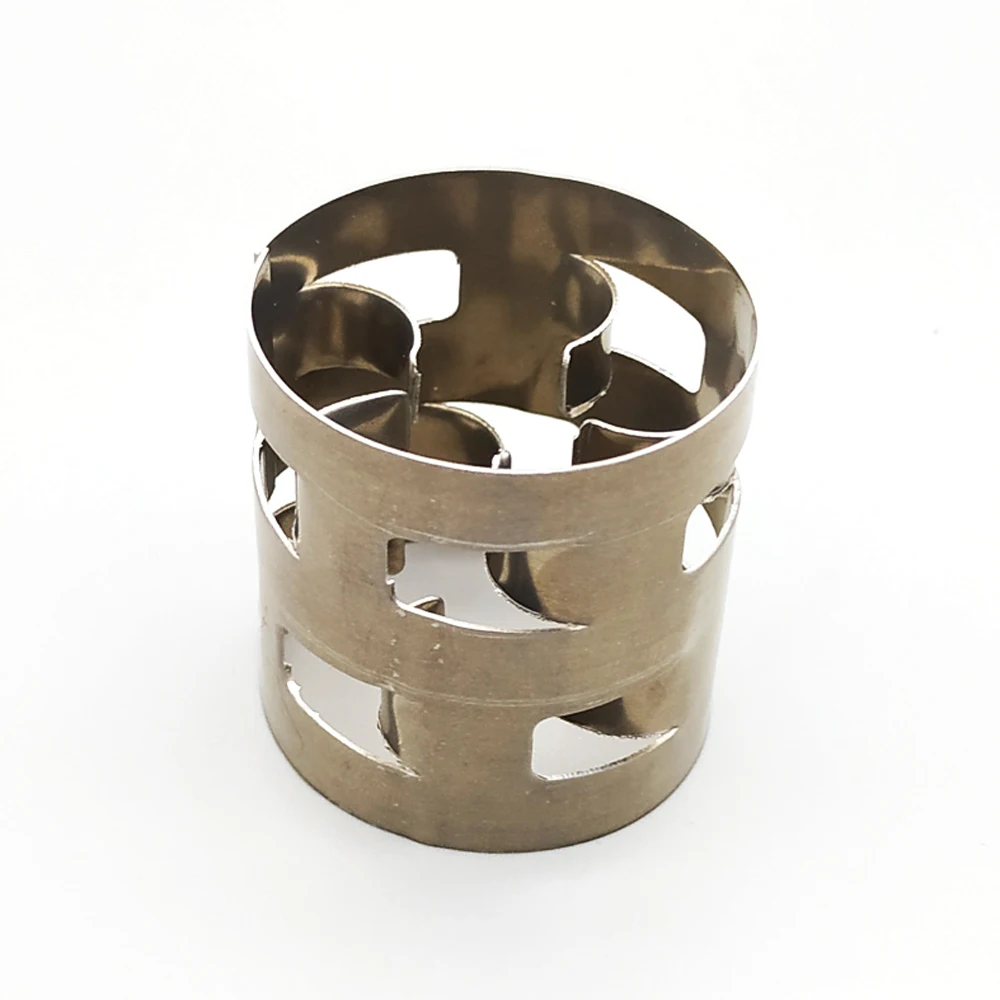

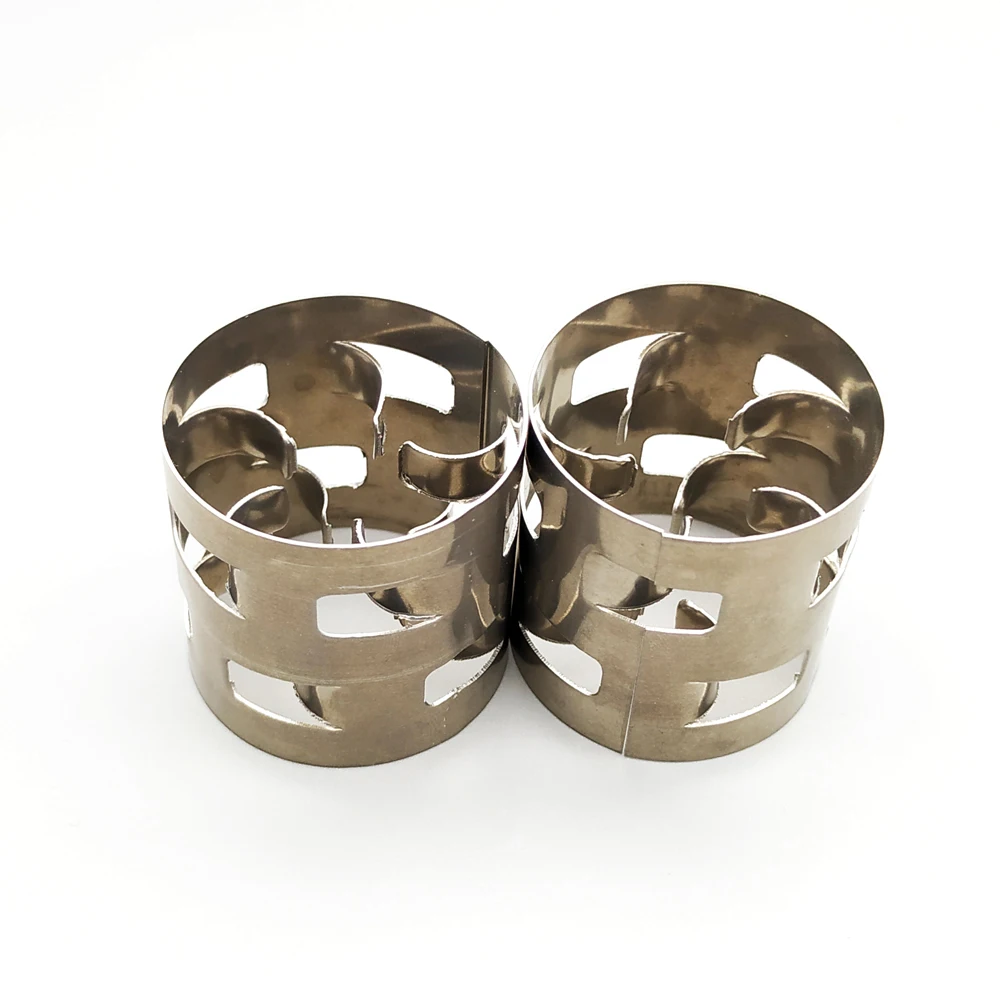

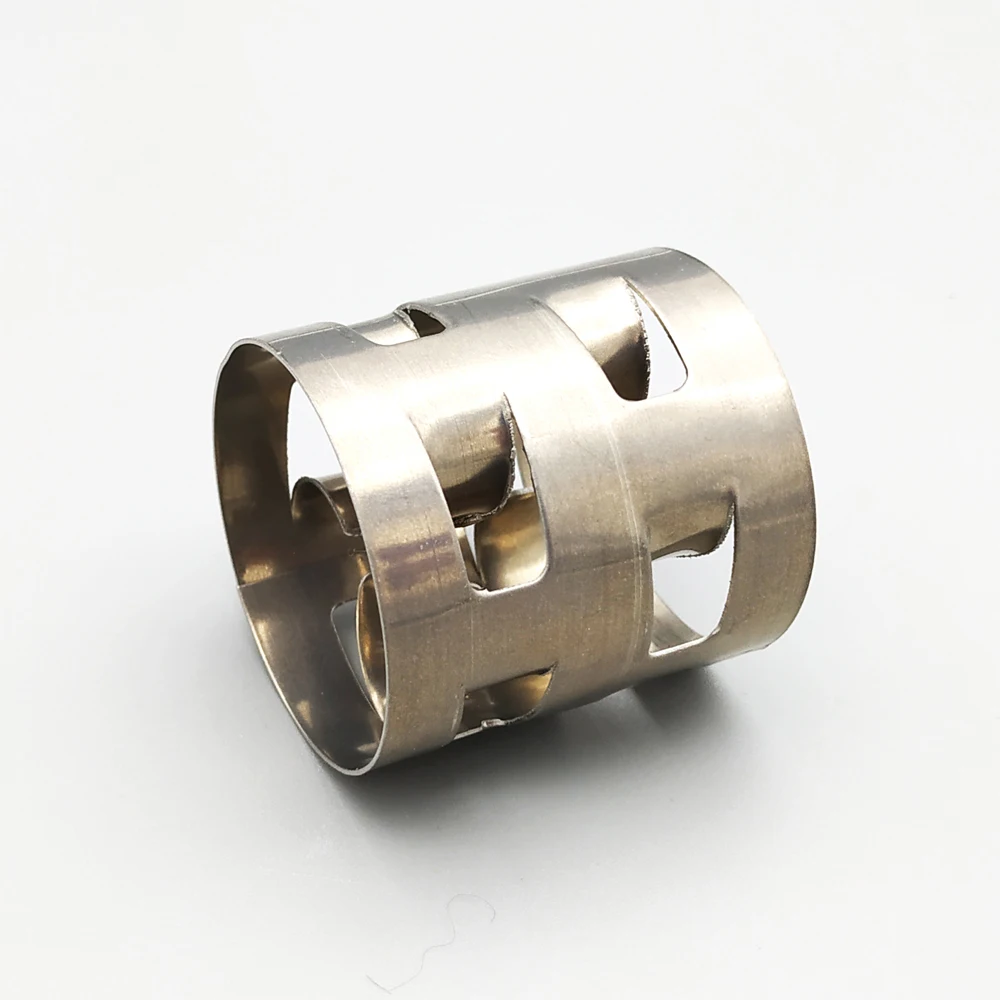

SS304 Stainless Steel Pall Ring For Coal Gas Industry

Product Overview

Description

SS304 stainless steel pall ring for Coal Gas Industry

SS304 stainless steel pall ring for Coal Gas Industry

The pall ring is the world’s most common random packing type. The design of the pall ring is an improvement of the raschig ring. The cylindrical dimensions are equal, however the metal pall ring has two rows of punched and formed fingers facilitating vapor flow. This adjustment provides a significant performance increase, resulting in an improvement of the capacity and efficiency. In addition, this adjusted design leads to reduction of the pressure drop through the column.
Size (mm)	Quantity (per m3)	Surface area (m2/m3)	Free volume (%)	F factor m-1 (%)
16×16×0.5	180000	188	91.1	275
25×25×0.5	51940	175	90	239
38×38×0.7	15180	155	89	220
50×50×0.8	6500	93	90	127
76×76×1.0	1830	73.2	92	94
Application	-Various Separation and Absorption Applications -Absorption and Stripping Services -Steam Stripping -Quench Towers -Direct Contact Cooling -Reaction Towers -Distillation Columns -Tower Packing
Material	Carbon steel, Stainless steel including 304, 304L, 410,316, 316L.
