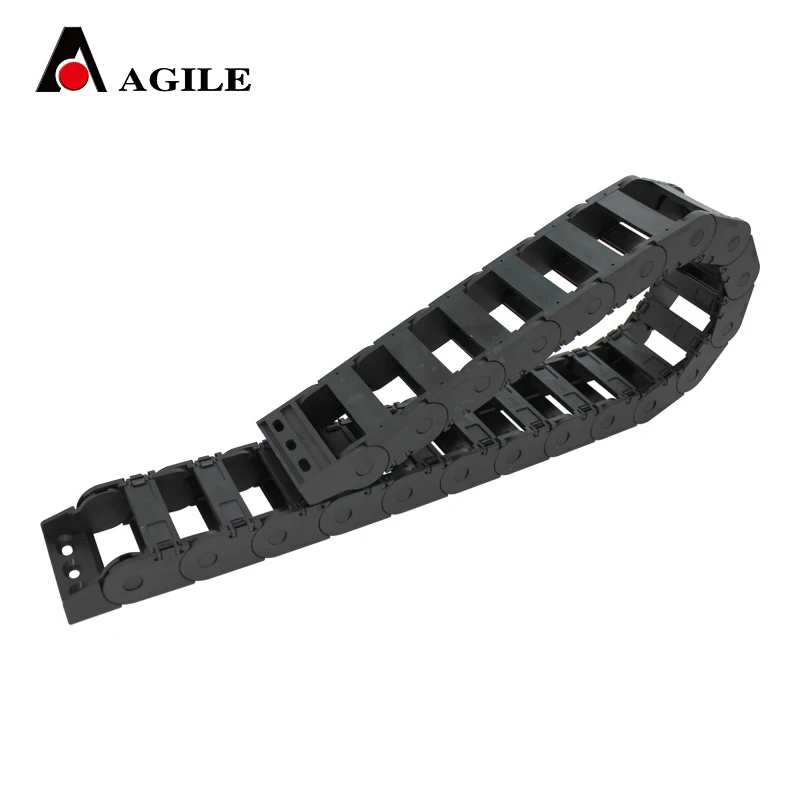

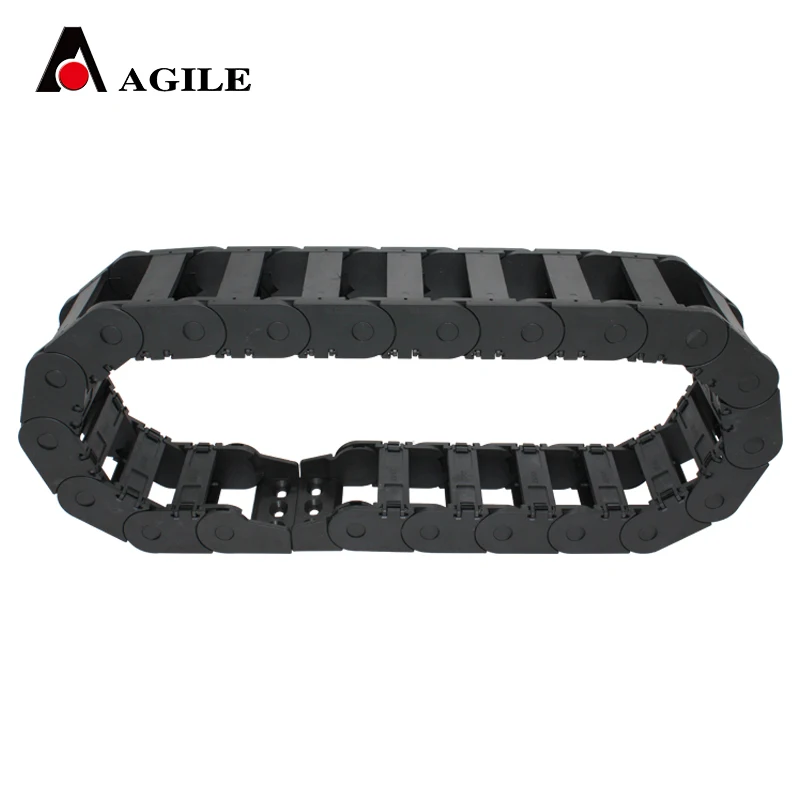

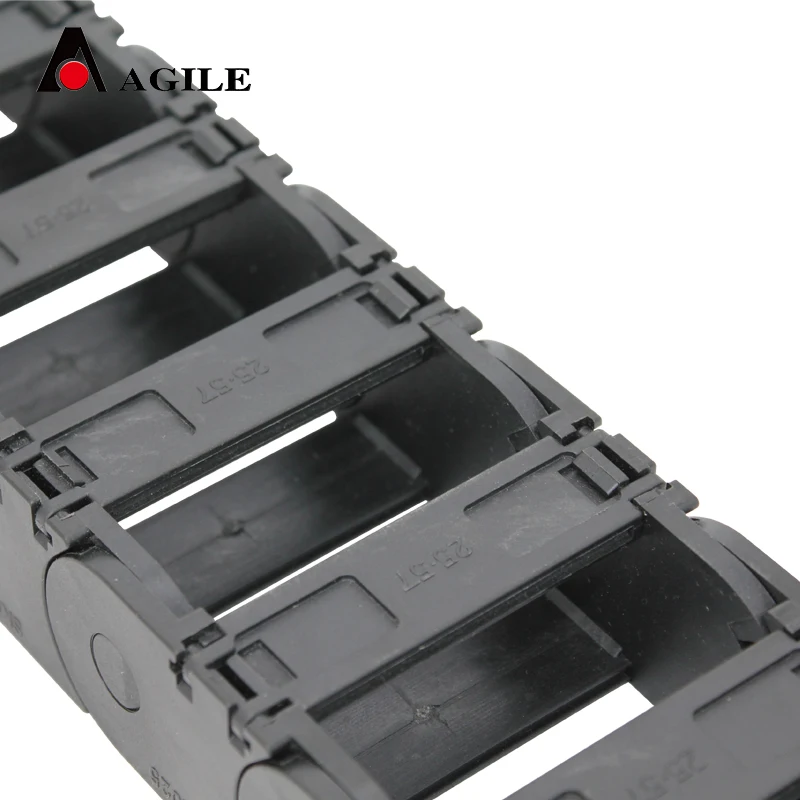

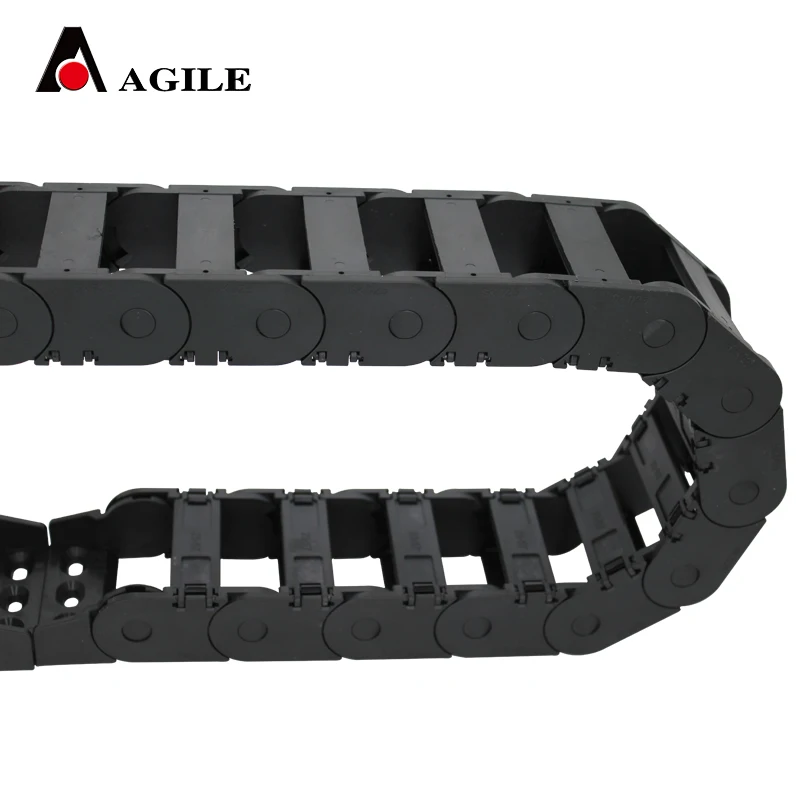

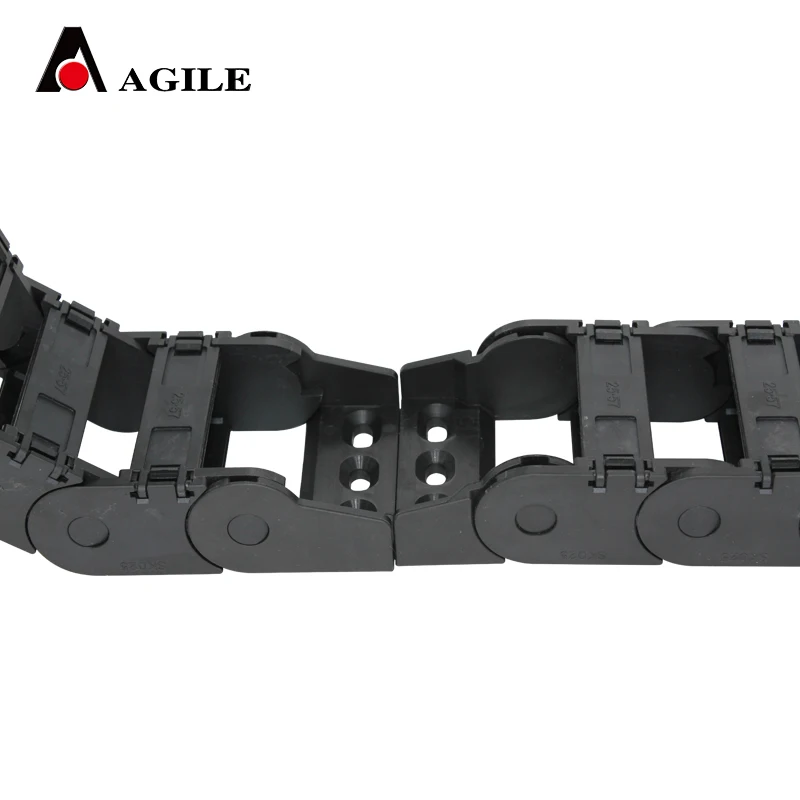

25*57 SK series open type cnc reinforced nylon cable carrier
25*57 SK series open type cnc reinforced nylon cable carrier
25*57 SK series open type cnc reinforced nylon cable carrier
25*57 SK series open type cnc reinforced nylon cable carrier
25*57 SK series open type cnc reinforced nylon cable carrier
25*57 SK series open type cnc reinforced nylon cable carrier
25*57 SK series open type cnc reinforced nylon cable carrier

25*57 SK series open type cnc reinforced nylon cable carrier

Share on (62133602428):


Price:

Quantity:


Product Overview

Description





1. Material: Reinforced Nylon PA6, PA66
2. Size: Inner size: Height*width, 25*57 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould
for special requirements.
4, The raw material: Original new nylon raw material. We don't use recycling materials, which is cheap but
week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds' structures according to
the feedback of our customers after usage. And always paying much attention to function.


Product Name
High strength nylon tank chain
Material
PA6, PA66
Color
Black
Standard
DIN GB ISO JIS BA ANSI
Working temperature
-40-130 ℃
Recommended gap
10%
Features
wearable, elastic, fire proof, self-lubricating.
Open side
Inside the radius.


Structures






25*57 measurement






Series Dimension


TYPE

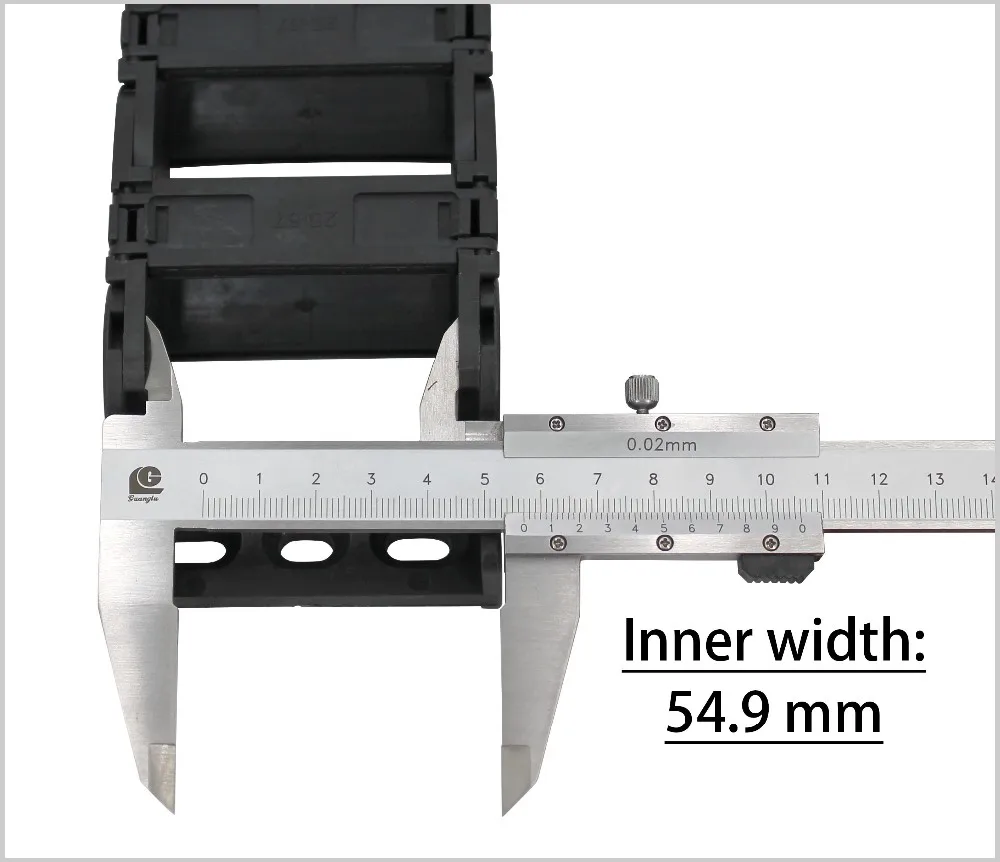

Inner dimensions Height*Width

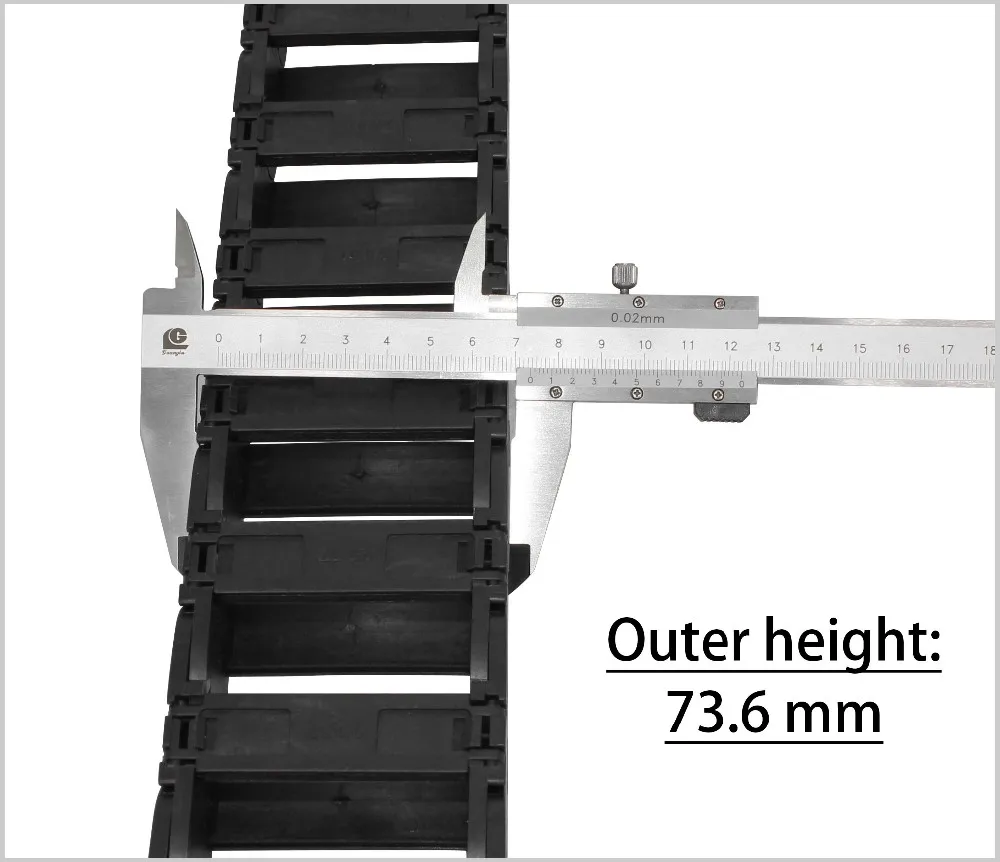

Outter dimensions Height*Width
Radius
Pitch
Pitch/meter
Weight Kg
SK25
25*38
35*55
R55
R75
R100
R125
R150
45
22
0.77
25*55
35*72


0.83
25*77
35*94


1
SK35
34*51
53*73
R75
R100
R125
R150
56
18
1.558
35*62
54*84
70
14.3
1.664
35*76
54*98
56.4
18
1.69
35*100
54*122
70
14.3
1.867
35*125
54*147
70
14.3
2.031
35*150
54*172
70
14.3
2.195
SK45
45*50
64*72
R75
R100
R125
R150
67
15
1.813
45*63
64*85


1.9
45*75
64*97


1.921
45*100
64*122


2.066
45*125
64*147


2.2
45*150
64*172


2.334


SK disassembling


HALF ENCLOSED TYPE










FULLY ENCLOSED TYPE










\t\t\t\t\t\t\t\t\tProduction flow \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tQuality Control \t\t\t\t\t\t\t




Quality control

1
Raw material control, including various kinds of test, such us DSC, flow rate, moisture content test, tensile test etc.

2
Production control. It shall follow strict orders in production, quality test in production is important.

3
Feed back. We seek feedbacks from all our users, and keep improving our quality, and correct any structure deficiency.


How to identify good products
