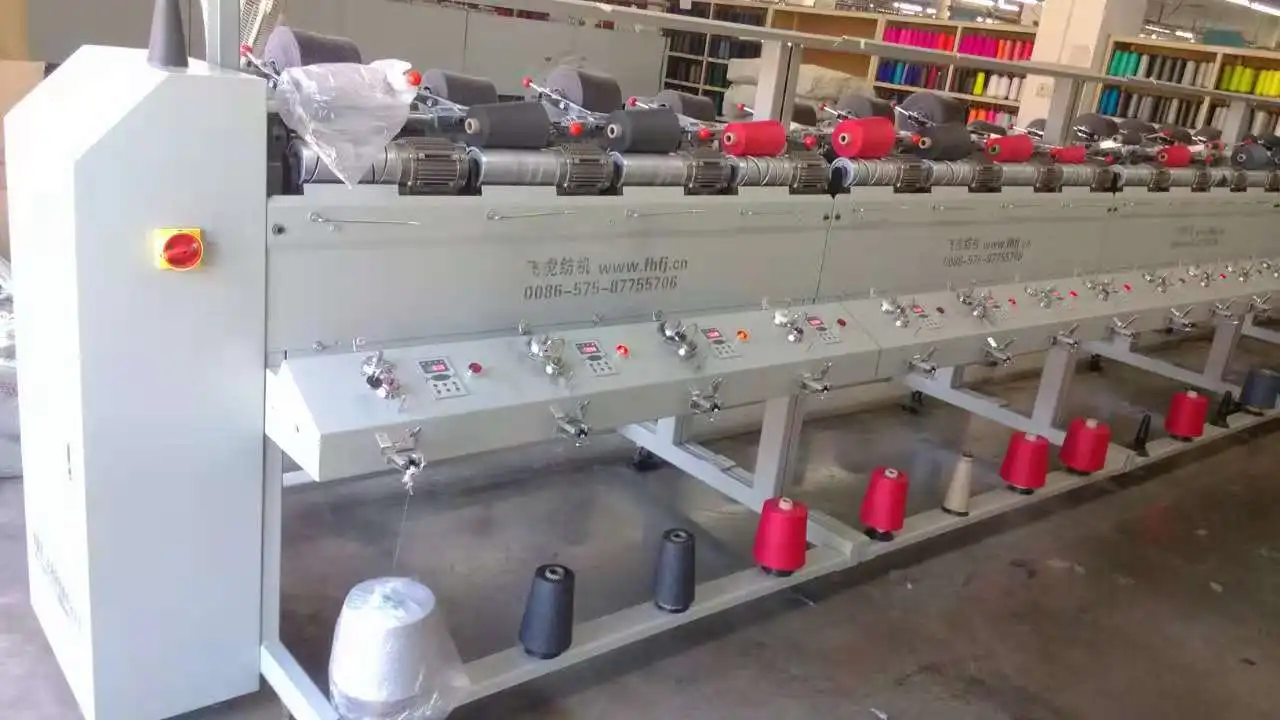

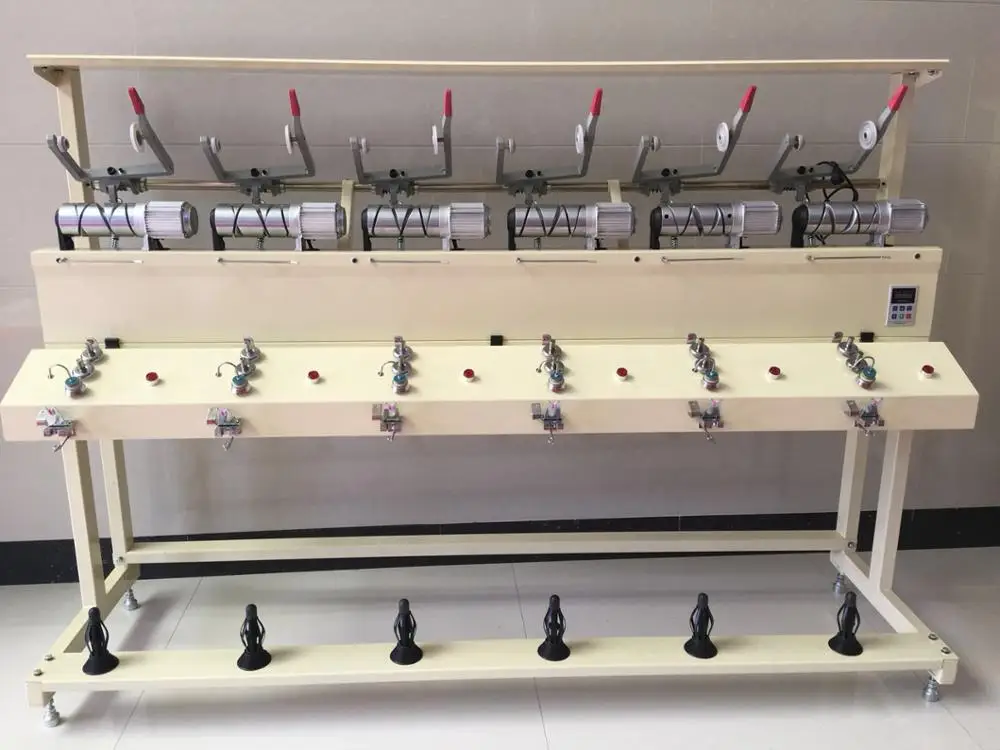

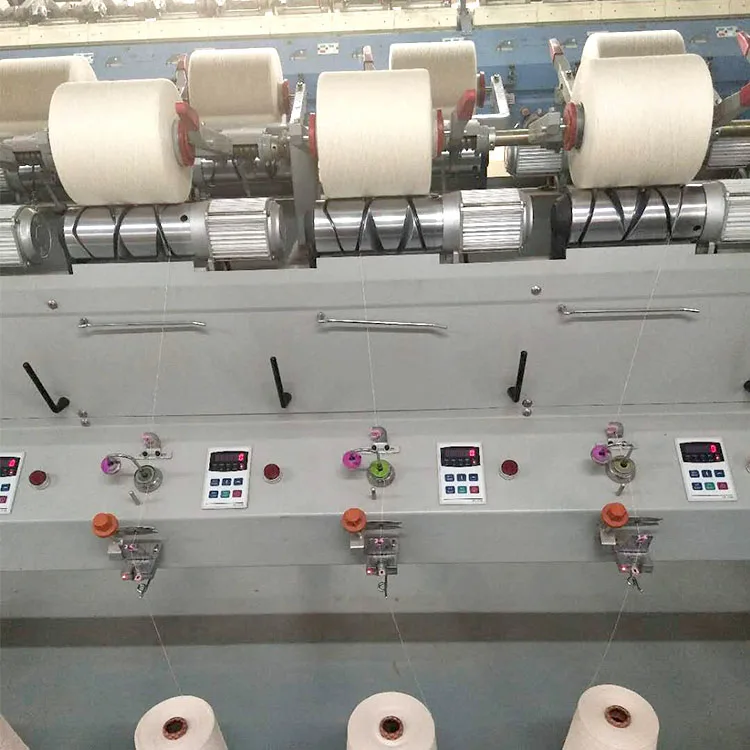

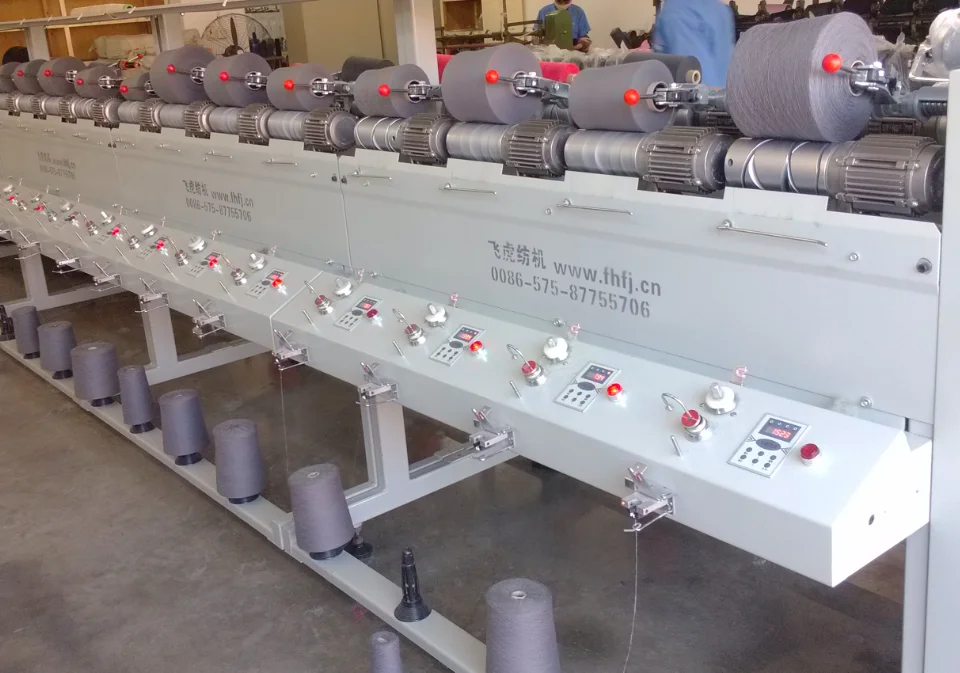

Hot Selling cotton yarn cone automatic coil winding machine

Product Overview

Description

Machine Application:

FHCT- J/S High speed grooved drum cone to cone winding machine, it’s mainly for before dyeing preparing using, suit for winding like cotton yarn, line, silk,and other types of tube yarn or skein yarn winding onto cones with hard yarn which used directly on knitting machine, warping machine etc. The machine is especially suitable for cotton hank of K silk winding onto soft or hard cones what meet the technological requirements.



Main feature:

1.Grooved drum of super plastic alloy material, high strength, light  weight, groove design guide has an excellent performance broad applicability, the surface adopt the new technology of polishing Ra< 0.8am roughness, hardness HV> 900,Computer dynamic balance correction to meet high speed and low noise.

2.Oil adding and waxing device can be installed.

3.Individual spindle control, slow start, the line speed is adjustable, broken yarn stop and alarm functions.

4.Advanced touch screen interface.

Parameters:

Grooved drum	0/D 82mm, spindle distance 2.5,symmetry0°
Bobbin type	0°,3°30′,4°20′,5°57′
Layout	Double-sided or single side, can be 12-120 spindles,12 spindles/group
Assemble	Standard 24 spindles/set
Max. speed	2800R/min.
Power Supply	Three phases five wires 380-400V 50/60HZ
Driving	Every spindle per motor
Power Consumption	120W/spindle+roller motor
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Yarn tension	Every spindle with disc tensioner
Auto Stop Device	Each spindle has yarn detector
Length counter	Each spindle has length counter
Electronic Yarn Cleaner	Optional installed
Air Splicer	Optional installed
Blower cleaner	Optional installed
Lighting System	Optional installed
Dimensions	L 11500 x W 1050 x H 1550 mm (60 Spindles)
Weight	350kg

We could make special type according to the customer’s request.
