200w wireless broadcast 88 108Mhz Transmisor de FM for radio station fm radio transmitter 200w arts
- Category: Radio & TV Accessories >>>
- Supplier: Shaanxi Vision Radio & Television Equipment Co. Ltd.
Share on (62138081145):
Product Overview
Description
Product Description

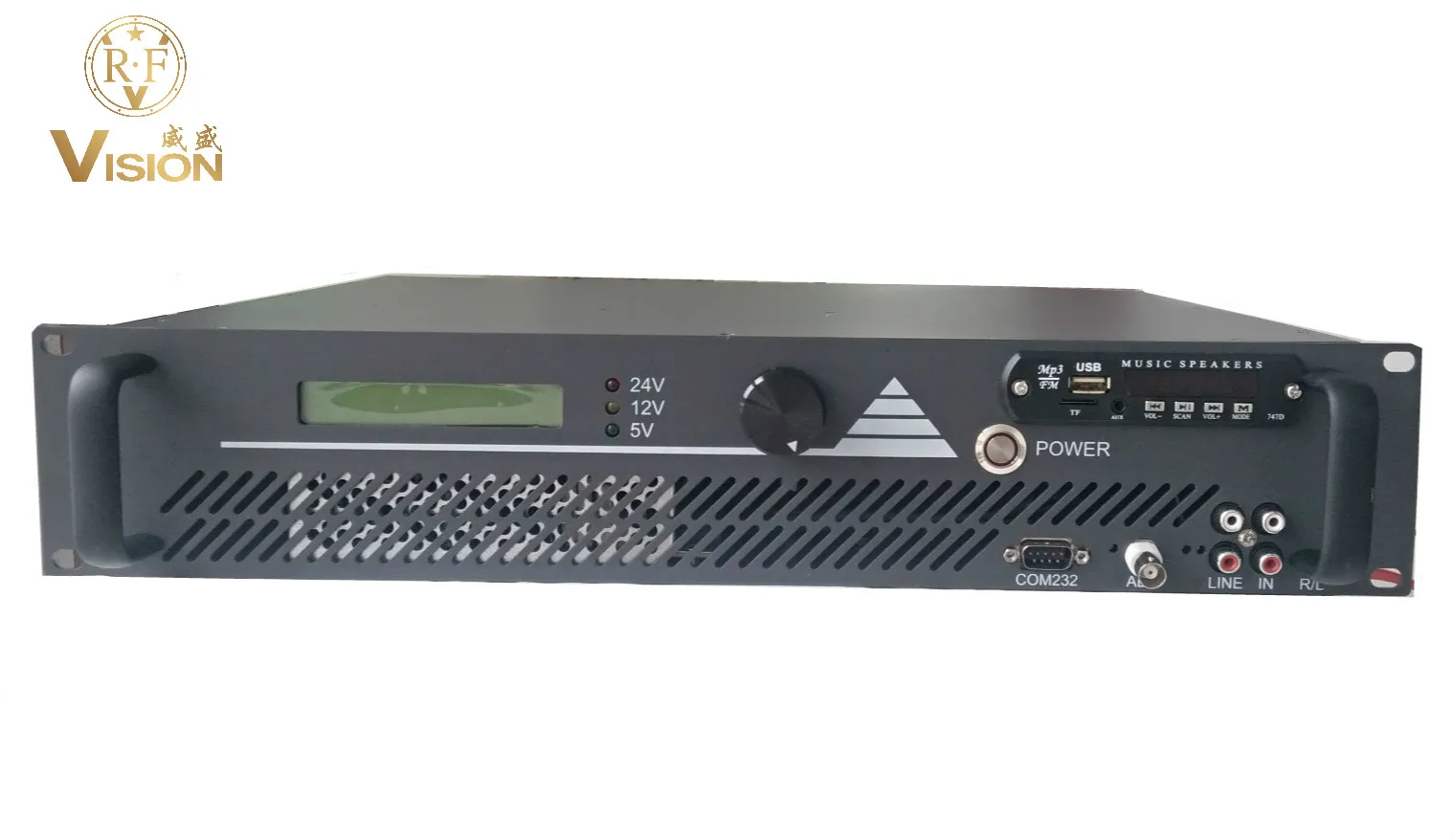

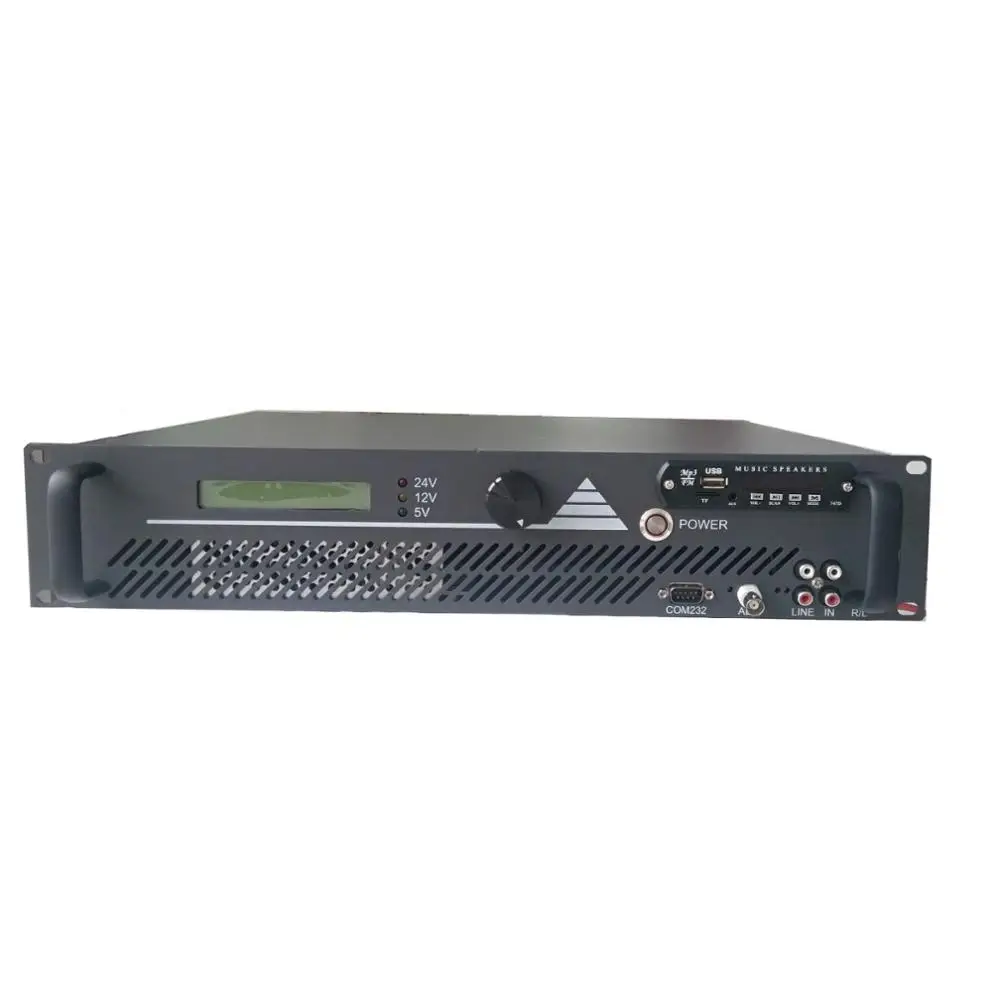

Vision 200w Transmisor FM
Technicial Index
No. | Item | Specifications |
1 | Frequency Range | 87.5-108 MHz any optional |
2 | Output Power | 200w |
3 | Load Impedance | 50Ω |
4 | Output Interface | L16K (or customerized) |
5 | Residual Radiation | <-70dB |
6 | Modulation Frequency Offset | 100% modulation, 75 kHz |
7 | Pre-emphasis | 50μs/75μs |
8 | FM Signal to Noise Ratio | < -75dB (75 KHz Frequency Offset at 1 KHz) |
9 | Frequency Response | 20Hz-15KHz <±0.1dB |
10 | Harmonic Distortion | 30Hz-15KHz <0.1% |
11 | Load Wave Suppression Degree | <-45dB |
12 | Audio Input Level | 0dBm |
13 | Audio Input Impedance: | 10K (Unbalanced) |
14 | Left &Right Signal Level | 30Hz-15KHz<0.5dB |
15 | Degree of Separation | 30Hz>53dB (Typical Value: 56dB) |
16 | Ambient Temperature | -10—+50℃ |
17 | Power Consumption | 550W |
FAQ
Common Problems:
For better understand of our products,we collect all possible problems for every order,hope it will help you.
Q1. Are you the manufacturer or trading company?
A1. We are manufacturer of Radio & TV Broadcasting equipments.
Q2.What these equipments used for?
A2. They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q3. What equipment & solution your company can provide?
A3. We can do complete solution for FM Radio &tv station system, including the fm/tv transmitter, antennas and the feeder cables.
Q4. How do I choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.We need to know the Power and Frequency you need exactly.How long the distances do you want to cover in Radius?How height your Antenna can be installed?
Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors:1. Power of Transmitter 2. Height of Antenna 3. Gain of Antenna 4. Around Environment.Then we can know the cover range of your station.
Q6. Is the Frequency Adjustable?
A6. FM Frequency is 88~108MHz, TV Band Frequency includes UHF/VHF band.
Q7. How to do installation of these equipments?
A7. If need,we can send our engineer to your country to do the installation, but you should pay the cost.We also can provide the technical support or do training for your engineer here in our company.
Q8. How to operate these broadcasting equipments?
A8. We provide All-English user manual, we also can provide the technical support by wechat /whatsapp etc.
Our Services
1.We will provide the User Manual in English or operating videos for free.
2. We provide you with 24-hour technical support by mail or online.
3.Warranty: 1 year , more than 1 year, cost maintenance
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
