Small commercial fish meat grinder fish skin removing machine fish meat and bone separator machine


1. Fish grinder machine introduction:

This Fish grinder machine is mainly used to extract the flesh of fish from fish skin and fish bone. It is high productivity but labor and energy saving. The food touching places are adopted high-quality 304 stainless steel, the final product can be directly used to produce various fish balls, fish noodles, fish skin dumplings, fish tofu and other products.

2.Fish grinder machine working principle:

The fish divided into two halves can be effectively removed from the fine fishbone by pressing between the meat strip and the meat drum, and the fish scales can also be scraped off. It is a necessary equipment for making surimi products.


3.Fish grinder machine technical parameter:

\t
Model No.
\t
OC-F150
\t
OC-F200
\t
OC-F300
\t
OC-F350
\t
Material
\t
SUS304
\t
SUS304
\t
SUS304
\t
SUS304
\t
Output
\t
180kg
\t
250kg
\t
500kg
\t
1.5T
\t
Power
\t
1.5kw
\t
3.5kw
\t
3kw
\t
7.5kw
\t
Thickness of the belt
\t
20mm
\t
20mm
\t
20mm
\t
20mm
\t
Length of the belt
\t
1300mm
\t
1600mm
\t
2100mm
\t
2500mm
\t
Drum diameter
\t
162mm
\t
170mm
\t
219mm
\t
300mm
\t
Drum length
\t
300mm
\t
485mm
\t
300mm
\t
350mm
\t
drum wall thickness
\t
6mm
\t
6mm
\t
6.5mm
\t
12mm
\t
Mesh diameter
\t
2.4mm
\t
3mm
\t
3.2mm
\t
4/4.5/5/6mm
\t
Weight
\t
180kg
\t
280kg
\t
360kg
\t
750kg
\t
Machine dimension
\t
800*550*800mm
\t
900*700*1100mm
\t
900*750*1250mm
\t
1300*1000*1050mm
Detailed Images

Fish meat processing picutres:

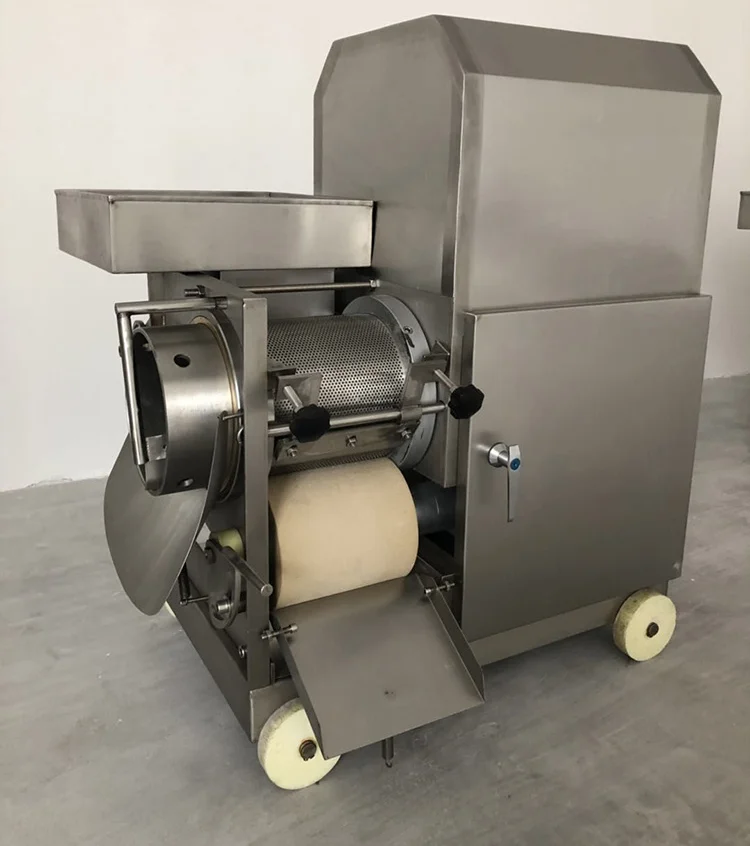

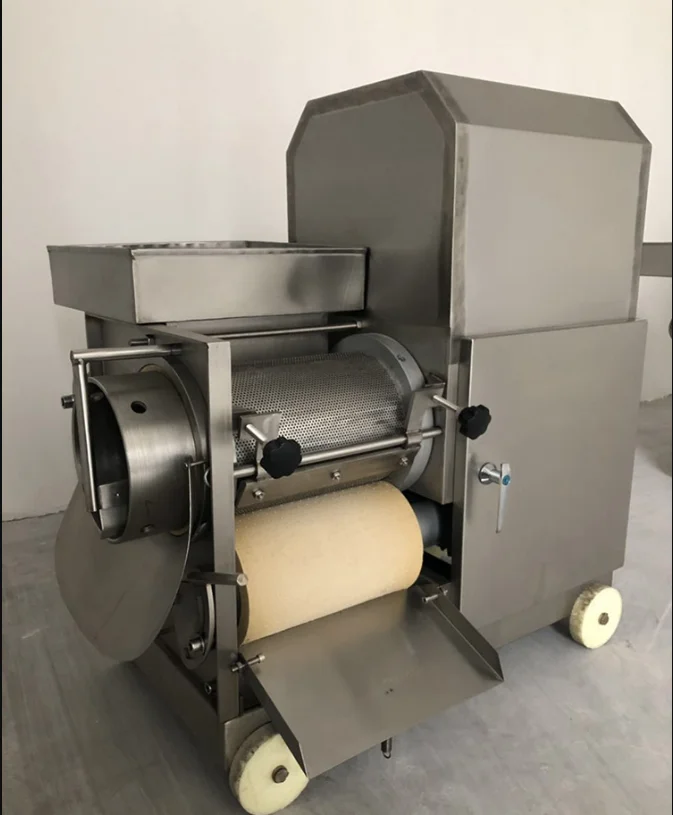

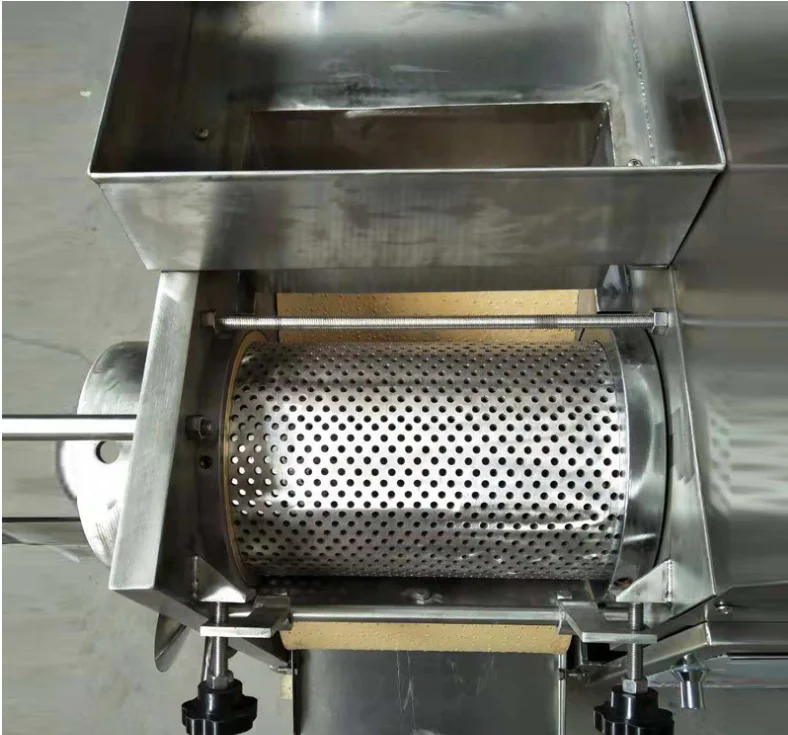

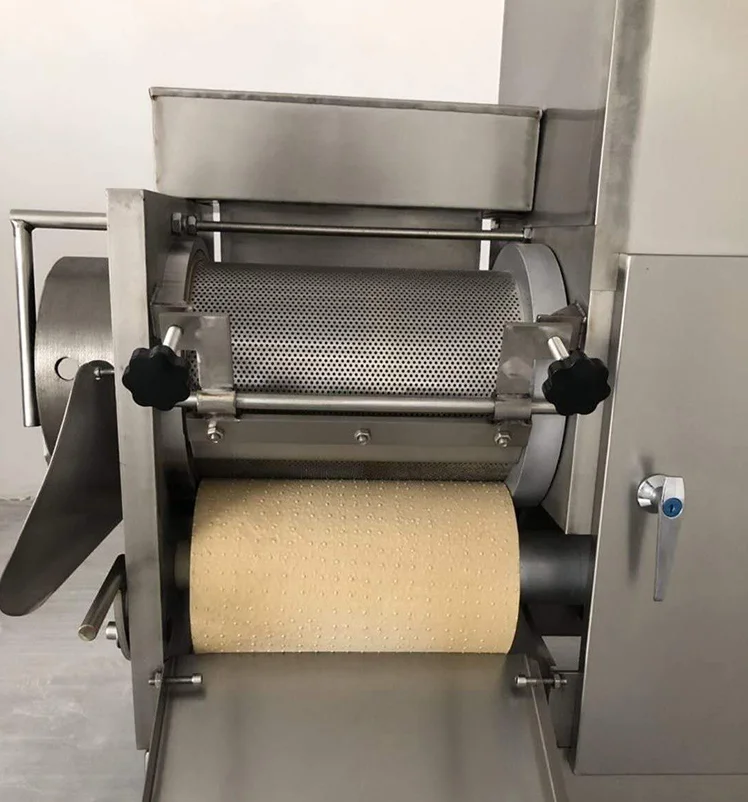

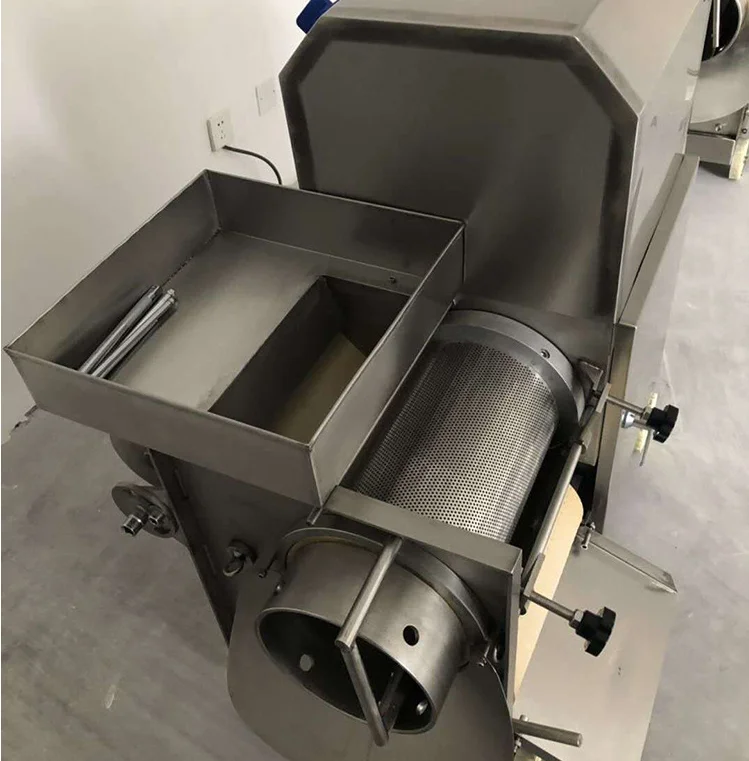

Machine details pictures:

Food grade 304 stainless steel material

Packing & Delivery

1.Packing
Standard export wooden case,1 set machine/ wooden case

2.Delivery date
Usually, out delivery date is 7-15 days,according to different machine and customer's requirement.

3. Dispatch method
By sea,by air ,by express ,according to customer's requirement.

Our Service

1. Warranty
All the products have one year guarantee.

2. Training
We provide training to make sure every customer can install and operate the machines.

3. Spare parts.
We provide all spare parts for all machines in lifetime use.

4. Standby Service
We are always ready to help. Just let us know whenever you have questions or problems.

Our Company

Henan Ocean Machinery Equipment Co.,Ltd. is an ISO9001 certified and High-tech Enterprise established more than 10 years ago, is a professional manufacturer specialized in R&D, production and sales of Mechanical Equipment products such as Snack Food Processing Machine, Fruit and Vegetable Machine, Food & Packaging Machine, Water Well Drilling Rig and Poultry Equivalents, etc., which are widely sold worldwide and we have been recognized by our customers year after year.
