CJY7/6GP 7T Electric Trolley Underground Mining Locomotive
US $1999-$8999

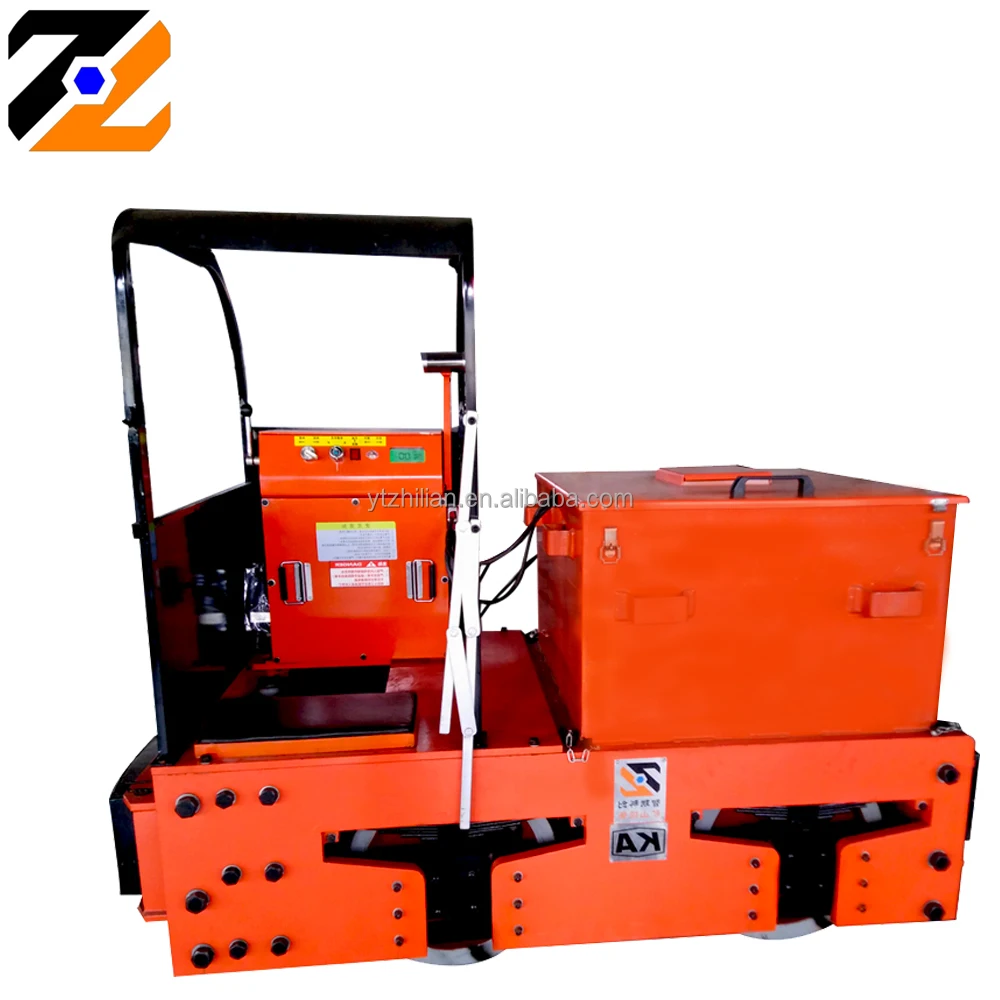

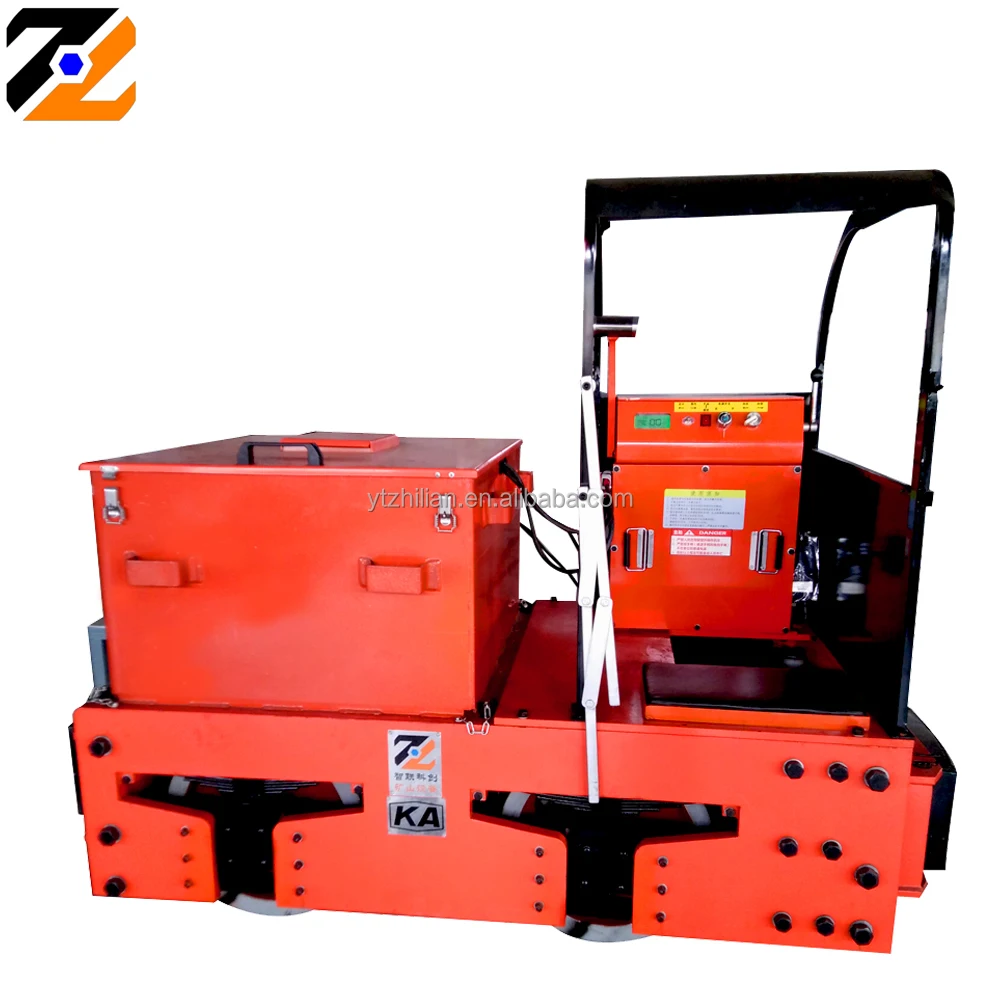

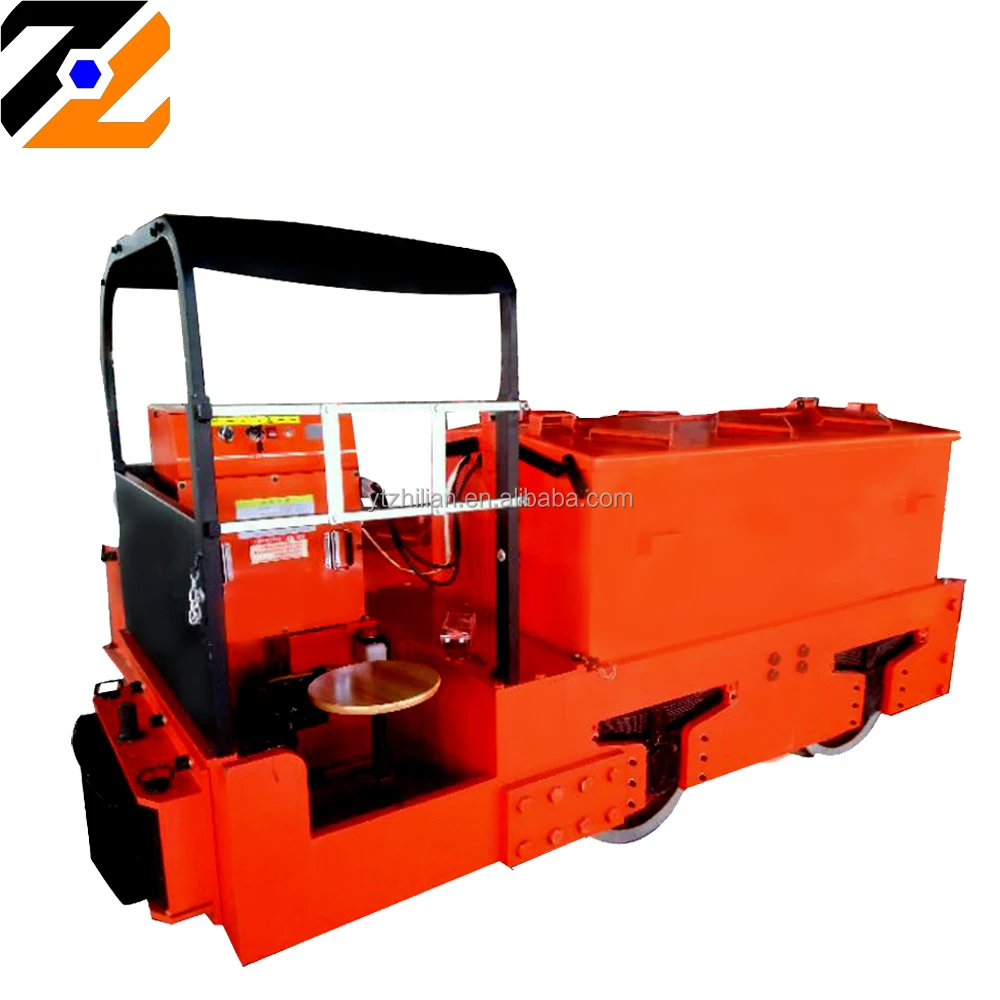

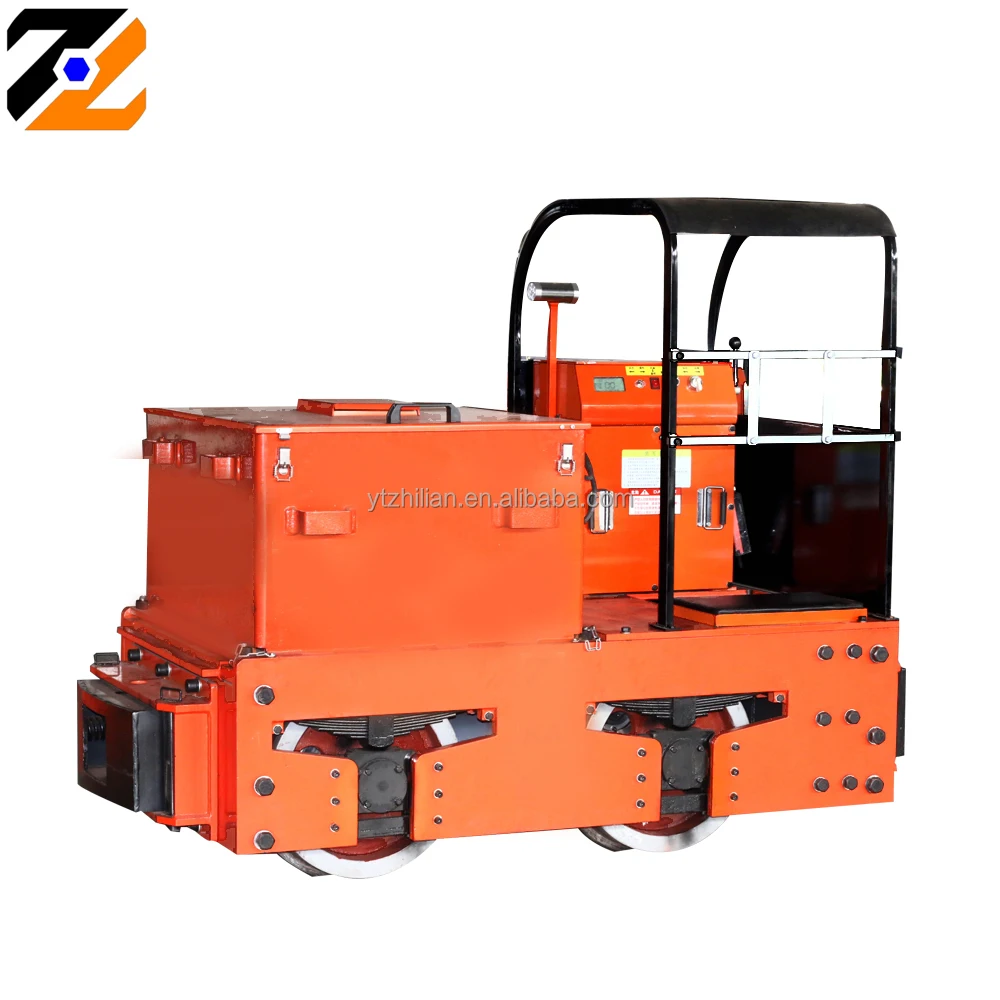

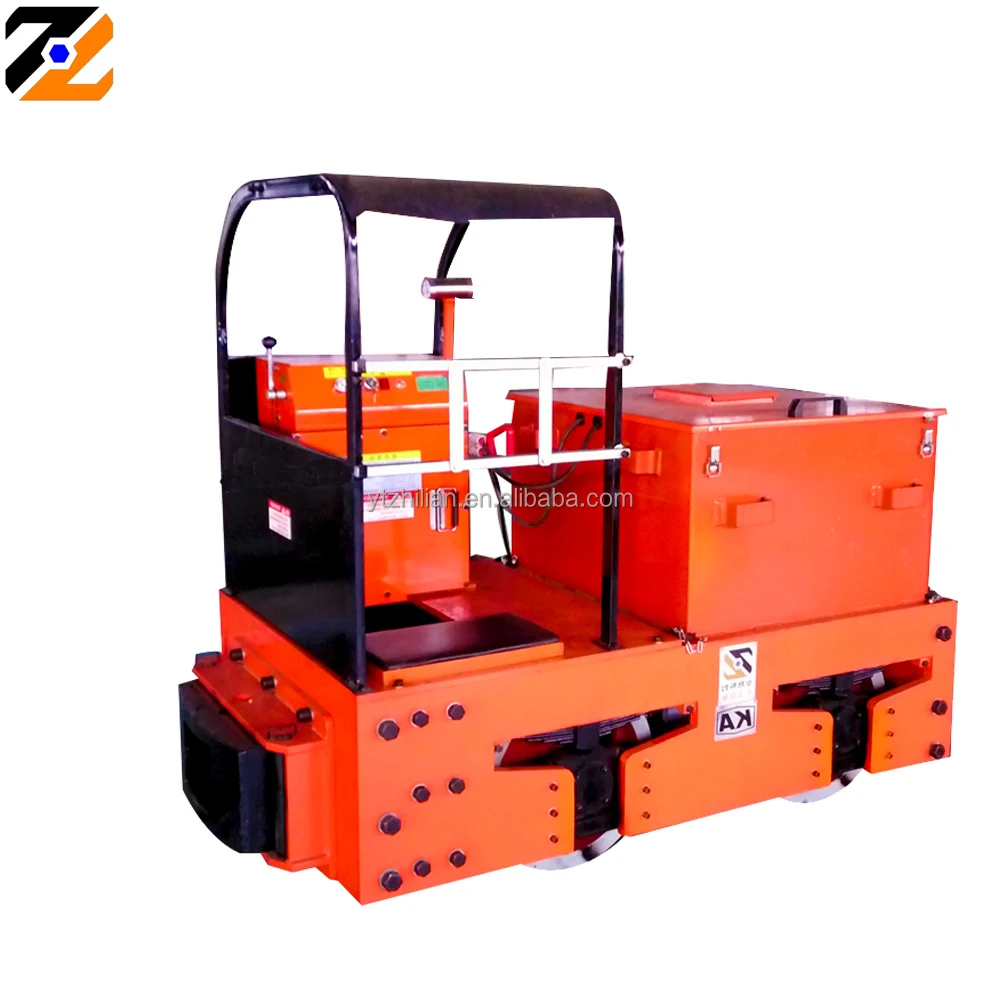

Heavy duty electric narrow gauge locomotive for sale
- Category: Trains >>>
- Supplier: Yantai Zlinktric Mining Equipment Co. Ltd.
Share on (62140171381):
Product Overview
Description
Product Description
Product Advantage
The self-developed three-stage gearbox design is small in size and large in speed ratio, which improves the traction of the entire vehicle.
All gearbox gears are made of 40CrMnTi, heat treatment process, high strength and impact resistance.
The engine casing is processed by seamless steel tubes, specially developed for mine conditions, resistance to moisture and earthquakes.
The steel wheel is cast in manganese steel, wear resistant and durable.
The length of the entire locomotive is only 1.66 meters, which is directly below the cage.
The appearance of the entire locomotive is electrostatically sprayed, which is more resistant to corrosion.
The external structure of the locomotive is screwed in for ease of maintenance.

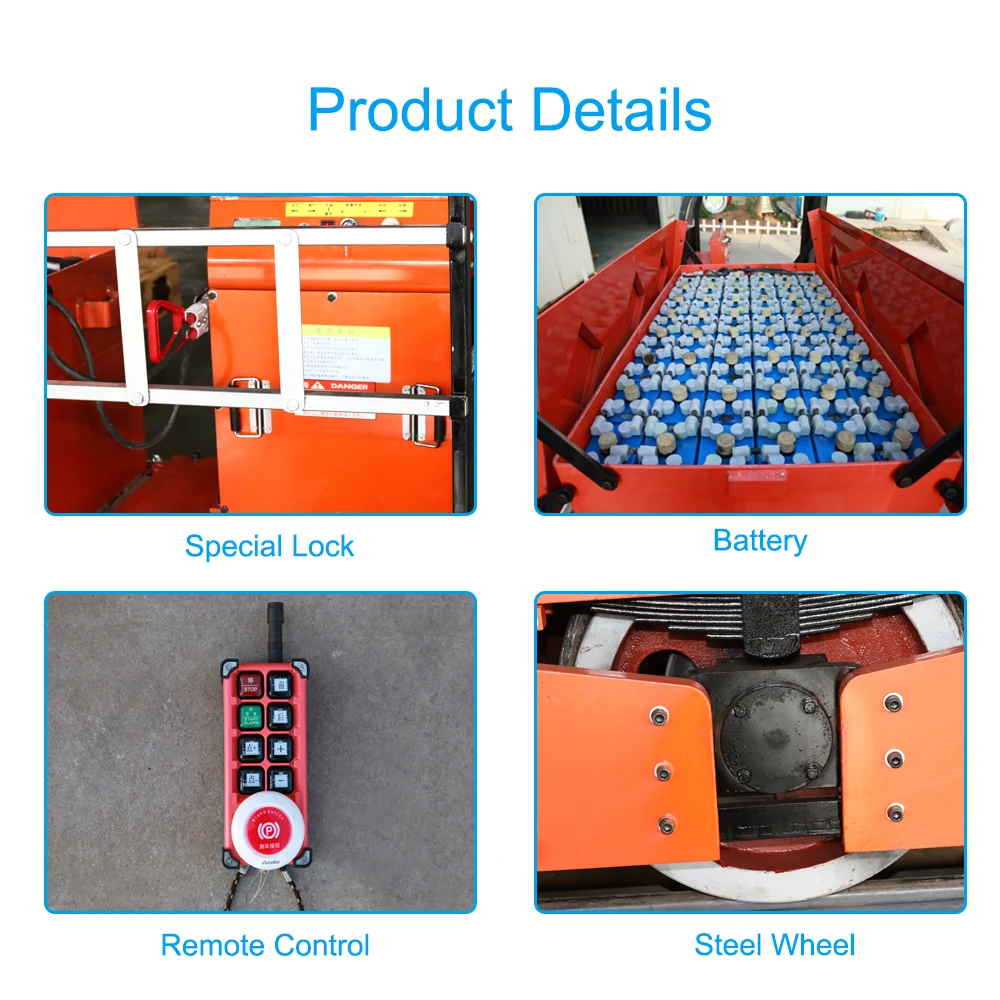

Explosion-proof drive battery to prevent equipment downtime caused by the battery.
Regulation Cutter speed regulation, steady start, effectively protect engine and gearbox gear from impact.
Wireless remote control function is optional, 100 meters remote control range, safer and more efficient.
Customers Most Care
How much cargo can this model of underground mining electric locomotive pull ?
CTY1.5/6GB electric locomotive can pull 11 tons of cargo.
CTY2.5/6GB electric locomotive can pull 18 tons of cargo.
CTY5.0/6GB electric locomotive can pull 35 tons of cargo.
What brand of battery ?
We have engyang ruida, jinchao yuke two brands.
What is the capacity of the electric locomotive battery? How many batteries? How long does it last?
2.5 tons capacity 330AH, 24 blocks, 48 volts, 5 tons capacity 385AH, 48 blocks, 96 volts
What speed regulation mode does this mine use electric locomotive?
Chopper speed regulation
What kind of brake is this mine electric locomotive?
Hydraulic disc brake
Parameter Of Product
Specification/Parameter | Value |
Adhesive weight | 2.5t |
Dimensions (L x Wx H) | 1660*970*1550mm |
Traction power rating | 8kw(4kw*2) |
Traction | 4.7KN |
Rated weight | 18t(About12 0.75 cubic meters of mining wagon ) |
Charger power | 2.5kw |
Charging time | 8h |
Using time | 10h |
Electrolyte capacity | 102L |
Speed (km/h) | 5.8km/h |
Min. turning radius | 4m |
| Specification/Parameter | Value | Value | Value | Value |
| Adhesive weight | 1.5t | 2.5t | 2.5t | 5t |
| Dimensions (L x Wx H) | 1660*950*1550mm | 1660*970*1550mm | 1660*970*1550mm | 2310*970*1550mm |
| Traction power rating | 4kw | 4kw | 8kw(4kw*2) | 15kw(7.5kw*2) |
| Traction | 3.8KN | 4.7KN | 4.7KN | 10KN |
| Rated weight | 11t(About 7 0.75 cubic meters of mining wagon ) | 18t(About 12 0.75 cubic meters of mining wagon ) | 18t(About 12 0.75 cubic meters of mining wagon ) | 35t(About23 0.75 cubic meters of mining wagon ) |
| Charger power | 2.5kw | 2.5kw | 2.5kw | 5kw |
| Charging time | 6h | 8h | 8h | 8h |
| Using time | 10h | 10h | 10h | 10h |
| Electrolyte capacity | 102L | 102L | 102L | 210L |
| Speed (km/h) | 5.8km/h | 5.8km/h | 5.8km/h | 5.8km/h |
| Min. turning radius | 4m | 4m | 4m | 4m |
Detailed Images

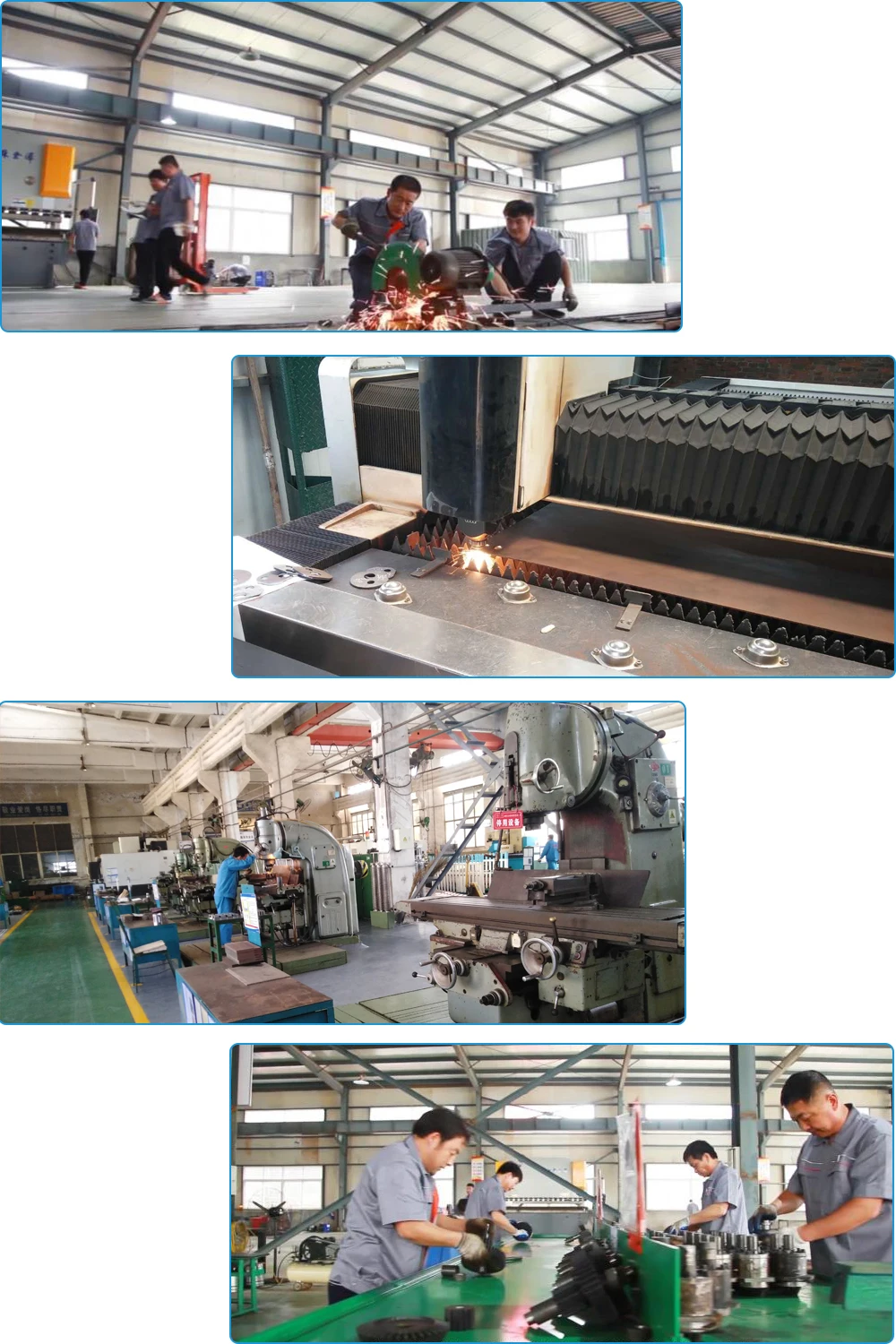

Company Information
