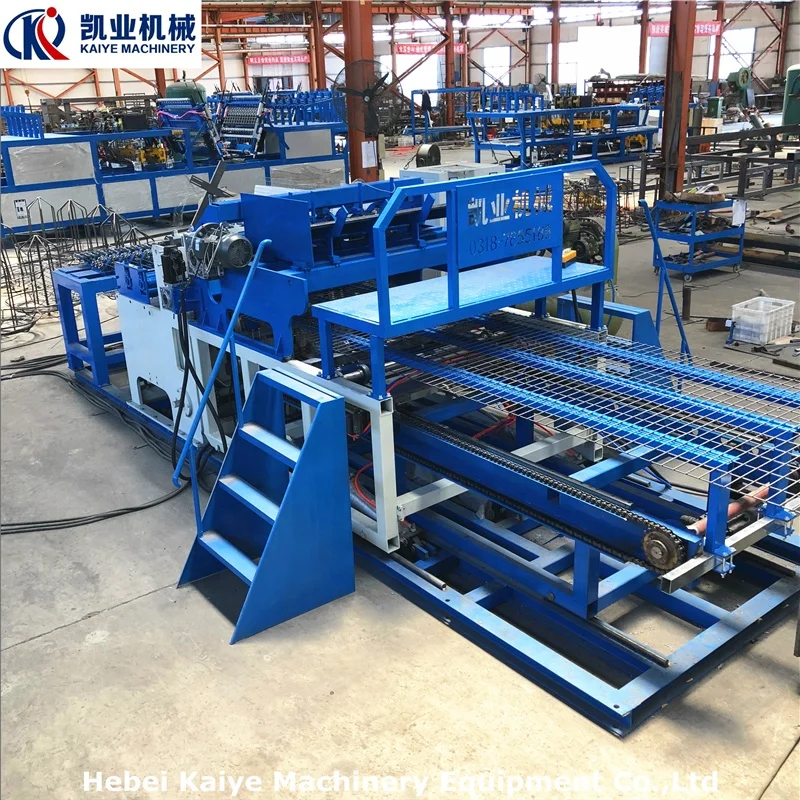

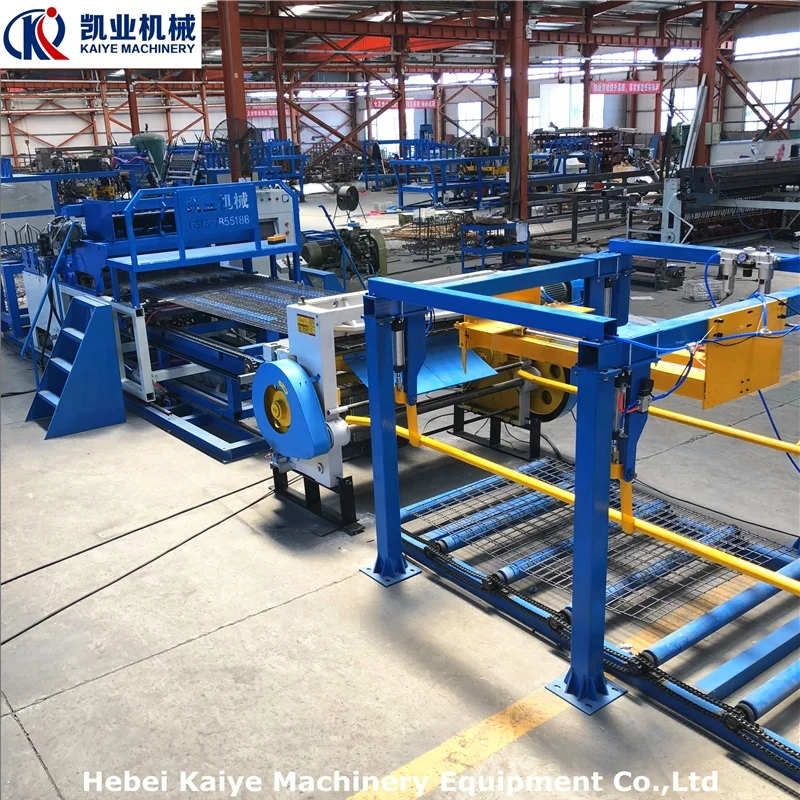

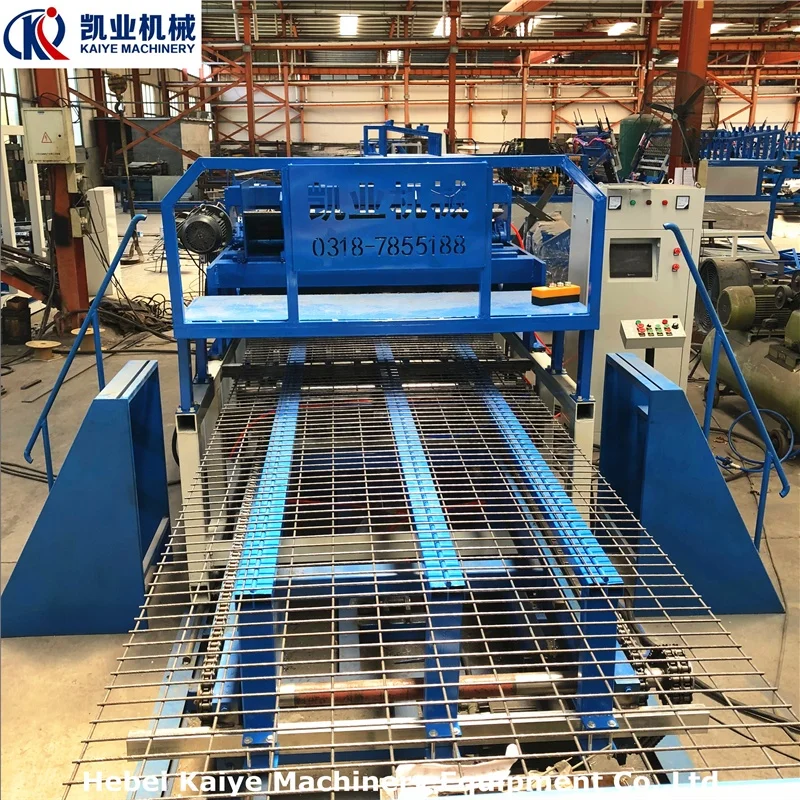

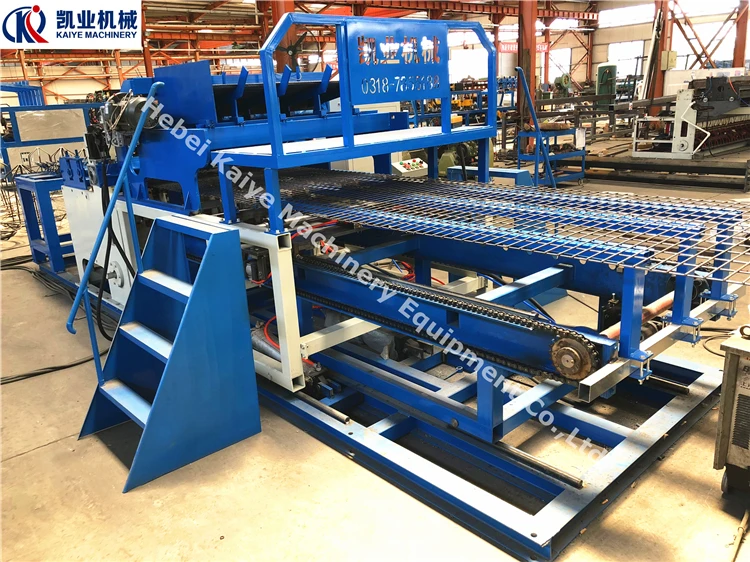

Fully automatic wire mesh welding machine for construction
- Category: Wire Mesh Making Machines >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (62140207629):
Product Overview
Description
Product Description
Product Application
The machine adopts synchronous control technique, both welding time and cent-control welding is composed of PLC program system. The input front-panel has two forms, touch screen and keyboard, it makes the machine more intelligent and reasonable. The weft wire supply is automatic. The greatest advantage is that it can be adjusted the distance of weft random on the same one piece of mesh sheet. Welding machine adopts new type high-efficiency transformer, shifting gear can be divided into eight level, expand the scope of welding wire diameter. Easily operation, high flexibility, the production is several times than the artificial single spot welding machine.
Welding wire diameter range of the device is 2.5-6mm.The maximum width of the welding wire mesh is 1200mm (also according to customer requirements).
There are several machine widths, and we can also produce machines according to customer's requirements.
Mesh width: 1200mm,1600mm, 2100mm, 2500mm, 3000mm ( customized)
Technical Parameter（1200mm Width） : | ||
Supply voltage | 220V/380V/415V/440V | |
Rated frequency | 50HZ | |
Transformer power | 120KVA*4 | |
wire diameter | 2.5-6mm | |
Width of mesh | ≤1200mm | |
Line wire spacing | 300≥X≥50mm mechanical adjustment | |
Cross wire spacing | ≥50mm freely programming adjustment | |
Line wire feeding method | Feeding through wire tray | |
Cross wire feeding method | Broken wire feeding（pre-cut/auto feeding） | |
Number of welding spot | Optional | |
Welding speed | 60-70times/min | |
Main power | 5.5kw(inverter braking) | |
Weight | 6.5T | |
Overall dimension | 6500*3600*1800mm | |
Main Features
1.Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.
2.Welding Power Source: Since the distance between wires is long, the welding head is suitable to conduct single-point welding. So the machine will choose the suitable power 75/100/150/200KW discharging transformer which is special used for resistance welding as the welding power source. To ensure the strength and stability of the welding.
3.Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.

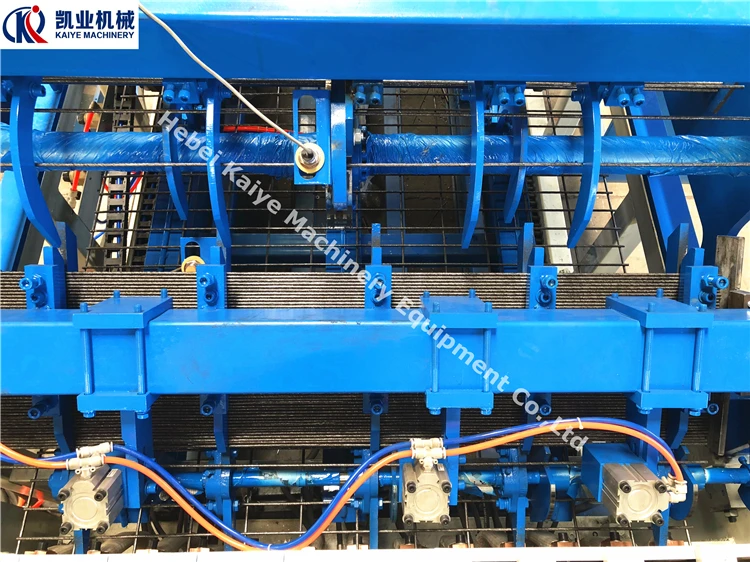

4.Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.
Certifications
Detailed Images
Machine Parts

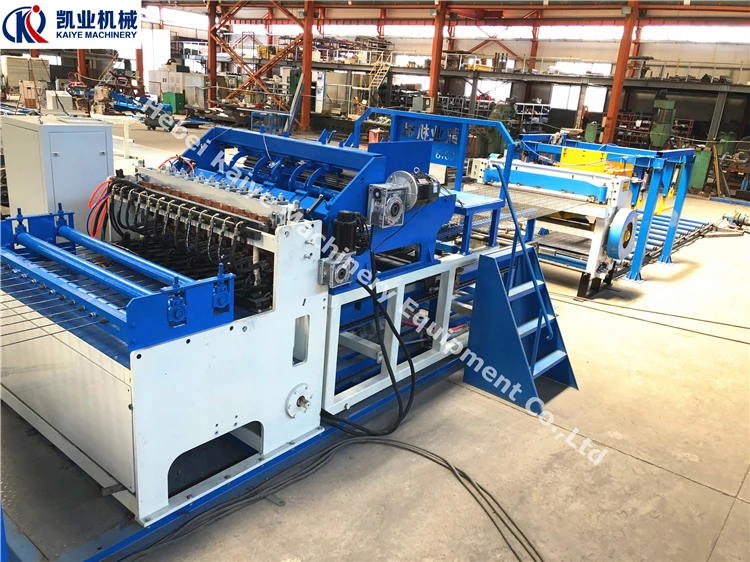

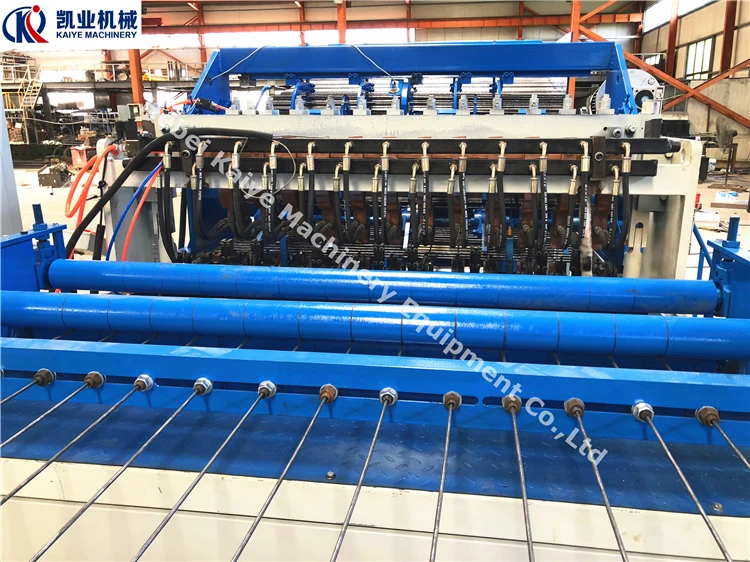

Name: Line wire feeding position
Reinforced length delivery process automatic control. The wire is fed by wire disc and double straightening to ensure that the wire feeding spacing is consistent and beautiful.
Main Features

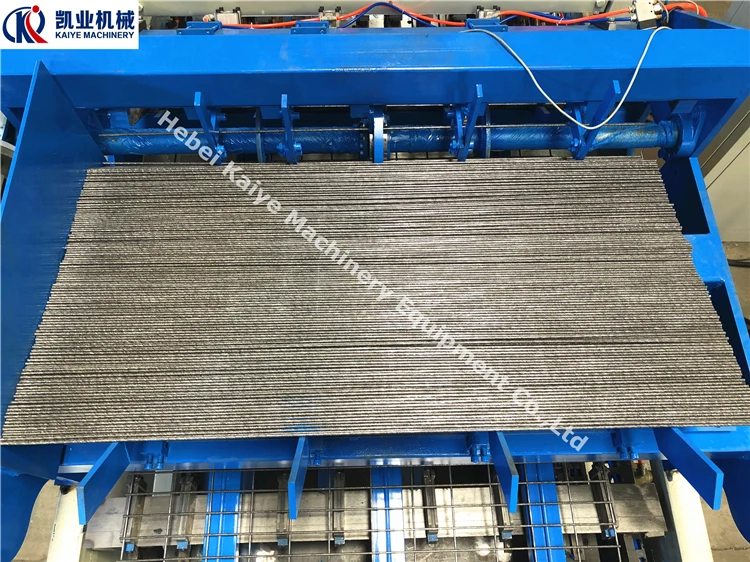

Name: Transverse wire feeding position
Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. All of them are broken wire feeding, which ensures accurate spacing through automatic control.
Machine Parts

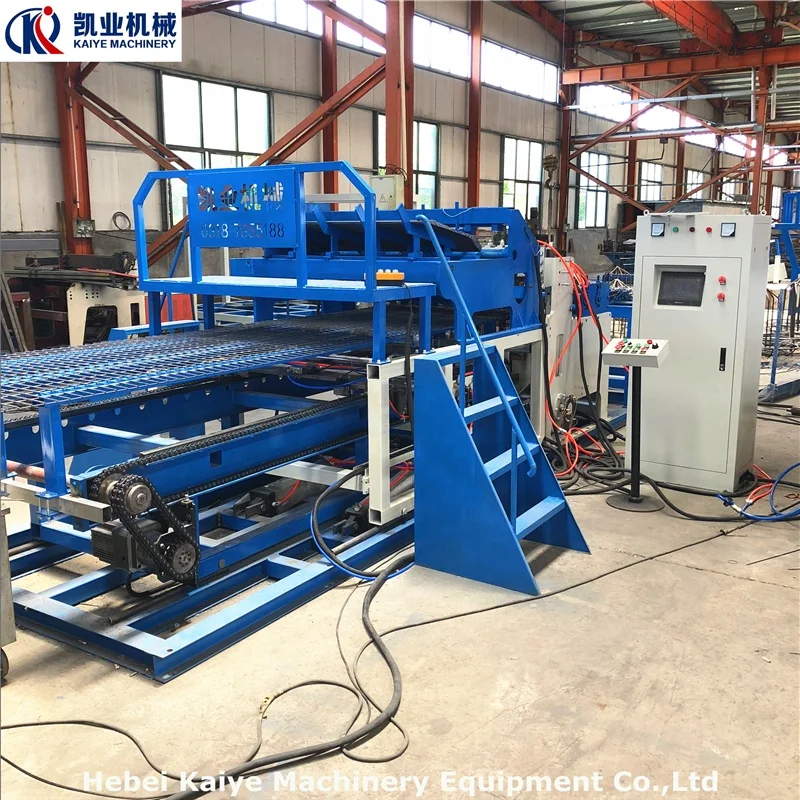

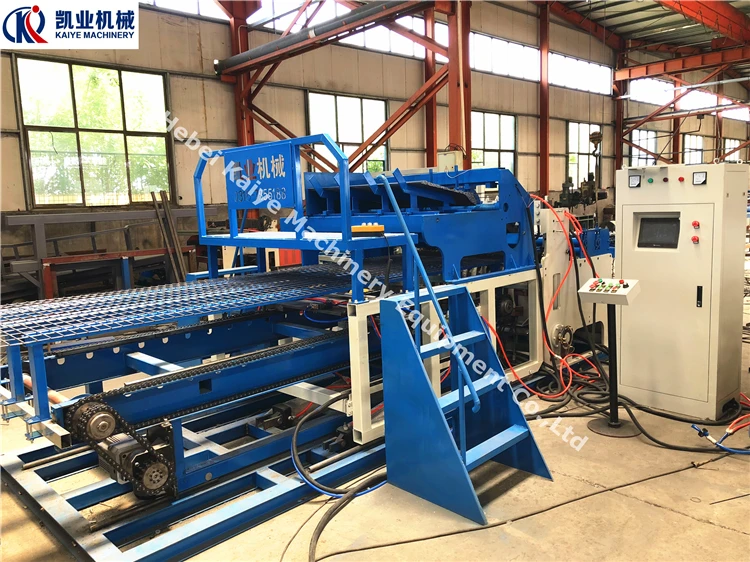

Name: Control cabinet and operating table
The control cabinet ensures the automatic operation of the machine, saves manpower, and the operation process is controllable at any time. Independent operating platform is conducive to real-time control, convenient and comfortable.
Main Features

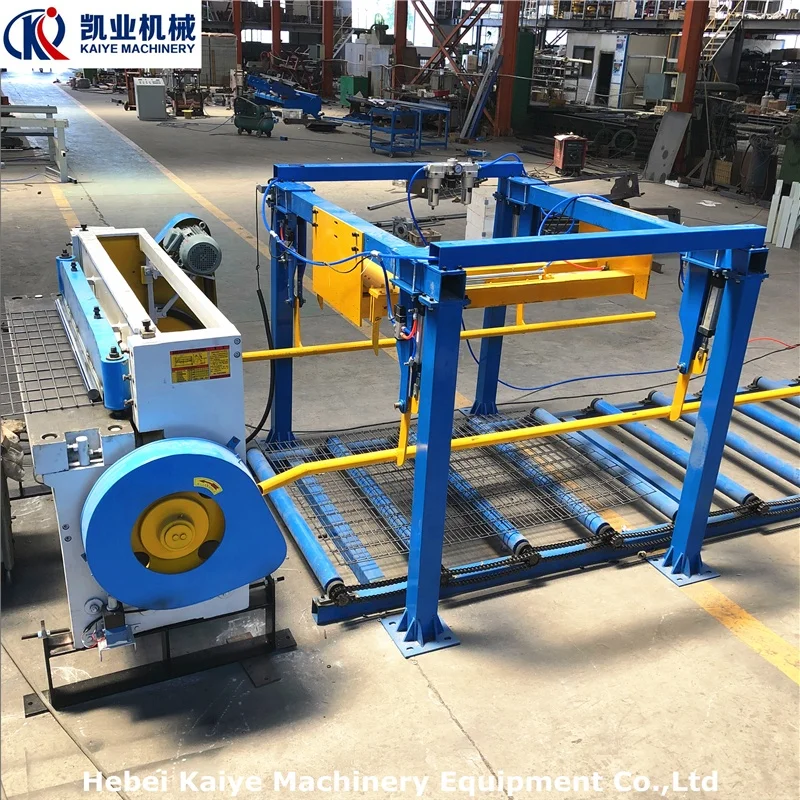

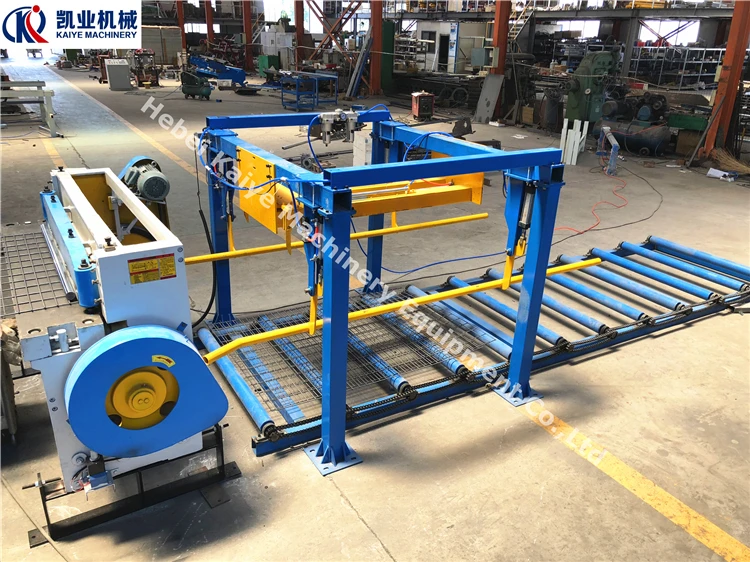

Name: Roller conveyor device
The product can be tailored to the required length and then dropped on the roller conveyor device. The conveying process is automatic, time-saving, labor-saving, convenient and fast.
Our Company
\tHebei Kaiye Machinery Equipment Co., Ltd.
Hebei Kaiye Machinery Equipment Co., Ltd. (Original China Anping Jiasheng Welding Equipment Factory) was founded in 1998, which is a professional manufacturer in wire mesh machine field of China with sophisticated technology.We have ISO9001:2009.and SGS certification.
Our company has now developed into a research and development,design,manufacturing,sales for the integration of large-scale professional welding equipment manufacturing enterprises.
Hebei Kaiye Machinery Equipment Co., Ltd.
1. Select equipment model.
2. Design and manufacture products according to clients' special requirement.
3. Pre-check and accept products ahead of delivery.
4. Help clients to draft solving plans.
Packing & Delivery
Packaging | ||
Size | 6500mm (L) * 3600mm(W) * 1800mm(D) | |
Weight | 6.5 T | |
Packaging Details | ||
Packaging | ||
Size | 1000mm(L) * 1000mm(W) * 1000mm(D) | |
Weight | 1.0T | |
Packaging Details | ||
Related Products
fence mesh welding machine
91.8% Response Rate
Reinforcing wire mesh welding machine
91.8% Response Rate
Chain link fence machine
91.8% Response Rate
Our service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions, 24 hours support service.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions, 24 hours support service.
Other helps
Q:What your machine can weld wire?
A:black wires,iron wires,galvanized wires
Q:How to adjust the welding mesh size?
A:Adjust the size of the electrodes, adjust the speed of the cross wire hopper.
Q:how to adjust the speed of the wire mesh welding machine?
A:Through the contrl cabinet
Q:How to confirm the quality before you place the order?
A:We warmly welcome your friends and you come to our factory to visit. We have the ISO 9001 Certificate and the SGS Certificate.
Q:How do you guarantee your machine's quality when producing?
A:Our services are always by your side, We have our technicians to inspect the parts of the machine every day, the machine will be adjusted well in our factoty before shippment ,all the parts are in good condition.
Q:Can you still offer me the best after-sale service?
A:As we all know, the after-sale service is very important for buying machines, if you have any problem, please feel free to contact me.
»Please reply the questions as below for we give you the best price:
1. Wire diameter : From mm to mm.
2. Line wire space : From mm to mm.
Cross wire space : From mm to mm.
3. Mesh width: 1200mm,1600mm, 2100mm, 2500mm, 3000mm ( customized)
4. Industrial voltage : 380V 50HZ ( Customized)
5. Do you want to weld wire mesh panel or mesh in coil ?
6. Is the auxiliary equipment also require ?
If you have any interest in wire mesh fence panel welding machine or other wire mesh machine products,please feel free to contact us.I hope we can provide you with the best machines and services.
