KY PVC heat shrinkable pipe for condensing engine bend pipe/ PVC heat shrinkable tube for metal tube

Product Overview

Description

KY-PVC heat-shrinkable sleeve for condensing machine

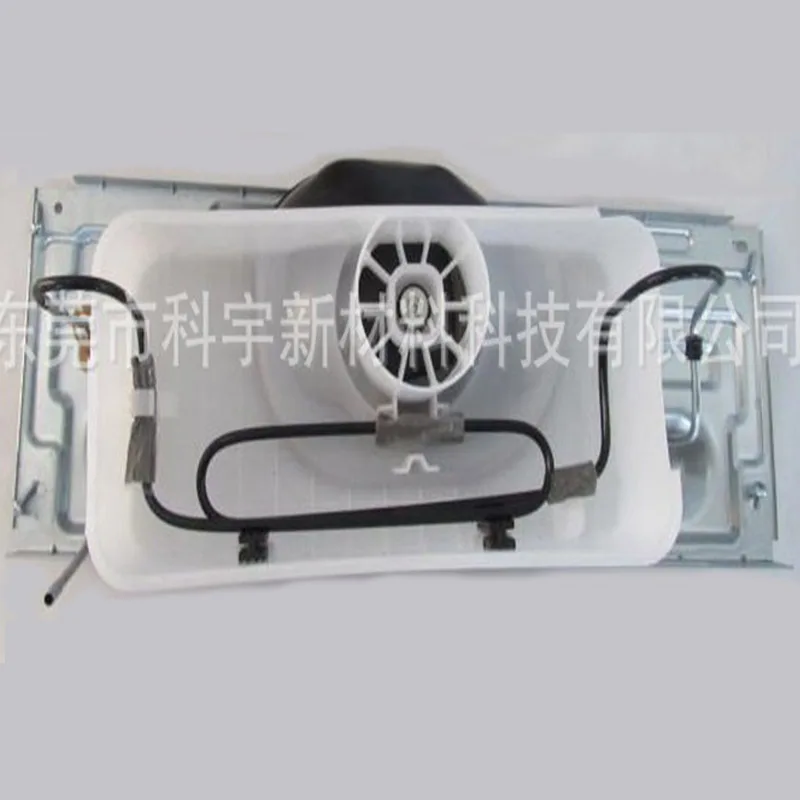

 KY-PVC heat shrink sleeving for condensing engine bend Tube, Wrinkle-resistant PVC heat-shrinkable tube. KEYUACE developed the PVC heat-shrinkable tube applied on the metal bend pipe in the condenser/condensing unit.
KEYUACE PVC heat-shrinkable tube will not wrinkle when it is after shrinkable to the bend.
The PVC heat-shrinkable tube The inner diameter( ID )7.0mm, the fLay flat width is 11mm, the thickness is 0.1-0.13mm (before shrink ). The tube/sleeve surface is very smooth and shiny, with temperature resistance of 105 ℃.
DongGuan KE YU New Material Technoloty co.,ltd 's Wrinkle-resistant PVC heat-shrinkable tube has excellent insulation and protection for the metal bending tube in the condenser.











Features and benefits:
1, Low-temperature shrink, superior electric insulation, fire resistance
2, Two kinds of products according to temperature: 105℃













105℃ PVC heat shrink tubing,   Model:KY-PVC 105℃



Size(mm)	Lay flat(mm)	Wall thickness (mm)	Horizontal shrink ratio(%)	Vertical Shrinkage ratio(%)	High temperature vertical shrinkage ratio(%) Hot Oven(180±2)℃×15
Φ3	5.5±0.2	0.085±0.01	48±4	7±2	14±3
Φ4	7.3±0.2	0.09±0.01	``	6±2	``
Φ 5	9.2±0.2	``	``	``	``
Φ 6	10.6±0.2	``	``	``	``
Φ6.3	11.1±0.2	``	``	``	``
Φ8	14.1±0.2	0.095±0.01	``	``	``
Φ9	15.5±0.2	``	``	``	``
Φ10	17.1±0.2	0.10±0.01	``	``	``
Φ12	20.7±0.2	0.10±0.015	``	7±2	17±3
Φ12.5	21.6±0.2	``	``	``	``
Φ13	22.1±0.3	``	``	``	``
Φ14.5	24.6±0.3	``	``	``	``
Φ16	27.1±0.3	0.11±0.015	``	``	``
Φ18	30.1±0.3	``	``	``	``
Φ20	33.2±0.3	0.12±0.015	``	``	19±3
Φ22	36.3±0.3	``	``	``	``
Φ25	41.4±0.4	0.14±0.02	``	9.5±2	``
Φ30	50.0±0.6	``	``	``	``
Φ35	57.4±0.7	``	``	``	``
Φ40	66.2±1.0	``	``	``	``
Φ50	83.5±1.5	0.30±0.03	38±5	15±5	≤40.0
Φ63.5	106.0±1.5	``	``	``	``
Φ76	125.0±1.5	``	``	``	``
Φ89	145.0±1.5	``	``	``	``
Φ100	156.0±1.5	``	``	``	``



Colors: black,white, red, blue, yellow, green, transparent
Pointed size is available according to customers’ request
Remark: Please save the products in the environment below 30℃, avoid the direct sunshine and closing to heat source.



Colors: black,white, red, blue, yellow, green, transparent

Custom-making according to customers’ request is available.

Remark:

         Please save the products in the environment below 30℃, avoid the direct sunshine and                     closing to heat source.
