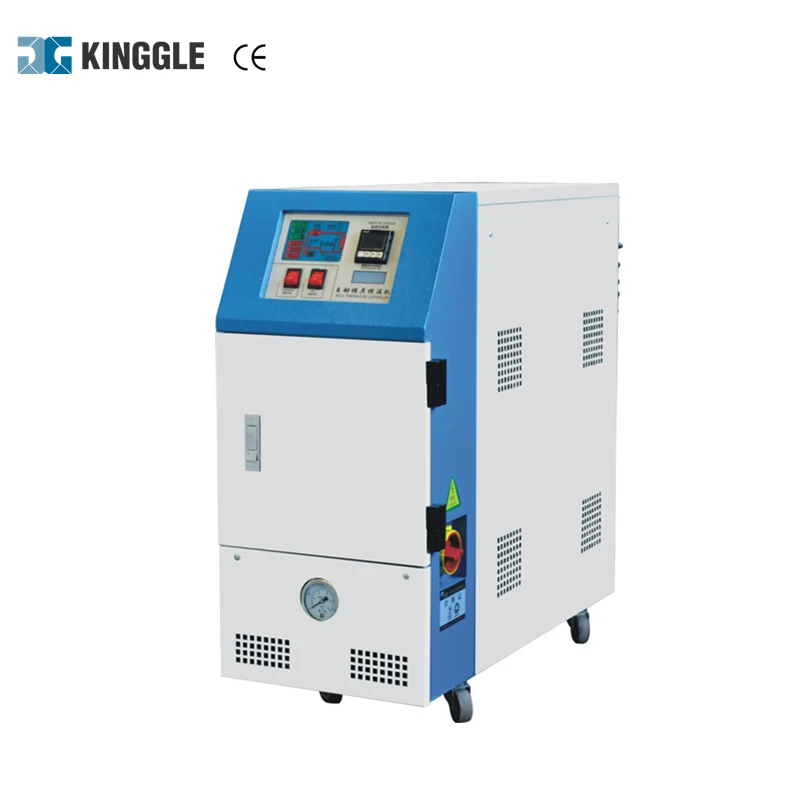

Automatic molding temperature control machine adopts the advanced computer, and match with precise electronic the meter.
Practice two class temperature control. Make the temperaturs's accurate degree attain ±0.5℃.
Work with oil or water as heat transfer medium, safe and reliable.
Six protective measures: alarm for thermo couple open circuit, phase fault protect, pump protect, overheat protect, oil shortage protect.
Stainless steel tank without leakage, anticorrosive and durable.
PID adopted to control the temperature and independent condenser, to make the temperature more stable.
Two stage automatic mold temperature control and high tenperature mold temperature control for optional.
Technology
Model
ZD-6W
ZD-9W
ZD-12W
ZD-18W
ZD-24W
ZD-36W
ZD-48W
Heat-transfer medium
Clean Water
Heating Capacity
Routine 98℃/ High temperature 160℃
Cooling Method
Direct Cooling
Heating Method(kw)
6
9
12
9x2
12x2
12x3
48
Pump
Power(kw)
0.37
0.75
0.75
1.5
1.5
3.75
3.75
Pressure Pump (kg/cm2)
2.5
4
4
4
4
4
4
Flow volume
(L/min)
35
45
45
80
80
380
380
Power supply
3Φ 220v/380v/460v 50Hz/60Hz
Cooling-water pipe size
Φ10
Φ10
Φ10
Φ10
Φ10
Φ10
Φ10
Heat- transfer pipe size
2xΦ10
4xΦ10
4xΦ10
6xΦ10
6xΦ10
6xΦ10
6xΦ10
External dimensions
880x300x690
880x300x690
880x300x690
880x350x810
890x380x690
1050x550x850
1050x550x850
Weight(kg)
47
51
54
90
90
110
115
Hote sale

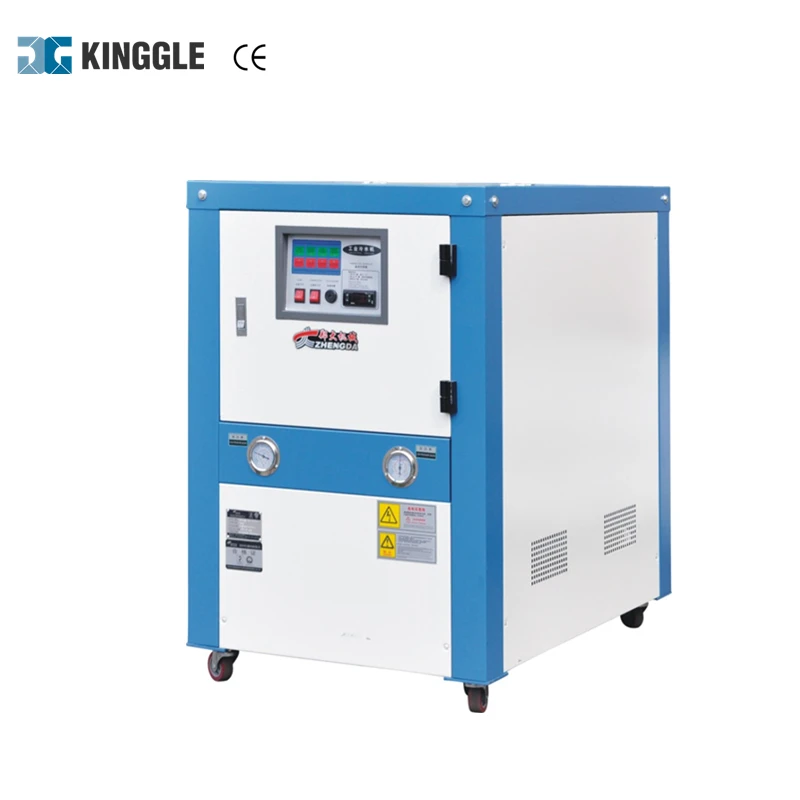

Chiller>

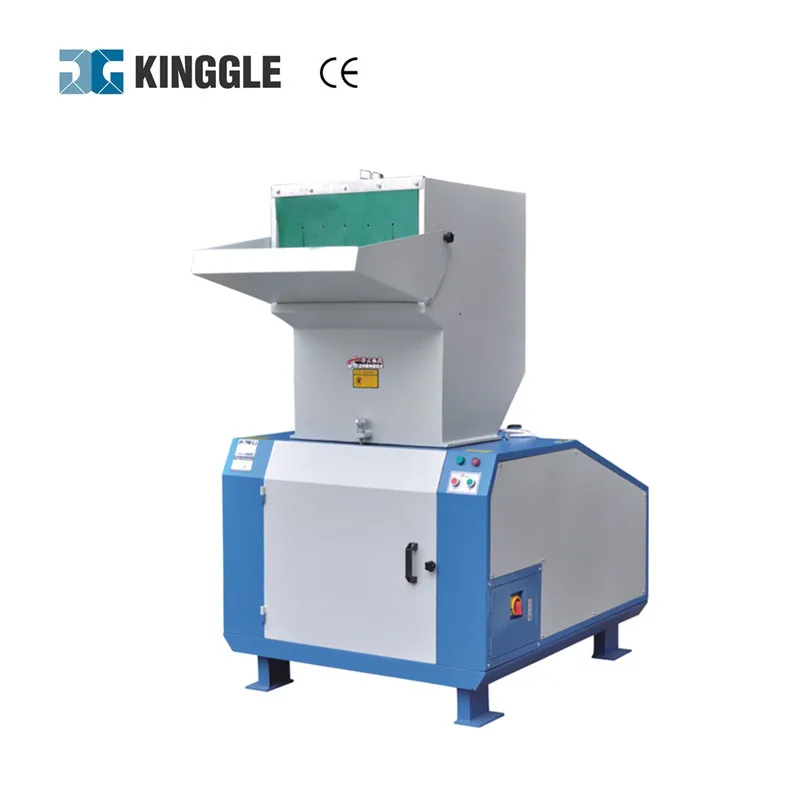

Plastic Crusher>

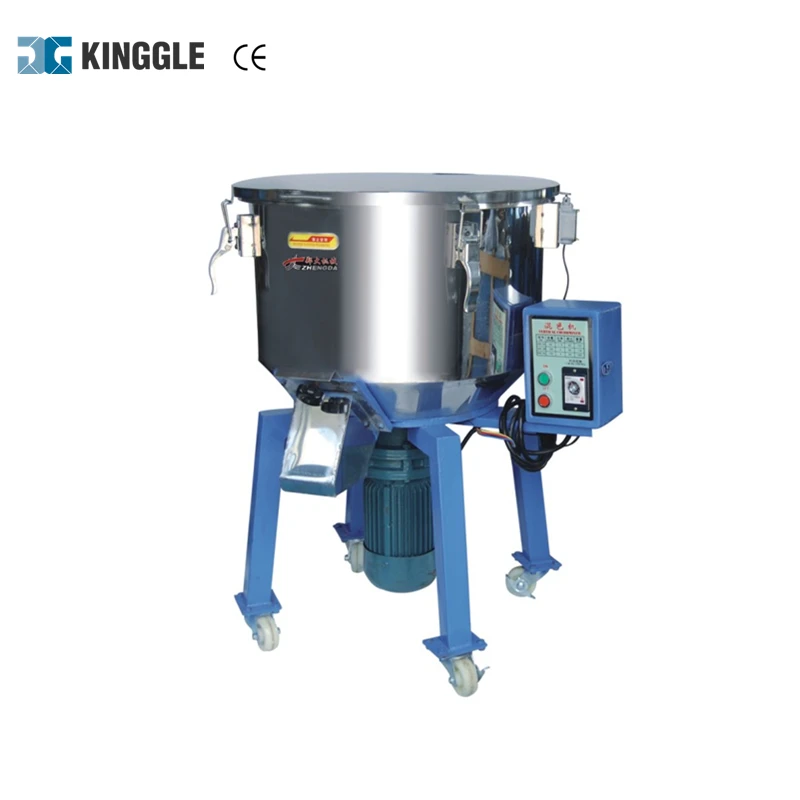

Mixer>

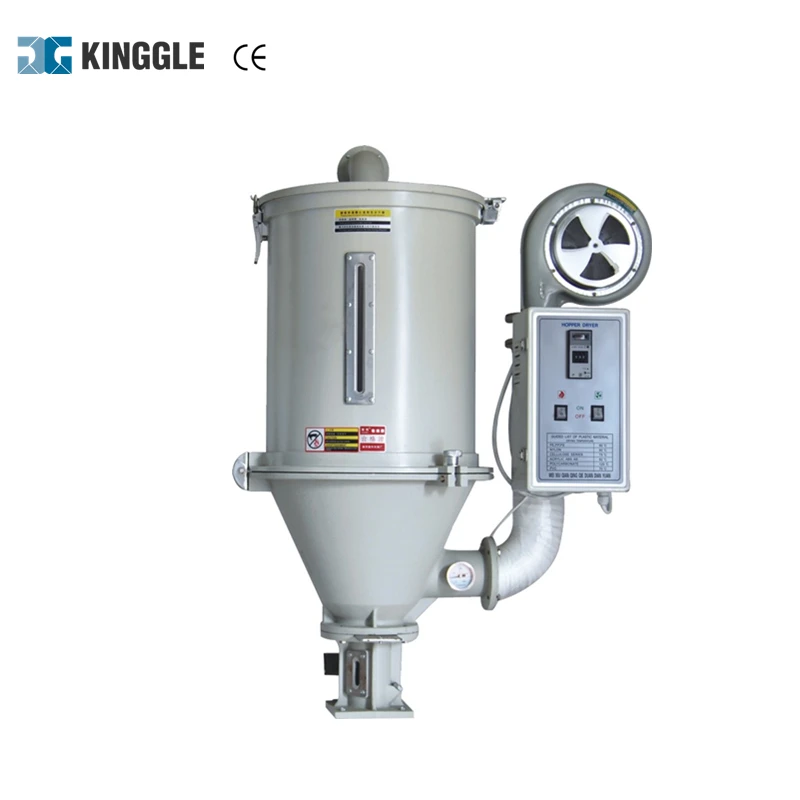

Dryer>
Loader>

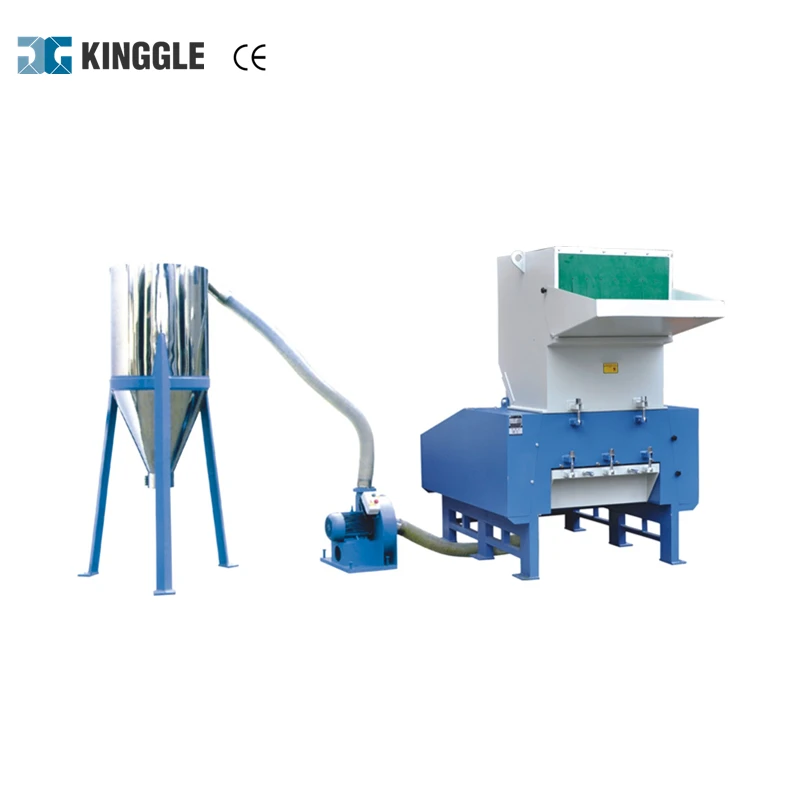

Auto cyclone system>
Central feeding system>

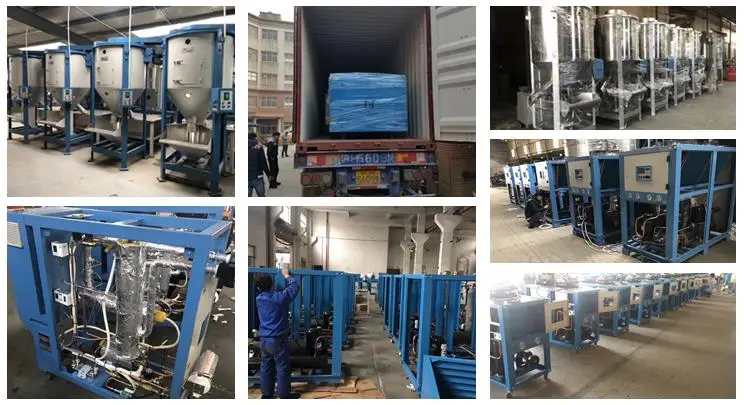

workshop
WORKSHOP

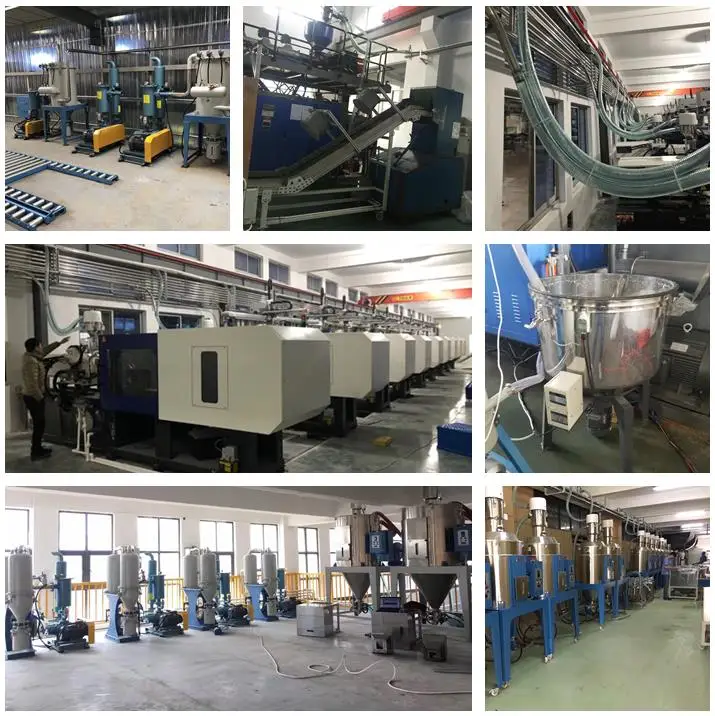

PRODUCT CASE
