Wholesale RGBW 16x16 DC5V high resolution flexible led matrix display module

Product Overview

Description

Wholesale RGBW 16x16 DC5V high resolution flexible led matrix display module

Product Description



Module Number	KT-P1616-2812
Brand Name	Kingtar
Lamp body Material	Copper
Led Type	SMD5050
IC Chip	WS2812b/SK6812
Input Voltage	5V
Power	62w/m
Size	160*160mm
Certification	CE&RoHS
Warranty	2 Years



1- This 16x16 pixel WS2812B flexible LED matrix is a great way to add an impressive amount of color while still being able to individually control each LED.

2- We aren’t kidding around, that’s 256 individually addressable LEDs on a 160mm x 160mm flexible panel.

3- You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that,thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.

4- These panels require a 5V low voltage input for power which needs to be able to source a good amount of current–up to 5A in most uses (5A if all LEDs are set to bright white, which is NOT recommended).

5- Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input/output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for a large panel of addressable LEDs to fit the contours of almost any surface you’ve come to the right place.

6- Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself.

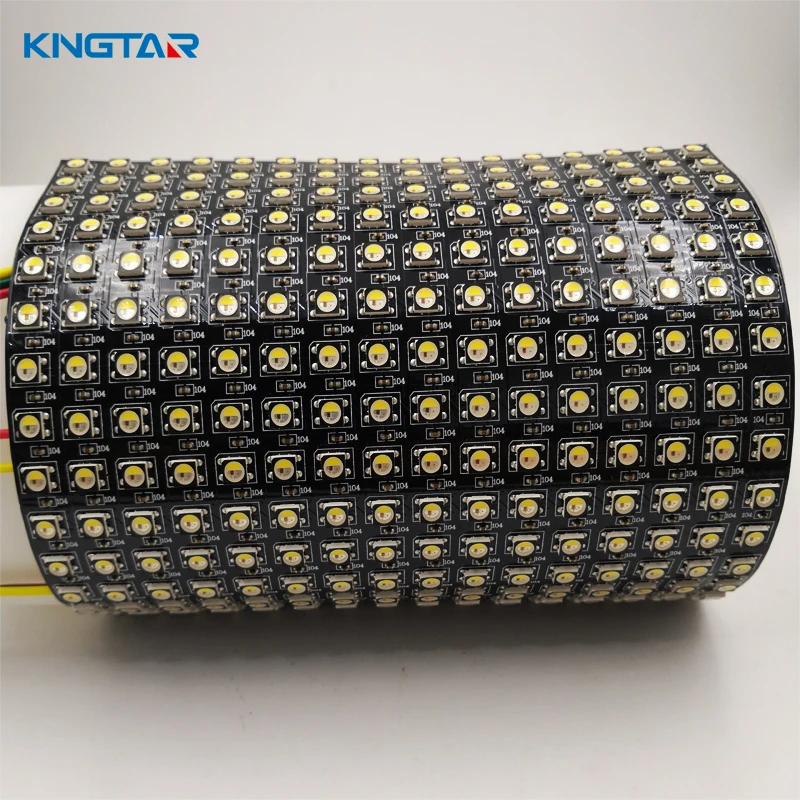

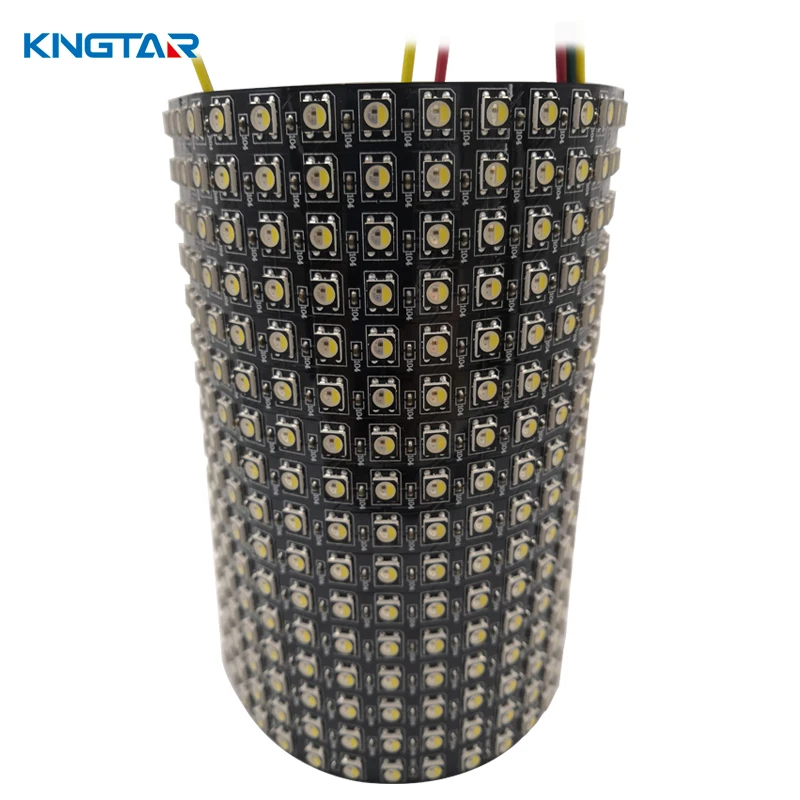

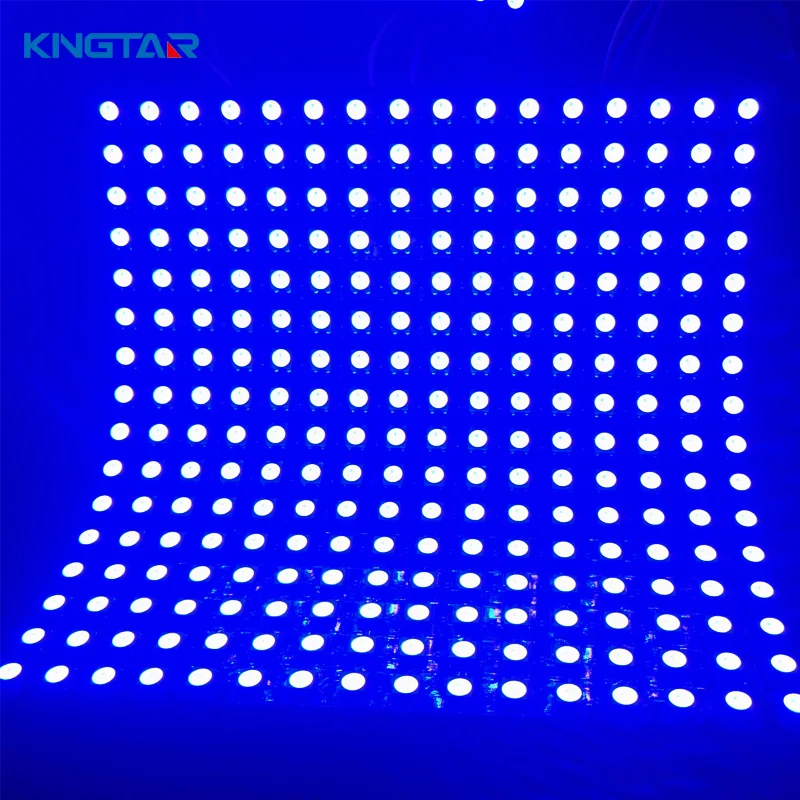

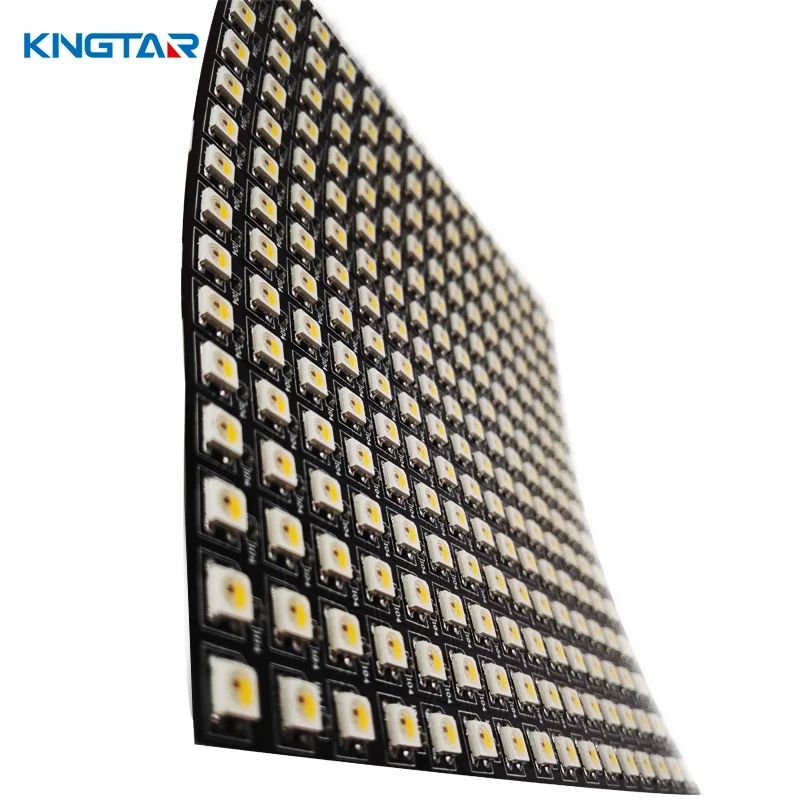

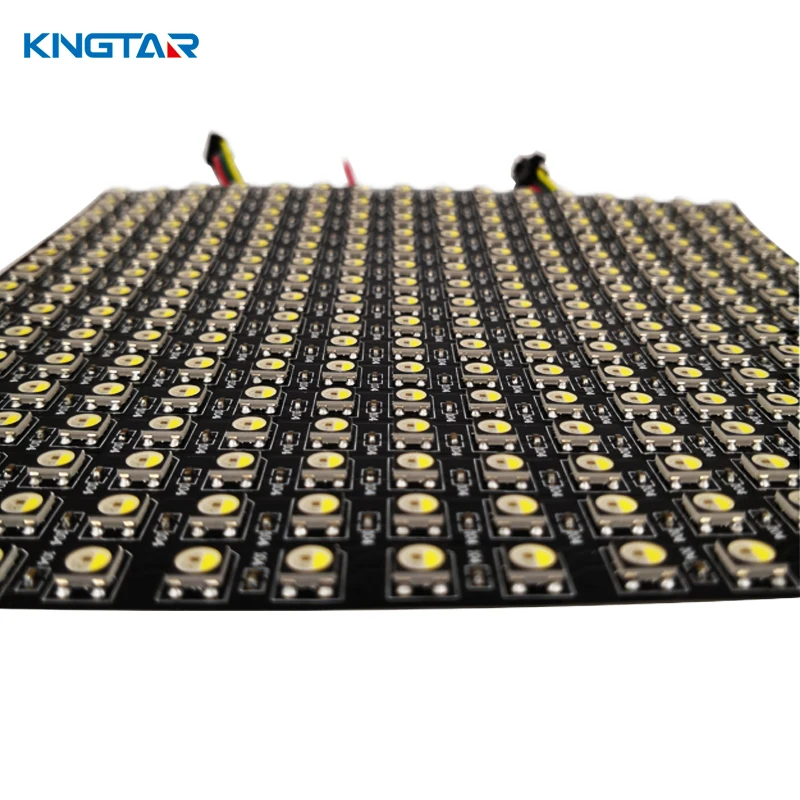

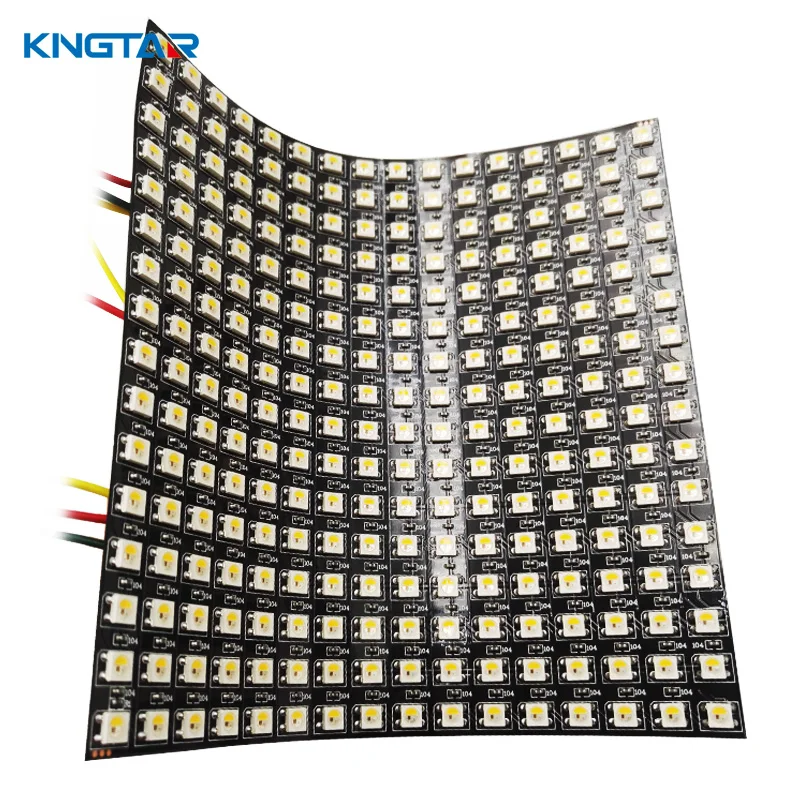

Product Pictures

Certifications

Company Information

KINGTAR was founded on 2014 and located in Shenzhen of China.

We are SPECIALIZED in manufacturing HIGH QUALITY LED Pixel Lights, Permanent programmable lights and intelligent SMD LED.

Our main products are

• LED Pixel Lights
• Digital LED Strips
• Permanent control lights
• Intelligent LEDs

With KINGTAR Lights you can set any color and put any place you want.

OUR MISSION is to facilitate application development and accelerate customers time to market.

OUR COMPREHENSIVE PRODUCT OFFERING includes a wide selection of LED lighting components that enable our customers to create cost effective and energy efficient lighting applications.
We serve customers in all possible branches from government agencies to lighting specialists and wholesale companies all over the world.
Our products covered WS2811/WS2801/WS2812B, UCS1903/1904/2903/512, TM1804/1814, SM16703 etc IC Chip controlled RGB LED Pixels.

FAQ

Q1. What kind of led chips do you use for your led strips?
We mostly use Epistar brand led chips. We can do other brand chips according to customer's request, for example, Samsung, Philips, San'an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality product.



Q2. Can you always keep the uniformity of your color temperatures?
We always keep the same bin color temperature for all our led strip lights. It's very important to our customers.



Q3. What's the warranty of your products?
We're so happy with the quality of our product, we offer a 2 years warranty on all of our LED strips to all of our clients.



Q4. What certificate do you have?
All of our led strips are CE & ROHS certified for customers.



Q5. How long it takes for multiple listing?
It takes about 2 weeks. Therefore, it can be started after you placed the mass order.



Q6. Is that possible to pay by credit card or paypal?
Yes, we accept paypal for sample order and small orders. It's better to pay by T/T when the order amount is more than $500. The commission of paypal is too high for big amount.



Q7. How long will it take to receive my order?
We begin to process your order as soon as we get your payment. Usually, production takes 3-5 days. Shipping takes 4-6 days. We usually ship by DHL FEDEX TNT or UPS.
