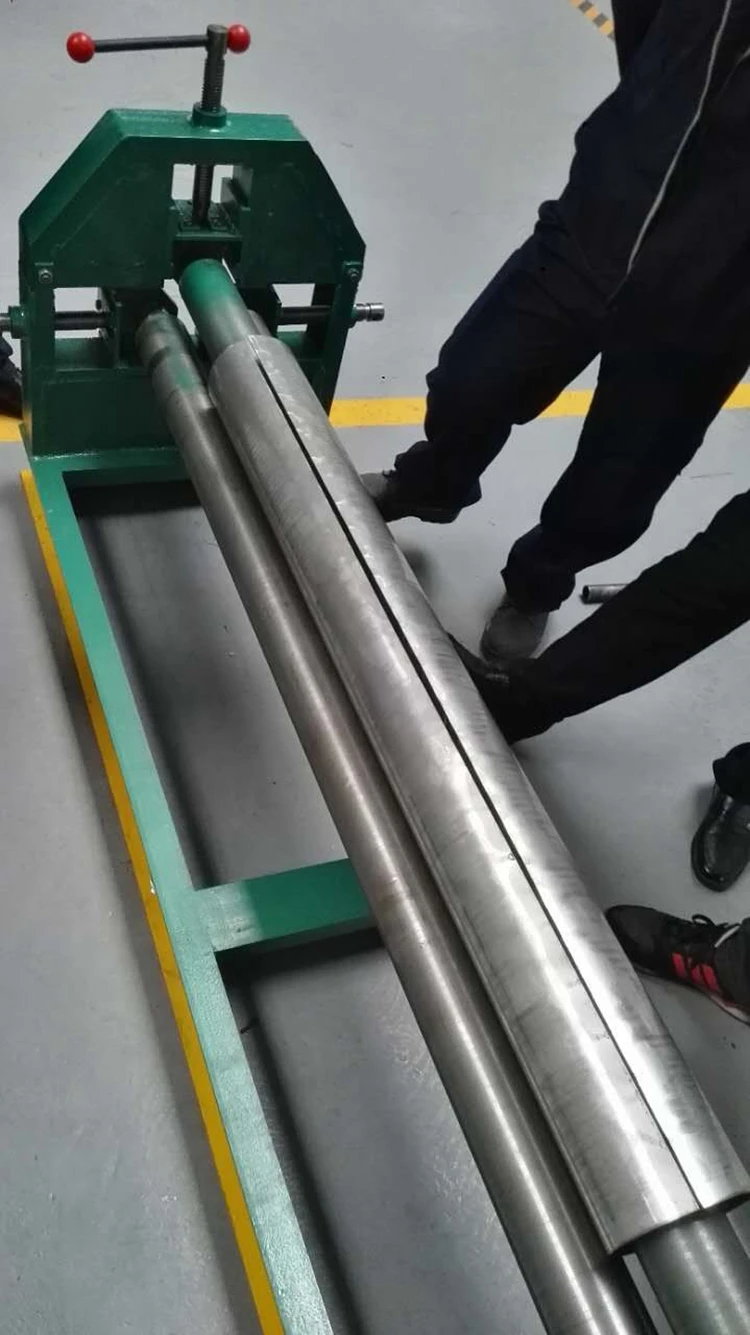

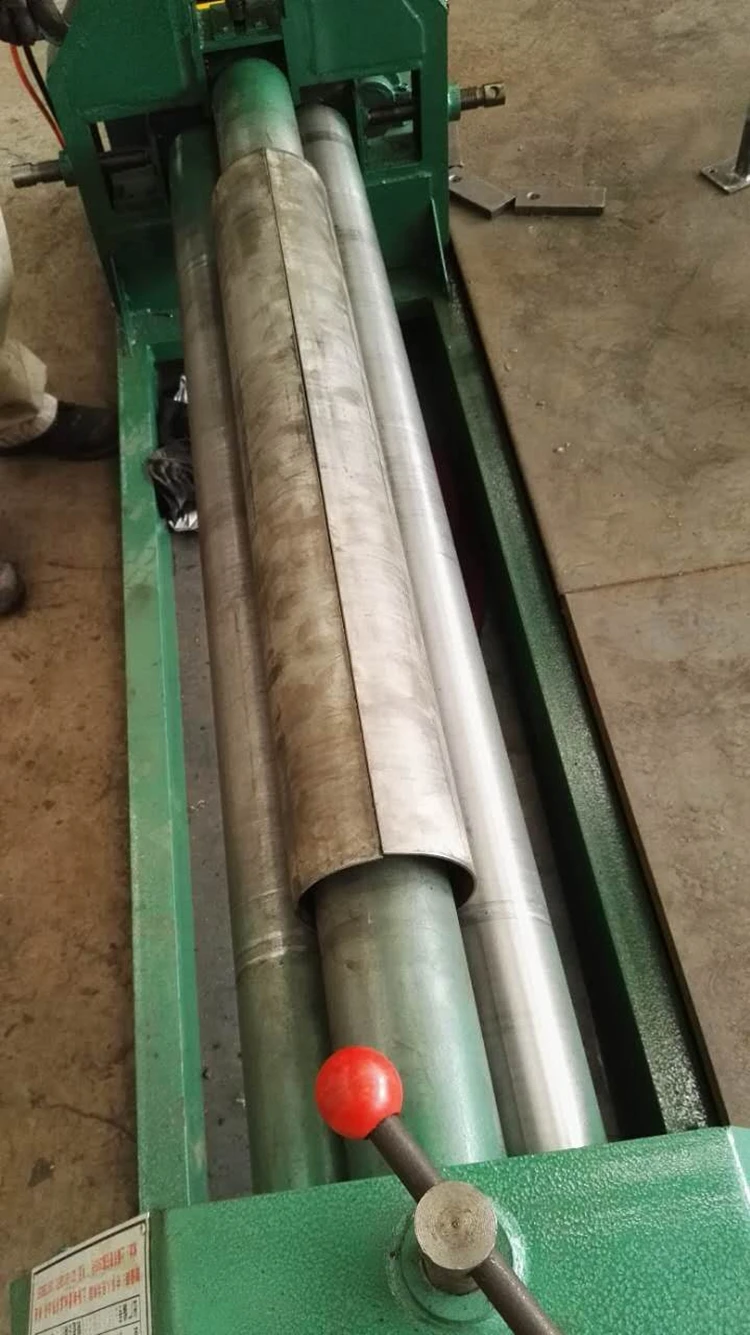

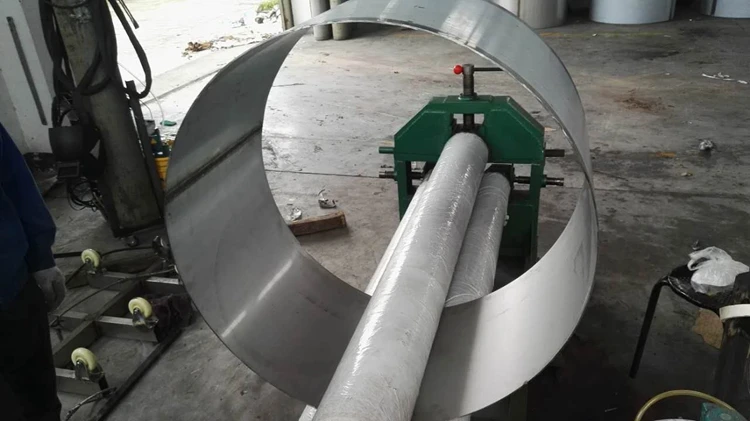

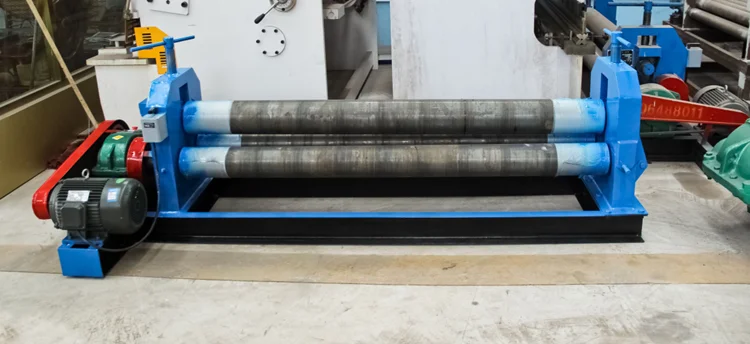

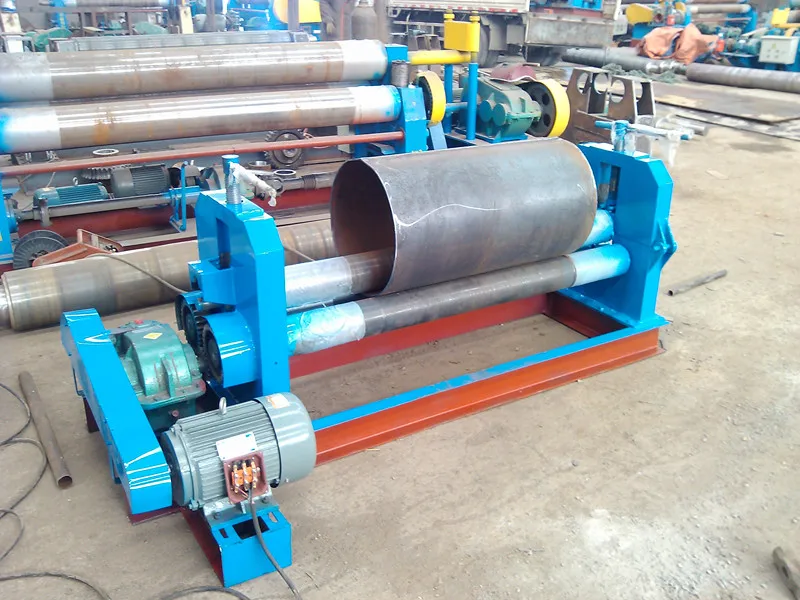

6mm Thickness Plate Metal Sheet Rolling Machine Price Competitive Price NC Control

Whole structure
1.The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the lower rollers, wihch is achieved through the drive of the screw, the unt, the worm and the lead screw.
2.The two lower rollers rotates, and privideds the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers.
3.Adapted for bending metal plate into round, arc, and so on. Its working principle is ratary benidng deformation. This product is widely used in chemical industry, cement, shipbuilding, boiller, aviation, water control project, power transmission tower, metal structure and the industry of making machinery.

1.Working rollers: roughcast roller--- forging--- annealing--- peeled--- flaw detection--- rough machining--- quenching and tempering treatment--- flaw detection again--- semi-finish machining--- finish machining
2..Large forigings: cylinder body, gear, gear shaft: roughcast-forging-surface imspection-roughing-flaw detection-heart treatment-semi-finishing-finishing
3.Welding structure: racks, base, gearbox cover :eliminating internal stress treatment.
4 The electric control parts :the bending speed of main transmission part is 5.5m/min, controlled by gearbox and brake through electric motor.
5 The second motor wiring accessories and necessary materials (wire diagram from motor cabinet to actuator)
6 The technical data.operation manual,electrical diagram.

Lead time

20 to 30 days

Payment Method

30% T/T in advance, the balance paid before shipping

MTCNC concentrates on the research, development, manufacture, sale and service in metal fabrication equipment.

MTCNC not only supplies metal sheet shearing, bending, punching, rolling machine tool. but also provides you complete metal fabrication solution.

gantry milling machine

Abundant Stock
