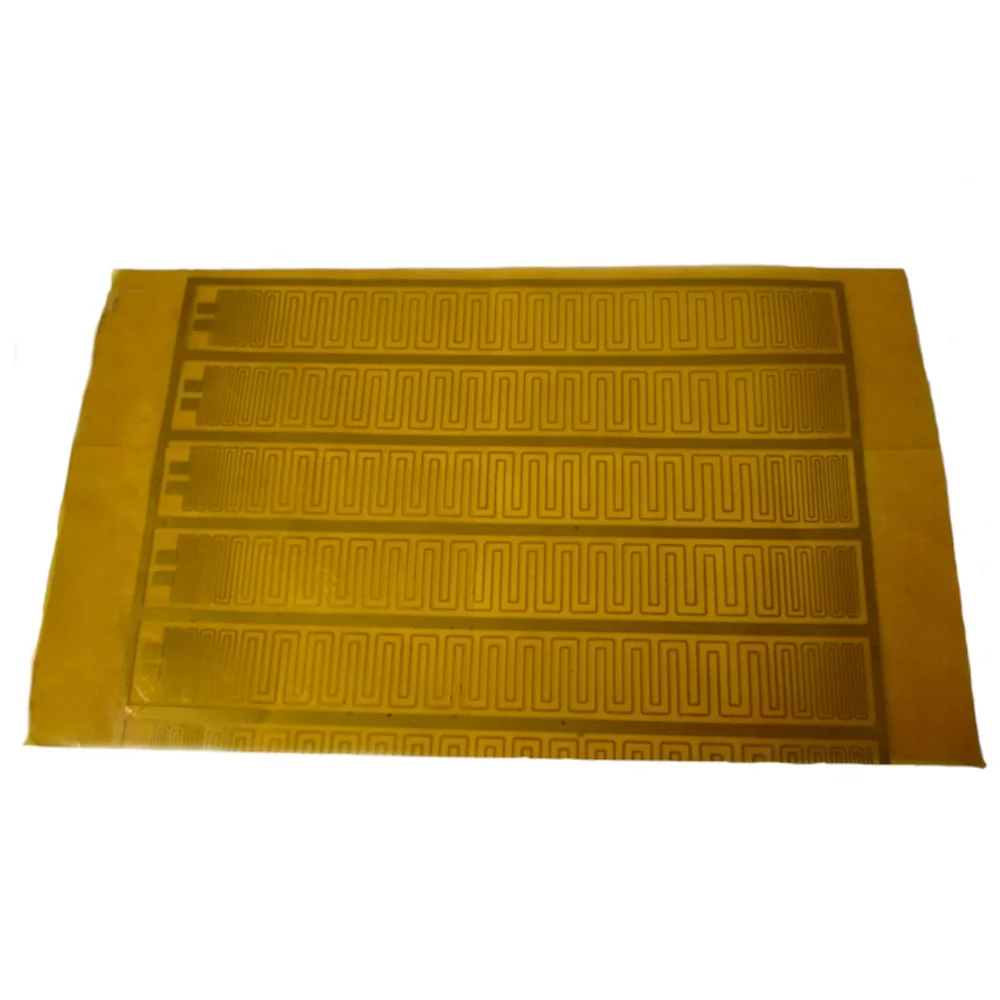

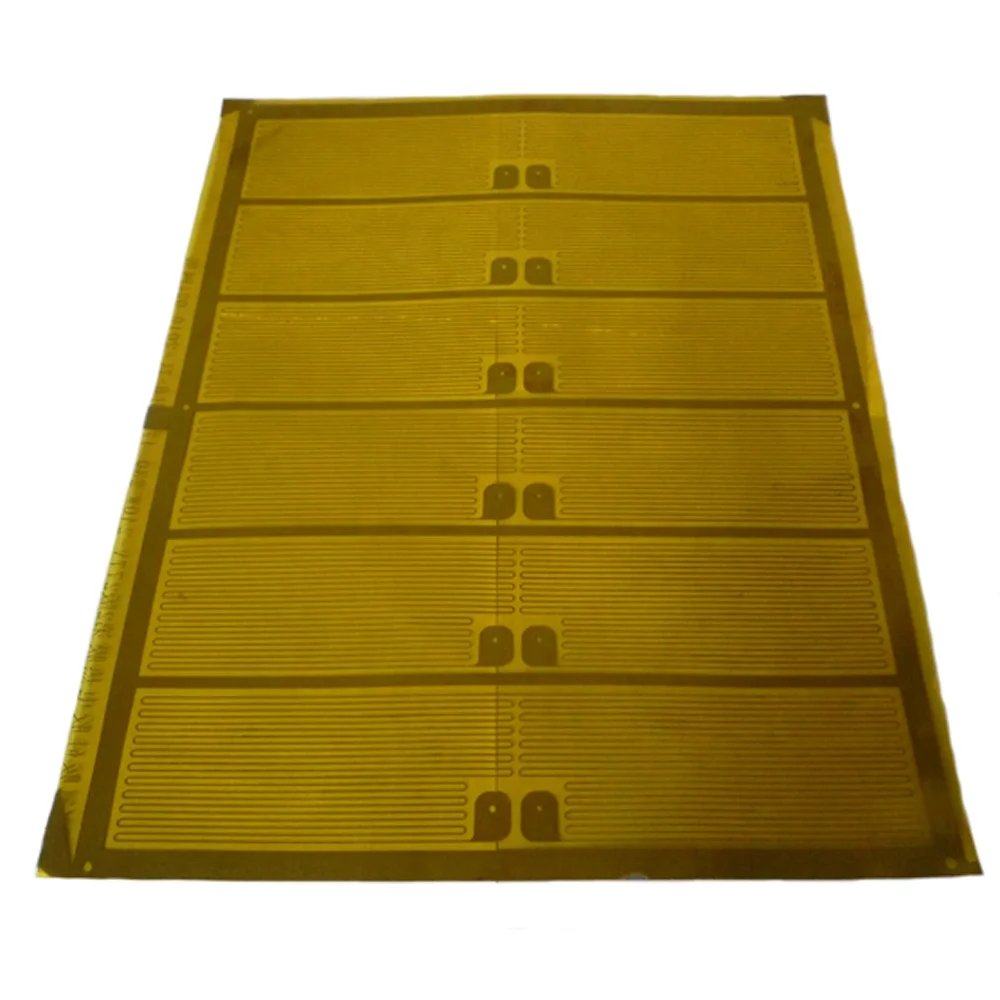

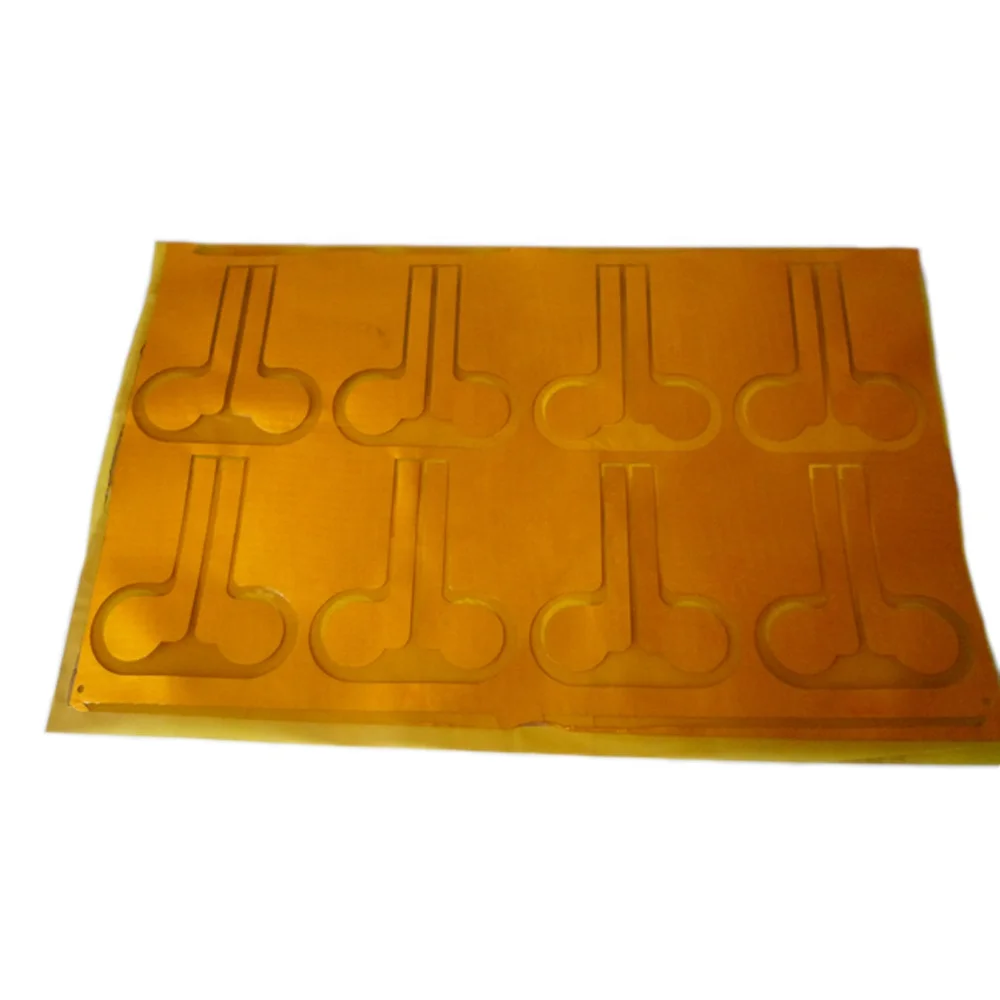

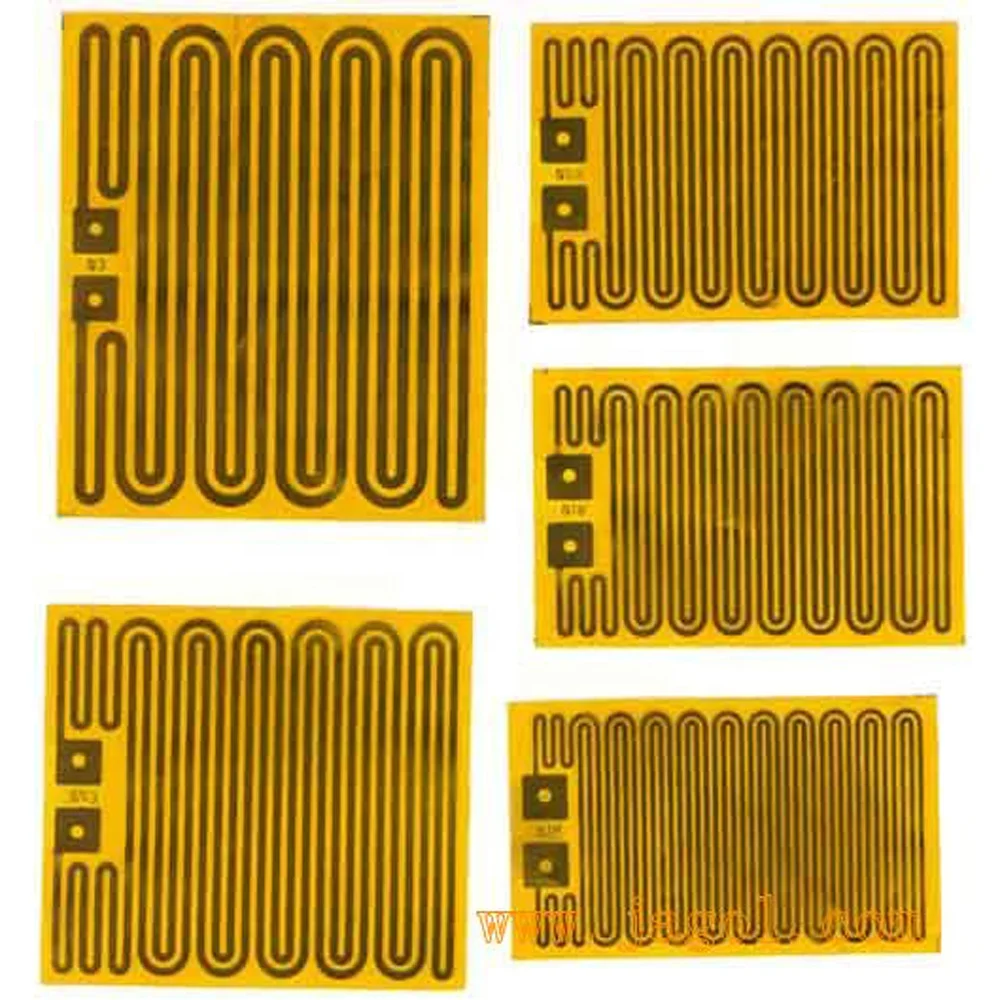

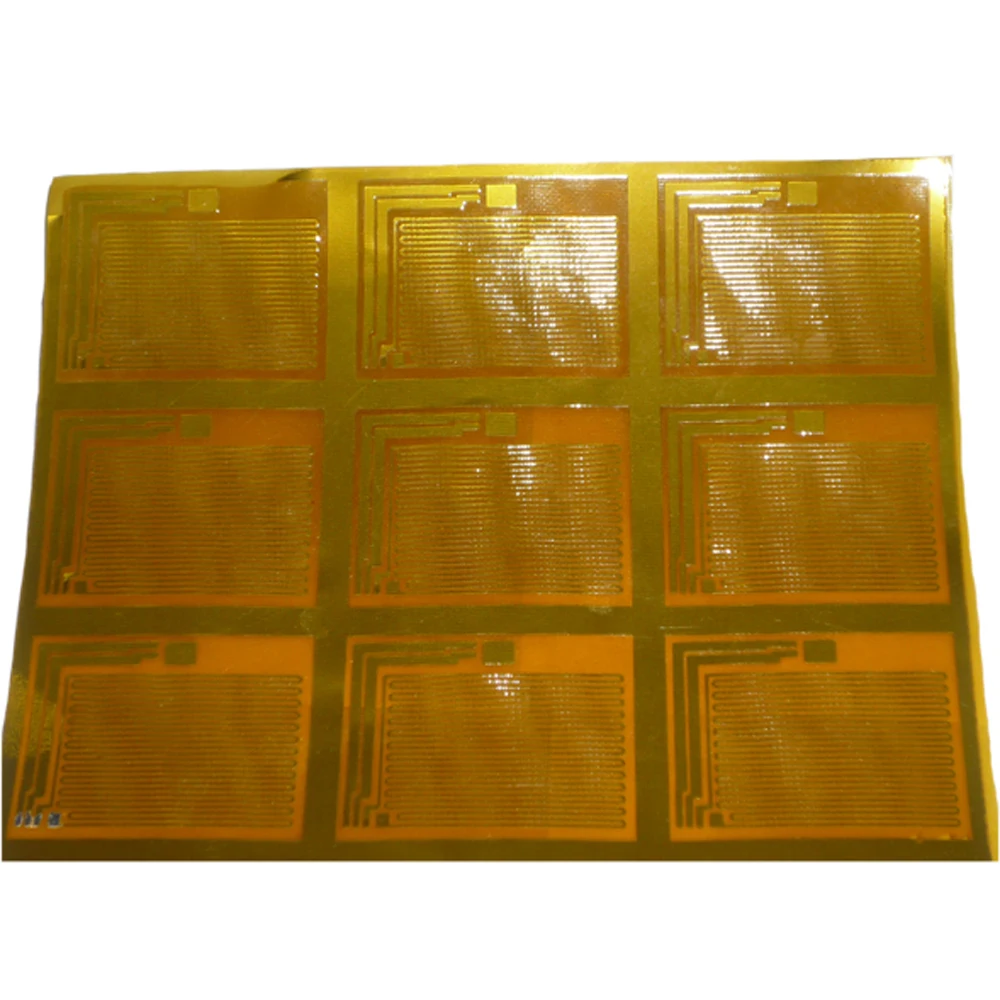

12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer
12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer
12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer
12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer
12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer
12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer
12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer

12V 24V 120V 230V Kapton Polyimide Thin Film Foil Heater for 3D Printer

Share on (62148619213):


Price:$4.00 - $11.00

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t

Ceramic heater

Ceramic heater emitter

Sunna heater

Quartz heater

Tubular heater

Silicone heater

\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

Polyimide heater is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 180 degree Celsius. Customize 12V,24V,36V 3D printer flexible heating film. This is very thin, the thickness is about 0.2mm, it is very light, so it is widely used on 3D printer.

\t
Mounting
\t
PSA or mechanical
\t
Watt density
\t
1.1-6.5w/cm2
\t
Voltage range
\t
1.5v~400v
\t
Power density range
\t
0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2)
\t
Using temperature range
\t
-60~200°C(-140~392°F)
\t
Width range
\t
10mm~500mm(0.39"~19.68")
\t
Length range
\t
10mm~1800mm(0.39"~70.86")
\t
Thickness range
\t
Standard:0.126~0.266mm(0.005"~0.01")
\t
Plug
\t
Chinese,British, American, European and so on
\t
Exit
\t
teflon, kapton or silicone insulated leads
\t\t\t\t\t\t\t\t\tPhoto Shows \t\t\t\t\t\t\t

Features

☆ High tensile strength

☆ Low out gassing
☆ Excellent dimensional stability
☆ Thin light weight profile
☆ High watt densities
☆ Transparent material

Flexible Heater Order Guide

1. Wattage and voltage
2. Size required
3. Lead wire required
4. 3M adhesive or temperature control
5. Drawing or Sample required for special configuration.

\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t

* Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.

* Stabilize optoelectronic components
* Test or simulate integrated circuits
* Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD's
* Protect aircraft electronic and mechanical devices in cold weather / area.
