2019 C Strut Channel Making Machine c steel channel forming machine Framing stud/track forming machine
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Cangzhou Zhongtuo International Trade Co. Ltd.
Share on (62150803554):
Product Overview
Description

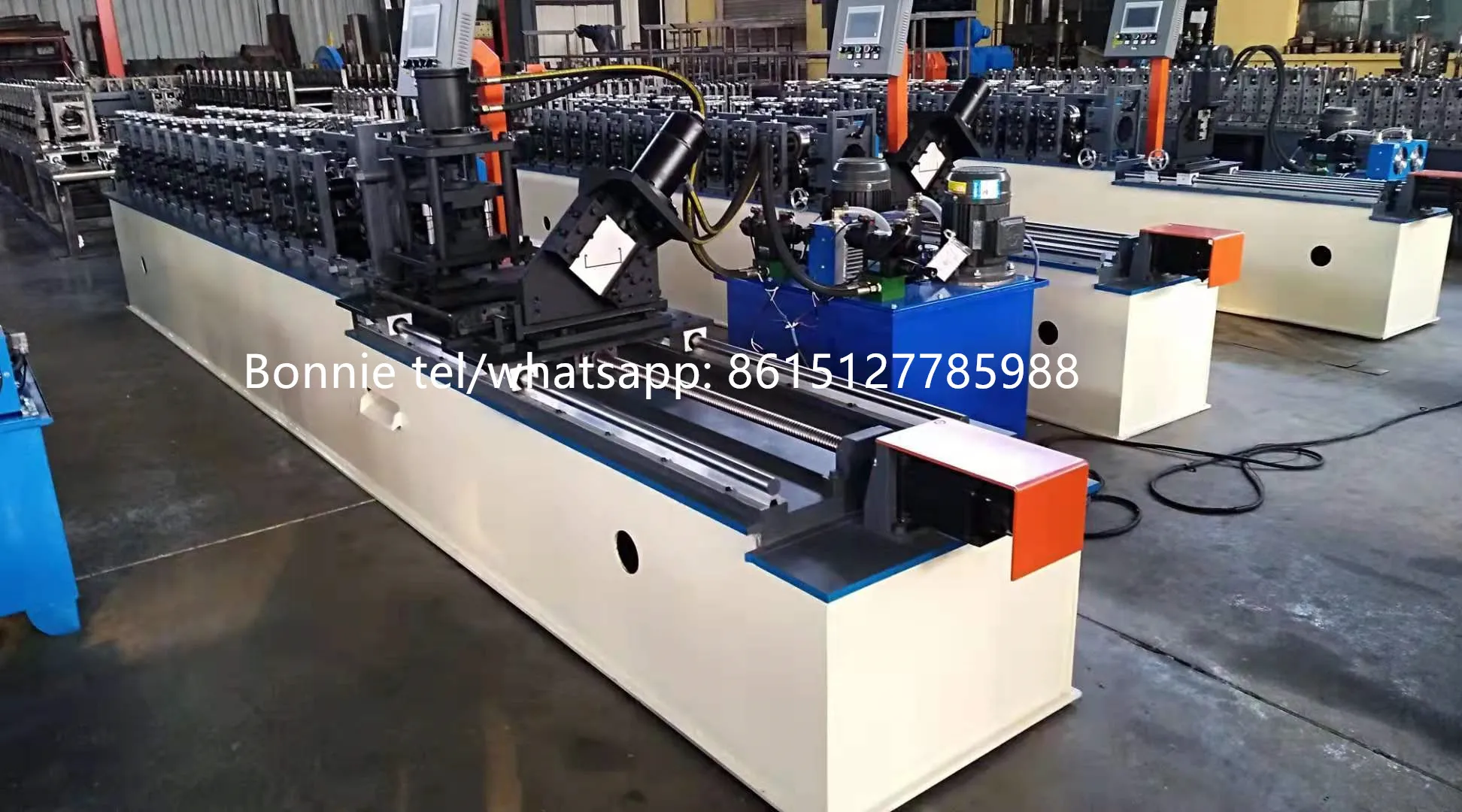

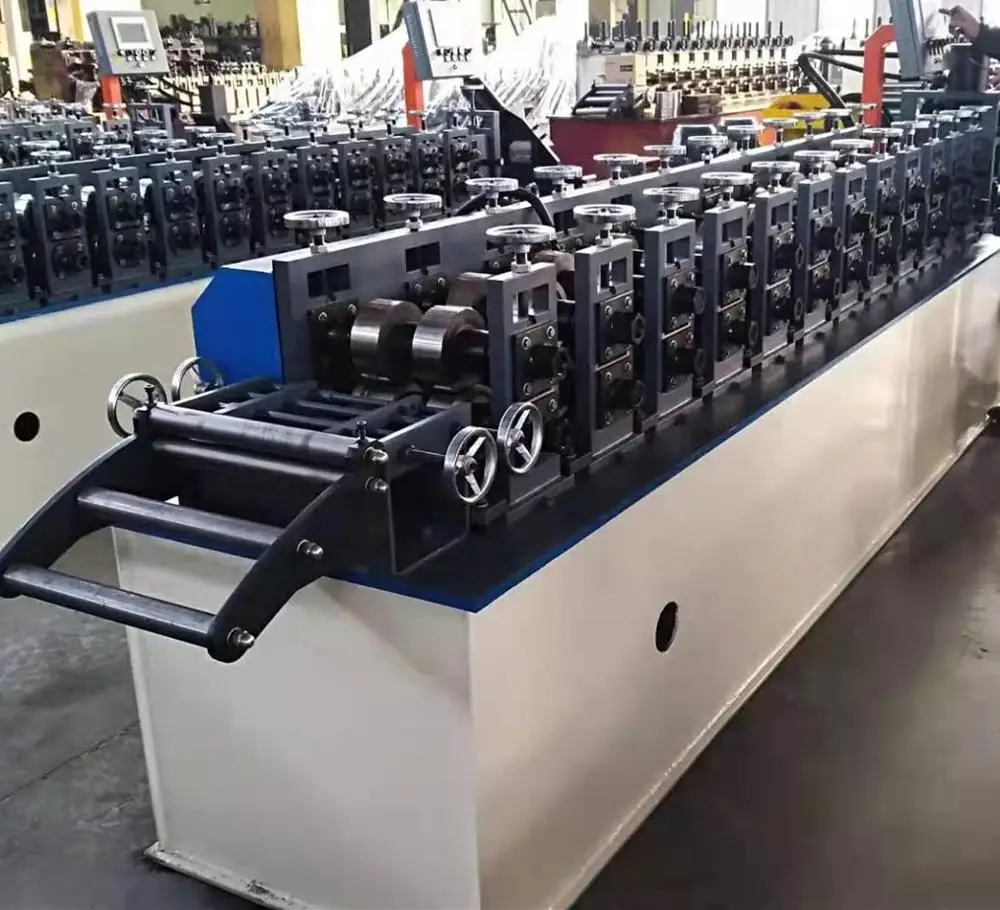

C Strut Channel Making Machine c steel channel forming machine Framing stud/track forming machine
Product Description
c steel channel forming machine could be used to make single stud, single track or combine track and stud by one machine. The sizes could be customized according to customer requirements. And meanwhile one machine could be used to make many types of the sizes and shapes. Our Stud and track roll forming machine also allows you to press logo, punching company name or print date you need on the finished products.

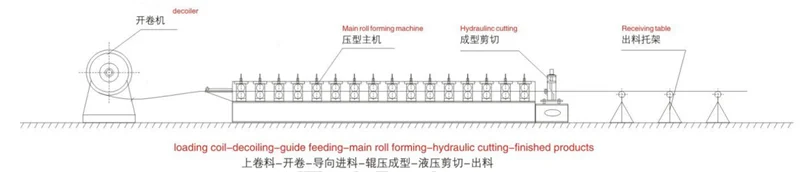

work flow of c steel channel forming machine
feeding——forming——(punching)——hydraulic cutting——receive products

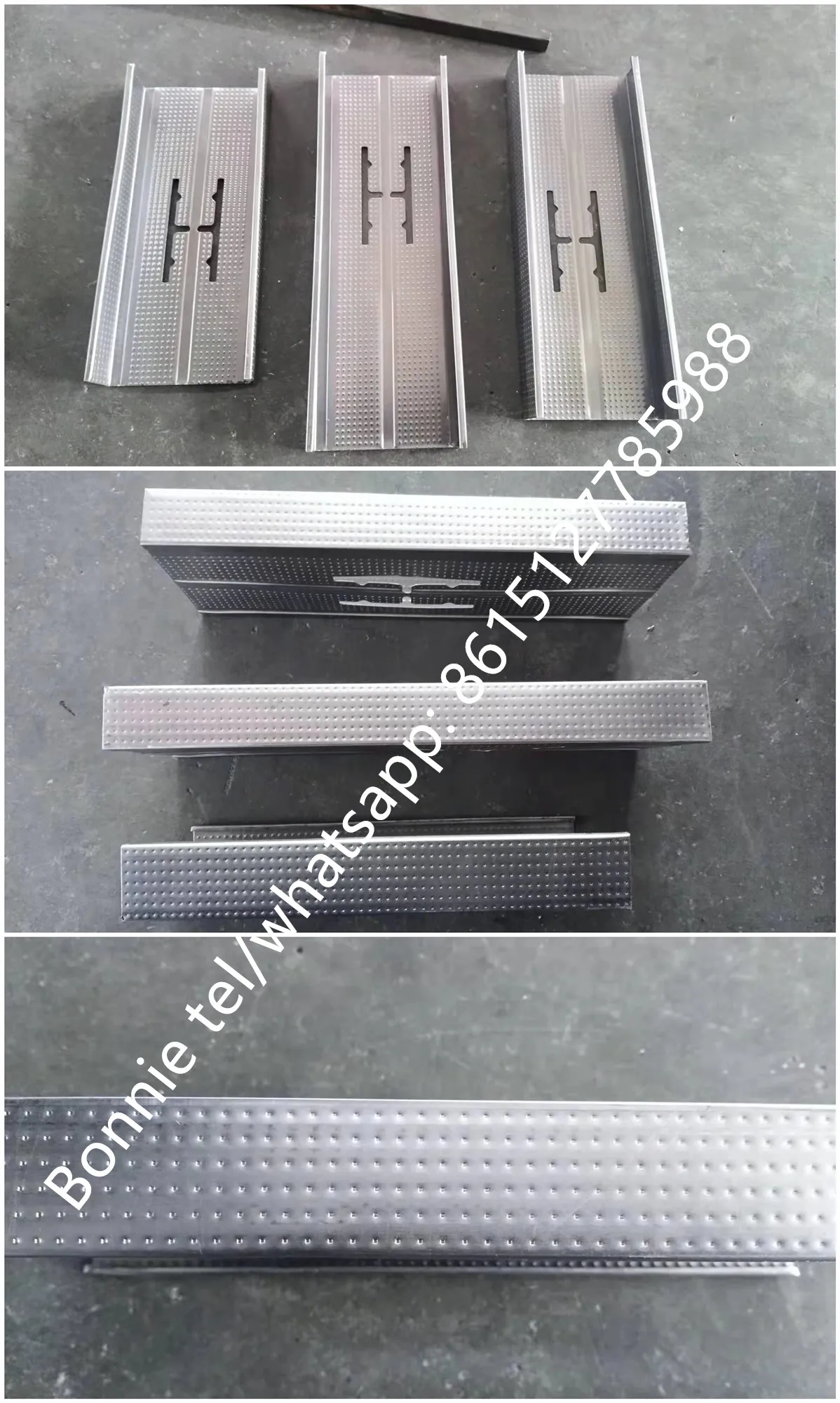

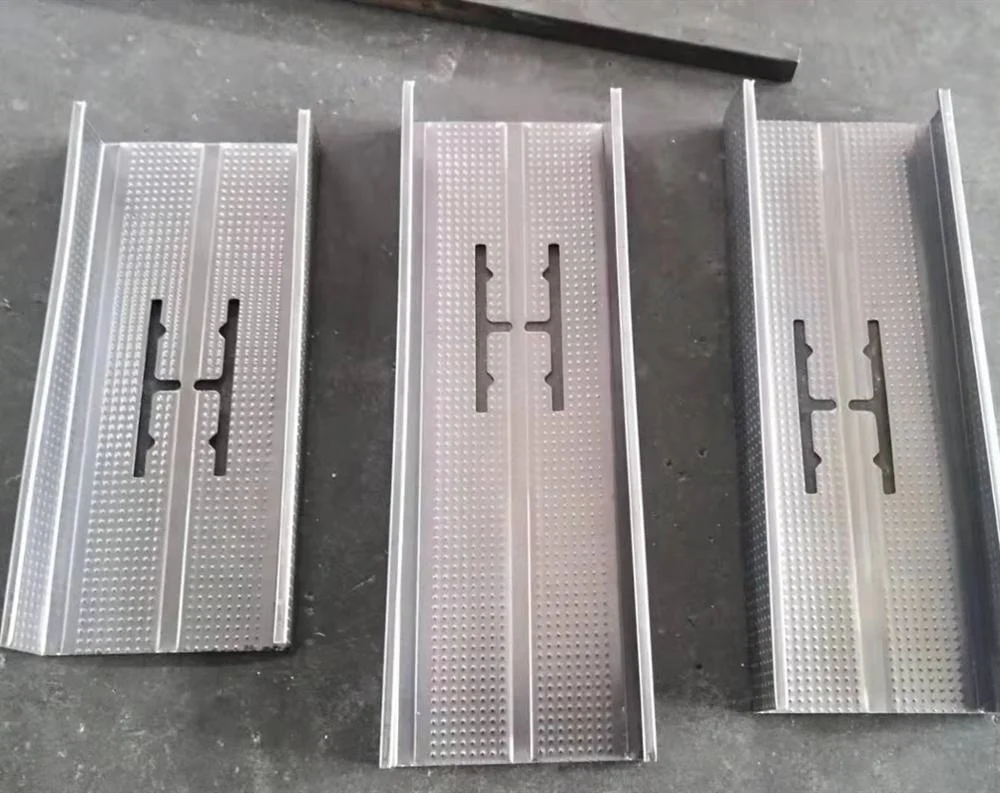

final product of c steel channel forming machine
raw meterial: galvanized steel
thickness: 0.3~0.8mm

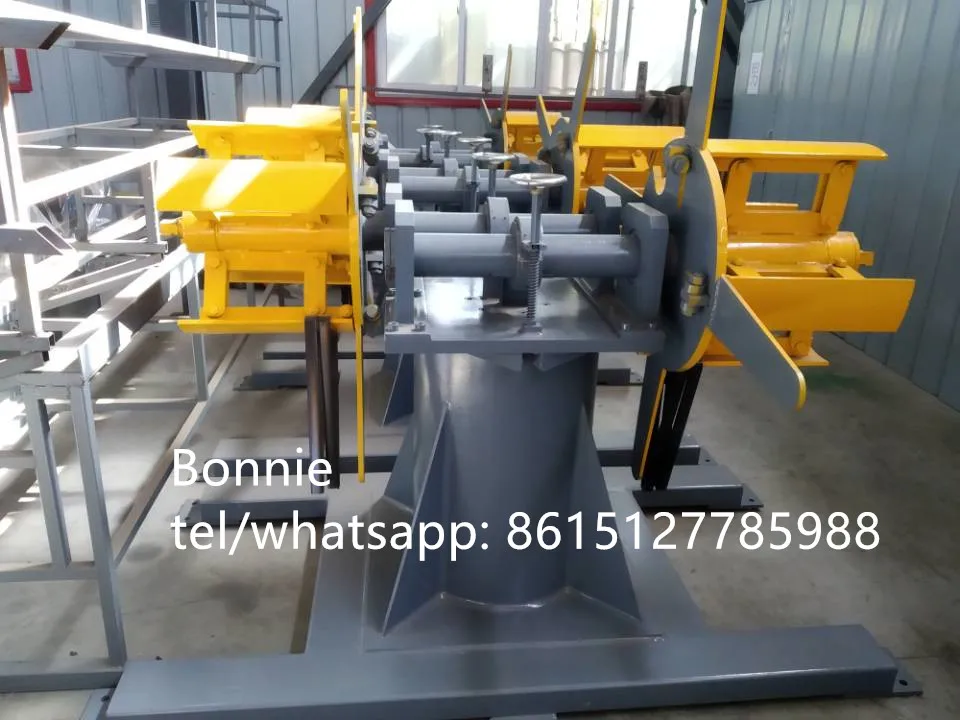

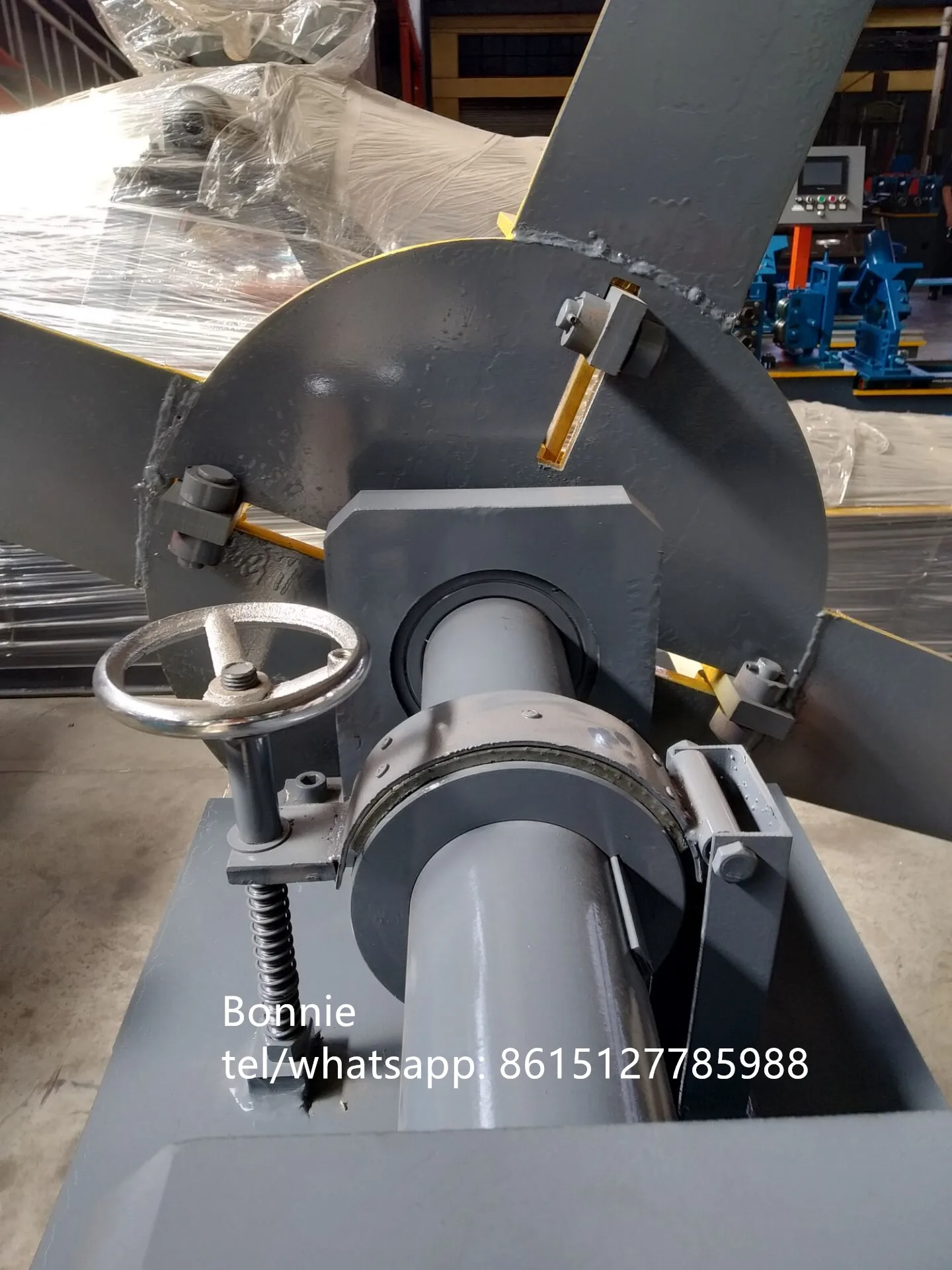

decoiler of c steel channel forming machine
with manual brake to make the control more easier.
inner diameter:450~550mm
max coil width:300mm
capacity:1.5T

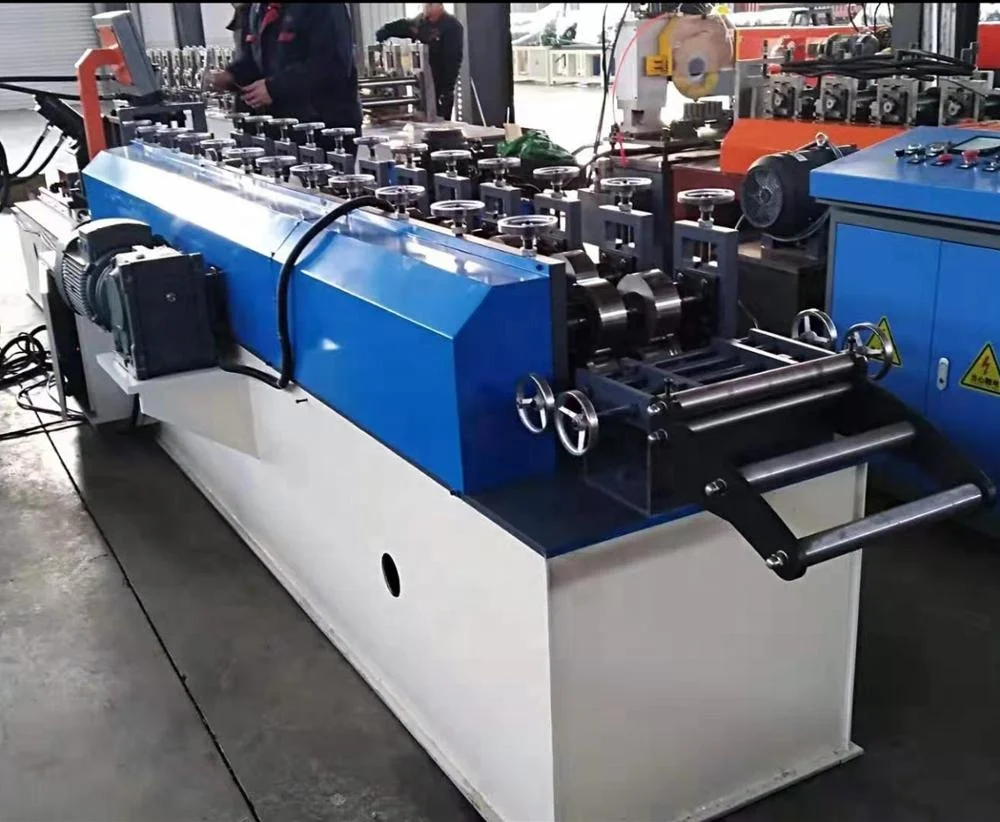

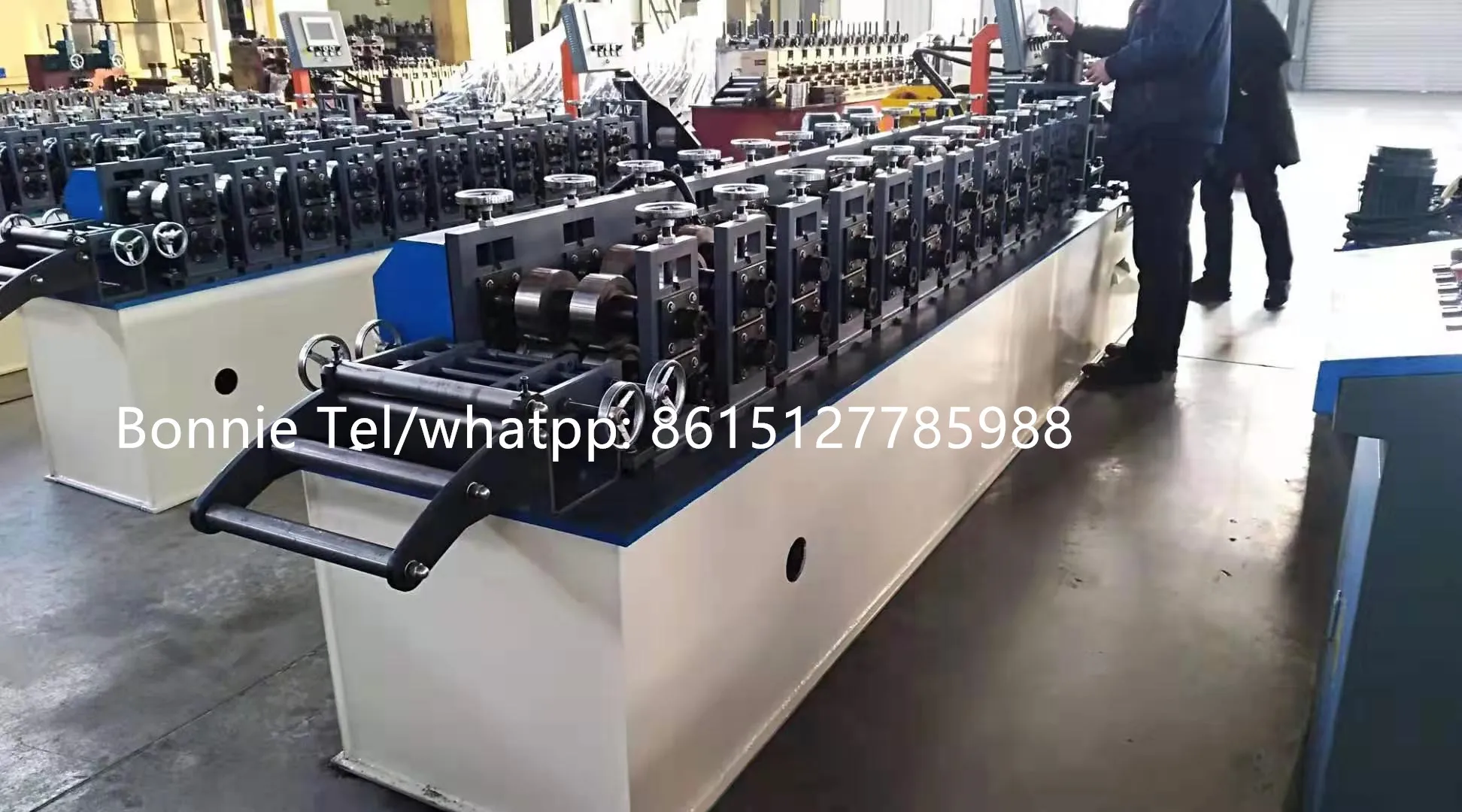

forming steps: 12steps
design type: memorial arch
roller material: Gcr12
shafter material:45#
shafter diameter: 40mm
speed:0~25m/min
transport: by gear
cutter: Gcr12

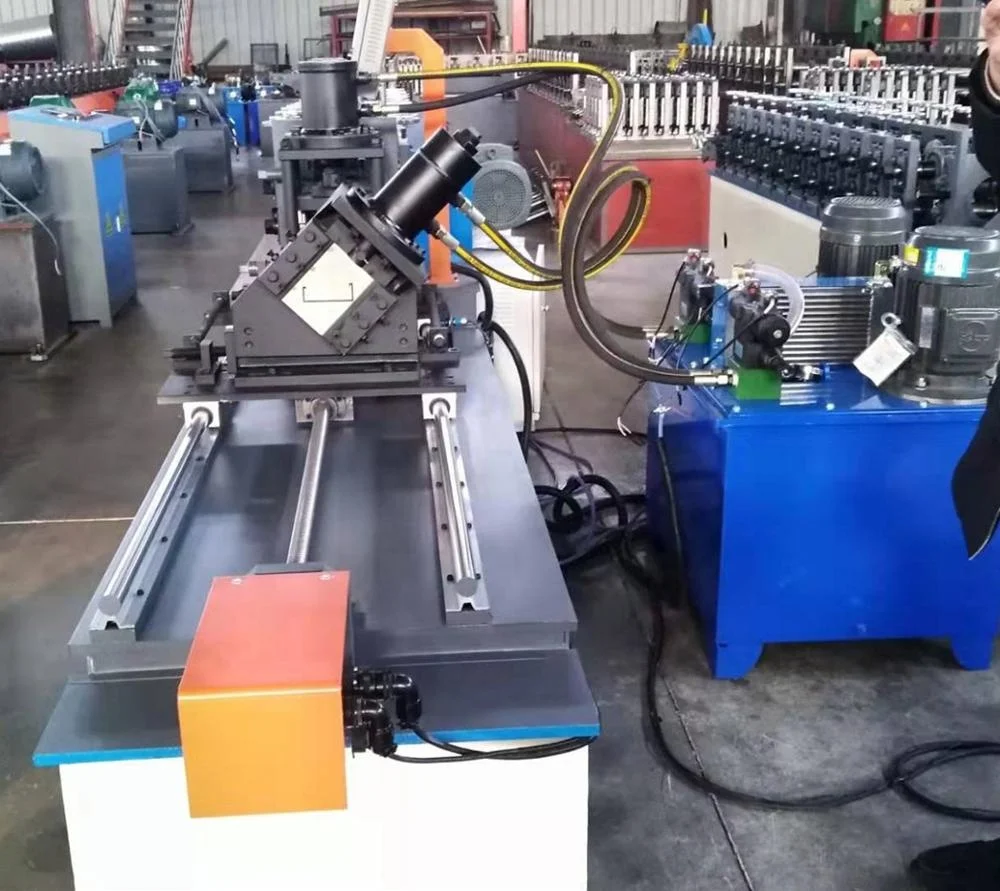

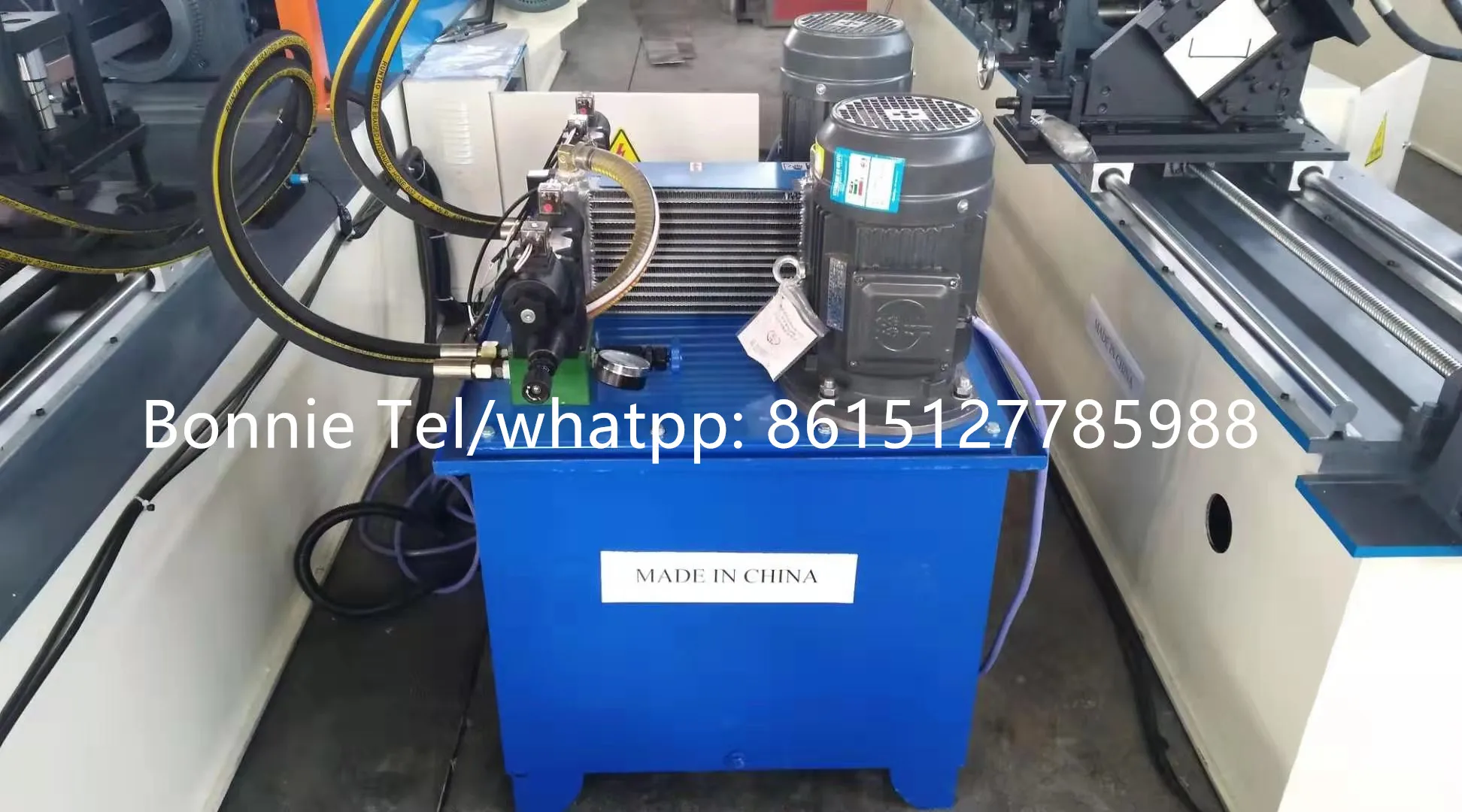

Hydraulic station
Some details of c steel channel forming machine
Holes and embossing
All C Strut Channel Making Machine can be set-up with a Service Hole, Dimple Punch, Index/Bolt Hole and Web-notch tools.This machine is also can be designed for in line punching, punching and cutting in one time. After roll forming, automatic in line punching and cutting continuously. Automatic products piling table is special designed for high speed production capacity and reduce the production cost, create more profit for the customers.
This C Strut Channel Making Machine can also be designed with the logo punching system. If you need the logo puching on the profile, you just need to send us your logo, we can design for you. when you need the logo punching, you please just turn on the logo punching system, if you do not need this logo punching system, you just need to turn off the logu punching system.
It is very popular and easy to operate !
If you want to know more about our products,please copy and paste the link into your web browser.
Company Information
Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
We specialized in manufacturing Color steel roll forming machinery, C UM Z purlin roll forming machine,Glazed tile roll forming machine, floor deck roll forming machine, shutterdoor roll forming machine, highway guardrail roll forming machine, downspout machine, weldingpipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.
FAQ:
1.How to get a quotation for CC Strut Channel Making Machine?
Give me the profile drawing and thickness of the c channel ,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.
5. What is your after-sale service?
C Strut Channel Making Machinewarranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the c C Strut Channel Making Machine.
7. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
