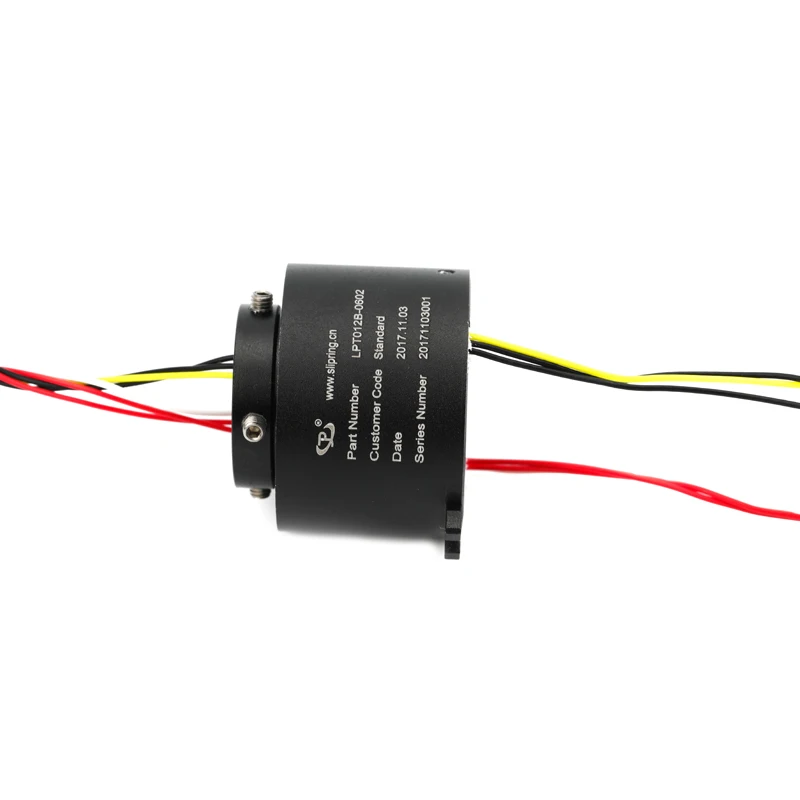

Сквозное кольцо с отверстием, 12 мм, 6 схем, 2 А, длительный срок службы, передающий ток/сигнал
- Category: Electrical Contacts and Contact Materials >>>
- Supplier: Shenzhen Jinpat Electronics Co. Ltd.
Share on (62152003771):
Product Overview
Description
Product Description
Bargain Price Only in Alibaba
LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.
Features:
- Transmit analog and digital signal
- The power and signal are mixed transmitted, and the signal categories are as follows:
- Ethernet: Rate (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.
- HD video: SDI, LVDS, etc.
- Serial communication: RS232, RS485, RS422, etc.
- Universal Serial Bus: USB2.0
- Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.
- Sensor signal: thermal resistance, thermocouple, strain gauge, etc.
- Long service life, maintenance-free
- Easy to install
Main Applications:
- Industrial automation equipment
- Medical equipment
- Wind power equipment
- Test equipment
- Exhibition
- display equipment
- Robots
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Packaging
- machinery
- Ship offshore equipment
- Construction machinery
| Specification | |
| Circuits | 1-24 circuits |
| Operating Speed | 0-500rpm |
| Working Temperature | -20℃~ +60℃ |
| Working Humidity | 60%RH or higher |
| Electrical: | |
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 2A/5A/10A/ per circuit |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@ 500VDC |
| Electrical Noise | 1mΩ Min |
| Mechanical: | |
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g·m (for reference ) |
| Protection | IP50 |

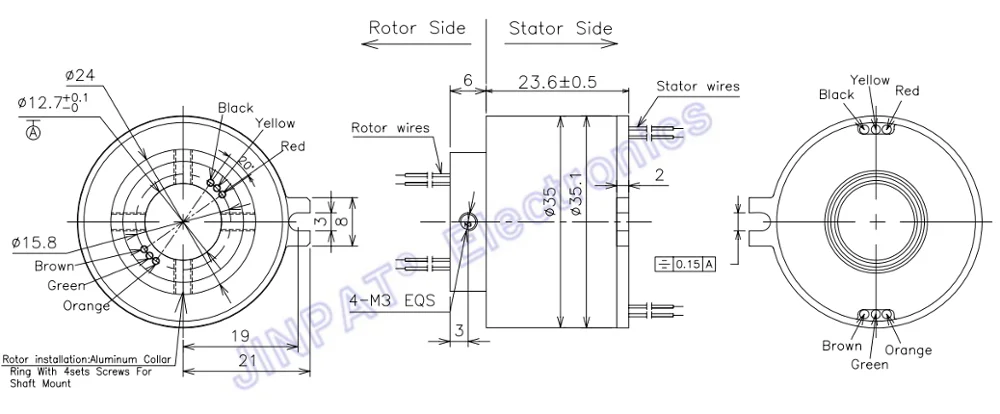

Product outline drawing
