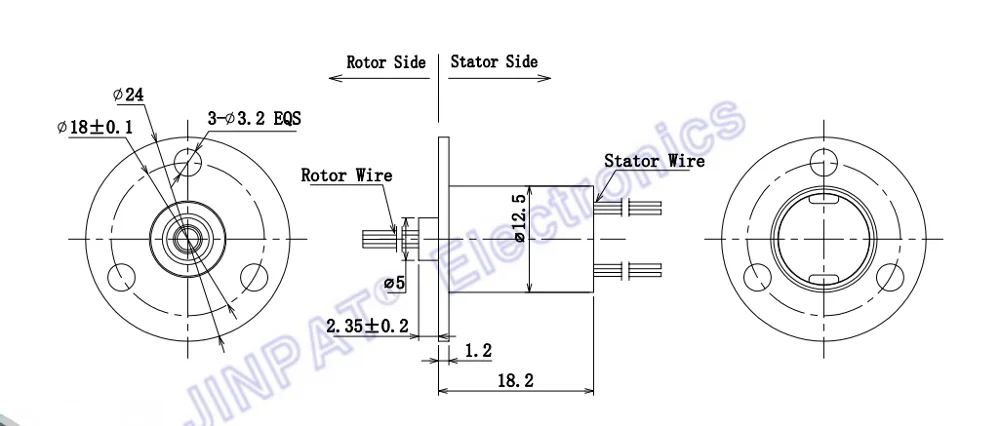

LPM-06A Miniature Slip Ring

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-06A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.The LPM-06A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.

Welcome to JINPAT Electronics

 Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.


• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.


• Long-term cooperation with global famous enterprises and agents all over the world.


• With Over 10,000 designs with success in civil, military, commercial and industrial applications.


• Founded in 1996, with more than 20 years of production and R & D experience.


• Providing free custom slip rings solutions,which can be suitable for a variety of  equipment


• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we offer

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)


• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)


• Pneumatic/Hydraulic Rotary Unions


• Custom Slip Rings


• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
