Вращающийся соединитель, скользящее кольцо, низкий крутящий момент 1 А/дорога, может быть Смешанное скользящее кольцо двигателя

 Bargain Price Only in Alibaba

Description

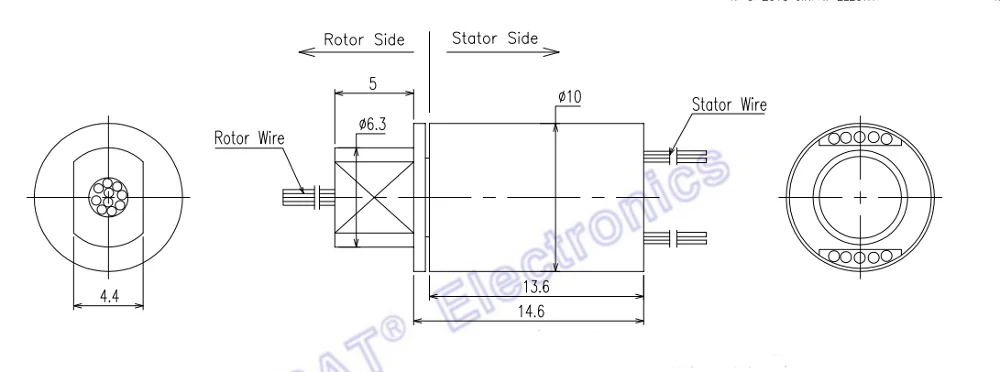

The LPMS-10A-08 super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPMS-10A-08 allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations

Features

• 8 circuits models


• 1 amps per circuit, 240VAC/DC


• Precision assembly to provide exceptional rotational life


• Speed up to 200 rpm continuous


• Gold-Gold contacts


• Flexible, color-coded, silver-plated, lead wires


• Superior handling of low level control signals


• Metal housing optional

Advantage

• Low torque minimizes system torque budget


• Compact design to fit in the most demanding space.


• Smooth running


• Low electrical noise


• Quick shipment per your urgent requirement


• 360°continuous rotation


• High bandwidth transfer capability


• Rapid shipment
