Electric swivel slip ring,18 Circuits hole size 12.7mm 18circuit 5A

 Bargain Price Only in Alibaba

Specification

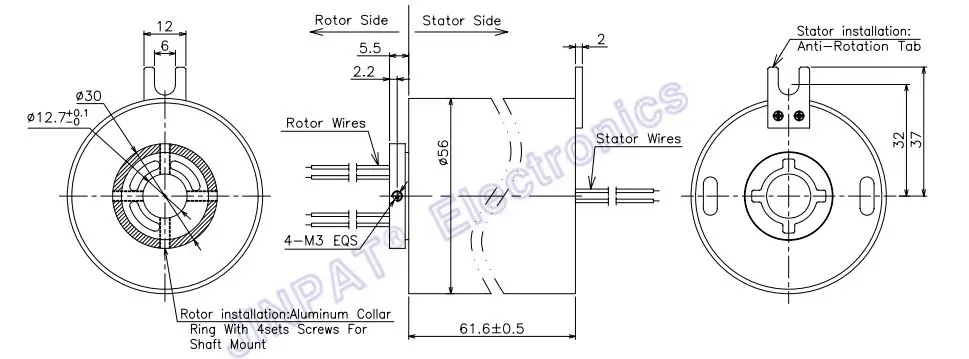

Product outline drawing

Quick detail

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Also called a rotary electrical joint, collector or electric swivel.

A slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and/or data. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

Benefits of product

• Thru-shaft mounting


• Can be designed to fit existing equipment



• Combines power and control signals


• No electrical noise (minimal contact


• resistance


• Zero maintenance


• Environmentally sealed


• Rugged design


• High reliability


• Unaffected by vibration


• Mount in any orientation

Main application

• Ultrasonic gages



• Eddy current probes



• AC/DC power



• Servo & stepper control signals



• Power input & temperature control of heated rollers



• Instrumentation signals



• Video signals



• Communications



• Digital data transmissions

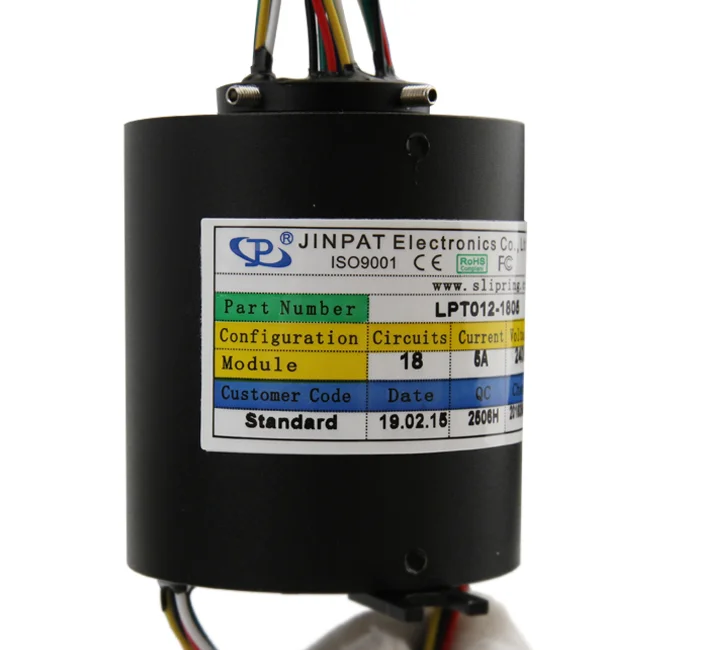

Product Image

Welcome to JINPAT Electronics

 Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.


• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.


• Long-term cooperation with global famous enterprises and agents all over the world.


• With Over 10,000 designs with success in civil, military, commercial and industrial applications.


• Founded in 1996, with more than 20 years of production and R & D experience.


• Providing free custom slip rings solutions,which can be suitable for a variety of  equipment


• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we provide

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)


• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)


• Pneumatic/Hydraulic Rotary Unions


• Custom Slip Rings


• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you provide custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
