Вакуумный 6 8 mbar новый обновленный бесшумный лабораторный бесмасляный вакуумный насос

Share on (62156515729):


Price:

Quantity:


Product Overview

Description

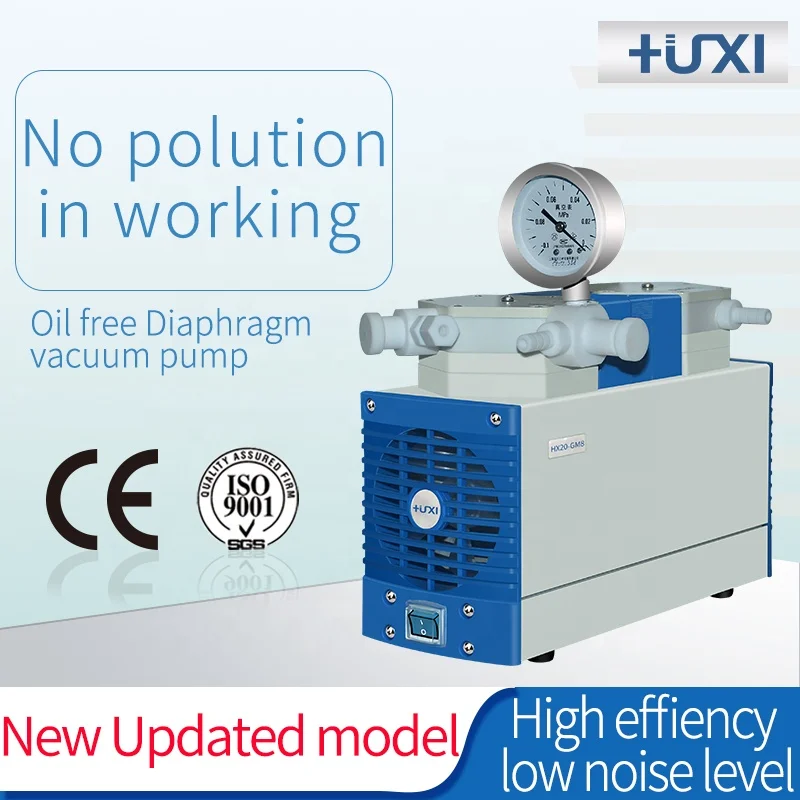

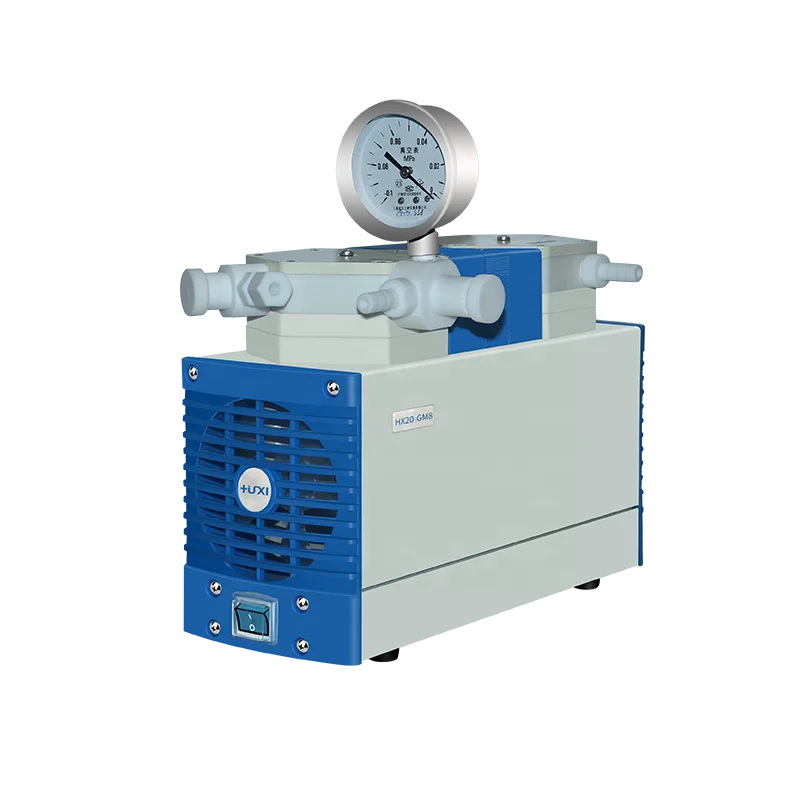

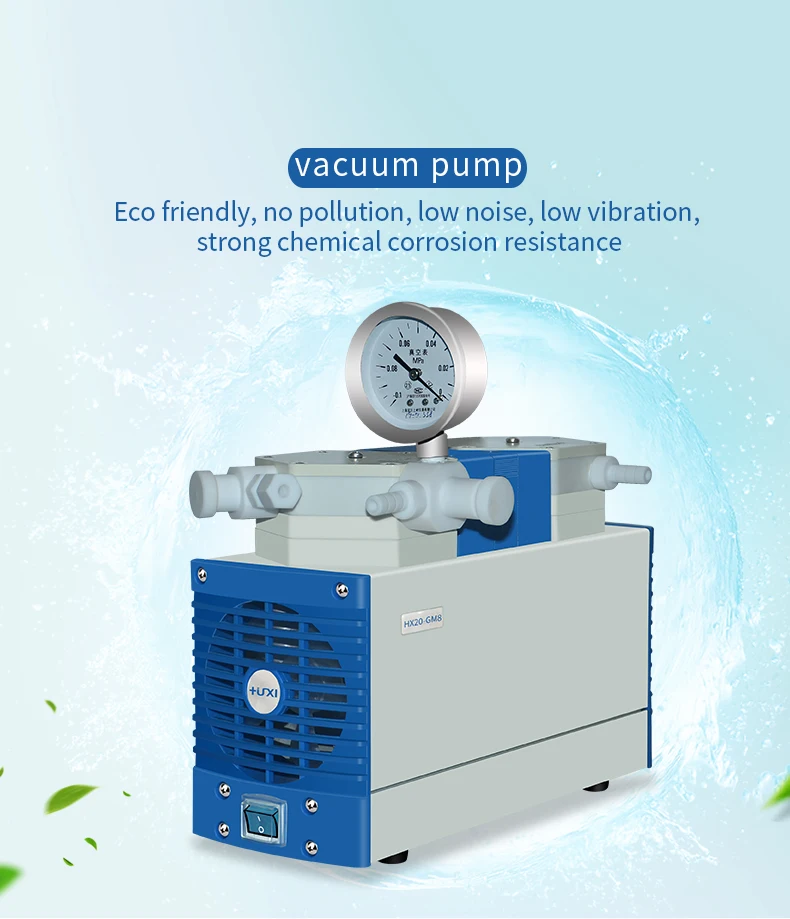

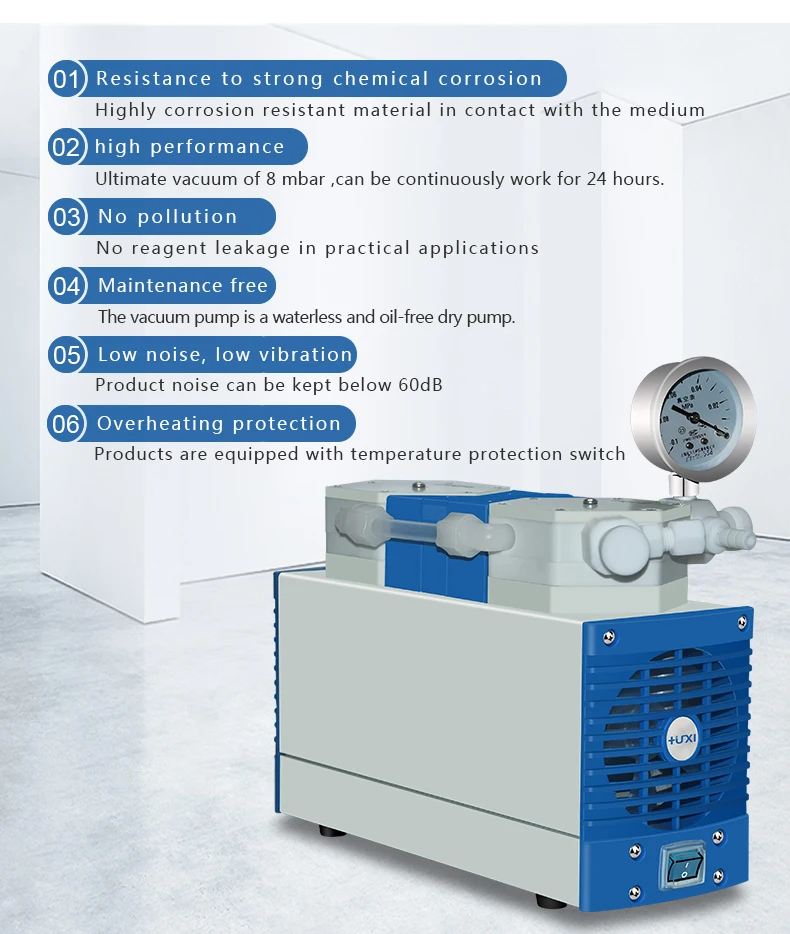

Vacuum 6-8 mbar New updated Silent Lab Diaphragm Oil Free Vacuum Pump



Product Description










The Specification of the Diaphragm acuum Pump
















































































































ModelHB-20HB-20BHB-40B
Voltage / Frequency220V50HZ220V50HZ220V50HZ
Power120W120W240W
Pump head typeTwo-stage pumpTwo-stage pumpTwo-stage pump
Ultimate vacuum6-8mbar6-8mbar6-8mbar
Operating pressure≤1bar≤1bar≤1bar
Flow≤20L/Min≤20L/Min≤40L/Min
Interface Specification10mm10mm10mm
Medium and ambient temperature5℃~40℃5℃~40℃5℃~40℃
Vacuum gaugeNo vacuum regulatorWith vacuum control valveWith vacuum control valve
Dimensions315x165x210mm315x165x270mm320x170x270mm
NW9.5KG10KG11KG
Relative humidity≤80%
Pump head materialPTFE

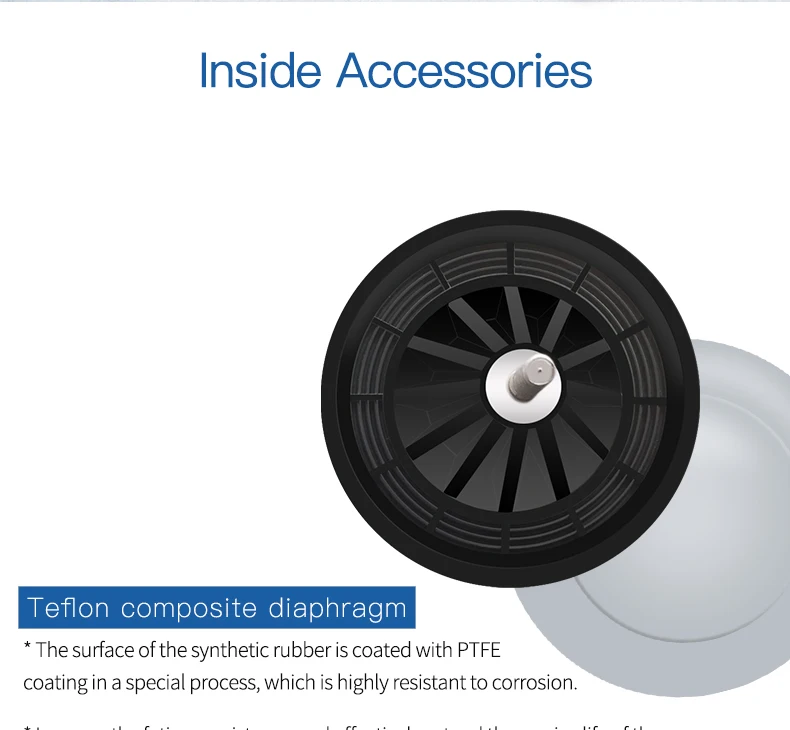

Composite diaphragm materialHNBR+PTFE(Customized)

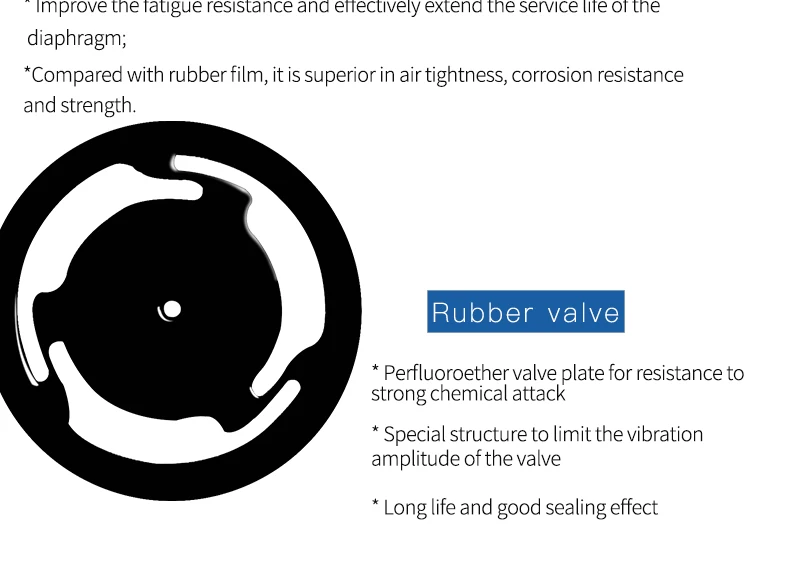

Valve materialFKM ,FFPM(Customized)
Solid discharge valveBand
Work systemcontinuously working
noise≤55db
Rated speed1450RPM




















Recommend for you







Company Information










FAQ


1.What we mainly supply?


Yanhe  Insturment  was established in 2009, professional in manufacturing, sell ,distribute the high


quality lab instruments in range of environmental test, analytical chemistry,physical optics and life


sciences .


Growing from Strength to strength to become the leader manufacturer and distributor with


best discount and  fast pre -sale and after sales service .





2.Why choose us?


-OEM/ODM Accept


- Large range of lab insturments  can be supplied ,which distribute from the name brands .


-small order or sample order can be accepted


-Factory supply directly,  fast delivey


-Specialized in this line for 8 years


- Inquiry respond in 12 hours ,and TM contact in one hour except the sleeping time.





3.Our Payment & Logistics?


Payment terms:TT/West Union/L/C PayPal


Shipping terms: DHL, UPS, FEDEX, TNT, EMS


By air or Sea are both available.


Alibaba Trade assurance is accepted





4.How to send us a inquiry ?


1.If you are  not very urgent ,the webpage of the products shows :Contact Supplier


2.If you need sth urgently ,click :Chat now.


3. The other contacts information like email/skype wechat will be supplied as below


Which can help you to contact with me directly.





5. What about the after sales service?


For the samll products like mixer or water quality testers ,we can supply professional


operation videos and engineer online training


For big Lab instruments like Plant growth chambers or Gas phase liquid chromatography,


Engineers go abroad to install and train the local workers are available.
