4U 5GPU case Support Supermicro Asus 5GPU MB like X11DPG X9DRG QF etc.

Product Overview

Description

Product Description

Model	NP-S40865001
Form Factor	4U 5GPU case Support Supermicro Asus 4GPU MB like  X11DPG  X9DRG-QF etc.
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal

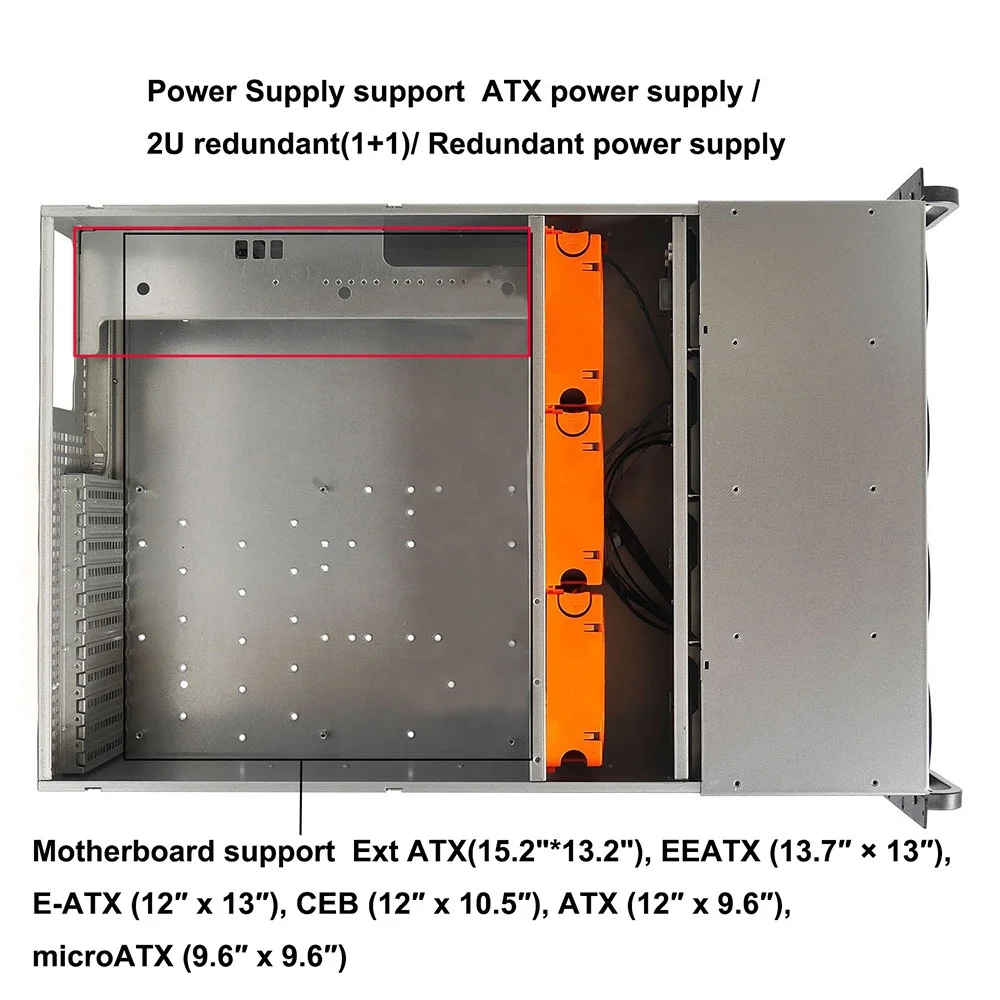

M/B support	Ext ATX (15.2"X13.2"),EEATX(13.7"X13"), E-ATX (12″ x 13″), CEB (12″ x 10.5″), ATX (12″ x 9.6″),microATX (9.6″ x 9.6″),
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)
Size	D*W*H(mm)	650 x 482 x 176
	D*W*H(inch)	25.5  x 19 x 7
Drive Bay	3.5 "or 2.5" external (hot-swap)	8
	2.5" HDD/SSD  (hot-swap)	1
Power Supply support	ATX power supply /2U redundant (1+1)/ redundant power supply

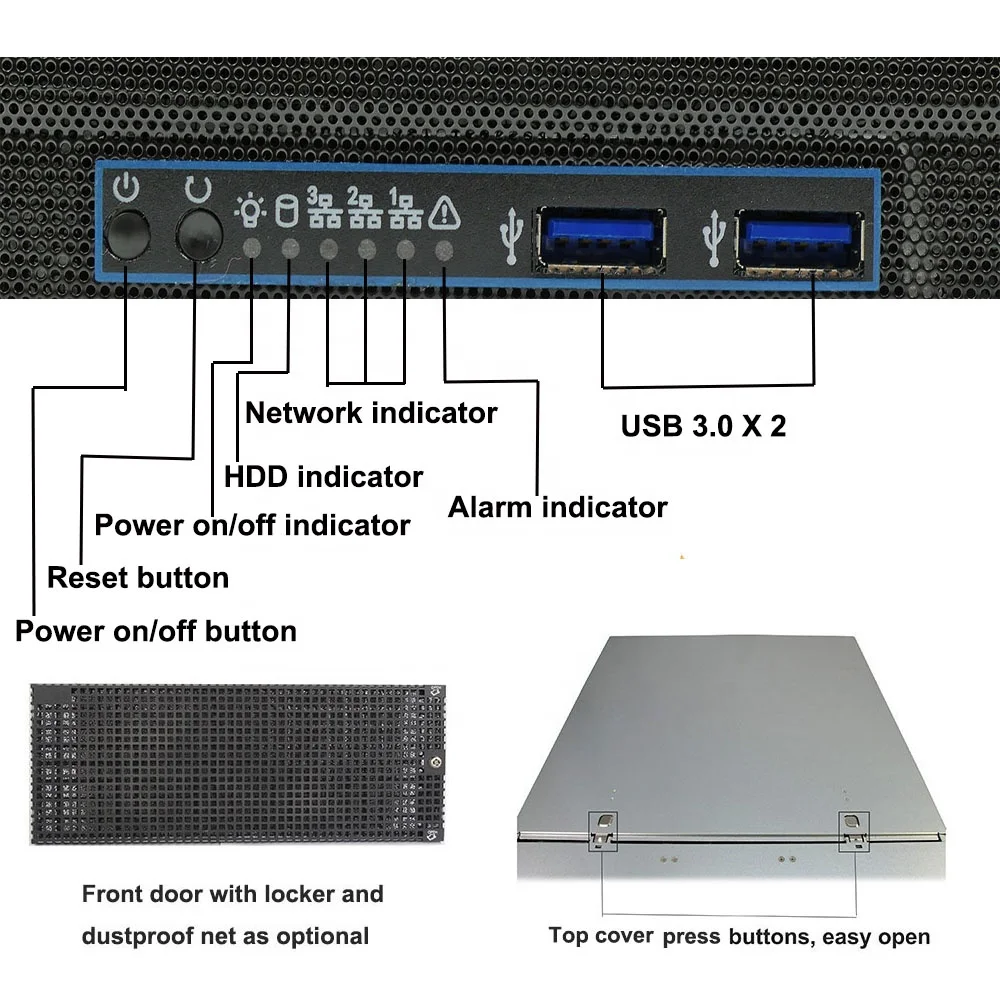

Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB3.0 x 2

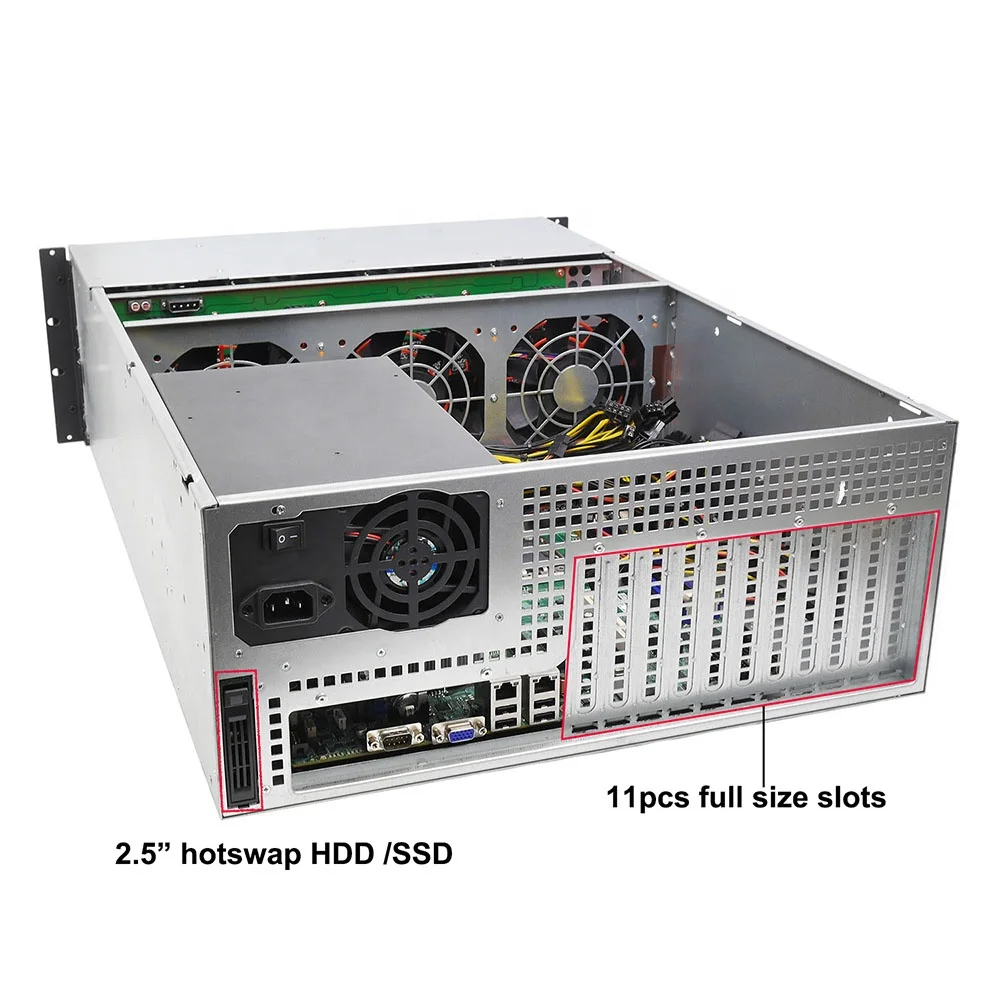

Expansion	Riser Slot	11pcs (full size)

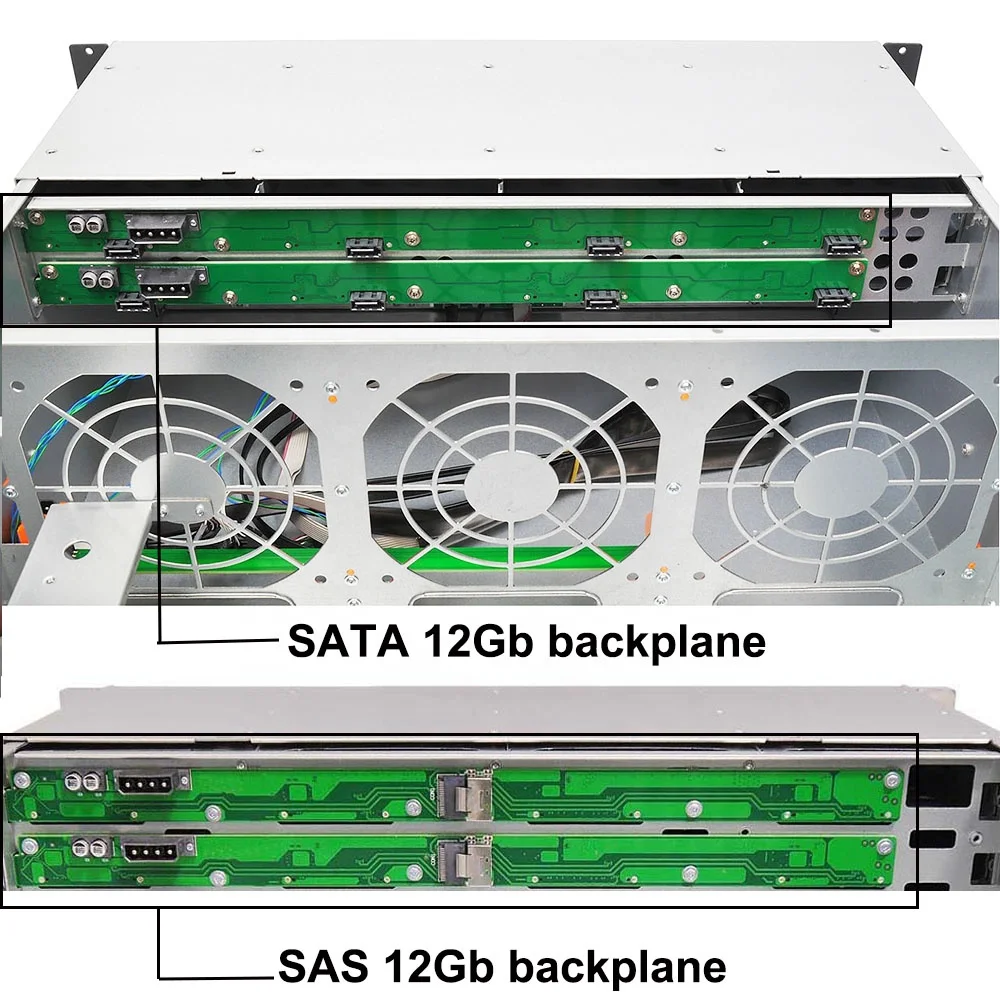

Hot-swap Backplane	MiniSAS or SATA backplane (12Gbit / s)
System cooling(optional)	Front	NO

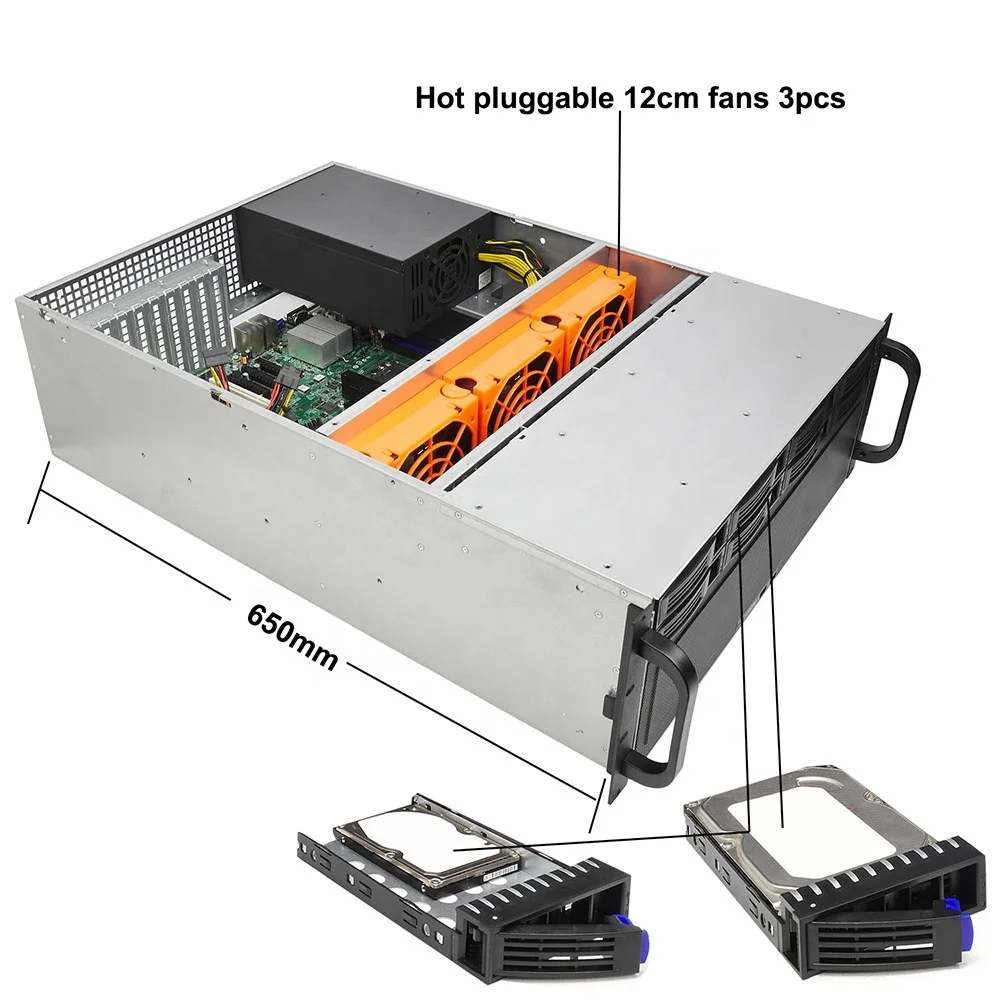

	Middel	3x 120mm  ball bearing fans PWM (hot-pluggable)
	Rear	NO
Net weight	13kg
Gross weight	15.5kg
Packing size	D*W*H(mm)	830*555*240
	D*W*H(inch)	32.7*21.8*9.4
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
