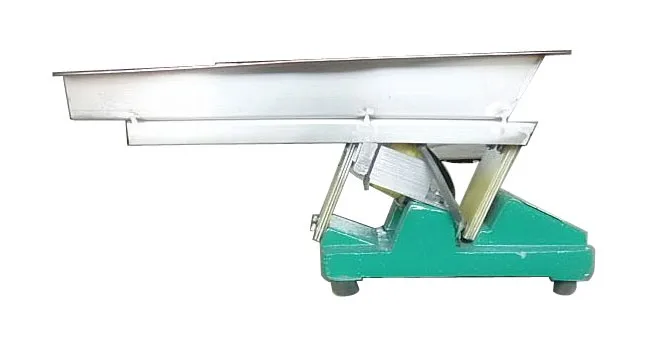

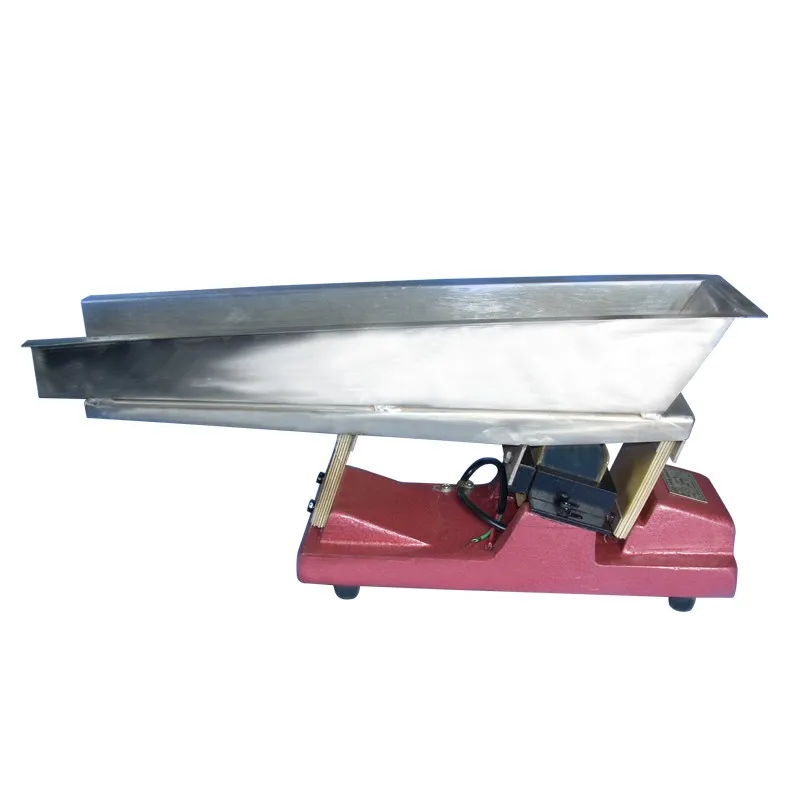

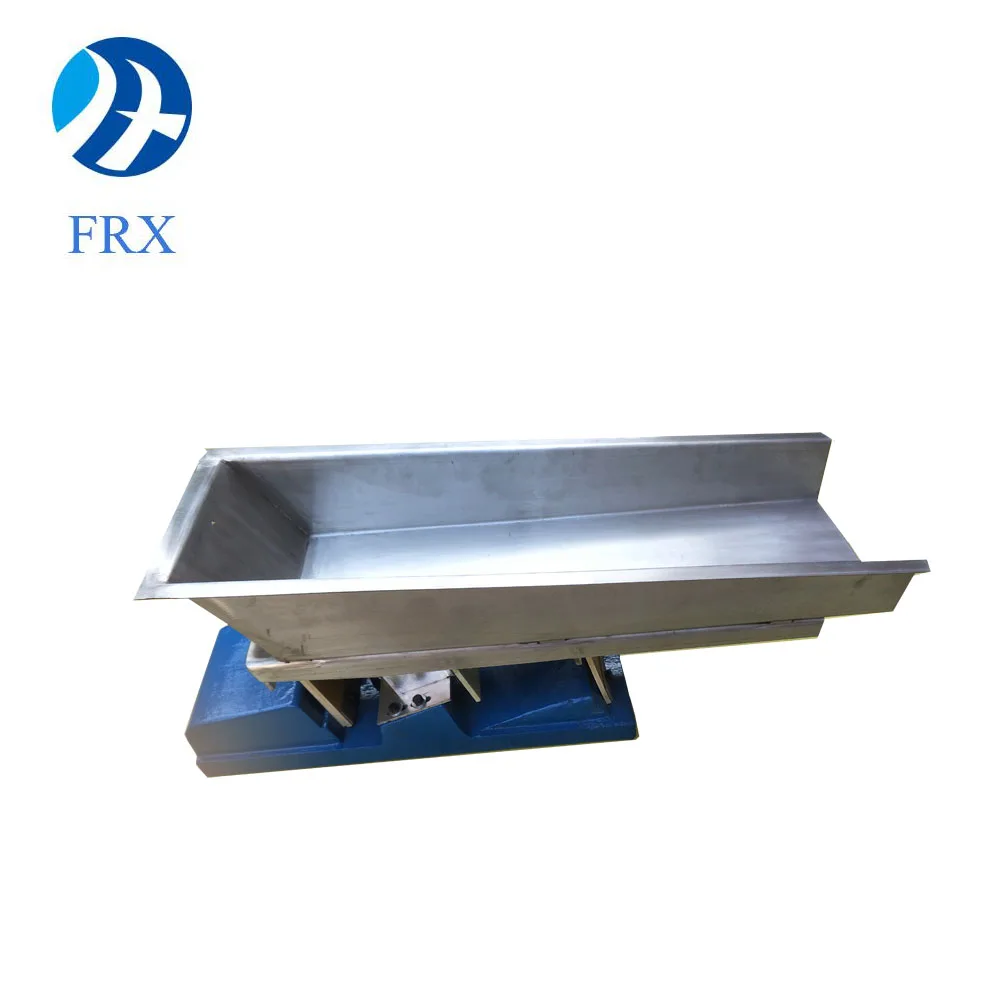

GZV Vibration Feeder

Vibratory parts feeder is the machine which can orient and feed small parts to the assembly line by vibration.

Characteristic

The utility model has the advantages of small size, light weight, simple structure, convenient installation and low operating cost;

The use of half wave rectifier control, can be used in the stepless adjustment.

The feeder in the course of continuous feeding thrown the parts up, so to wear small trough.

In order to reduce the noise and improve life and feed efficiency, the inside of the bowl is usually coated by urethane.

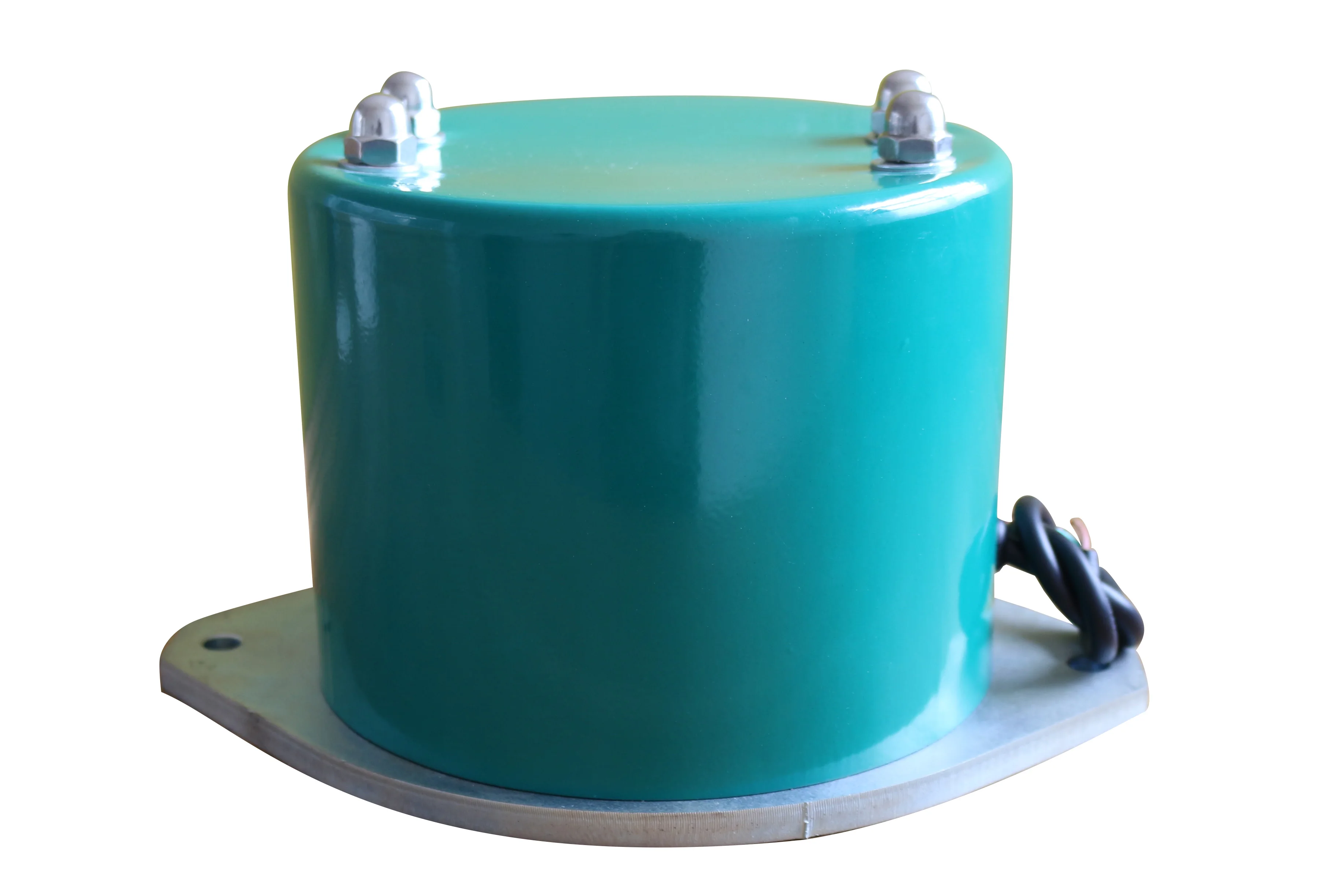

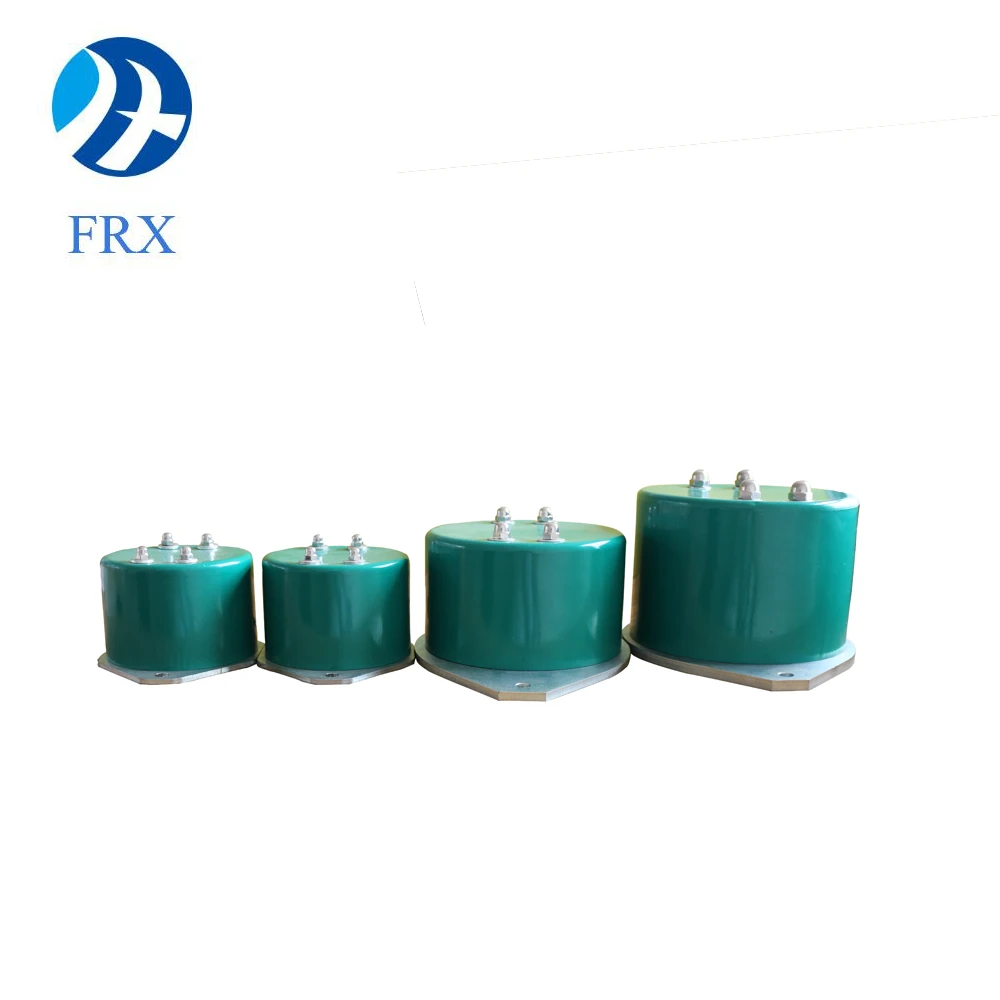

The vibrators are controlled by control boxes.

\t
Technical parameter for GZV vibrating feeder
\t
Model
\t
GZV1
\t
GZV2
\t
GZV3
\t
GZV4
\t
GZV5
\t
GZV6
\t
GZV8
\t
Capacity(t/h)
\t
0.1
\t
0.5
\t
1
\t
2
\t
4
\t
6
\t
8
\t
Double amplitude(mm)
\t
1.5
\t
1.5
\t
1.5
\t
1.5
\t
1.5
\t
1.5
\t
1.5
\t
Frequency(tim/min)
\t
3000
\t
3000
\t
3000
\t
3000
\t
3000
\t
3000
\t
3000
\t
Power(w)
\t
5
\t
8
\t
20
\t
25
\t
30
\t
50
\t
100
\t


Control



equipment
\t
Model
\t
XKZV-Ⅱ
\t
Control way
\t
Controllable half wave rectifier
\t
Voltage
\t
220
\t
220
\t
220
\t
220
\t
220
\t
220
\t
220
\t
Frequency(HZ)
\t
50
\t
50
\t
50
\t
50
\t
50
\t
50
\t
50
\t
Current(A)
\t
0.08
\t
0.12
\t
0.15
\t
0.2
\t
0.25
\t
0.6
\t
1.0
\t
Weight
\t
4
\t
7
\t
12
\t
18
\t
27
\t
45
\t
60
Shape and size
Machine dimensions

The overall dimensions of the mainframe are shown belowr

\t
Model
\t
Outline dimension
\t
B
\t
B1
\t
B2
\t
B3
\t
L
\t
L1
\t
L2
\t
H
\t
H1
\t
GZV1
\t
40
\t
60
\t
50
\t
80
\t
200
\t
273
\t
92
\t
20
\t
155
\t
GZV2
\t
60
\t
80
\t
50
\t
80
\t
300
\t
374
\t
95
\t
30
\t
168
\t
GZV3
\t
80
\t
110
\t
60
\t
100
\t
400
\t
480
\t
224
\t
40
\t
222
\t
GZV4
\t
100
\t
130
\t
70
\t
120
\t
500
\t
568
\t
310
\t
50
\t
256
\t
GZV5
\t
120
\t
150
\t
70
\t
120
\t
550
\t
630
\t
310
\t
60
\t
295
\t
GZV6
\t
200
\t
240
\t
120
\t
180
\t
600
\t
760
\t
400
\t
70
\t
330
\t
GZV8
\t
300
\t
340
\t
180
\t
230
\t
1000
\t
1050
\t
560
\t
70
\t
340
Use and installation

Design and installation of hopper feeder

In order to ensure the normal operation of feeder,Should pay attention to several points in the installation of hopper.



The outlet and the feed tank should have 5mm gap,Ensure the hopperis not affected by the process of feeding.



Chute exit should design oblique,To avoid the vertical pressure direct pressure on the feeder,Otherwise it will seriously affect the efficiency of feeder.

2. installation

The size of the opening of the hopper shall be guaranteed to obtain sufficient material,In order to adjust the number of materials should be set gate.

GZV  series vibrating feeder for seat type structure,Install flat on the support plate
