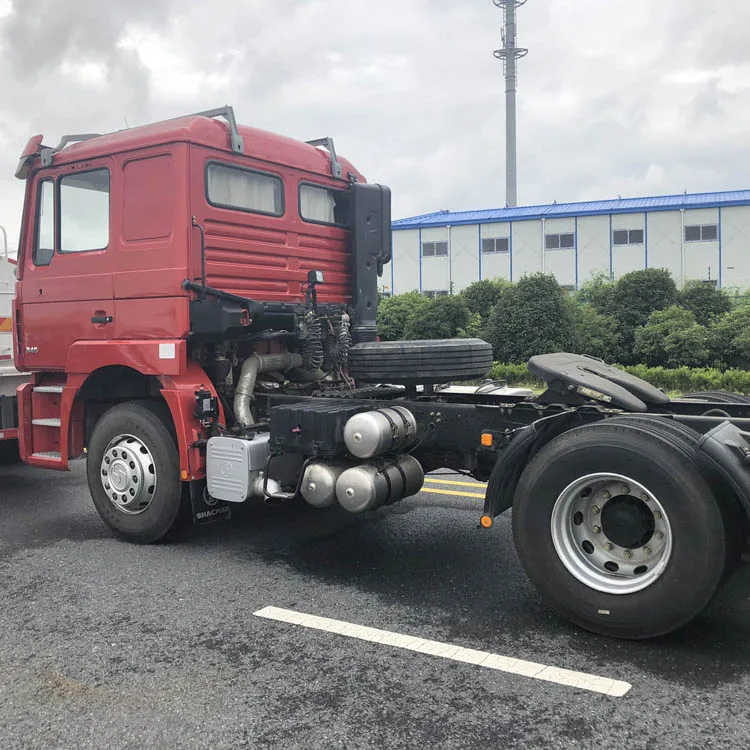

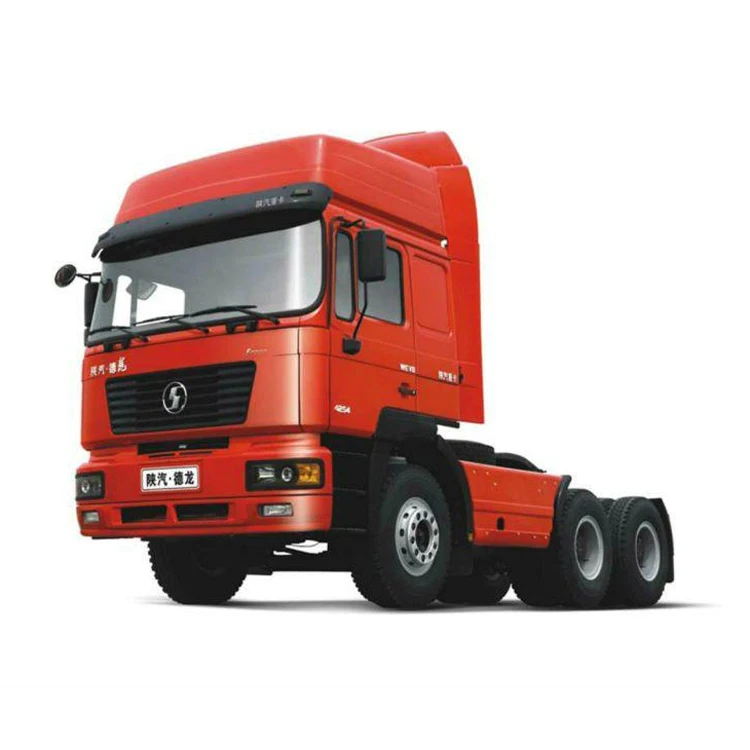

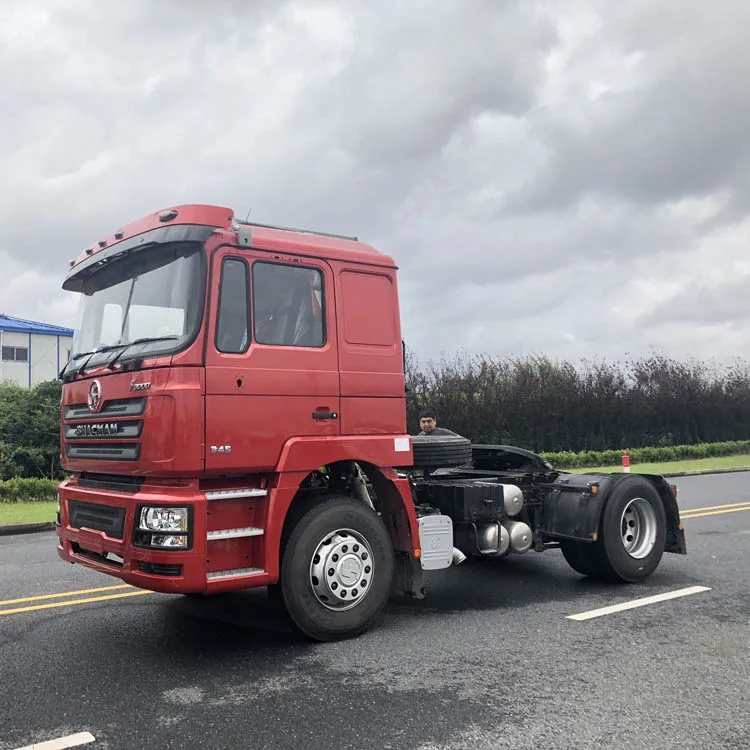

Shacman 276kw tractor head 6x4 terminal tractor
Specifications:
| Model | SX4257NT324 |
| Make | SHACMAN Truck |
| Drive type | 6×4 |
| Application | Tractor |
| Weight | |
| Complete kerb mass (kg) | 9400 |
| GVW (kg) | 29400 |
| GCW(kg) | 60000 |
| Dimensions | |
| Max.length(mm) | 6825 |
| Max.width(mm) | 2490 |
| Max.heigh(mm) | 3710 |
| Front / Rear overhang (Chassis) | 1525/725 |
| Wheel base(mm) | 3175+1400 |
| Track width(mm) | 2036/1800 |
| Performance | |
| Max.speed (km/h) | 127 |
| Min.turning circle(m) | 15 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 22/30 |
| Max.gradeability(%) | 34 |
| Engine | |
| Make | WEI CHAI |
| Model | WP12.375N |
| Power(kw/HP) | 276/375 |
| Max.Torque (N.m )/rpm | 1800/1000—1400 |
| Displacement (L) | 11.596 |
| Bore/Stroke (mm) | 126/155 |
| Emission Standards | Euro Ⅲ |
| Transmission | |
| Make | FAST |
| Model | 12JS180TA |
| Control type | manual |
| Gear Shift | 12-forward and 2 reverse speeds |
| Option | —— |
| Clutch | |
| Type | Single plate, diaphragm spring |
| Diameter (mm) | φ430 |
| Action | mechanical pull type, self adjusting Air assisted clutch |
| Brakes | |
| Type | Drum |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Option | ABS |
| Steering | |
| Make | Shashi Jiulong |
| Type | Integral inner circulation power steering |
| Option | ZF8098 |
| Chassis | |
| Type | Ladder structure, widened and cross-section variable |
| Suspension | |
| Front Suspension | semi-elliptic springs with shock absorbers |
| Rear Suspension | inverted leaf spring stabilizator suspension |
| Axles | |
| Make | SHAAN'XI HANDE |
| Front axle | 7500kg |
| Rear axle | 13000kg(each other) Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 3.866(option 4.266) |
| Option | 11500kg(each other)single reduction or 16000kg(each other)double reduction rear axle |
| Tires | |
| Type (Standard) | 12.00-20 |
| Option | 12.00R20/11.00-20/11.00R20/12R22.5 |
| Fuel tank | |
| Tank capacity (L) | 400 |
| Material | Aluminum |
| Electrics | |
| Type | 24V |
| Starter | 6.2kw(24V) |
| Generator | 2.2kw(28V 80A) |
| Battery | 2×135Ah |
| Cab | |
| Type | MAN D'LONG F3000, Lengthened high roof |
| Equipments | 2 rear window, mechanical clerestory, 4 point air suspension, A/C, air suspension driver seat with handle and seatbelts, two sleeping bed, hydraulic reversal cab, with USB can play radio with MP3 format |
| Option | electric windows, electricity heated, GPS or CD, rear-view mirror, Tachograph, car Phone, electricity reversal cab |
| Other | |
| The fifth wheel | 2 inch |
| saddle ground clearance(mm) | 1400 |
