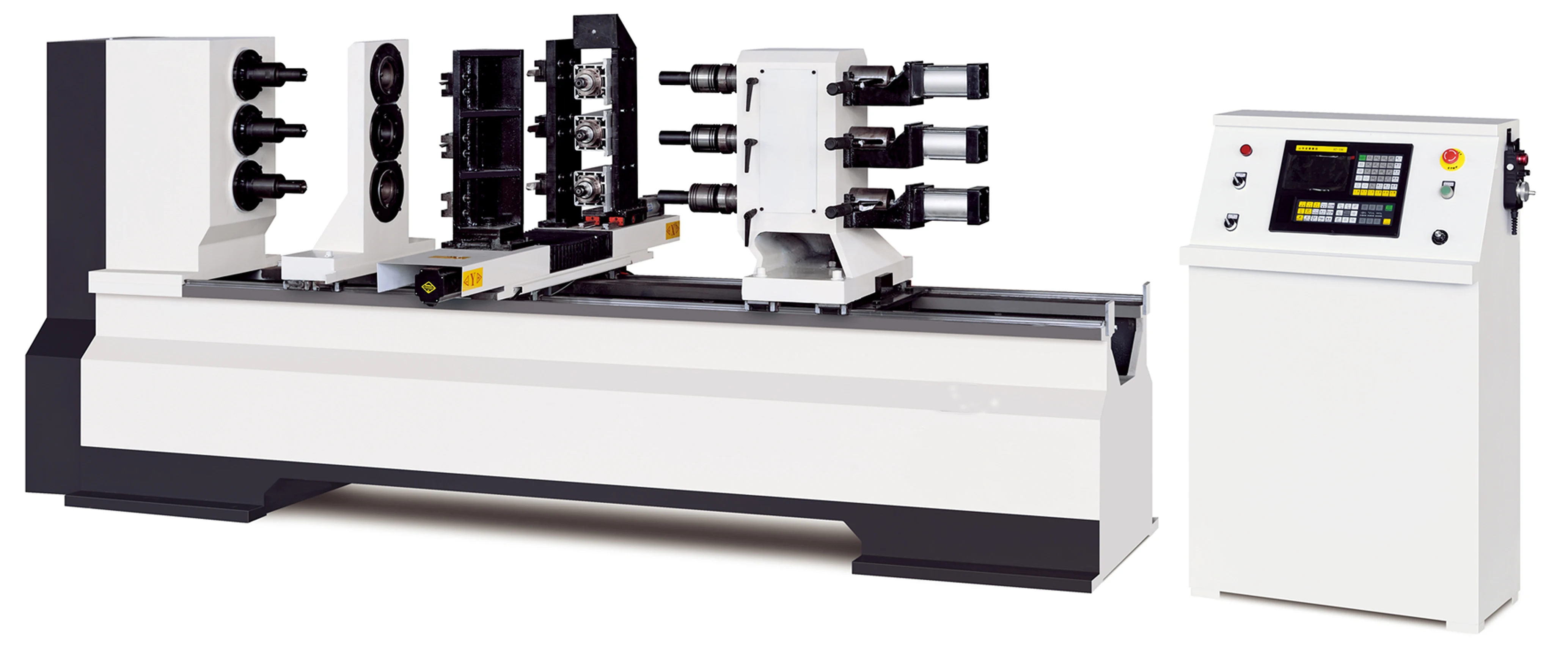

Taian three spindle wood turning lathe cnc wood cutting lathe machine H T150D TM
- Category: Wood Lathe >>>
- Supplier: Taian Hiscience Machinery Co. Ltd.
Share on (62161860645):
Product Overview
Description
Product Description
Application
The machine is used for wood cutting. Whose character is that the machine can realize arbitrary rotor turning processing with coordination between the longitudinal axis and horizontal axis, then can realize milling, engraving, guarantee the processing product rotational stability, high cutting efficiency.
Items | H-T150D-TM |
Max.Swing over bed of upper axis(mm) | 500-800 |
Max.Swing over bed of three axis(mm) | 160-195 |
Max. Machining length(mm) | 1000 |
Main motor(KW) | 7.5 |
Total power (KW) | 17 |
Dimension(mm)L×W×H | 2400*1000*1500 |
Weight(kg) | 1700 |
Voltage | 3 phase 380V |
Main features:
1.Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the
problem of materials' vibration.

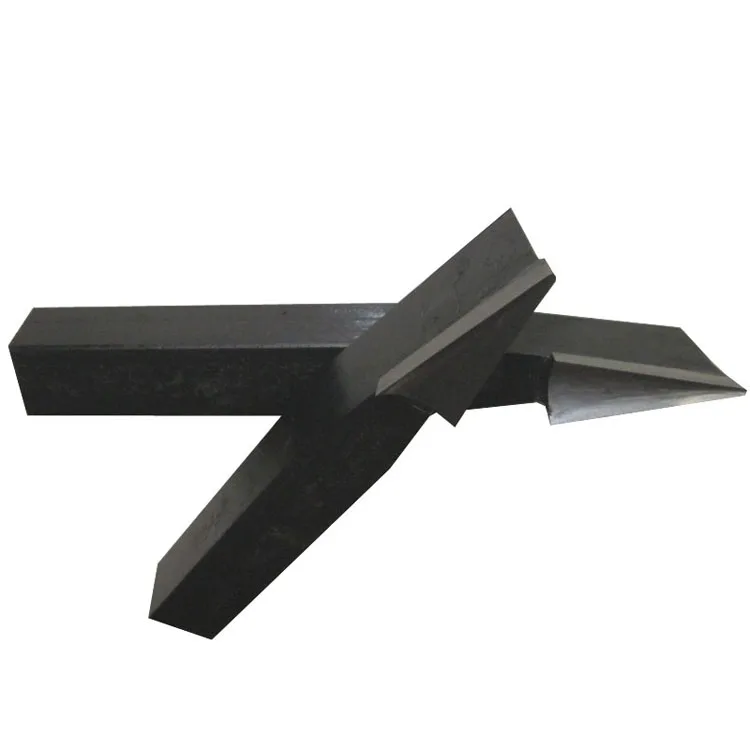

2.Spindle: we could configure single spindle with two pcs cutter or one pc cutter, single spindle could configure chuck, two
cutters could do rough turning and finish turning at the same time for high efficiency and surface quality. (Double spindles has stop to produce again. In fact,the modle is not good to the turning the wood products, it is very slow when turning the big sizes
column, and there have many defects at design to the Double Spindle lathe, Such as the Sanding, Centering, Programming, Upper Spindle Structural Stability etc)
3.Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
4.Feeding part:Taiwan CSK high quality straight line sliding rails and TBI precise ball screw, control the linear error
effectively.
5.High Class frequency converter with high stability
6.Operation system developed by ourself with patent is easy to operate.
Application:

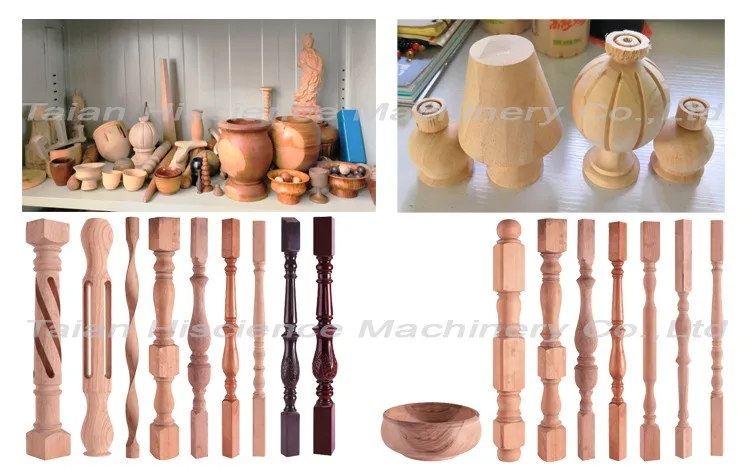

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
1.Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the
problem of materials' vibration.
2.Spindle: we could configure single spindle with two pcs cutter or one pc cutter, single spindle could configure chuck, two
cutters could do rough turning and finish turning at the same time for high efficiency and surface quality. (Double spindles has stop to produce again. In fact,the modle is not good to the turning the wood products, it is very slow when turning the big sizes
column, and there have many defects at design to the Double Spindle lathe, Such as the Sanding, Centering, Programming, Upper Spindle Structural Stability etc)
3.Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
4.Feeding part:Taiwan CSK high quality straight line sliding rails and TBI precise ball screw, control the linear error
effectively.
5.High Class frequency converter with high stability
6.Operation system developed by ourself with patent is easy to operate.
Application:
Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

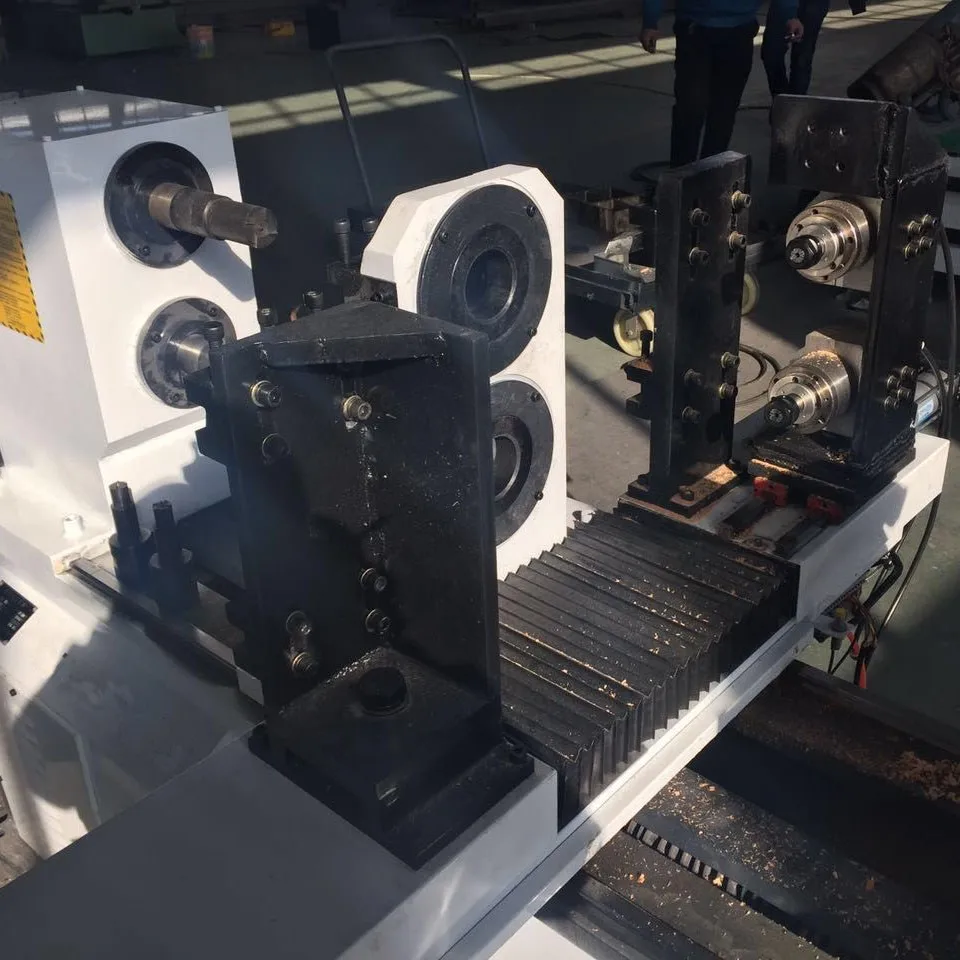

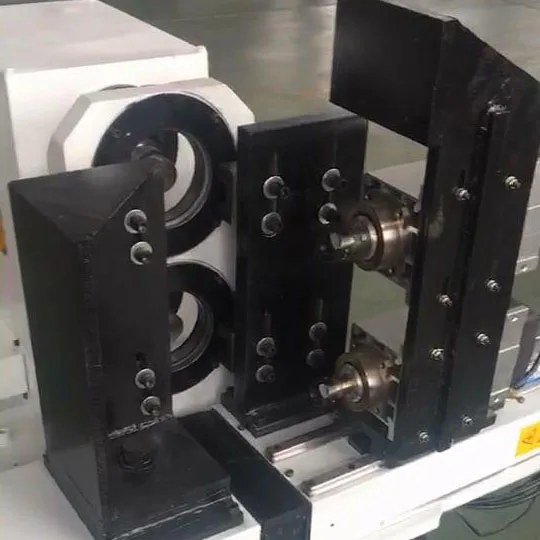

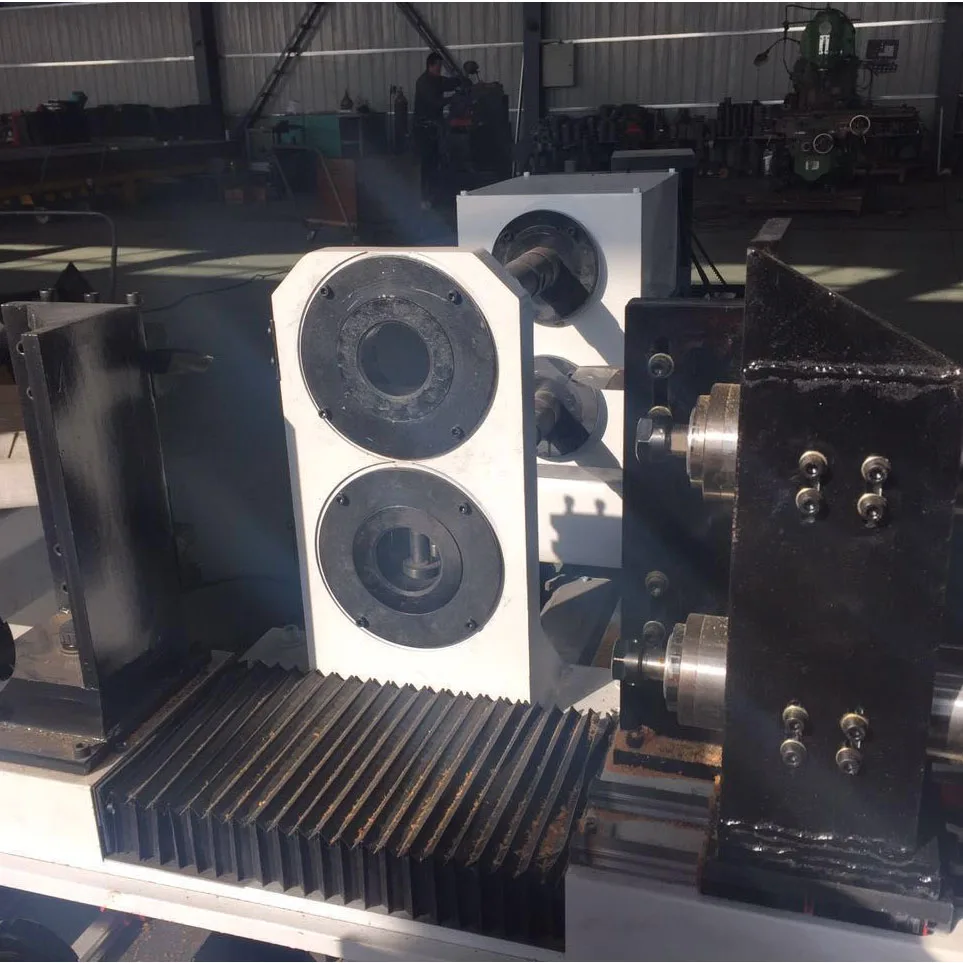

Detailed Images
Product introduction:
The machine is used for wood cutting. Whose character is that the machine can realize arbitrary rotor turning processing with coordination between the longitudinal axis and horizontal axis, then can realize milling, engraving, guarantee the processing product rotational stability, high cutting efficiency.
Functional features:
Upper and lower axis large CNC wood turning and milling machine can cutting up to ø300 wood if just use upper axis. If use double axis and cut 2 wood bar, can up to ø195mm. The machine has turning, milling and engraving function, and processing up to 3m length. The lathe bed is integrally cast, so can guarantee the stability of machine.
Machining range:

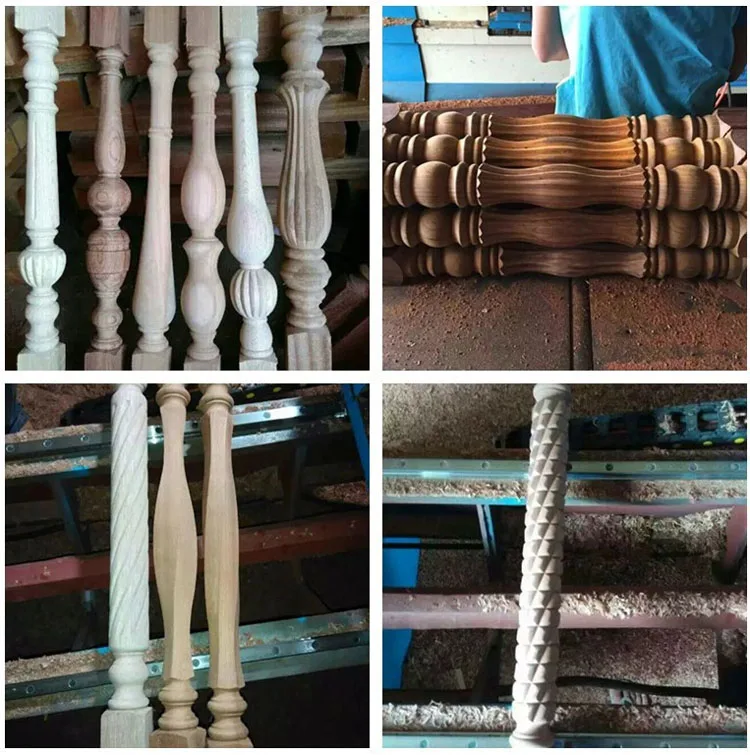

The machine can be used for cutting the headpost, legs of all wood furniture, clothes tree stem, wooden vase,cylindrical, conical, arc and spherical complex shapes of rotors wood or wood semi-finished products.
