impact breaker bar low friction hazemag series APK 30 40 50

Product Overview

Description

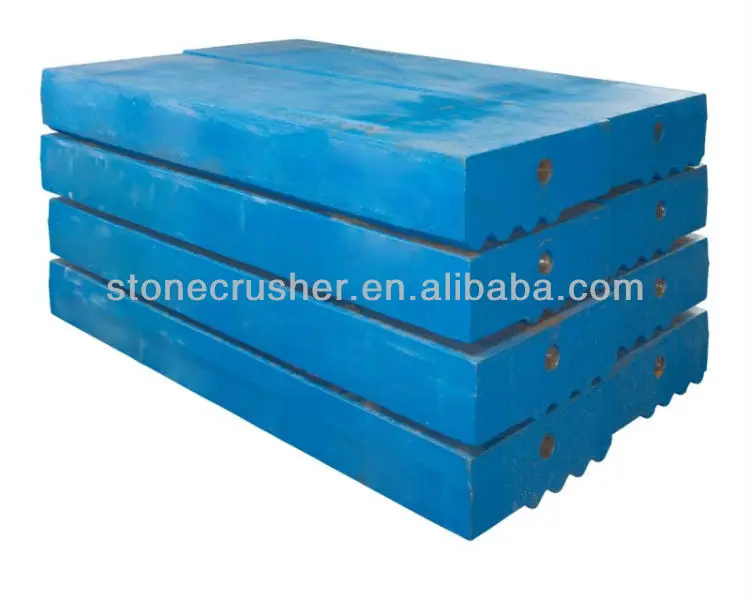

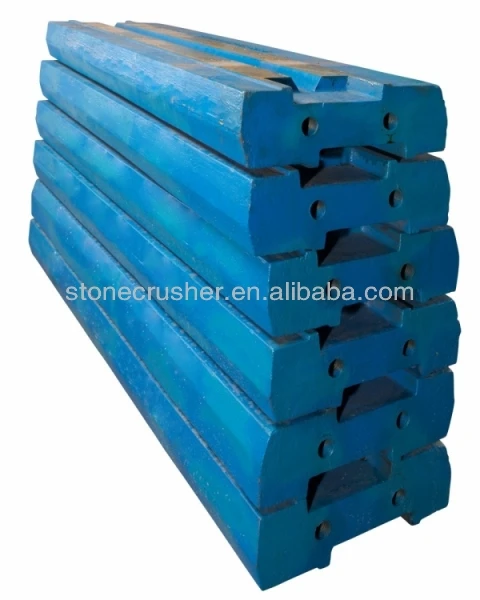

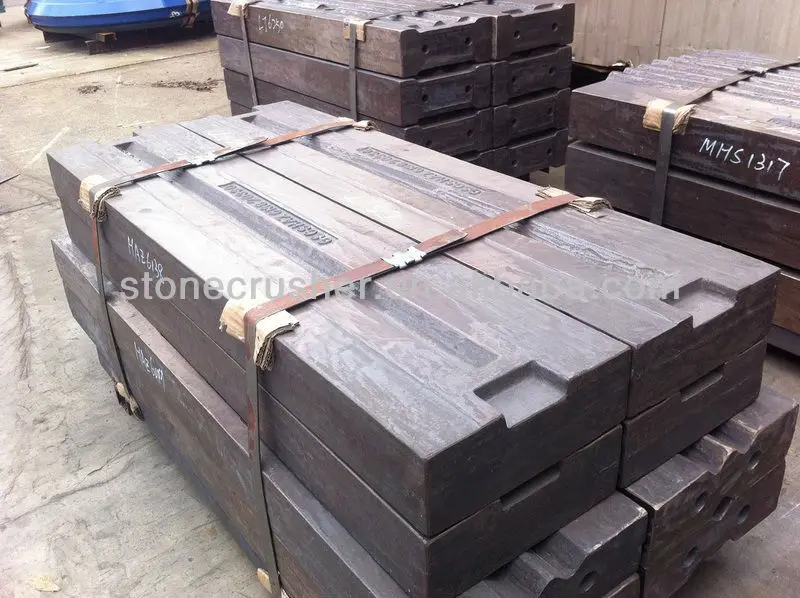

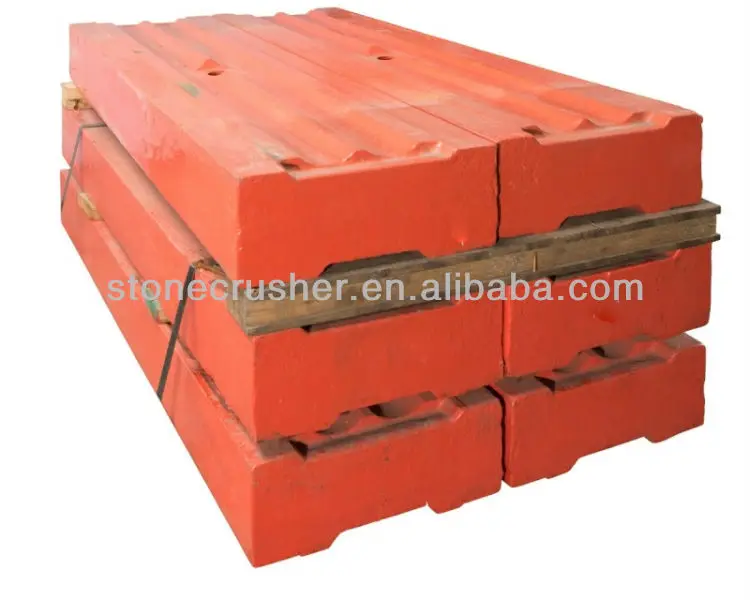

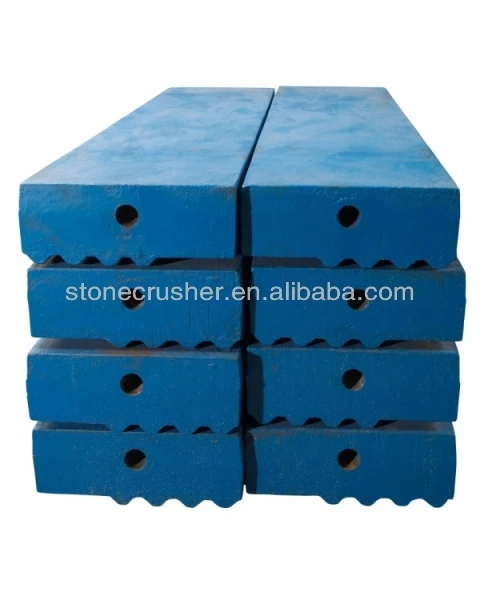

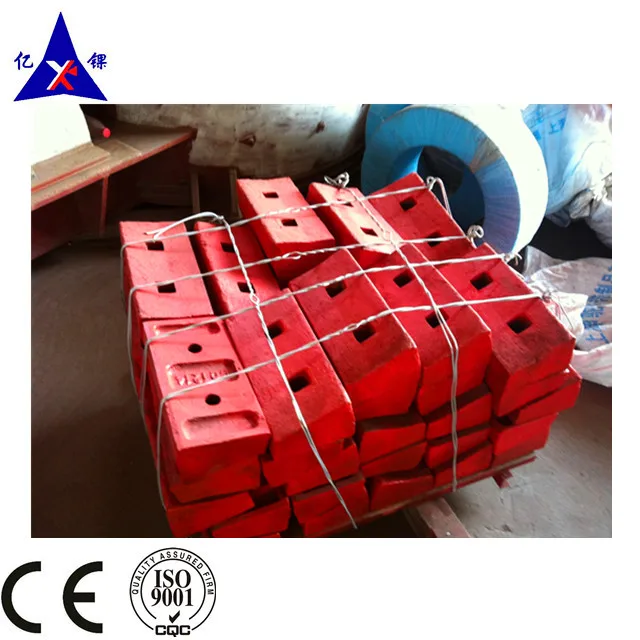

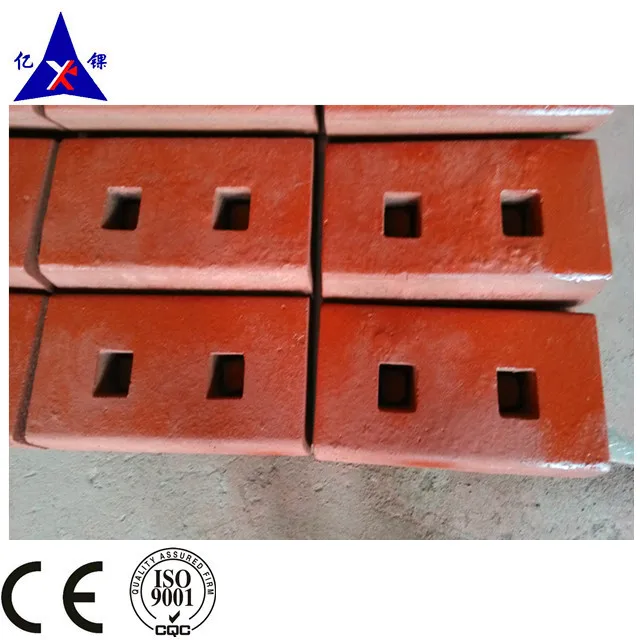

impact breaker bar

Blow bars for  impact crusher(all Chinese brand blow bar and  many famous brand in the world are okay )

1.Material Specifications of blow bar :

High Chrome Casting Material Chemical Composition(%)
Code Elem.	C	Si	Mn	Cr	Mo	Na	Cu	P	S	HRC
KmTBCr4Mo	2.5-3.5	0.5-1.0	0.5-1.0	3.5-4.5	0.3-0.5	-	-	≤0.15	≤0.10	≥55
KmTBCr9Ni5Si2	2.5-3.6	1.5-2.2	0.3-0.8	8.0-10.0	0-1.0	4.5-6.5	4.5-6.5	-	-	≥58
KmTBCr15Mo	2.8-3.5	≤1.0	0.5-1.0	13-18	0.5-3.0	0-1.0	0-1.0	≤1.0	≤0.06	≥58
KmTBCr20Mo	2.0-3.3	≤1.2	≤2.0	18-23	≤3.0	≤2.5	≤1.2	-	-	≥60
KmTBCr26	2.3-3.3	≤1.2	≤1.0	23-30	≤3.0	≤2.5	≤2.0	-	-	≥60





2.Model: for all Chinese brand and many other OEM brand such as hazmag,hartl.etc



Model	Roller size (mm)	Feeding opening(mm)	Max. feed size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PF-1007	Φ 1000x700	400x730	300	35~50	55	9.5
PF-1010	Φ 1000x1050	400x1080	350	50~80	75	10
PF-1010V	Φ 1000x1050	400x1080	350	50-80	55-75	13.2
PF-1210	Φ 1250x1050	400x1080	350	70~120	110	14
PF-1210V	Φ 1250x1050	400x1080	350	70-120	110-132	15.2
PF-1214	Φ 1250x1400	400x1430	350	80~160	132	18
PF-1214V	Φ 1250x1400	400x1080	350	130-180	132-160	20
PF-1315	Φ 1300x1500	860x1520	500	160~260	200	19.3
PF-1315V	Φ 1320x1500	860x1520	500	150-220	180-220	20.5
PF-1316	Φ 1300x1600	860x1520	500	170~270	200	19.5
PF-1516	Φ 1500x1600	860x1580	500	240~290	280	26.5







3.World Most Popular Blow Bar Feature

• Emply the external refining technology, effectively reduced the harmful elements, impurity and oxygen and hydrogen harm, greatly enhanced the abrasion resistance and impact toughness of the steel.


• Using proprietary metamorphic agent for modification treatment, fine grains, improve carbide configuration and distribution, and to improves the abrasion resistance and tenacity.


• Optimizing heat treatment process, make the product of uniform hardness especially, impact abrasion resistance becoming stronger.


•


  Manufactured with hypereutectic super high chromium, our blow bar has a service life 50~100% longer than those made of traditional high chromium iron. The special processing techniques ensure that our flat hammer has leading performance.




  4. More crusher spare parts:



 Shanghai Yike Road & Bridge Machinery Co., Ltd  supply all kinds of  good quality crusher spare parts for many Chinese brand and meto,telsmith,hartl etc



4.1Jaw crusher parts:

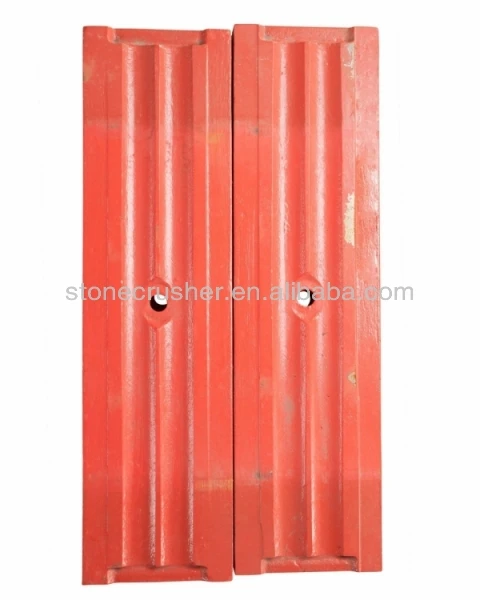

      jaw plate(jaw liner), toggle plate, up guard plate, down guard plate, set adjustment, tension rod,toggle gasket, spring, tension rod,eccentric shaft,end cover, block, moving jaw, frame, spring, bolt and nuts,washer.

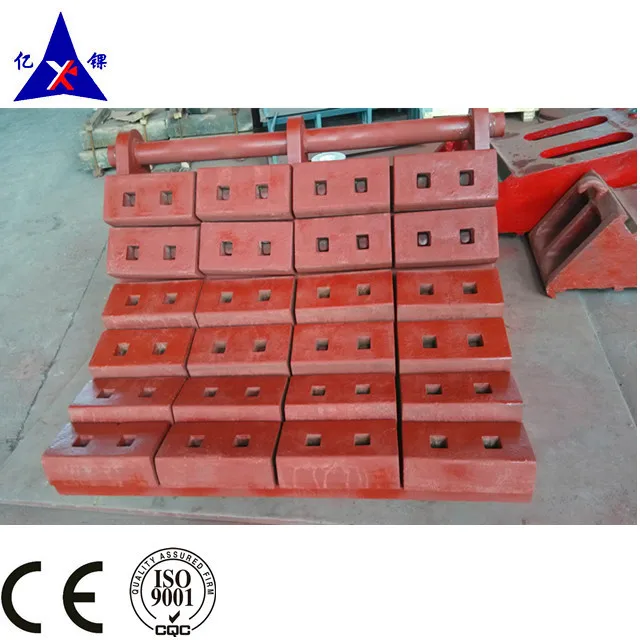

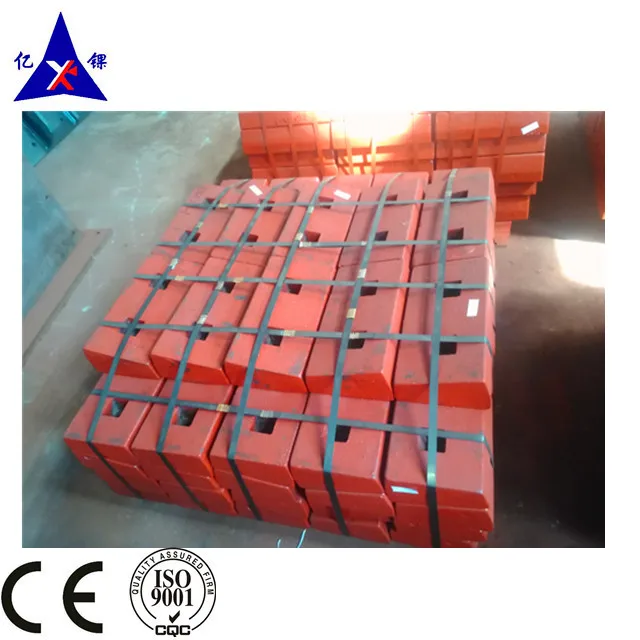

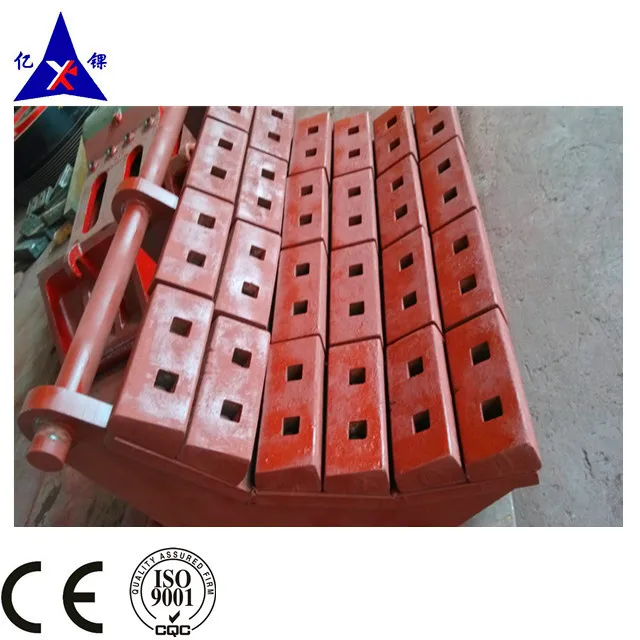

4.2 Impact crusher parts:



      Blow bar(flat hammer),adjustment bar, impact plate,liner plate, frame(impact rack), cover,,bolts,nuts, washer,etc
