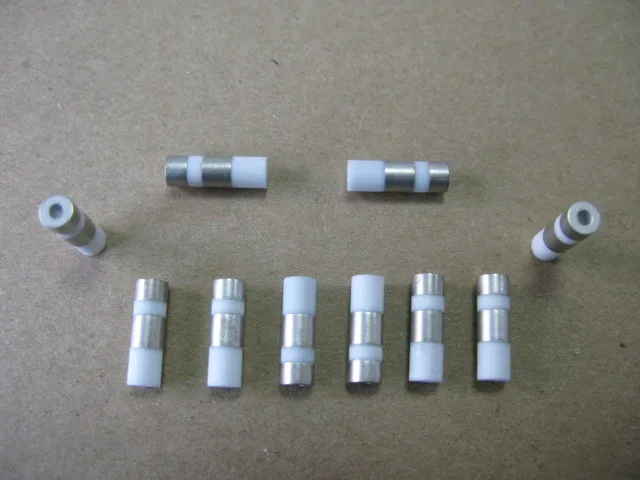

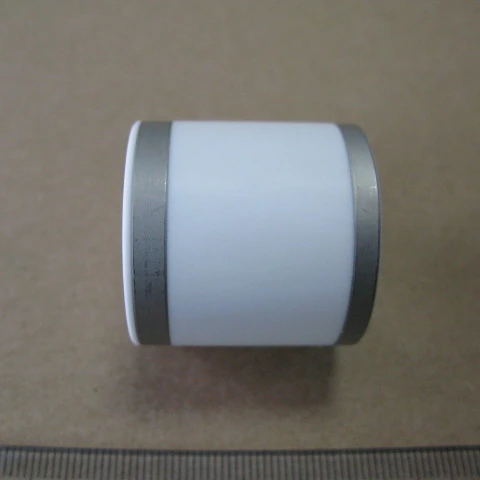

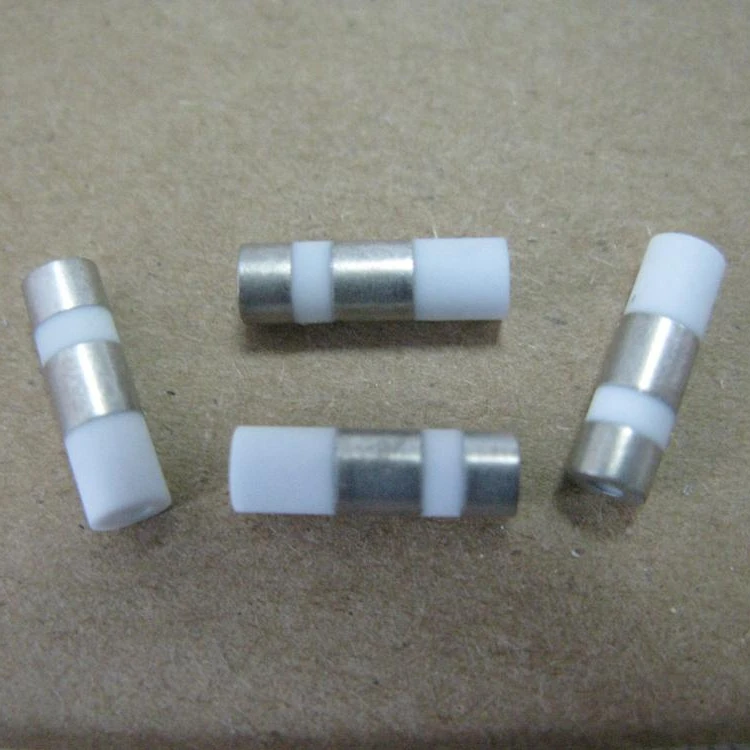

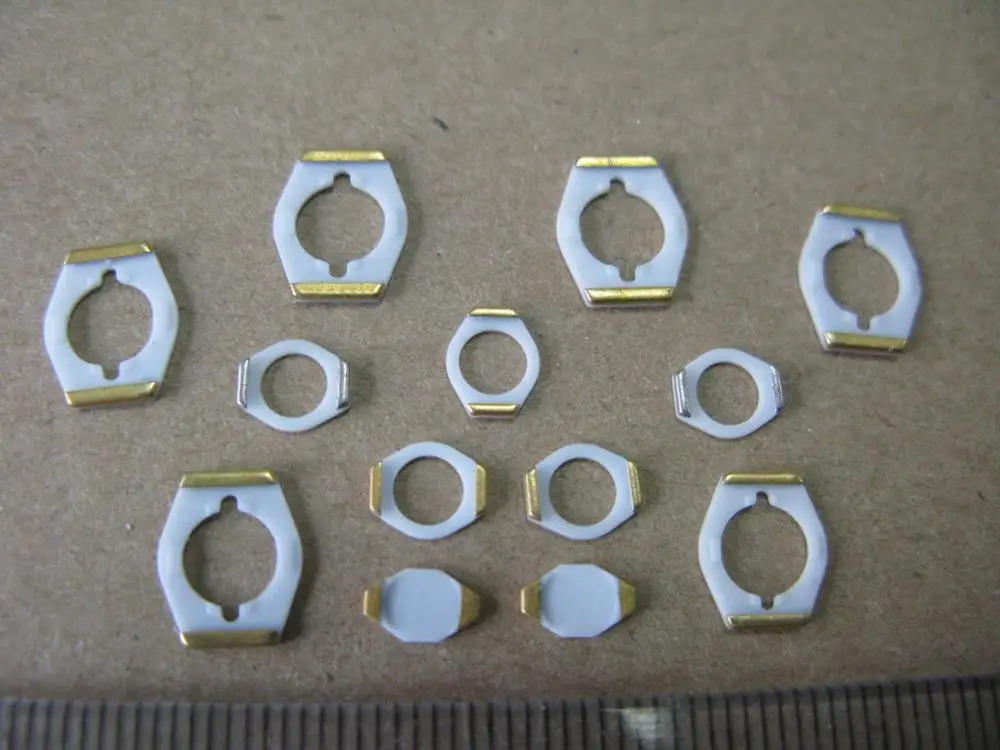

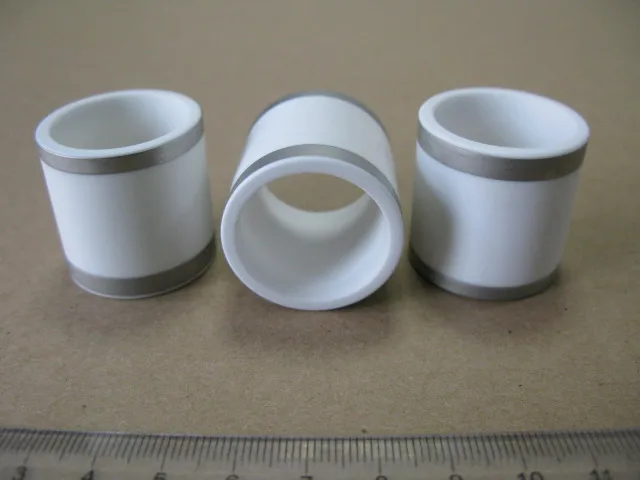

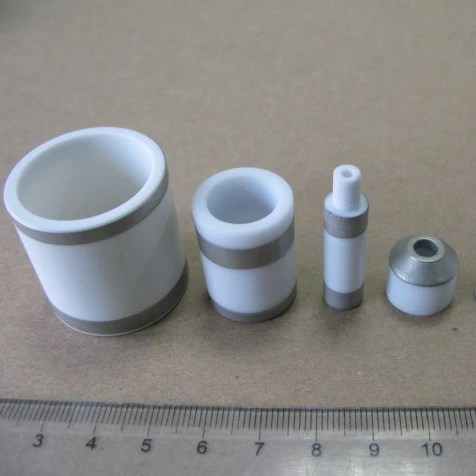

Customized Industrial Metalized Ceramic Components for Brazing

Material : 96.0% alumina or 99.5% high purity alumina with Metalization treatment


- Either Cold Isostatic Press or dry press formed bodies with secondary fine-machining
- High precision and good appearance after metalization

- Easy for brazing with Kovar alloy directly

- High bonding strength after brazing with kovar parts
- Good insulation, anti-magnetic, static electricity-free character for feedthrough use
- Excellent thermal shock resistance and good thermal stability after brazing
- Outstanding bending strength and toughness
- Anti corrosion & abrasion resistance in harsh working environments

- Complying with ROHS and REACH regulations
- Reliable quality, Non-toxic, healthy material, Eco friendly
- Professional ceramic R&D team is available for your requests of various metalized ceramic parts


Product Name
Customized Industrial Metalized Ceramic Components for Brazing
Compositions
96.0% alumina or 99.5%  high purity alumina (Al2O3)
Metalization
Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating
Mo+Mn Layer
25 +/-10μm in thickness
Nickel Layer
2 -10μm in thickness
Material Density
3.90 g/cm3
Tolerance
+/- 0.005mm
Finishing
Ra 0.02
Max. Using Temperature
1650 oC
Using Fields
Feedthrough, Fuel cell, PVD or CVD machines, Measuring Pump, cotrolling valves,  Motor, ventilation fan


Metalized Ceramic








Belows are the Various Standard Alumina Performance Characters Data Sheets

& Various Zirconia Performance Comparison sheets with other ceramic materials















Production Equipment


Press Machines

We can provied extrusion, dry press and CIP press forming for ceramics green bodies.

Sinter Furnaces

We have many electric sintering furance with different size available for green body sintering use.

Quality Control

Passed the ISO9001:2008 quality system authentication and ROHS authentication.



Our Company


Factory Birdview

Our factory for metalized ceramic components production

Workshops View

Our workshops for metalized ceramic components production





Packing & Delivery


Packing Details: Individual bubble bags for each metalized ceramic part, seaworthy package

Delivery Details: 30 days after purchase order of metalized ceramic parts was issued



1. Shockproof bubble bags for each metalized ceramic component separately in carton
2. All cartons are loaded in ply-wood standard pallets with plastic films wraped
3. All shipping methods are available for your choice


FAQ


Q: Are you trading company or manufacturer?

A: We are a professional ceramic factory with exporting office in Shanghai.



Q: How long is your delivery time for metalized ceramic components?

A: Generally it is 30 days for our metalized ceramic parts after your purchase order was issued to us



Q: Do you provide samples of metalized ceramic components? is it free or charged?

A: Yes, we could offer the sample of metalized ceramic components for free, but don't afford freight.



Q: What is your terms of payment for metalized ceramic components?

A: Payment<=1000USD, 100% in advance before shipping.

     Payment>=1000USD, 30% T/T in advance ,balance before shippment.


If you have any other question for our metalized ceramc products, pls feel free to contact us as below:
