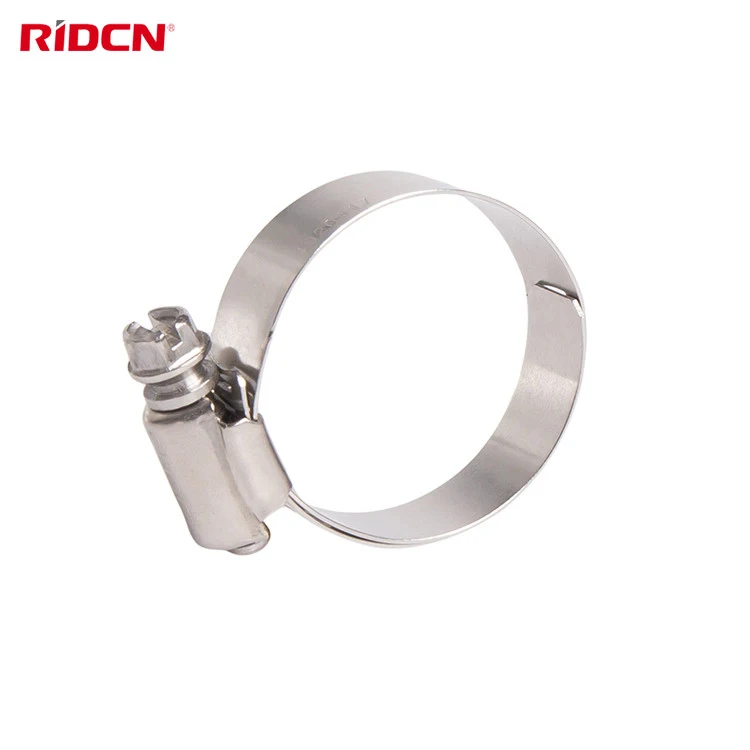

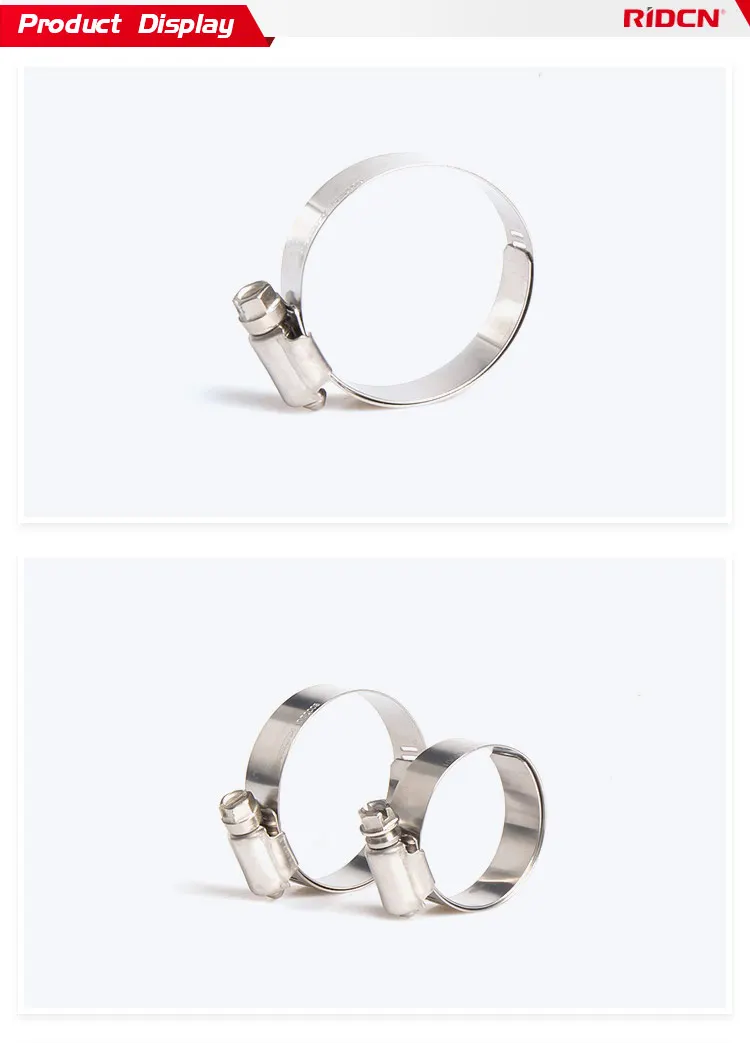

Shielded Worm Drive Clamp Worm Gear Clamp

Product Overview

Description





Features:

Most commonly used general purpose worm gear clamps

The bands have punched rectangular perforations that hold strong and connect easily.

Specifications:

Material: band and housing are 304 stainless steel ( 201stainless steel is available )

Band Width:12.7mm(1/2 inch)

Band Thickness: 0.7mm or 0.6mm

Screw: 8mm(5/16 inch) slotted hex head, plated with zinc for long lasting protection

Applications:

Worm drive hose clamps are designed to fasten the joint of two soft hoses.They are used in various fields such as automobile, motorcycle, industrial machine, fire-fighting, home appliance, cable,ship building, agricultural irrigation, etc.



Part NO.	Diameter Range	Band width	Thickness		Torque
	(mm)	(mm)	(mm)	(mm)	(N.m)
60B	40-60	12.7	0.6	0.7	6.4
70B	43-70	12.7	0.6	0.7	6.4
70B	50-70	12.7	0.6	0.7	6.4
75B	55-75	12.7	0.6	0.7	6.4
90B	70-90	12.7	0.6	0.7	6.4
95B	75-95	12.7	0.6	0.7	6.4
114B	90-114	12.7	0.6	0.7	6.4
127B	103-127	12.7	0.6	0.7	6.4
Note:We customize clamps according to your special requirements.               Other sizes and alternate materials are also available.
