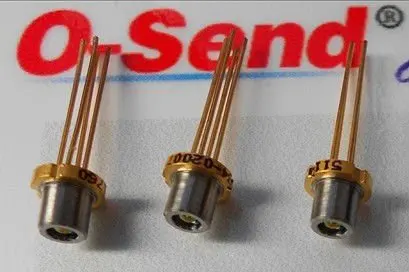

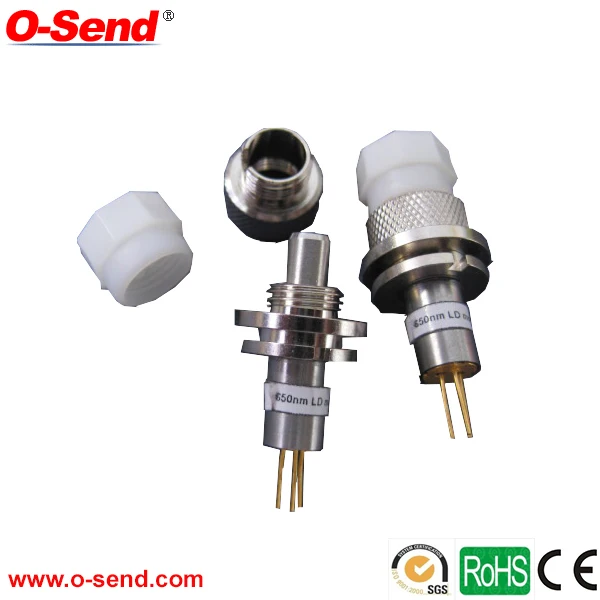

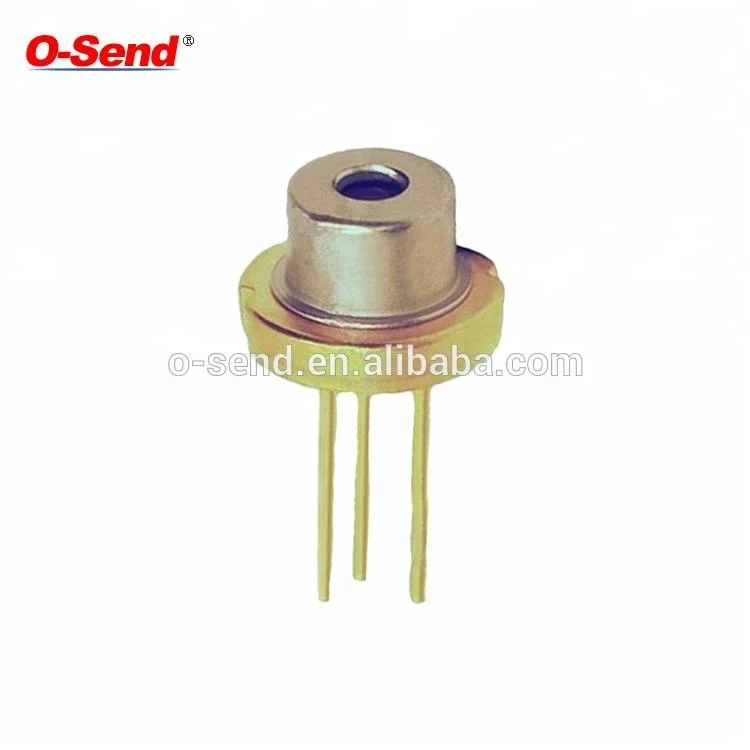

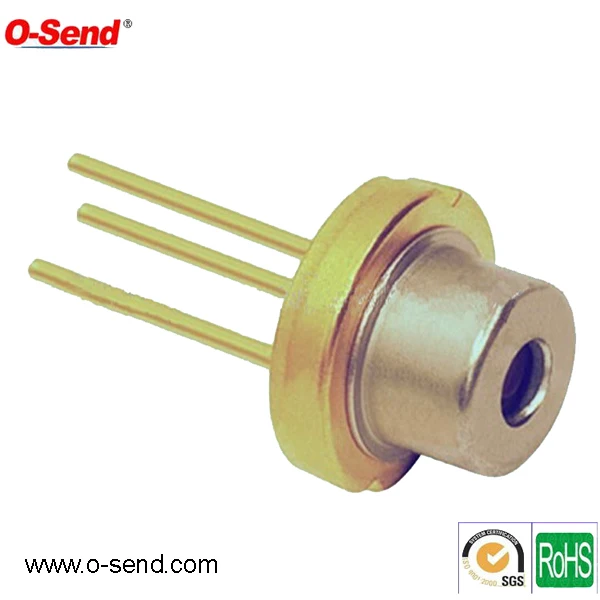

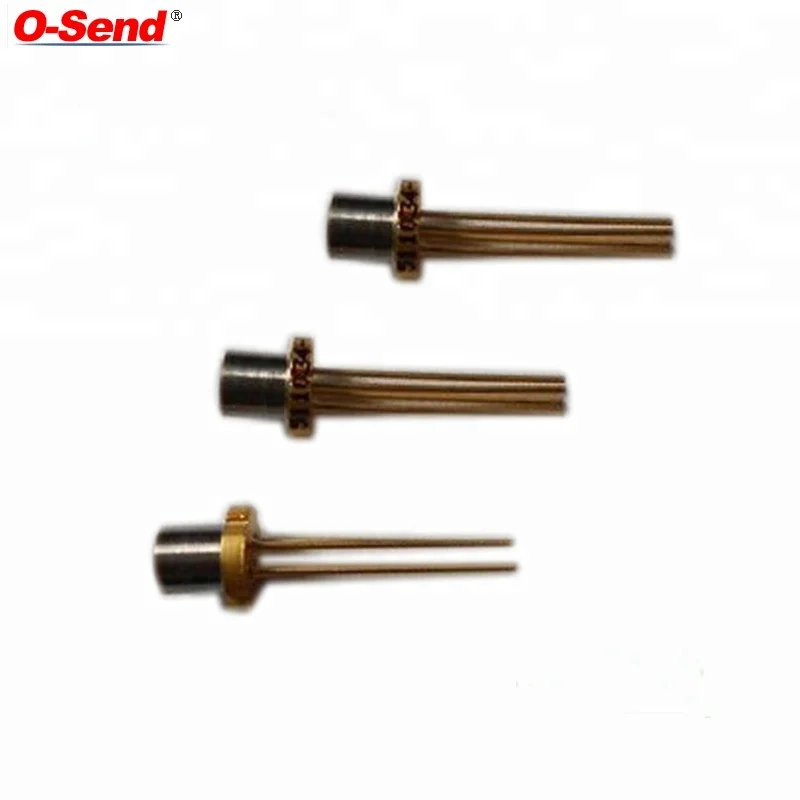

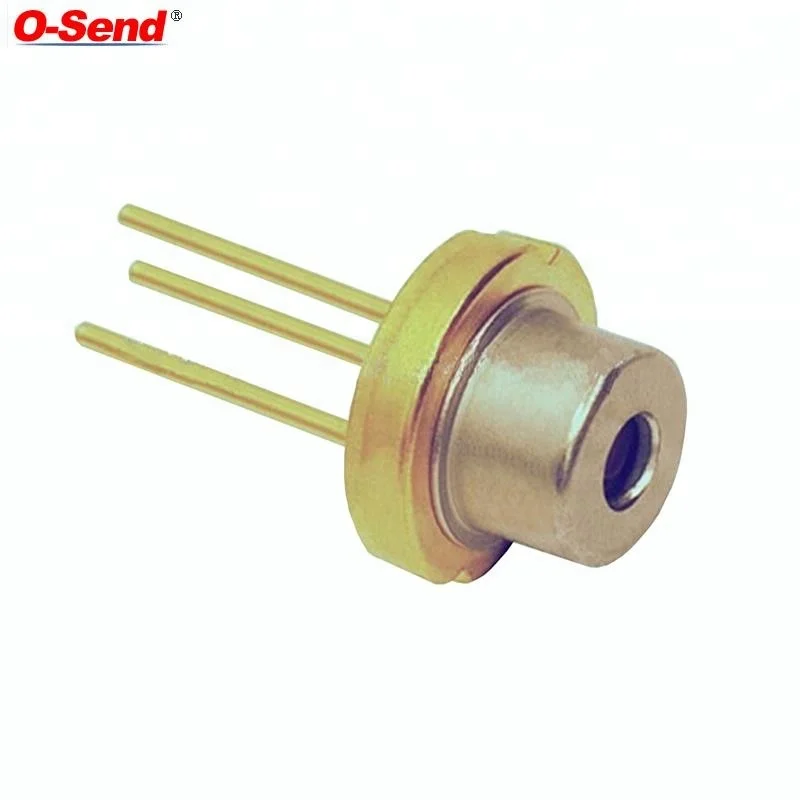

O Send 650nm 100mw~500mw laser diode
- Category: Diodes >>>
- Supplier: O-Send Opto-Electronics (Chongqing) Co. Ltd.
Share on (62165167991):
Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
Optical&electrical characteristics(Tc=25℃)
| Parameter | Symbol | Test condition | Min | Typ | Max | Unit |
| Output power | Pout | lop=150mA | - | 100 | - | mW |
| Center wavelength | λ | CW | 620 | 635 | 650 | nm |
| Spectral width | Δλ | CW | - | - | 5 | nm |
| Threshold current | lth | CW | - | 50 | - | mA |
| Operating voltafe | Vop | CW,lop=150mA | - | 2.2 | 2.6 | V |
| Rise/Fall time | Tr/Tr | CW | - | - | 0.5 | ns |
Related Products
Certifications
Packaging & Shipping
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
Different amount of time will be required for differentCompany Information
Founded in May 2004, and specializes in active component and passive component for telecommunication, data communication, FTTH(G/EPON,PON+EOC,RFoG)and CATV (CMTS) industries. Product lines include Laser Diode Module(Coaxial/Butterfly/DIP), Photo Diode Module, CWDM module, Optical Transceivers (Bi-di, ,SFP,SFP+), TO-Can assembly and passive component.
O-send Opto-Electronics(Chongqing)Co., Ltd, locates in ChaYuan, Chongqing, south west of China, covering an area of about 2500 square meters and with more than 120 staff.
