Jinan manufacturer CAMEL CA 13 home used small mini cnc wood turning lathe for small crafts
- Category: Wood Lathe >>>
- Supplier: Jinan Camel CNC Machinery Co. Ltd.
Share on (62165464883):
Product Overview
Description
Hot Selling
Jinan manufacturer CAMEL CA-13 home use smal mini cnc wood turning lathe for small crafts
Advantage:
1.Computer numerical controlled
2. 600 kinds drawing gallery special for round beads
3. Professional wood beads machine control system , easy to operate
4. Super quality wood lathe cutter special for any kind of wood,with long lifespan
5. Imported square guide rail and high precision ball screw transmission
6. high precision and stable working performance
Operate way:
1.Input required drawing in the software
2.Set Bead diameter, select the shape, size.
3.No programming, easy to use.
4.You can also design your own style, drawing of contour line, also can support BMP, JPG etc format
Cutter lifespan:
Adopt super hard alloy CNC cutter,no wear for turning and milling red wood.
Such as processing 3000 pieces Lobular red sandal wood whose with diameter 2cm, no need changing cutter.
Processing speed:
For example:
1.2 size beads shall prevail, Lobular Rosewood automatic Hole, 38 seconds per piece , 30 seconds without holes.
2.Phoebe play hole turning 25 seconds per piece,19 seconds without punching;
3.5cm diameter handball, 2 minutes one piece.
4.5cm diameter and 11cm length hand-grip gourd needs 5 minutes
Parameters:
NO. Description | Parameter | |
1 | max process length | 300mm |
2 | process beads diameter | 3-130mm |
3 | machine size | 1000*700*660mm |
4 | transmission way | Ball screw with imported bearings |
5. | orbit | Square guide orbit |
6 | Interface | internet wire |
7 | system | Professional beads making |
8 | Surroundings for software | windows98/2000/XP/WIN7/WIN8 |
9 | Power | 1.5KW |
10 | Working voltage | AC220V 50/60Hz |
11 | Drawing software | CAD |
12 | Drawing format | *.dxf |
13 | Driving system | Stepper motor and driver |
14 | cutter | Super hard alloy wood lathe cutter |

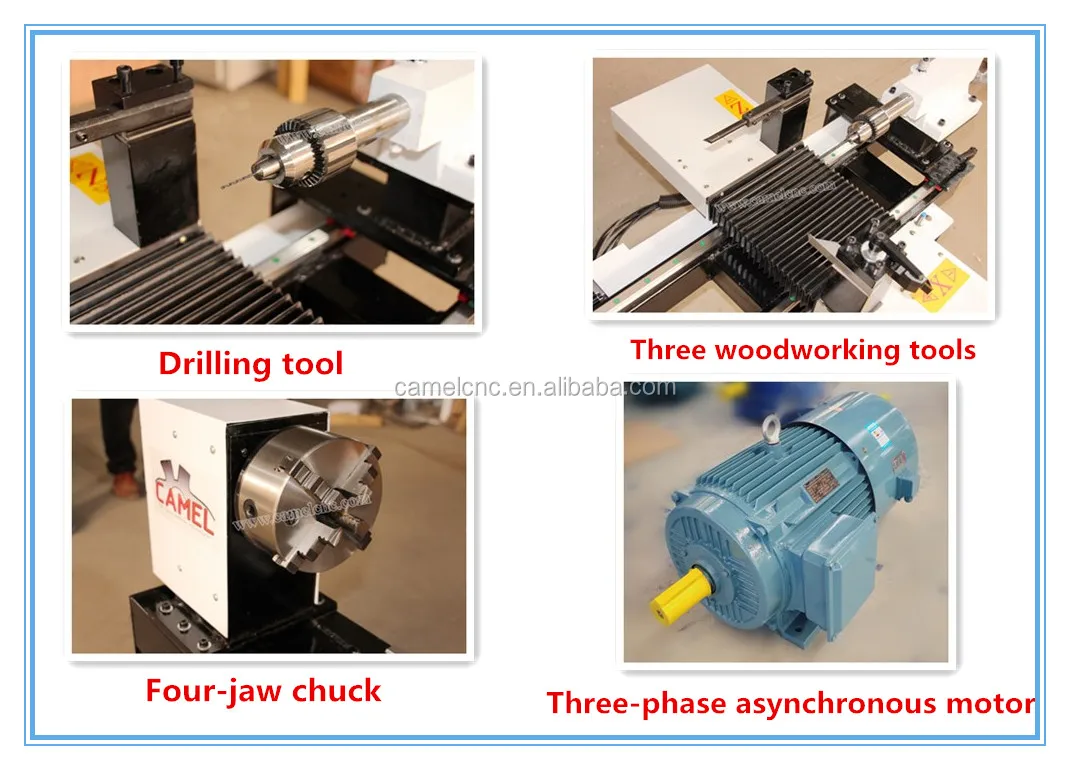

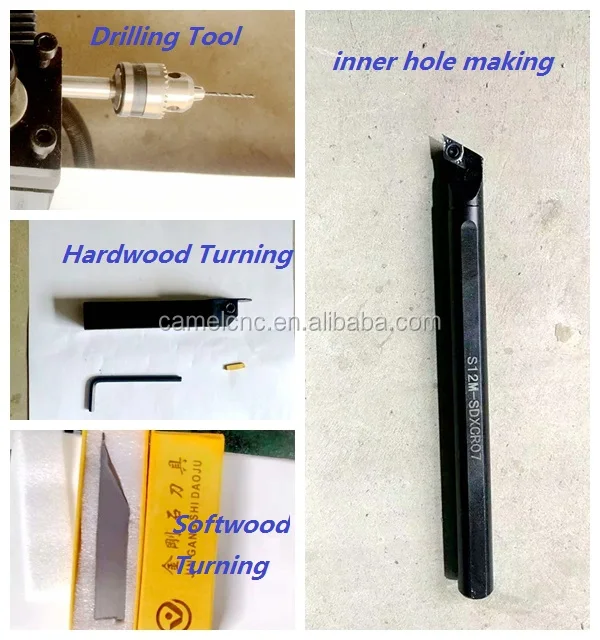

Accessories
Samples
Application:
Bead, barrel, all kinds of Buddha head pagoda, gourd pendant, hoist pieces, wood rhinoceros-horn, cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, wooden handle etc
Packaging & Shipping
Inside Packing
Use professional Stretch Film to cover the whole lathe
Stretch film package with foam protection in each corner.
Outside Packing
Standard export wooden cases and pylwood cases
Save space as much as possible for container loading.
Transport
We support shipping, air, land and express
You can choose the most suitable way of transport
Company Information
Company Profile
Jinan Camel CNC Machinery CO.,LTD is an independent international business company under The CAMEL Group,we are leading enterprise specializing in manufacturing, marketing and R&D of cnc router, laser, plasma cutting machine, fiber laser cutting machine Panel furniture production line, CNC working center, CNC wood turning lathe, CNC spare parts and other CNC machines.
We are committed to providing customers with high quality products, competitive prices and excellent services.
With superior performance to price ratio, high quality, and perfect post-sales service, our products expands largely and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.
Workshop Show
Why Choose Us
For over 10 years development, our efforts bring us stable customers from home and abroad. Our products have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia,etc.
FEEDBACK FROM ALL OVER THE WORLD
Exhibitions
Our Service
Service
- Two years machine warranty ,during the warranty period , if any parts broken, we change a new part for you freely.
- All machines are debugged before shipment.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
- 24 hours on line or phone or by email technical support.
- Longlife time freely provide technical support .
- One year , freely guarantee
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
Warranty
(1). The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after-sale service in time and professionally.
(2). we also offer 24 hours heart to heart service on-line or mobile.
(3).Your technologists could attend the training in our factory and on-line which be free of chaege
(4).The warranty of CNC lathe is 24 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
(5). We offer you best agent price and distributer price for our further cooperation .
(6). we can offer special custom-made according to your request.
