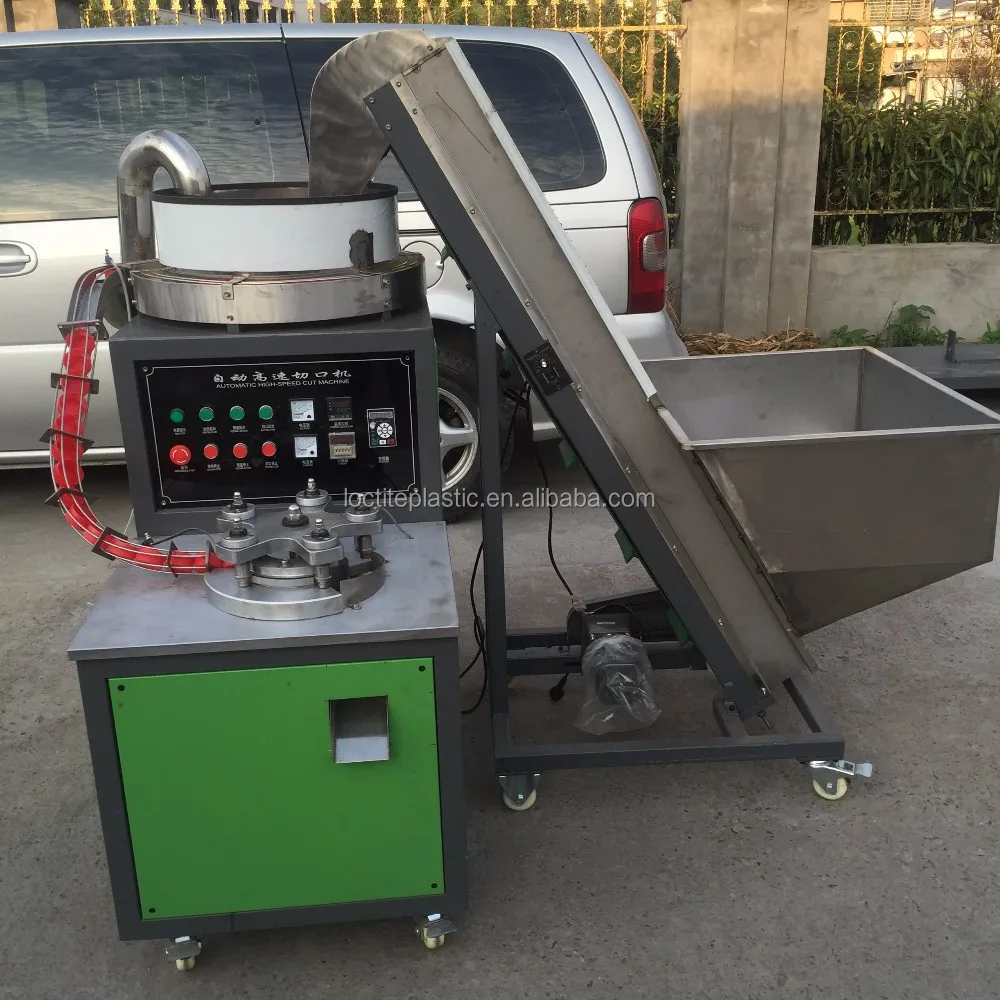

Cap folding and slitting machine

Product Overview

Description

Video website: https://www.youtube.com/watch?v=4FqH0ELsSWI

Video website: https://www.youtube.com/watch?v=VPAX6MKdzdM

1.  Detailed Product Description

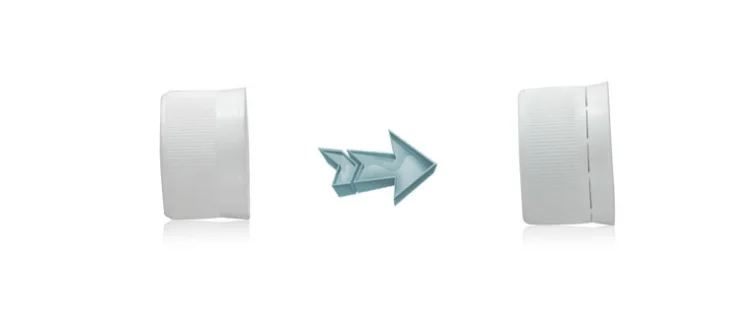

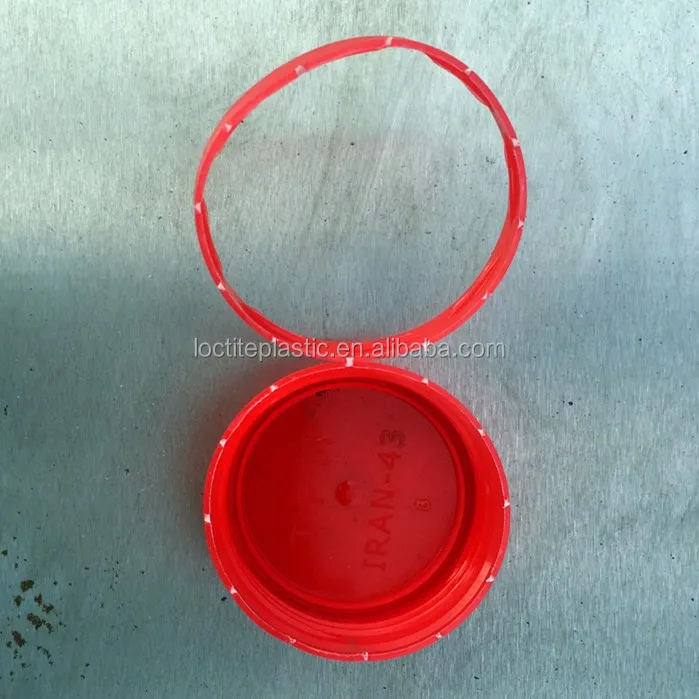

The machine is used to cut bottle cap anti-theft ring.The machine combined with gas system,

PLC automatic control to tidy cap and output cap, and also adjusts the depth of kerfs,and guard against theft

ring height. The cap made by this type of machine will be more beautiful.

The development of this machine could greatly increased the production efficiency,
and effectively solves the inner pad health and leakage problems.The advancement of this machine is small-size, high-produce efficiency and easy-operated.

The cap liner made by this machine can be even more smooth and beautiful, it also will be accord with national food
hygiene standards for the good leak proof performance and strong pressure resistance.

 2.  Specifications

• Type: LT-C1


• Cap diameter: 25-65 mm


• Cap height: 10-30 mm


• Capacity: 17000-22000 pcs/hr


• Installed electrical power: 1 KW


• Total power: 0.7 KW


• Supply voltage: 220V,50Hz


• Compressed air consumption: up to 600N1/min


• Machine weight: 180 KG


• Machine size: 1670mm×670mm×1280mm


• 3.  Process Flow


  The company has successfully developed different specification of hydraulic cap compression molding machine,
  attaching cap folding machine,automatic cap slitting machine and automatic cap lining machine .
  The type of LT-C1 hydraulic bottle cap molding machine has applied for national patent.





•


  After many years of production practice, the company qiaobo accumulated the rich cap machinery manufacturing experience.
  In order to make the ‘made in LOCTITE’ become the industry benchmark,
  the company has invested a lot of money and equipped with advanced mechanical processing equipment,
  imported and cultivated the professional and technical personnel. Actively improved the production technology and made continuous innovation.






•


•
