Humidity And Temperature Sensor Probe
US $35.00-$48.00
SF 191 touch screen refrigerator thermostat on off temperature controller
- Category: Temperature Instruments >>>
- Supplier: Zhongshan Shangfang Instrument Meter Co. Ltd.
Share on (62166799987):
Product Overview
Description

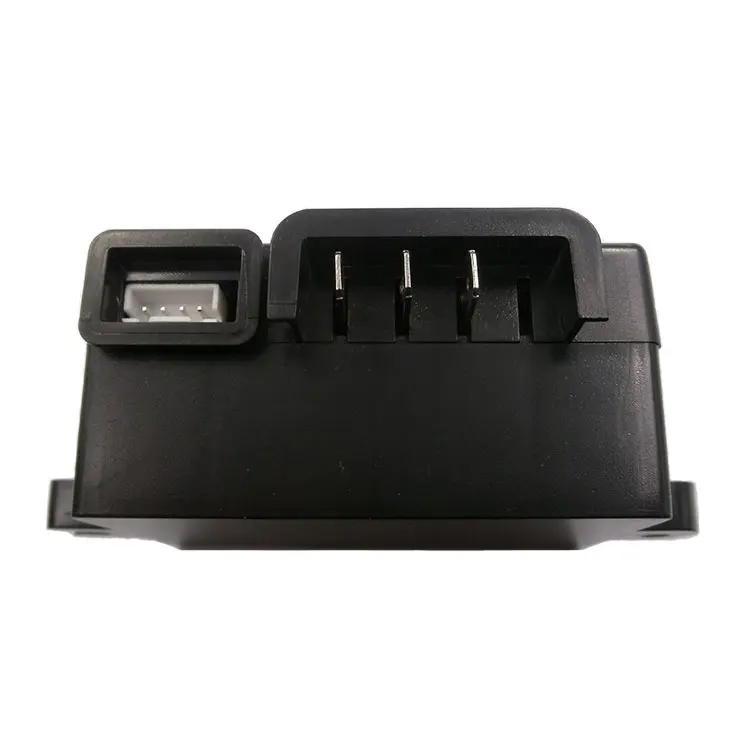

SF-191 touch screen refrigerator thermostat on off temperature controller
Features
Temperature control
Evaporator fan control
Defrost by turning off compressor
Technical Data
Range of temperature displayed : -45~99℃
Accuracy:±1℃

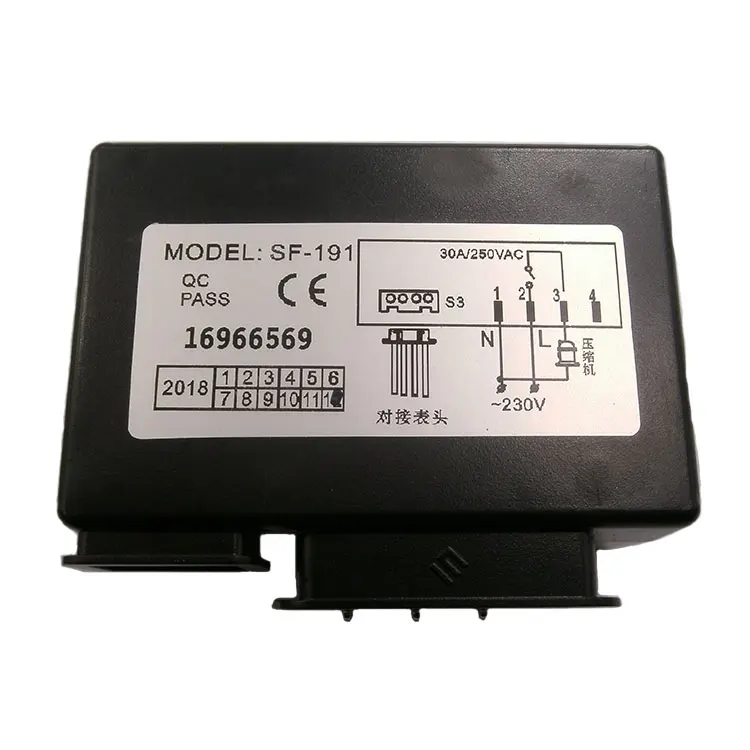

Compressor: N.O. 30A/250VAC
Dimension:149.5(Length)×124(Width)×30(Depth)mm
Mounting hole dimension:138(Length)×108(Width)mm
Temperature control
Evaporator fan control
Defrost by turning off compressor
Technical Data
Range of temperature displayed : -45~99℃
Accuracy:±1℃
Compressor: N.O. 30A/250VAC
Dimension:149.5(Length)×124(Width)×30(Depth)mm
Mounting hole dimension:138(Length)×108(Width)mm
Parameter | Function | Set range | Default |
E1 | Lower setpoint limit | -45℃/-49℉~Set temp. | -10℃/14℉ |
E2 | Higher setpoint limit | Set temp.~45℃/113℉ | 10℃/50℉ |
E3 | Temp.hysteresis | 01~10℃/02~18℉ | 04℃/07℉ |
E4 | Comp.start delay time | 00~10Min | 2Min |
